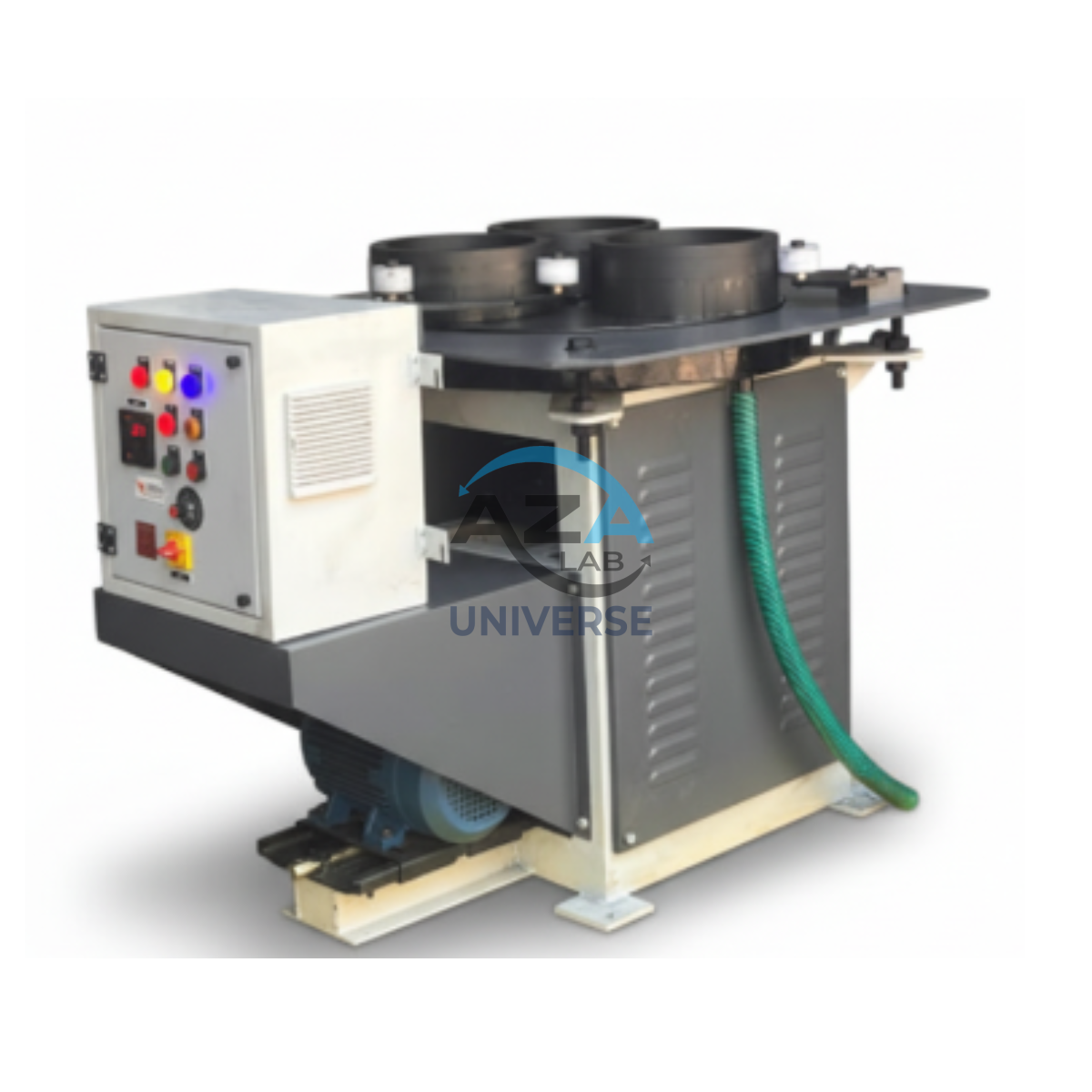

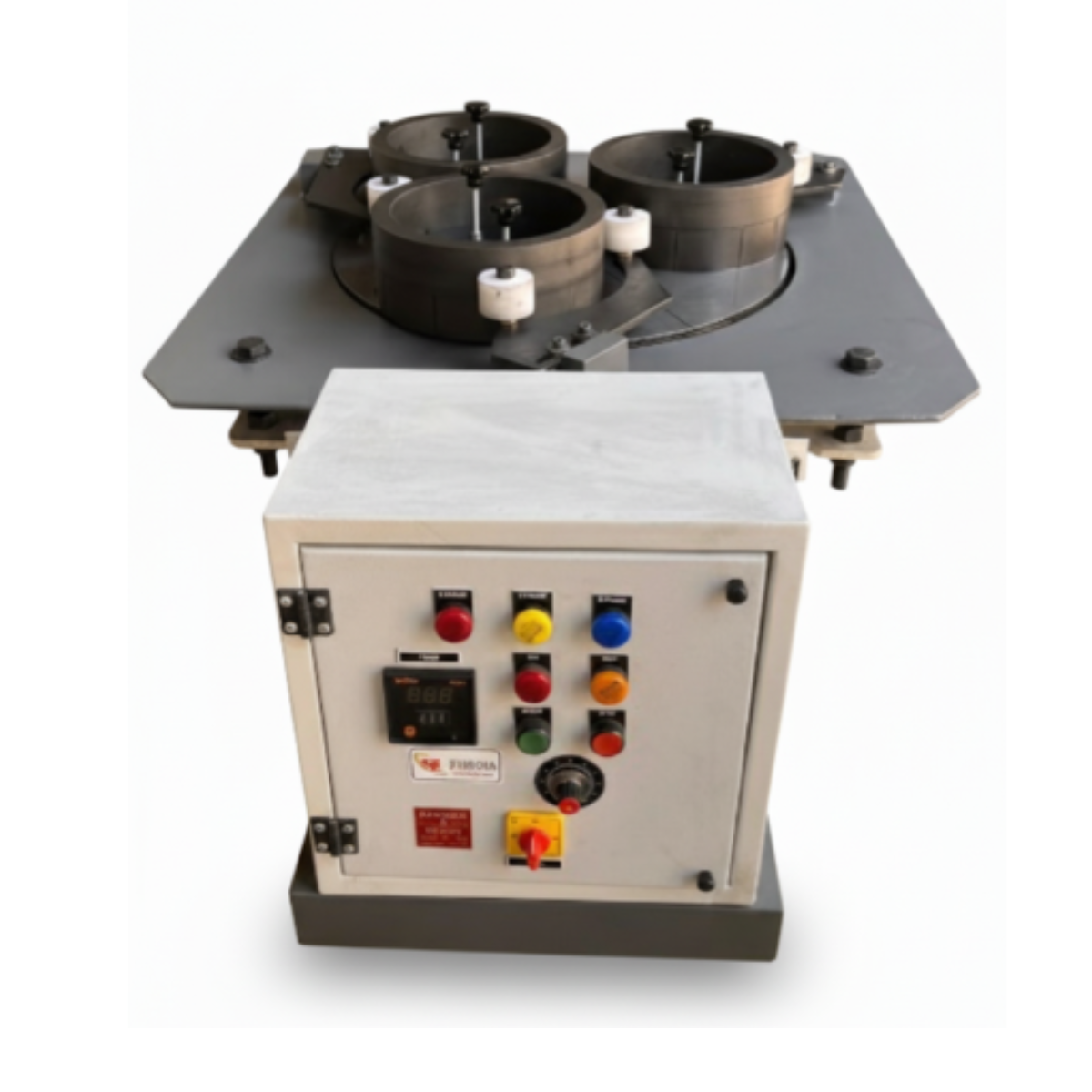

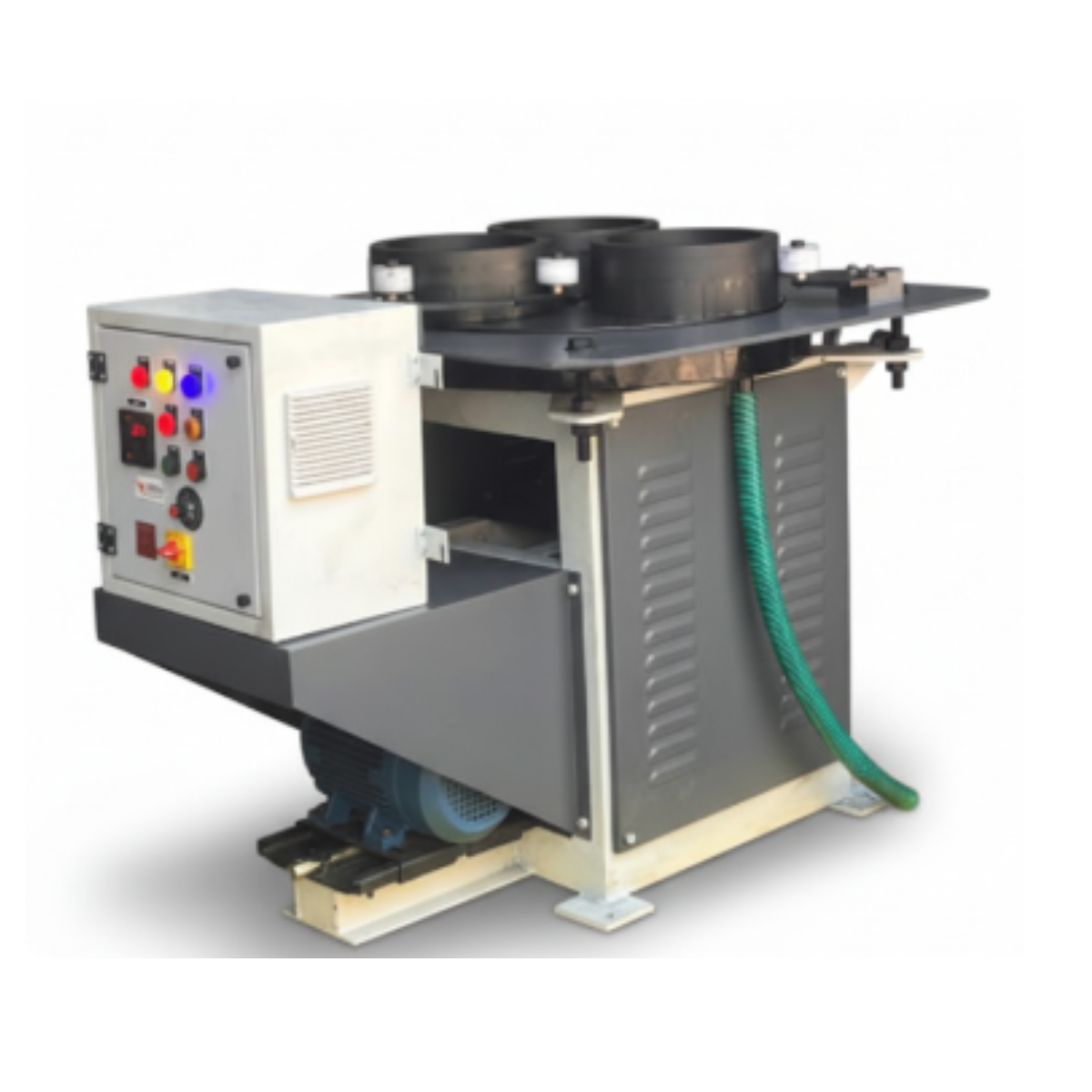

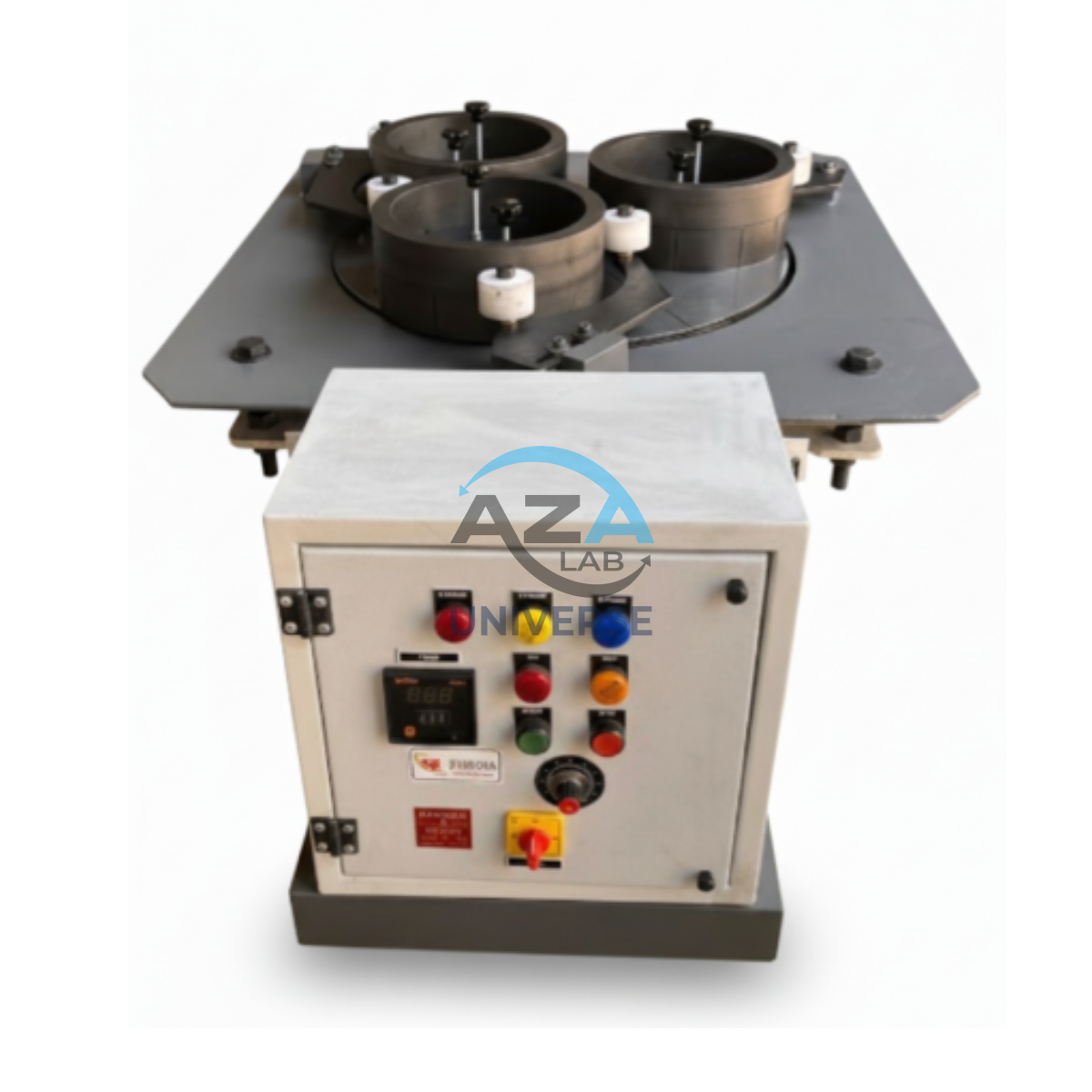

Open Face Lapping Machine AZA1311
The AZA Lab Universe Model 1311 Open Face Lapping Machine is designed for precision flat surface finishing on metals, ceramics, optics, and semiconductor components.
Its rigid welded tubular steel frame supports the gearbox, drive motor, and worktable, ensuring vibration-free operation and long service life.
This model includes:
- Diamond slurry dispensing system
- Integrated abrasive compound feed
- Waste collection tanks behind lift-off panels
- Cast iron lapping plate with serrated pattern
Built for industrial labs, R&D centers, and production facilities, this machine delivers repeatable, high-accuracy results with ease of operation.
Description
Key Features
-
Rigid welded steel frame for maximum stability
-
Cast iron lapping plate with serrated pattern for efficient abrasive distribution
-
Three conditioning rings to maintain plate flatness during operation
-
VFD-controlled speed for precise process control
-
Integrated slurry system for consistent abrasive flow
-
Waste management tanks with easy-access panels
-
Supports up to 350 kg per conditioning ring
Recommended Accessories & Consumables
-
Diamond Slurry Dispenser
-
Abrasive Compounds (Diamond, SiC, Al₂O₃)
-
Conditioning Rings (Spare Set)
-
Calibration Test Plates
-
Coolant Collection System
Optional Product – Hand Lapping Plate
For manual finishing operations, AZA Lab Universe offers precision Cast Iron Hand Lapping Plates:
-
Ø200 mm (8”)
-
Low porosity grey cast iron (Grade 300)
-
Waffle groove pattern for slurry retention
-
High wear resistance and long service life
-
Excellent flatness and parallelism
| No. | Description | Specification |
|---|---|---|
| 1 | Lap Plate | Cast Iron (Serrated Pattern) |
| 2 | Lap Plate Diameter | 915 mm (36”) |
| 3 | Number of Conditioning Rings | 3 |
| 4 | OD of Conditioning Ring | 410 mm |
| 5 | ID of Conditioning Ring | 368 mm |
| 6 | Height of Conditioning Ring | 90 mm |
| 7 | Max Load Per Conditioning Ring | 350 kg |
| 8 | Lap Plate Speed | 0–50 RPM (Variable, VFD Controlled) |
| 9 | Main Motor | 415V AC, 3 Phase, 50 Hz |
| 10 | Main Drive | 5 HP (Snyder Make) |
| 11 | Timer Range | 0–99 Minutes |
| 12 | Input Power Supply | 5 HP, 3 Phase, 415V AC (220V Available) |
| 13 | VFD Specification | 5 HP, 3 Phase, 1–200 Hz |
| 14 | Machine Dimensions (L×W×H) | 1650 × 1300 × 1700 mm |
| 15 | Machine Net Weight | 1200 kg |
| 16 | Wooden Box Dimensions | 1750 × 1400 × 1800 mm |
| 17 | Wooden Box Weight | 1400 kg |
-
Aerospace & Automotive Components
-
Mechanical Seals & Pump Components
-
Optical Lenses & Mirrors
-
Semiconductor Wafers
-
Surgical Instruments & Implants
-
Precision Tooling
