AutoDist‑86 Glass Distillation AZA1282

AutoDist-86 Glass Distillation Unit – AZA1282

The AutoDist-86 Glass Distillation Unit (Model: AZA1282) from AZA Lab is a high-performance laboratory water distiller engineered for the consistent production of ultra-pure distilled water. Manufactured entirely from high-grade borosilicate 3.3 glass, this unit delivers exceptional chemical resistance, thermal stability, and long-term durability, making it ideal for scientific, medical, pharmaceutical, and academic laboratories.

Designed for reliability and purity, the AZA1282 ensures contamination-free distillation without the risk of metallic ion leaching common in metal-bodied stills.

SKU: AZA 1282 Category:
Description

Description

Purity You Can Trust

The AutoDist-86 is designed to produce low-conductivity, high-purity distilled water suitable for sensitive laboratory applications such as:

  • Analytical titrations

  • Reagent and buffer preparation

  • Sample dilution and washing

  • General laboratory processes requiring pure water

Its single-stage distillation process efficiently removes:

  • Dissolved salts

  • Heavy metals

  • Organic and inorganic contaminants

  • Microbial impurities

This ensures consistent water quality for routine and critical laboratory use.


Borosilicate Glass Construction

Constructed entirely from borosilicate glass 3.3, the AZA1282 offers:

  • Excellent resistance to thermal shock

  • High chemical corrosion resistance

  • Zero risk of metal contamination

  • Long operational life

The transparent glass assembly allows real-time visual monitoring of boiling, condensation, and distillate flow, enhancing operational safety and control.


Design & Semi-Automatic Operation

The AutoDist-86 features semi-automatic operation with integrated safety and control mechanisms that protect both the user and the instrument.

Integrated Safety & Control Features

  • Float switch with auto cut-off (low water protection)

  • Thermal sensor for overheat protection

  • Quartz heating element for fast, efficient boiling

  • Cooling coil for effective condensation

  • Output flow regulation valve for controlled distillate delivery

All components are mounted on a stable metal support frame with a compact footprint, allowing easy integration into standard laboratory bench setups.


Distillation Capacity & Efficiency

  • Distillate Output: Up to 4 liters per hour (±10%)

  • Supports continuous operation for extended laboratory workflows

  • Energy-efficient design reduces electricity consumption

This capacity makes the AZA1282 suitable for both small and medium-scale laboratory requirements.


Applications

  • Analytical chemistry laboratories

  • Pharmaceutical and biotechnology facilities

  • Life science and research institutes

  • Academic and teaching laboratories

  • Environmental and water testing labs


Easy Maintenance & Long Service Life

Thanks to its modular glass design, maintenance is simple and cost-effective:

  • Easy visual inspection for scaling or contamination

  • Straightforward cleaning of boiler and condenser

  • Replaceable quartz heating element

Regular descaling using laboratory-grade cleaning agents is recommended, especially when operating with hard water, to maintain optimal performance.


Technical Specifications

Feature Specification
Model AZA1282 (AutoDist-86)
Construction Material Borosilicate Glass 3.3
Distillate Output 4 L/h (±10%)
Heating Element Quartz heater
Power Supply 230 V AC, 50 Hz
Operation Mode Semi-automatic
Auto Shut-Off Yes (float & thermal cut-off)
Safety Protection Overheat & dry-run protection
Dimensions (Approx.) 550 × 400 × 250 mm
Weight (Approx.) 9 kg

Frequently Asked Questions (FAQ)

Q1: What material is used in the AutoDist-86?
High-quality borosilicate 3.3 glass, offering superior chemical and thermal resistance.

Q2: Is the AZA1282 fully automatic?
It is semi-automatic, featuring automatic safety cut-offs for water level and temperature.

Q3: Can it be used with hard water?
Yes, but regular descaling is recommended to maintain efficiency and prolong component life.

Q4: What level of purity does it provide?
It delivers high-purity distilled water with very low TDS, suitable for analytical and pharmaceutical use.

Q5: Is the heating element replaceable?
Yes, the quartz heating element is easily replaceable during routine maintenance.


Key Highlights

  • High-purity water distillation for laboratory use

  • Fully borosilicate glass construction (metal-free)

  • Semi-automatic operation with safety cut-offs

  • Compact footprint with efficient 4 L/h output

  • Easy maintenance and long service life

  • Ideal for analytical, pharmaceutical, research & academic labs

Model: AZA1282 – AutoDist-86 Glass Distillation Unit by AZA Lab

Additional information

Additional information

Product Name

Eufy RoboVac G10 Hybrid

Model Number

T2150K11

Cleaning Function

2-in-1 Vacuum + Mop

Navigation

Smart Dynamic Navigation

Suction Power

Up to 2000Pa

Core Features

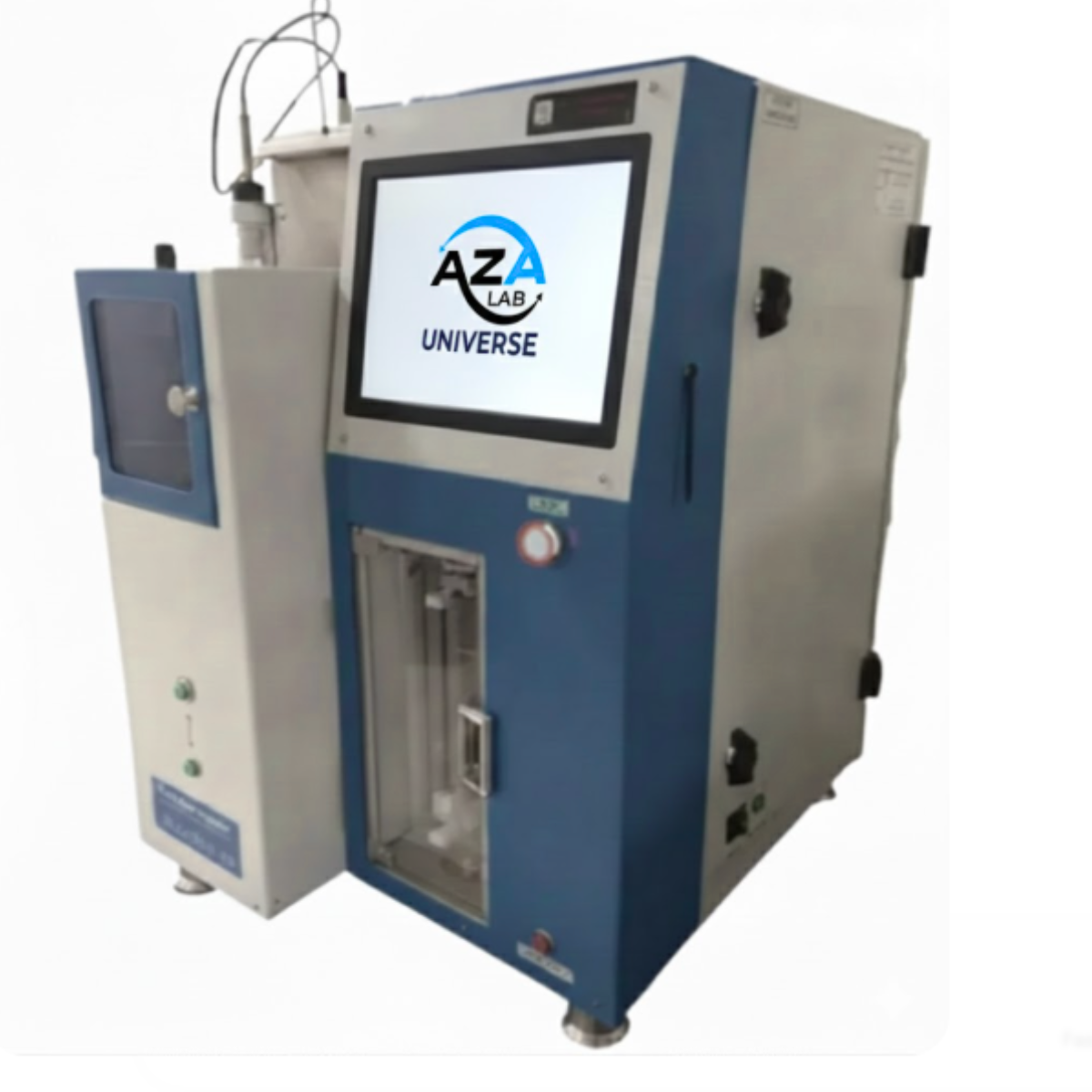

  • Full automation of IBP, FBP, dry point, residue & loss detection
  • Programmable distillation rate: 2–15 mL/min
  • Automated barometric pressure correction & calibration
  • Precision level-follower optical system for volume tracking
  • Responses in 0.1 mL & 0.1 °C resolution; PT100 Class A probe
  • Peltier or CFC‑free refrigeration, condenser (0–80 °C), receiver (0–60 °C)
  • Integrated safety systems: fire extinguisher, sensor interlocks, error alerts
Software & Connectivity
  • Real-time display: vapor, heater, condenser temps; heat %, rates; volume; barometric pressure

  • Graphical plots, 1‑sec data logs, 0.1 mL result intervals

  • Final output: IBP, FBP, dry point, recovery %, residue, loss, cetane index

  • Data storage, filtering by sample/operator/method/date; LIMS integration.

Technical Specs

  • Dimensions: 480 × 590 × 690 mm; Weight: ~80 kg

  • Power: 230 VAC, 50 Hz, ~1400 W

  • Operating temp: 10–35 °C
