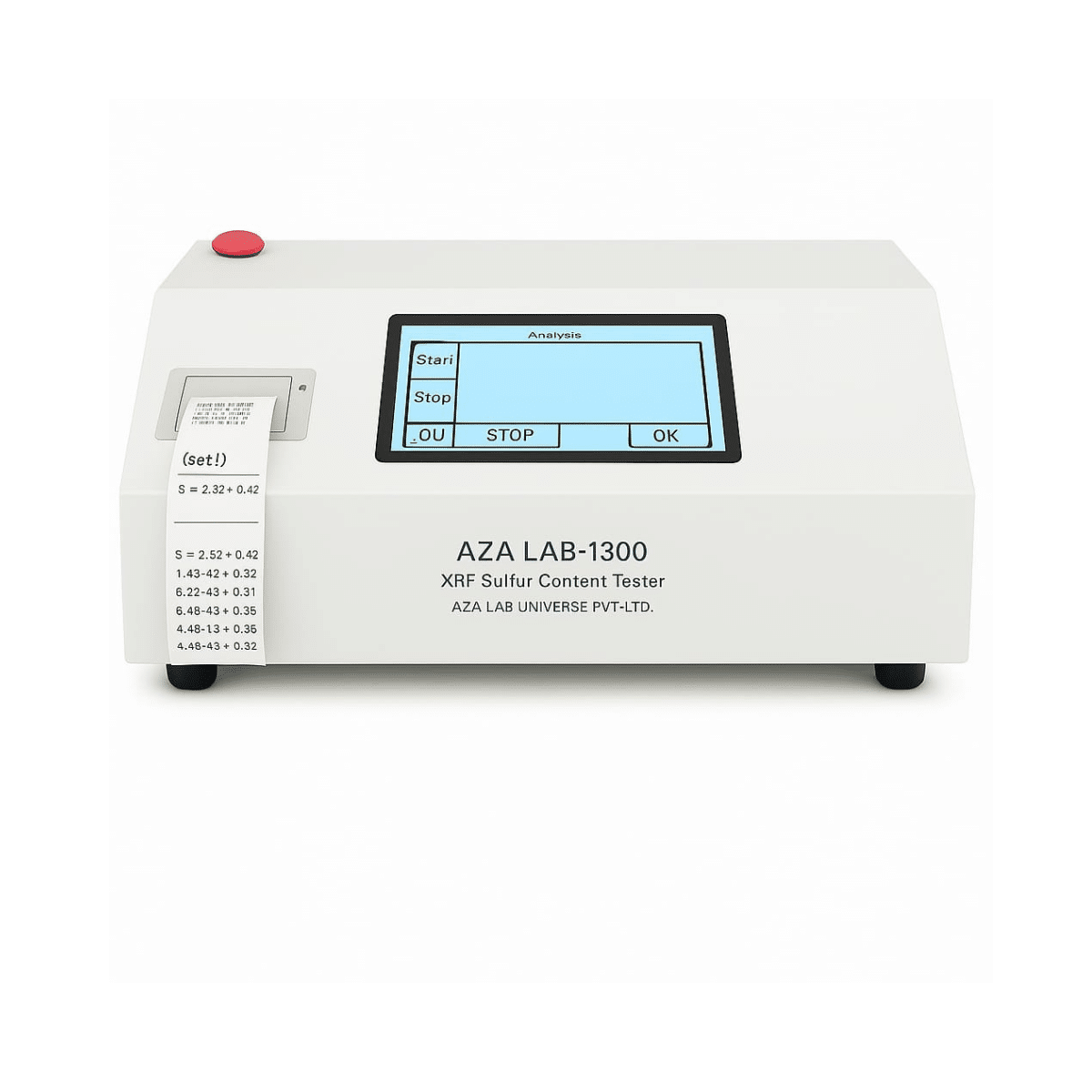

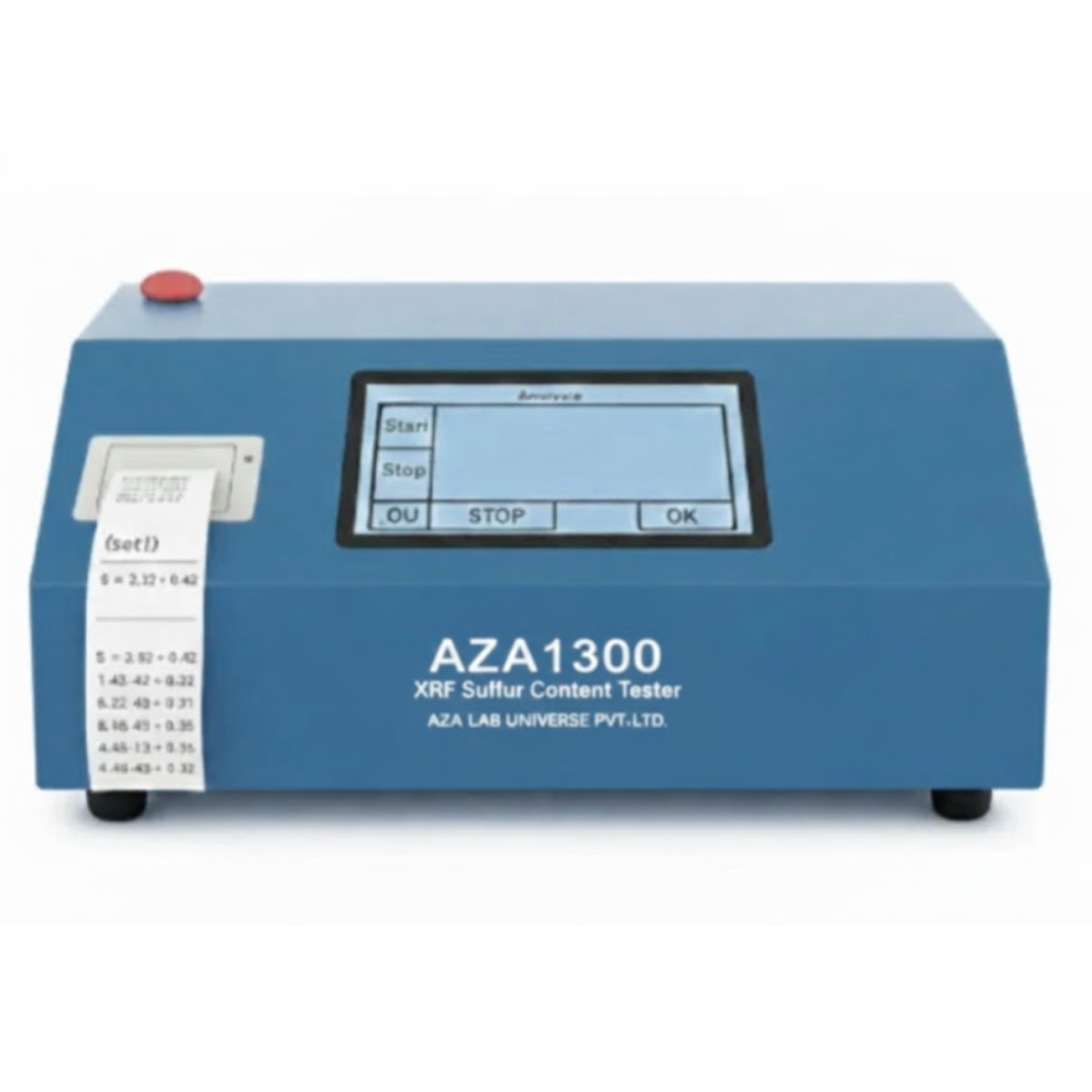

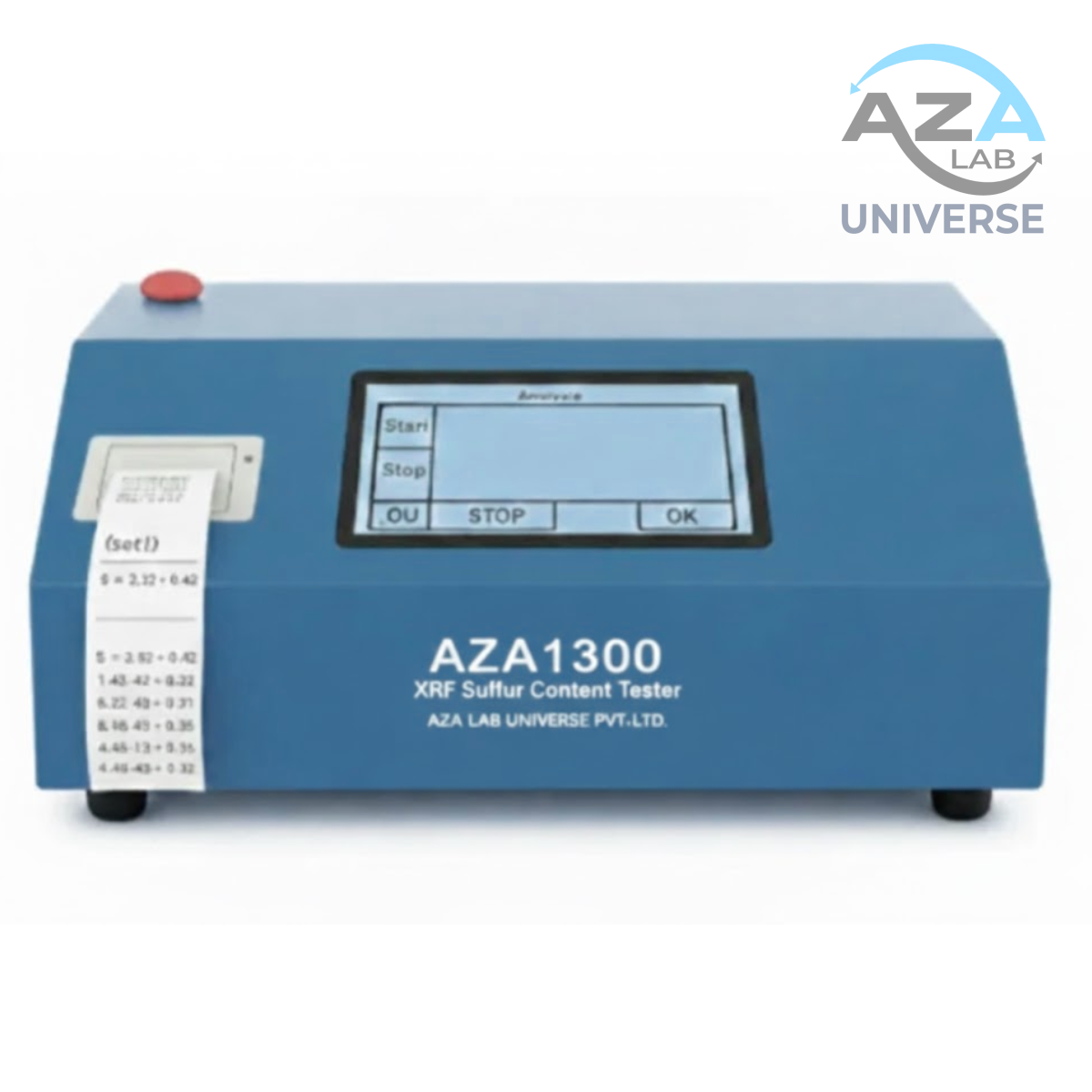

XRF SULFUR CONTENT TESTER AZA1300

The AZA Lab Sulfur Content Analyzer – AZA1300 is a state-of-the-art instrument designed for precise and rapid determination of sulfur content in petroleum, petrochemical, and coal chemical products. Based on the energy-dispersive X-ray fluorescence (EDXRF) principle, it integrates advanced electrical, mechanical, and microprocessor technologies to deliver high accuracy, reliability, and ease of operation.

Engineered to comply with ASTM D4294, GB/T 17040, SH/T0742, and GB/T11140 standards, the Model 1300 provides dependable measurement results with excellent repeatability and reproducibility. Its intelligent design ensures automatic corrections for environmental conditions such as temperature, pressure, and C/H ratio, making it a versatile solution for laboratories and production facilities alike.

Compact, user-friendly, and equipped with advanced safety features, the AZA1300 is an ideal tool for routine quality control, process monitoring, and research applications where sulfur determination is critical.

View Specification PDF

Enquiry on WhatsApp

Category: Petroleum Testing Equipment

Description

Main Features

Compact & Integrated Design – Electrical, mechanical, and microprocessor integration for stability and aesthetics.
Wide Measurement Range – Suitable for various petroleum and chemical samples with minimal standard sample requirements.
Automatic Corrections – Fluorescence intensity ratio method with automatic correction for temperature, pressure, and C/H ratio.
User-Friendly Interface – Large LCD display with man-machine dialogue system and audible error alarms.
Self-Diagnostic Function – Automatic checking of working state and electrical parameters via reference samples.
Data Connectivity – RS232 serial port for computer or web system integration.
Safe Sample Handling – Disposable Mylar film sample cells prevent cross-contamination. Multifunctional pressure shaping device ensures quick preparation.
Leakage Protection – Dedicated leakage protection device to safeguard the detection system.
Radiation Safety – Complete X-ray protection to ensure operator safety.
Automated Measurement – Automatic single-sample measurement with selectable repeat times (2, 3, 5, 10, 50). Provides average values and standard deviations.
Calibration Flexibility – Storage of up to 10 calibration curves (5 linear + 5 quadratic).
Data Storage & Printing – Large test data memory with built-in thermal printer (easy paper replacement).

Technical Specifications

Parameter	Specification
Measuring Range	17 ppm – 5%
Repeatability (r)	< 0.02894 (X + 0.1691)
Reproducibility (R)	< 0.1215 (X + 0.5555)
Detection Limit	50 ppm
Sample Quantity	2.5 ml (sample depth: 4.5 mm)
Measurement Time	Selectable: 60, 120, 240, 300, 600 s
Operating Conditions	Ambient temp. 5–40°C; RH ≤ 85% (at 30°C)
Power Supply	AC 220V ± 20V, 50 Hz; Rated power: 30 W
Dimensions	468 × 368 × 136 mm
Weight	13 kg

Standard Accessories

No.	Item	Unit	Qty
1	Main Unit	Set	1
2	Sample Cells (two parts)	Set	200
3	Sample Cell Film (100 pcs/box)	Box	2
4	Leakage Protection Device (two parts)	Set	1
5	Multifunctional Pressure Shaping Device (two parts)	Set	1
6	Thermal Printing Paper (57 mm × Ø30 mm)	Roll	3
7	Calibration Samples (4 ml/piece, 11 pcs/set)	Set	2
8	Power Supply Wire	Piece	1
9	3 ml Pipette (100 pcs/box)	Box	2
