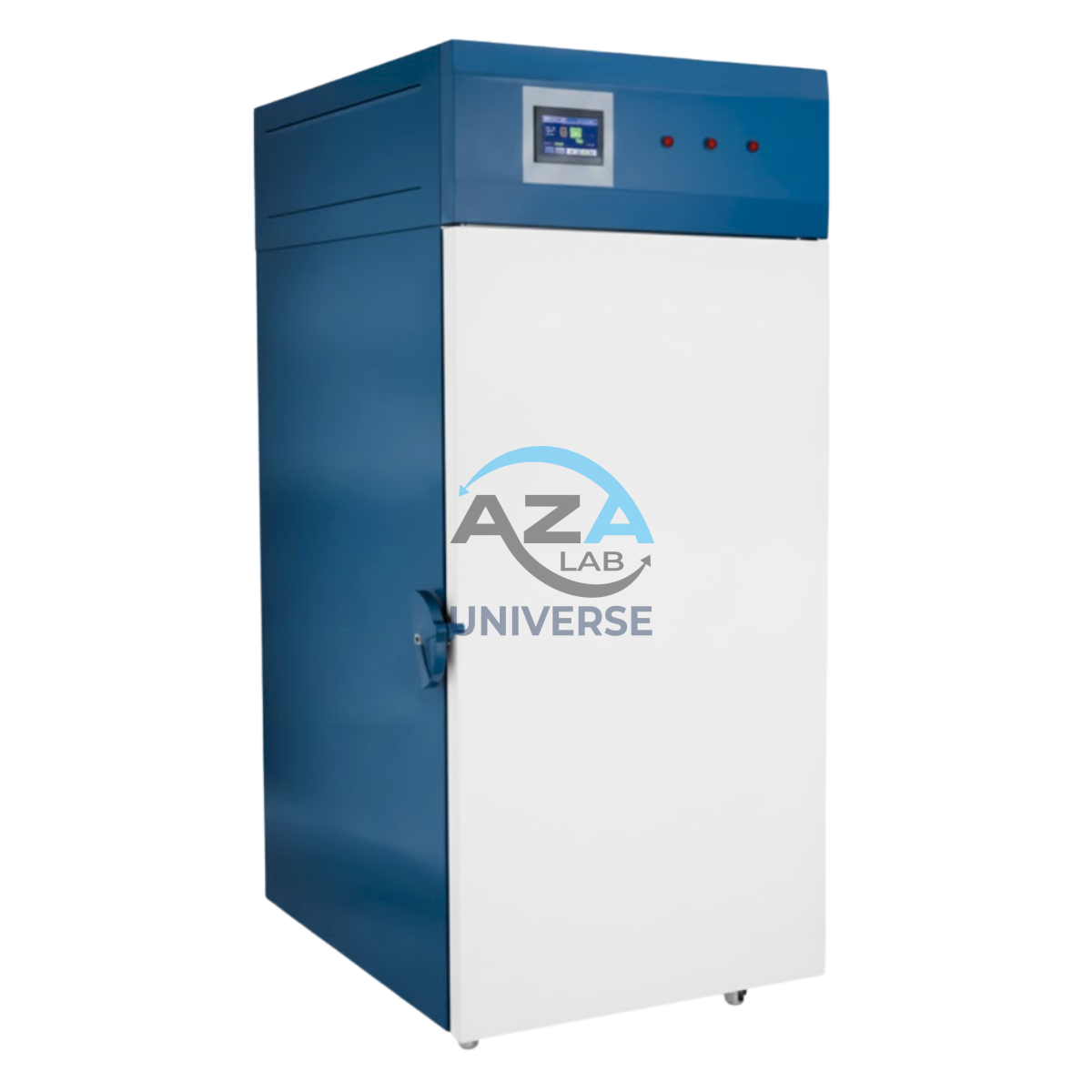

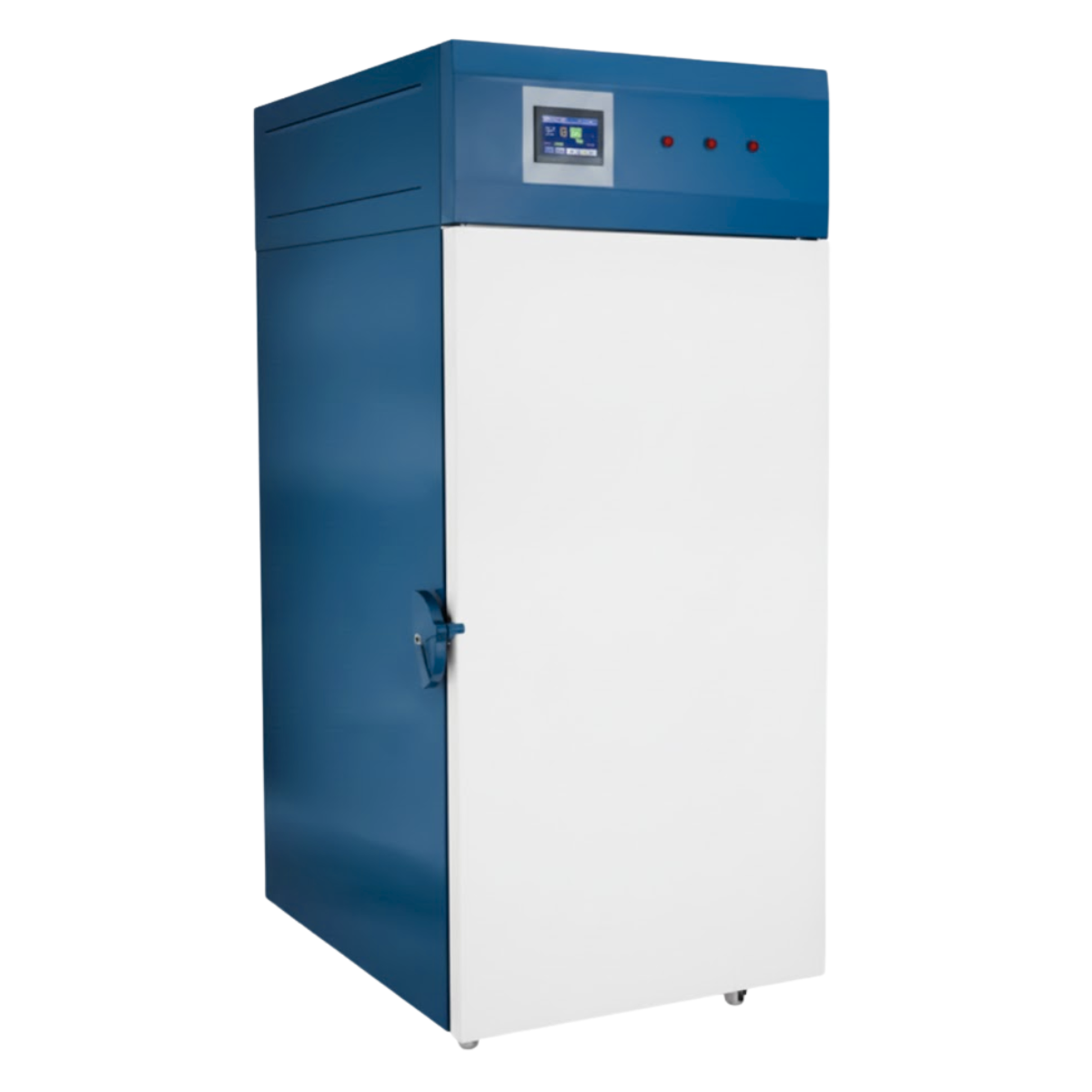

HUMIDITY CHAMBER AZA1064
The AZA1064 Humidity Chamber from AZALAB is a precision-engineered environmental and stability testing system designed to maintain accurately controlled temperature and relative humidity conditions for extended testing periods. It is an essential instrument for pharmaceutical companies, food industries, electronics manufacturers, packaging units, research laboratories, and academic institutions where product performance and stability under controlled climatic conditions must be evaluated.
Humidity and temperature are two of the most critical environmental parameters affecting product integrity, shelf life, and functional reliability. The AZA1064 enables users to simulate real-world storage and operating environments, helping manufacturers validate product durability, comply with regulatory standards, and improve overall quality assurance processes.
Description
Accurate & Stable Environmental Simulation
The AZA1064 is designed to deliver uniform and constant temperature–humidity conditions throughout the chamber. Equipped with a PID microprocessor-based controller and high-accuracy sensors, the system continuously monitors internal conditions and makes real-time adjustments to maintain precise setpoints.
The chamber supports long-duration testing with minimal drift, making it ideal for pharmaceutical stability studies, material aging tests, packaging endurance evaluation, and electronic component reliability testing. Optional data logging and connectivity features allow complete traceability and audit readiness.
Robust Construction & Thermal Efficiency
Built for reliability and continuous operation, the AZA1064 features a double-walled construction that ensures excellent insulation and energy efficiency.
-
Inner chamber: Made from high-grade stainless steel (SS 304), providing superior corrosion resistance in high-humidity environments and allowing easy cleaning and sanitization.
-
Outer body: Constructed from powder-coated mild steel, offering mechanical strength, durability, and long service life.
-
Insulation: High-quality polyurethane foam or glass wool insulation minimizes heat and moisture loss, ensuring stable chamber conditions and reduced power consumption.
This rugged construction allows the chamber to operate safely and efficiently even during 24/7 continuous testing cycles.
User-Friendly Controls & Safety Systems
The AZA1064 is designed with operator convenience and safety in mind. A digital LED/LCD display clearly shows temperature and humidity values, while the intuitive control panel allows easy programming of test parameters.
Integrated safety and monitoring features include:
-
Audio and visual alarms for temperature or humidity deviation
-
Over-temperature protection
-
Humidity system monitoring
-
Power and system fault alerts
These features ensure sample protection and uninterrupted testing during long-term operation.
Applications
-
Pharmaceutical Stability Testing: Drug and formulation stability as per ICH guidelines
-
Chemical & Material Testing: Polymers, coatings, plastics, composites
-
Packaging Industry: Environmental stress testing of packaging materials
-
Microbial & Biological Studies: Controlled humidity environments for cultures
-
Electronics Testing: Moisture resistance and durability of PCBs and components
-
Food Shelf-Life Analysis: Packaging and product response to humidity and temperature variations
Specifications
| Specification | Details |
|---|---|
| Model | AZA1064 |
| Temperature Range | +10°C to +60°C (extendable on request) |
| Humidity Range | 40% to 95% RH |
| Temperature Accuracy | ±1°C |
| Humidity Accuracy | ±3% RH |
| Inner Chamber | Stainless Steel (SS 304) |
| Outer Body | Mild Steel with powder coating |
| Control System | PID Microprocessor Controller |
| Display | Digital LED / LCD |
| Alarm System | Audio / Visual deviation alarms |
| Humidity Source | Steam generator or ultrasonic humidifier |
| Shelves | Adjustable stainless steel shelves |
| Insulation | Polyurethane foam or glass wool |
| Power Supply | 220V AC, 50 Hz |
| Available Capacities | 90L / 180L / 300L / Custom sizes |
| Optional Accessories | Data logger, USB / RS-232 interface, printer port |
Key Advantages
-
Reliable and uniform temperature–humidity control
-
Ideal for long-term stability and environmental testing
-
PID-controlled system for high accuracy and repeatability
-
Stainless steel interior for corrosion resistance
-
Energy-efficient double-walled insulated design
-
Suitable for GMP, GLP, and regulatory-compliant testing
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of the AZA1064 Humidity Chamber?
It is used to simulate controlled temperature and humidity conditions for stability testing, material aging, and environmental performance evaluation.
Q2: Can the chamber operate continuously?
Yes. The AZA1064 is designed for 24/7 continuous operation with stable performance.
Q3: How accurate is the control system?
The PID controller typically maintains temperature within ±1°C and humidity within ±3% RH.
Q4: Is distilled water required for humidification?
Yes. Distilled or demineralized water is recommended to ensure accurate humidity generation and long sensor life.
Q5: Can data be recorded for audits?
Yes. Optional USB, RS-232, or printer interfaces allow data logging and documentation.
Q6: Is the chamber suitable for GMP/GLP environments?
Yes. The AZA1064 can be validated and calibrated to meet GMP/GLP compliance requirements.
Product Highlights
-
Ideal for stability and environmental testing
-
Precise temperature and humidity control
-
PID digital controller with clear display
-
Double-walled insulated construction
-
Stainless steel inner chamber
-
Available in multiple standard and custom capacities
Model: AZA1064
Additional information
| Temperature Range |
+10°C to +60°C (extendable if required) |
|---|---|
| Humidity Range |
40% to 95% RH |
| Inner Chamber Material |
Stainless Steel (SS 304 grade) |
| Outer Body |
Mild Steel with powder coating |
