PRISM MOULD THREE GANG AZA0803

Description

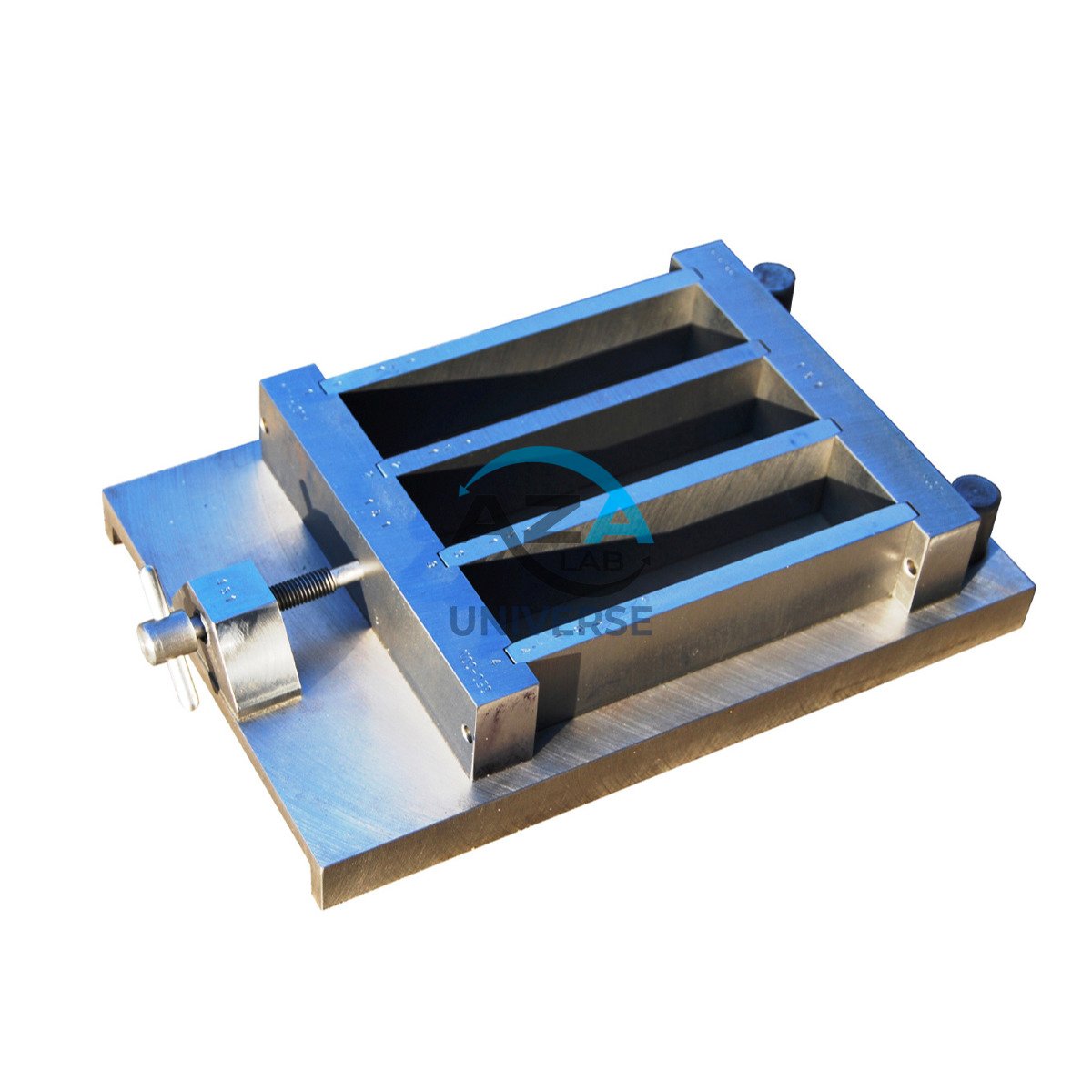

The AZA0803 Prism Mould (Three Gang) is a high-precision laboratory mould used to cast three cement mortar prism specimens simultaneously. Each cavity conforms exactly to the 40 mm x 40 mm x 160 mm size, as defined by standards such as IS 10080, IS 4031, and EN 196-1. These specimens are later used for compressive and flexural strength testing, essential for quality control and product certification in the construction materials industry.

This three-gang mould is specifically designed for seamless integration with jolting apparatuses, like the AZA0802 Jolting Machine, ensuring consistent compaction and zero air voids.

Prism Mould, AZA0803, Three Gang Mould, Cement Test Mould, IS 10080, 40x40x160 mm

 Why This Mould Matters in Cement Testing

Cement and mortar performance is influenced by specimen preparation accuracy. The AZA0803 ensures that multiple samples are cast uniformly, accurately, and simultaneously, which reduces batch variability and improves repeatability of strength tests.

Whether you’re testing for compliance, performing R&D, or training students, the AZA0803 ensures dimensional integrity, durability, and ease of use.

Prism Mould, AZA0803, Three Gang Mould, Cement Test Mould, IS 10080, 40x40x160 mm

 Key Use Cases

•  Construction Lab Testing – Measure compressive and flexural strength of mortar
•  Cement Manufacturers – Daily batch testing and QA validation
•  Infrastructure Quality Checks – Site lab testing during major construction
•  Education & Research – Cement behavior analysis for academic projects
•  Material Certification – BIS/ASTM-based mortar strength testing

 Product Features & Benefits

•  Three-Gang Design – Simultaneously cast 3 specimens, saving time and effort
•  Standardized Dimensions – 40 x 40 x 160 mm cavities conform to IS, EN, ASTM
•  Solid Cast Iron Body – Rugged, corrosion-resistant, and durable
•  Machined Finish – Smooth interior for easy de-moulding
•  Removable Brass End Plates – Simple cleaning and resetting after each use
•  Compatible with Jolting Machines – Perfect fit with AZA0803 and other IS 10080-compliant devices
•  Leak-Proof Assembly – Firm clamping bolts ensure tight joins
•  Highly Reusable – Withstands repeated use in harsh lab conditions

Specifications

 Frequently Asked Questions (FAQs)

Q1: What size of specimen does this mould produce?
A: Each cavity in the three-gang mould produces a prism of 40 mm x 40 mm x 160 mm.

Q2: Is this mould suitable for use with jolting apparatus?
A: Yes, it’s fully compatible with AZA0803 and other IS 10080-compliant jolting devices.

Q3: What material is the mould made from?
A: Made from machined cast iron, ensuring strength, flatness, and dimensional stability.

Q4: How many tests can I conduct at once using this mould?
A: You can prepare three test specimens simultaneously in one casting cycle.

Q5: How to maintain this mould?
A: Clean immediately after de-moulding with a brush and oil lightly to prevent rust.
