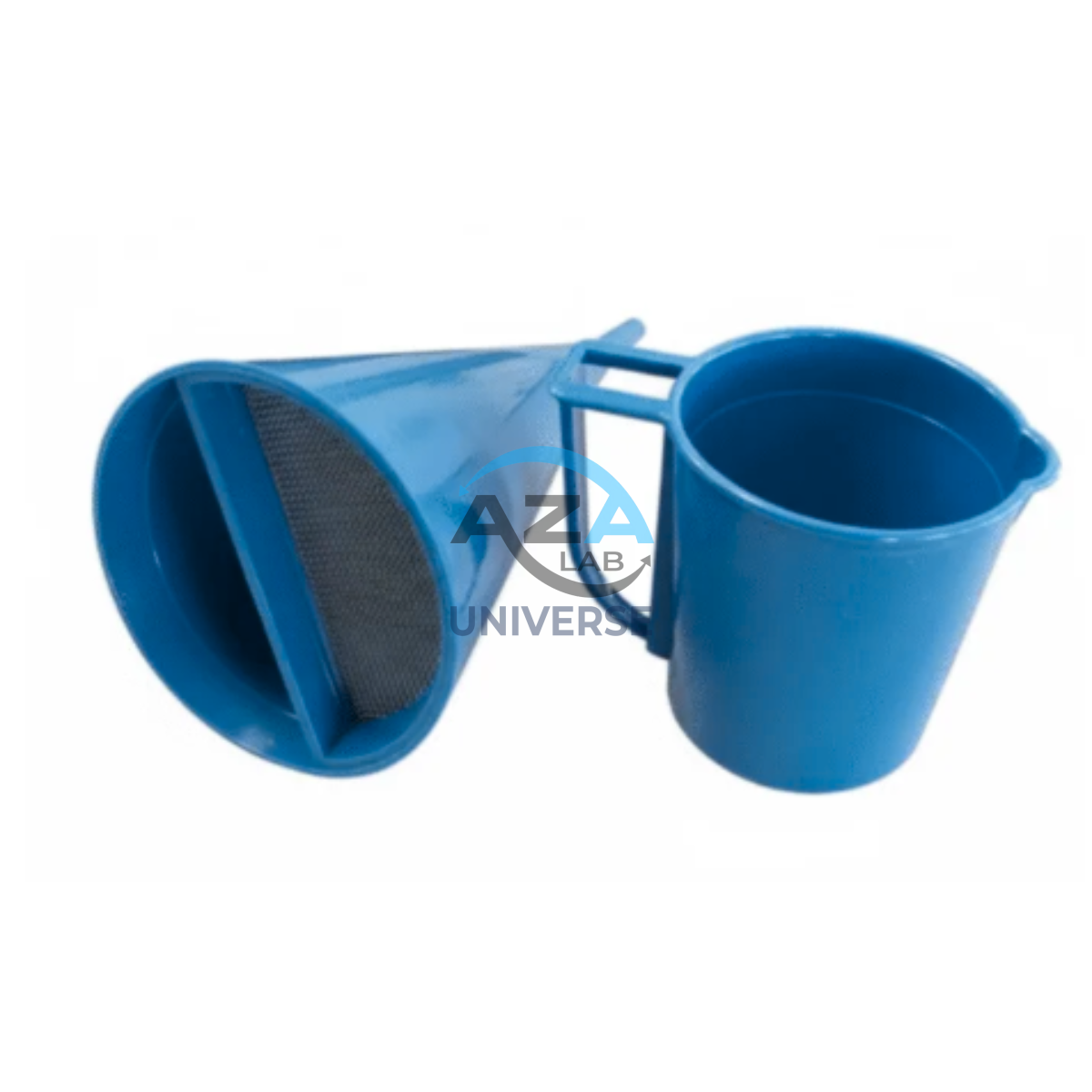

MARSH FUNNEL WITH MEASURING CUP AZA0811
The AZA0811 Marsh Funnel with Measuring Cup is a simple, reliable device used to determine the viscosity of drilling muds, bentonite slurries, cement slurries, and similar suspensions in both field and laboratory environments. It provides a fast and practical method to assess flow characteristics critical to drilling operations, soil stabilization, grouting, and geotechnical engineering.
The instrument includes a conical Marsh Funnel—manufactured from high-impact polypropylene or optional stainless steel—and a 1-liter graduated measuring cup. During the test, the time taken for 946 mL (1 US quart) of slurry to flow through the funnel orifice is recorded in seconds. This value serves as an index of slurry viscosity and is widely accepted in compliance with API RP 13B-1 and ASTM D6910 standards.
Description
Application and Use
In drilling operations, bentonite slurry stabilization, diaphragm wall construction, and foundation engineering, maintaining proper slurry viscosity is crucial. The Marsh Funnel test helps detect:
-
Too low viscosity → inadequate cuttings transport or borehole instability
-
Too high viscosity → pumping difficulty, excessive pressure, or poor filtration control
The AZA0811 provides a rapid, on-site viscosity check to maintain optimal fluid performance and quality.
- Measures viscosity of drilling mud and slurries
- Includes funnel and 1-liter graduated cup
- Complies with API RP 13B-1 and ASTM D6910
- Rugged plastic or stainless-steel construction
- Ideal for quick field and lab slurry testing
How It Works
-
Block the funnel outlet with a finger.
-
Pour the test fluid into the funnel up to the marked fill line.
-
Remove the finger and start timing immediately.
-
Collect the discharged fluid in the 946 mL (1-quart) measuring cup.
-
Record the flow time in seconds—this is the viscosity index.
Higher flow time indicates higher viscosity.
Features and Benefits
-
Portable & Field-Ready: Lightweight, easy to carry, perfect for remote site use.
-
Fast Results: Provides viscosity readings in less than 60 seconds.
-
High Durability: Plastic and stainless steel options resist corrosion, wear, and impact.
-
Accurate Volume Control: Comes with a 1-liter / 946-mL graduated cup for precise measurement.
-
Standard Compliant: Fully follows API RP 13B-1 and ASTM D6910 test methodologies.
-
Easy to Clean: Smooth internal surfaces reduce slurry adhesion.
Specifications
| Parameter | Specification |
|---|---|
| Model | AZA0811 |
| Funnel Material | Polypropylene / Stainless Steel (Optional) |
| Funnel Capacity | ~1.5 Liters |
| Orifice Diameter | 0.1875 in (4.76 mm) |
| Graduated Cup Volume | 946 mL (1 US quart) |
| Measurement Range | 0–100+ seconds (fluid-dependent) |
| Compliance Standards | API RP 13B-1, ASTM D6910 |
| Applications | Drilling Fluids, Slurry Testing, Soil Stabilization |
Frequently Asked Questions (FAQ)
Q1: What is the Marsh Funnel used for?
It measures the viscosity of drilling mud, bentonite slurry, cement slurry, and similar suspensions.
Q2: Does it comply with international standards?
Yes, it follows API RP 13B-1 and ASTM D6910 specifications.
Q3: Is the measuring cup included?
Yes, a 1-liter graduated cup is included.
Q4: Can it be used for cement slurry?
Absolutely. It is commonly used for testing cement, bentonite, and polymer slurries.
Q5: Is it reusable?
Yes. With proper cleaning, the funnel and cup can be used for hundreds of tests.
Additional information
| Funnel Material |
Polypropylene / Stainless Steel (optional) |
|---|---|
| Funnel Capacity |
~1.5 liters |
| Orifice Diameter |
0.1875 in (4.76 mm) |
| Graduated Cup Volume |
946 mL (1 US quart) |
You may also like…
Advanced Triaxial Test System (UU–CU–CD Capable) (AZA 1296)
- UU–CU–CD test modes for complete soil strength profiling
- Automated control of pressure, load, and drainage
- Compatible with clay, silt, sand, and mixed soils
- Integrated data acquisition and real-time graphing
- Meets ASTM D2850, D4767, BS1377, AASHTO standards
- Ideal for geotechnical, research, and academic use
Air Bag Trainer AZA1246
The AZA1246 AZALAB Air Bag Trainer is a comprehensive educational training platform designed to demonstrate the structure, operation, diagnostics, and fault analysis of modern automotive airbag systems, also known as Supplemental Restraint Systems (SRS). Built using OEM automotive components, this trainer delivers a realistic learning experience while maintaining complete operational safety.
This system is ideally suited for automotive engineering colleges, ITIs, polytechnic institutes, vocational training centers, and service technician programs, enabling both theoretical instruction and hands-on diagnostics practice.
Alternator Trainer AZA1247
The AZA1247 AZALAB Alternator Trainer is a hands-on automotive electrical training system designed to demonstrate the working principles, construction, and diagnostics of an automotive alternator with external voltage regulation. Built using OEM automotive components, this trainer provides a realistic and safe learning platform for students, technicians, and trainees to understand vehicle charging systems in depth.
This system is ideal for automotive engineering institutes, ITIs, polytechnics, vocational training centers, and service technician programs, supporting both theoretical instruction and practical experimentation.
Arc Welding Machine AZA1234
The AZA1234 Arc Welding Machine by A Z A Lab is a high-performance industrial welding solution engineered for demanding fabrication, maintenance, and structural welding applications. Designed using advanced inverter technology, this machine delivers superior arc stability, high efficiency, and reliable welding performance across a wide range of electrode types and materials.
With an inverter frequency of up to 20 kHz, the AZA1234 ensures fast dynamic response, reduced spatter, and excellent weld bead appearance. Its robust electrical design supports a high duty cycle, allowing continuous operation under heavy loads while maintaining consistent welding output—even with output cable lengths of up to 100 meters.
AutoDist‑86 Glass Distillation AZA1282
AutoDist-86 Glass Distillation Unit – AZA1282
The AutoDist-86 Glass Distillation Unit (Model: AZA1282) from AZA Lab is a high-performance laboratory water distiller engineered for the consistent production of ultra-pure distilled water. Manufactured entirely from high-grade borosilicate 3.3 glass, this unit delivers exceptional chemical resistance, thermal stability, and long-term durability, making it ideal for scientific, medical, pharmaceutical, and academic laboratories.
Designed for reliability and purity, the AZA1282 ensures contamination-free distillation without the risk of metallic ion leaching common in metal-bodied stills.
AutoFlash – Automated Abel Flash Point Analyzer AZA1277
The AutoFlash-1277 (Model: AZA1277) from AZA Lab is a fully automated, microcontroller-based Abel Flash Point Analyzer designed for accurate, safe, and repeatable determination of flash points of combustible liquids. Engineered to meet stringent international testing requirements, this advanced instrument conforms to IP 170, ISO 13736, and IS 1448 (Part 20) standards.
Covering a standard temperature range of –30°C to 70°C, extendable up to 110°C, the AZA1277 is ideally suited for laboratories involved in petroleum testing, petrochemical quality control, fuels research, and regulatory compliance.
Related products

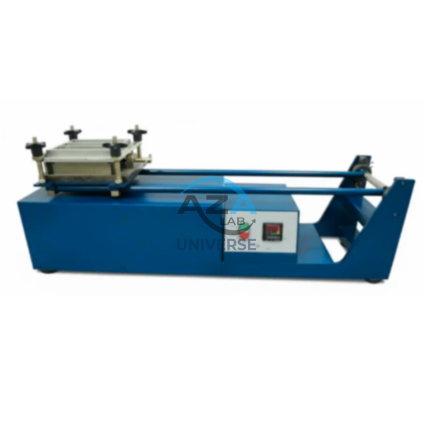

JOLTING APPARATUS AZA0802
