PETROLEUM PRODUCT DISTILLATION TESTER AZA1284

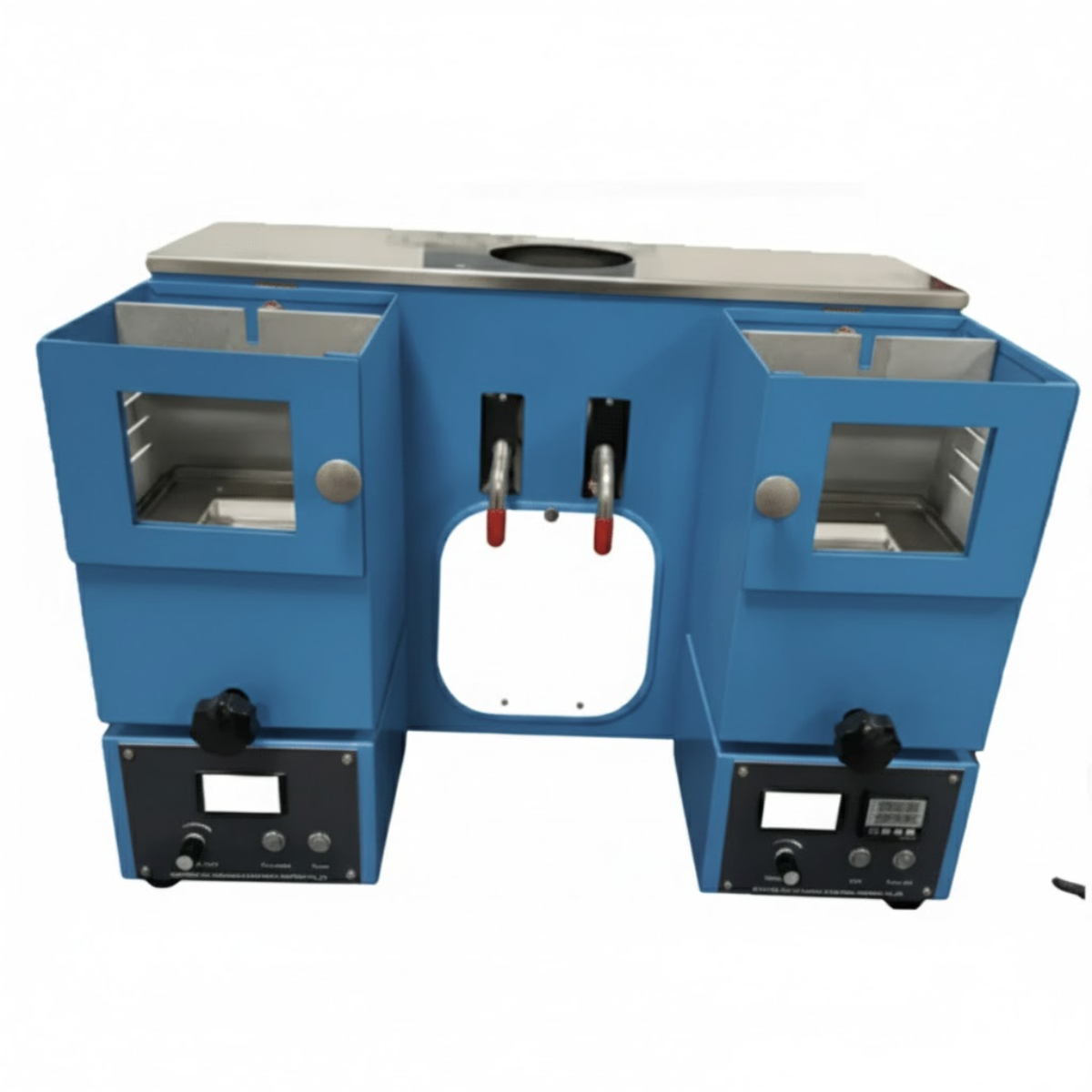

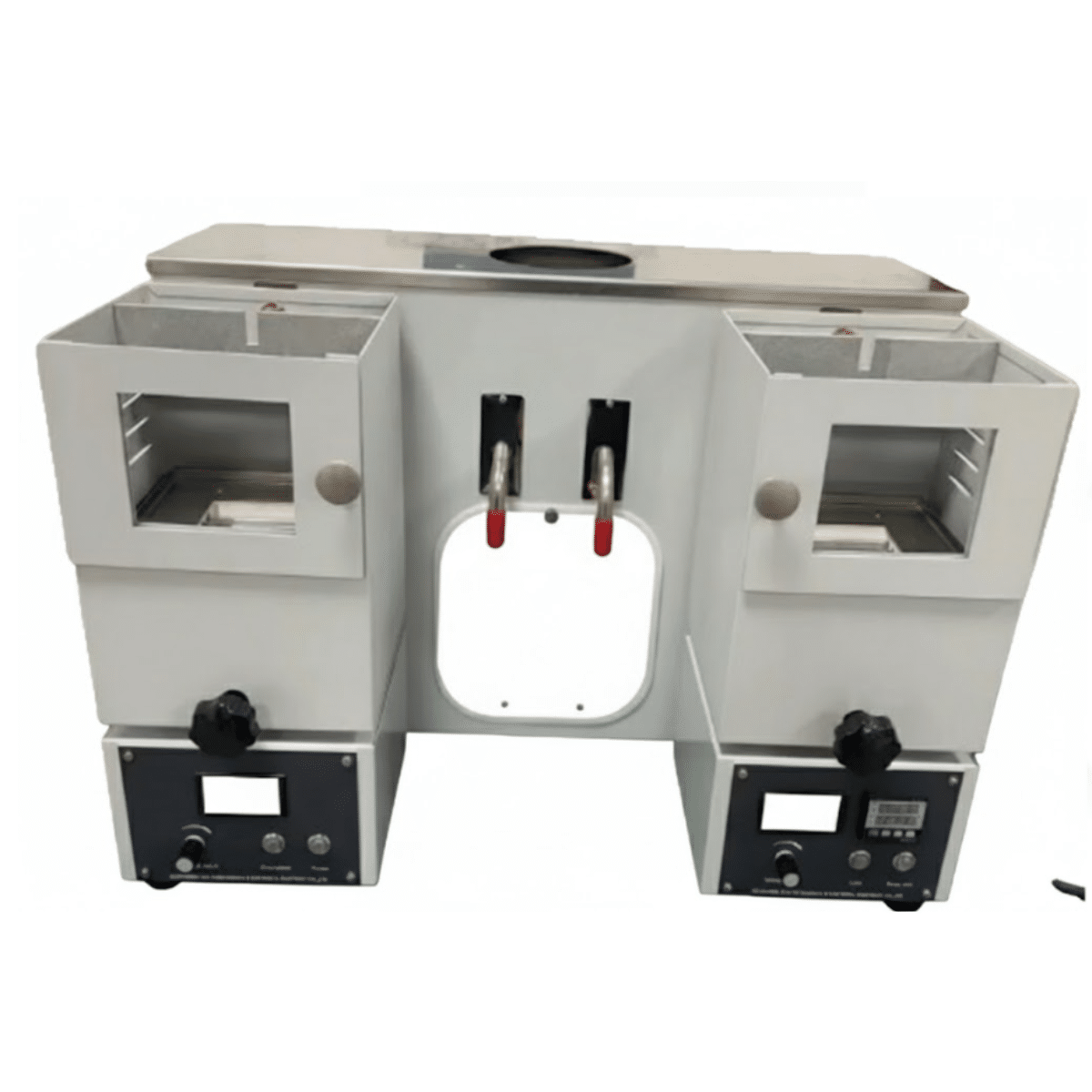

The AZA1284 Manual Distillation Unit from AZA Lab is a high-precision, front-type petroleum distillation system engineered for accurate determination of distillation characteristics of petroleum products in accordance with ASTM D86 and GB/T 6536 test methods. Designed for laboratories that require reliable manual control with superior thermal stability, this unit delivers consistent, repeatable, and standards-compliant results.
With its dual-unit configuration, independently controlled constant-temperature baths, and continuously adjustable heating power, the AZA1284 offers exceptional flexibility and efficiency for routine quality control, inspection, and research applications.
Description
High-Accuracy Manual Distillation System
The AZA1284 is equipped with a two-way front-type structure, allowing one or two samples to be tested simultaneously—even with different test specifications. Each unit operates independently, making it ideal for laboratories handling multiple petroleum products such as gasoline, diesel, kerosene, naphtha, and light distillates.
A special lifting device enables smooth and precise vertical adjustment of the distillation assembly, ensuring accurate positioning and enhanced operator control. The φ12 mm inner-diameter condenser tube provides efficient condensation, stable recovery, and reliable volume measurement throughout the distillation process.
Key Features
Dual-Unit, Independent Operation
-
Simultaneous testing of one or two samples
-
Supports different test conditions on each unit
-
Improves throughput and laboratory efficiency
Independent Control Systems
-
Two separate digital temperature controllers
-
Independent heaters and stirrers
-
Forms two fully independent constant-temperature baths
Uniform & Stable Heating
-
Ensures even temperature distribution
-
Meets ASTM D86 and GB/T 6536 requirements
-
Delivers consistent and reproducible distillation curves
Continuously Adjustable Heating Power
-
Special heating furnace design
-
Smooth power adjustment for different fuel types
-
Safe and reliable operation under varied test conditions
ASTM-Compliant Glassware Compatibility
-
Supports standard distillation flasks, thermometers, and receiving cylinders
-
Suitable for regulatory and quality control testing
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1284 |
| Power Supply | AC 220V ±10%, 50 Hz |
| Total Power Consumption | ≤ 4000 W |
| Receiving Cylinder | 100 mL, 1 mL graduation |
| Distillation Flask | 125 mL, compliant with ASTM D86 & GB/T 6536 |
| Thermometer Range | –2 to 300°C and –2 to 400°C |
| Thermometer Division | 1°C |
| Flask Support Board | SIC, bore diameters φ32 mm, φ38 mm, φ50 mm |
| Temperature Controller Range | Ambient +10°C to 60°C |
| Temperature Control Accuracy | ±0.5°C |
| Temperature Display | LED |
| Ambient Temperature | 15 – 35°C |
| Relative Humidity | ≤ 85% |
| Overall Dimensions (L×W×H) | 760 × 520 × 500 mm |
| Net Weight | 40 kg |
Applications
-
Petroleum Testing Laboratories
Determination of distillation characteristics of gasoline, diesel, kerosene, and light petroleum fractions. -
Quality Control & Inspection Units
Routine compliance testing according to ASTM D86 and GB/T 6536 standards. -
Refineries & Fuel Blending Facilities
Monitoring fuel volatility and batch consistency. -
Research & Academic Laboratories
Manual distillation studies with precise operator control.
Why Choose AZA1284
-
Dual-unit design for higher testing efficiency
-
Independent digital control for precise, repeatable results
-
ASTM D86 and GB/T 6536 compliant construction
-
Safe, adjustable heating for diverse petroleum products
-
Durable, laboratory-grade design for long-term use
Model: AZA1284 – Manual Distillation Unit
