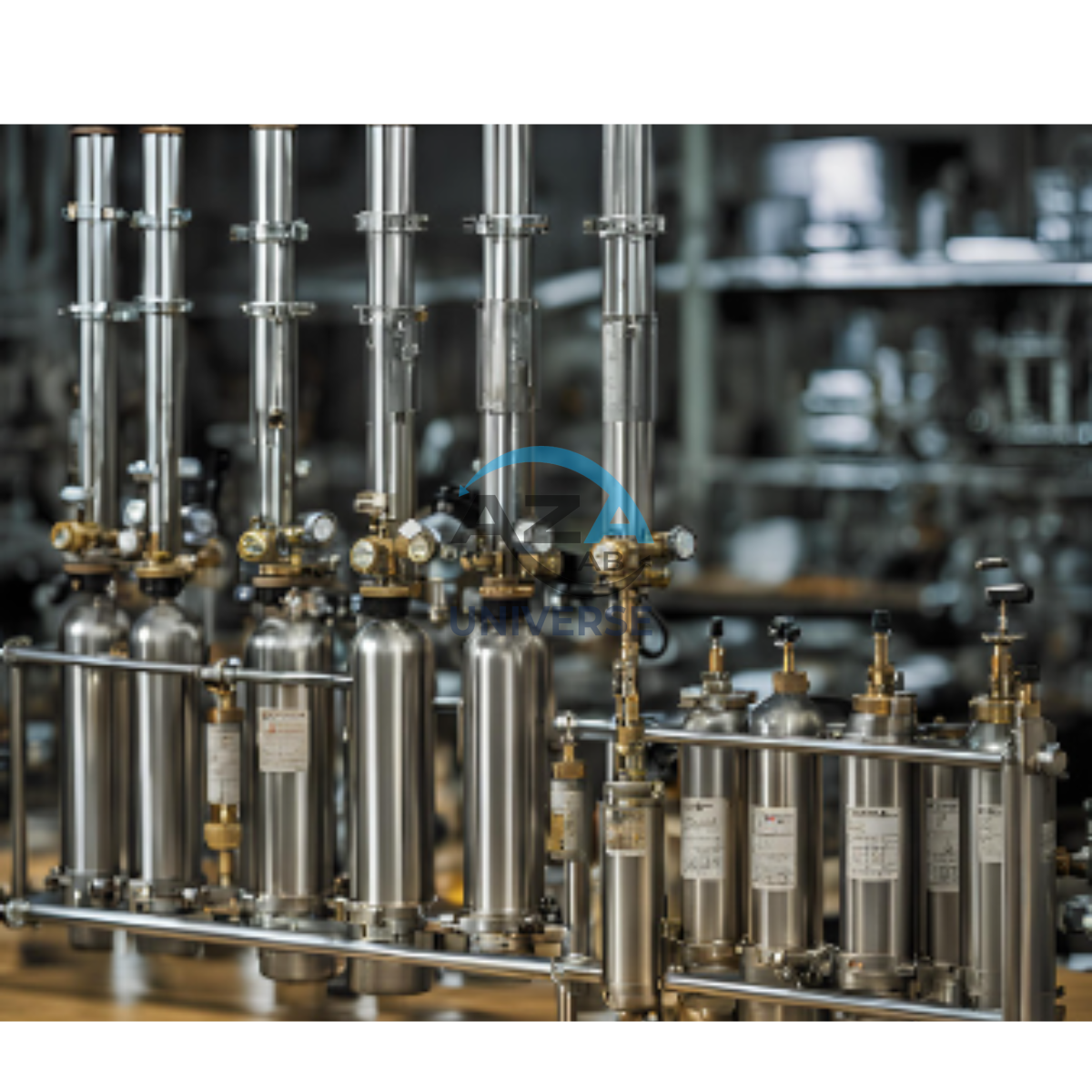

Oil & Gas Sampling Cylinders Single End with Dip Line (AZA- 1274)
AZA LAB Sampling Cylinders & Gas Sampling Bombs are robust, high‑pressure vessels engineered for safe, reliable collection, storage, and transport of liquids and gases in demanding industrial environments. Available in single‑ended, double‑ended, and flat‑ended variants, they are constructed from premium materials like stainless steel (304/316 L) and Monel, offering corrosion resistance and durable performance . TPED, CE, and ISO certifications ensure compliance with international safety and transport regulations. Each cylinder features precision-engineered NPT connections (¼″ or ½″), customizable volumes from 150 cc to 10 L, and pressure ratings up to 5000 psig, making them ideal for applications in refineries, petrochemical labs, chromatographic analysis, and gas sampling in high‑pressure systems . Hydrostatic testing guarantees reliable integrity under rigorous conditions, while additional options—such as specialized valves, burst discs, dip tubes, and protective carrying cases—allow for tailored configurations to meet specific sampling needs.
Description
| Product Code | Capacity (ml) | Connection | Size (Ø × L mm) |
| AZA- 110 | 500 | ¼″ NPT | Ø 60 × 320 |
| AZA- 111 | 1000 | ¼″ NPT | Ø 88.9 × 300 |
| AZA- 112 | 2000 | ½″ NPT | Ø 102 × 350 |
| AZA- 113 | 5000 | ½″ NPT | Ø 150 × 350 |
| AZA- 114 | 10000 | ½″ NPT | Ø 230 × 350 |
Core Features
- Valve Configurations: Single‑ended, double‑ended (most common), flat‑ended cylinders for varied sampling profiles.
- Materials: Stainless Steel (SS 304, SS 316 with dip tube), Monel options
- Pressure Ratings: Standard 500–6000 psi; high‑pressure variants up to 10,000 psi
- Certifications: CE, ISO 9001, TPED/DOT, PED compliant
- Connection Types: ¼″, ½″ NPT (M/F), BSP variants
- Sizes & Capacities: Range from 75 cc to 10,000 cc; e.g., Ø60×320 mm (500 cc), Ø230×350 mm (10 L)
- Finishes & Safety: Internal sandblast/electropolish; hydrostatic pressure tested; with built-in relief valves and safety burst discs
- Customization Options: Internal coatings (e.g. sulfonation for sulfur-sensitive samples), valves, quick-connects, carrying handles, and transport/storage cases
-
Sampling hydrocarbons in refineries and petrochemical plants
-
Laboratory collection, chromatographic analysis (GC), and condensate/fossil fuel testing.
-
Transport/storage under pressure (oil, gas, vacuum systems)
-
Snubbers, surge accumulators, reaction vessels, transformer oil testing, molecular sieves, and experimental chambers
| Capacity | Material | Connection | Dimensions (Ø×L) |
|---|---|---|---|
| 150 cc | SS/Monel | ¼″ NPT | Ø 60 × 320 mm |
| 300 cc | SS/Monel | ¼″ NPT | Ø 60 × 320 mm |
| 500 cc | SS/Monel | ¼″ NPT | Ø 60 × 320 mm |
| 1000 cc | SS/Monel | ½″ NPT | Ø 102 × 350 mm |
| 5000 cc | SS/Monel | ½″ NPT | Ø 150 × 350 mm |
| 10,000 cc | SS/Monel | ½″ NPT | Ø 230 × 350 mm |
Related products

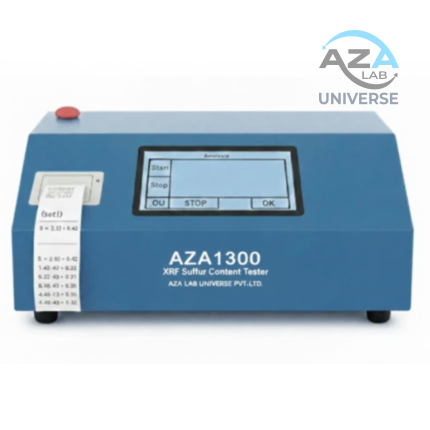

Apparatus for Sulfur Content in LPG AZA1300A
