SPLIT SPOON SAMPLER AZA0918

The AZA0918 Split Spoon Sampler is a precision-engineered soil sampling device used for collecting relatively undisturbed subsurface soil samples during Standard Penetration Tests (SPT) and other geotechnical investigations. Its split-barrel construction enables easy opening, inspection, and removal of the soil core without disturbing its natural structure, making it ideal for laboratory classification and strength evaluation.

AZA0918 is routinely deployed in boreholes as part of SPT procedures, where it is driven into the soil using a standard drop hammer. The number of hammer blows required to advance the sampler provides critical data on soil density, consistency, and bearing capacity in accordance with ASTM D1586.

Enquiry on WhatsApp
Category:
Description

Description

Applications

The AZA0918 Split Spoon Sampler is commonly used in:

  • Standard Penetration Test (SPT) in boreholes

  • Geotechnical site investigations and soil profiling

  • Foundation design and construction studies

  • Subsurface exploration for infrastructure projects

  • Environmental and contamination sampling

Key Benefits

  • Enables recovery of intact soil samples suitable for laboratory testing

  • Split-barrel design allows quick and safe sample removal

  • Heavy-duty, reusable construction for repeated field use

  • Accurate and secure coupling with drill rods and SPT hammers

  • Compatible with liners for enhanced sample preservation

Design & Construction

The AZA0918 consists of three primary components, each engineered for durability and accuracy:

  • Drive Head:
    Forged steel, threaded to standard sizes, designed to withstand repeated hammer impacts during SPT operations.

  • Split Barrel:
    Longitudinally split alloy/carbon steel barrel allowing easy opening and cleaning while maintaining sample integrity.

  • Shoe (Cutting Edge):
    Detachable, hardened steel cutting shoe that facilitates smooth penetration with minimal disturbance to the soil.

Optional PVC, stainless steel, or acrylic liners may be inserted to protect samples during extraction, transport, and storage. All components are designed for quick disassembly, cleaning, and reuse in demanding field conditions.

Standards Compliance

  • ASTM D1586 – Standard Test Method for Standard Penetration Test (SPT) and Split-Barrel Sampling of Soils

Compliance ensures reliable sampling and consistency with internationally accepted geotechnical practices.

Specifications

Parameter Specification
Model AZA0918
Standard Compliance ASTM D1586
Sampler Diameter 2″ (50.8 mm) or 1.375″ (34.9 mm)
Overall Length 18″ to 24″ (custom sizes available)
Material Heat-treated alloy / carbon steel
Drive Head Thread 1-1/2″ NC or 1-3/8″ NC
Shoe Type Detachable, hardened steel
Optional Liners PVC, Stainless Steel, Acrylic
Weight Approx. 5–6 kg (depending on size)
Application SPT and subsurface soil sampling

Frequently Asked Questions (FAQ)

Q1: What is the primary use of the AZA0918 Split Spoon Sampler?
A: It is used to collect soil samples during Standard Penetration Tests (SPT) and subsurface geotechnical investigations.

Q2: Is the sampler reusable?
A: Yes. All components are reusable and designed for long-term field use with proper maintenance.

Q3: Does AZA0918 comply with recognized standards?
A: Yes, it fully complies with ASTM D1586 for SPT and split-barrel soil sampling.

Q4: What is the advantage of the split-barrel design?
A: It allows the sampler to be opened easily so the soil core can be examined and removed without disturbing its structure or moisture content.

Q5: Can liners be used with this sampler?
A: Yes. Optional liners are commonly used to preserve sample integrity during handling and transportation.

Additional information

Additional information

Standard compliance

ASTM D1586
Sampler diameter

2" (50.8 mm) or 1.375" (34.9 mm)
Overall length

18" to 24" (custom sizes available)
Material

Hardened alloy/carbon steel

You may also like…

Advanced Triaxial Test System (UU–CU–CD Capable) (AZA 1296)

  • UU–CU–CD test modes for complete soil strength profiling
  • Automated control of pressure, load, and drainage
  • Compatible with clay, silt, sand, and mixed soils
  • Integrated data acquisition and real-time graphing
  • Meets ASTM D2850, D4767, BS1377, AASHTO standards
  • Ideal for geotechnical, research, and academic use
Read more
Quick view

Air Bag Trainer AZA1246

The AZA1246 AZALAB Air Bag Trainer is a comprehensive educational training platform designed to demonstrate the structure, operation, diagnostics, and fault analysis of modern automotive airbag systems, also known as Supplemental Restraint Systems (SRS). Built using OEM automotive components, this trainer delivers a realistic learning experience while maintaining complete operational safety.

This system is ideally suited for automotive engineering colleges, ITIs, polytechnic institutes, vocational training centers, and service technician programs, enabling both theoretical instruction and hands-on diagnostics practice.

Read more
Quick view

Alternator Trainer AZA1247

The AZA1247 AZALAB Alternator Trainer is a hands-on automotive electrical training system designed to demonstrate the working principles, construction, and diagnostics of an automotive alternator with external voltage regulation. Built using OEM automotive components, this trainer provides a realistic and safe learning platform for students, technicians, and trainees to understand vehicle charging systems in depth.

This system is ideal for automotive engineering institutes, ITIs, polytechnics, vocational training centers, and service technician programs, supporting both theoretical instruction and practical experimentation.

Read more
Quick view

Arc Welding Machine AZA1234

The AZA1234 Arc Welding Machine by A Z A Lab is a high-performance industrial welding solution engineered for demanding fabrication, maintenance, and structural welding applications. Designed using advanced inverter technology, this machine delivers superior arc stability, high efficiency, and reliable welding performance across a wide range of electrode types and materials.

With an inverter frequency of up to 20 kHz, the AZA1234 ensures fast dynamic response, reduced spatter, and excellent weld bead appearance. Its robust electrical design supports a high duty cycle, allowing continuous operation under heavy loads while maintaining consistent welding output—even with output cable lengths of up to 100 meters.

Read more
Quick view

AutoDist‑86 Glass Distillation AZA1282

AutoDist-86 Glass Distillation Unit – AZA1282

The AutoDist-86 Glass Distillation Unit (Model: AZA1282) from AZA Lab is a high-performance laboratory water distiller engineered for the consistent production of ultra-pure distilled water. Manufactured entirely from high-grade borosilicate 3.3 glass, this unit delivers exceptional chemical resistance, thermal stability, and long-term durability, making it ideal for scientific, medical, pharmaceutical, and academic laboratories.

Designed for reliability and purity, the AZA1282 ensures contamination-free distillation without the risk of metallic ion leaching common in metal-bodied stills.

Read more
Quick view

AutoFlash – Automated Abel Flash Point Analyzer AZA1277

The AutoFlash-1277 (Model: AZA1277) from AZA Lab is a fully automated, microcontroller-based Abel Flash Point Analyzer designed for accurate, safe, and repeatable determination of flash points of combustible liquids. Engineered to meet stringent international testing requirements, this advanced instrument conforms to IP 170, ISO 13736, and IS 1448 (Part 20) standards.

Covering a standard temperature range of –30°C to 70°C, extendable up to 110°C, the AZA1277 is ideally suited for laboratories involved in petroleum testing, petrochemical quality control, fuels research, and regulatory compliance.

Read more
Quick view

    Related products

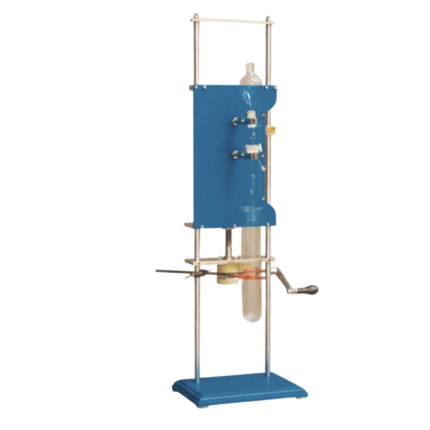

    GRAIN SIZE ANALYSIS (PIPETTE METHOD) AZA0856

    The AZA0856 Grain Size Analysis (Pipette Method) Apparatus from AZA Lab is a precision testing setup used for determining the distribution of fine soil particles such as silt and clay. It is widely used in geotechnical engineering, civil construction quality control, soil mechanics research, and academic laboratories, particularly where conventional sieve analysis is ineffective for particles finer than 75 microns. This apparatus is designed for the mechanical analysis of sub-sieve soil particles, expressing quantitatively the proportion by weight of various particle sizes present in a soil sample. The pipette method, based on sedimentation principles and Stokes’ Law, provides accurate and repeatable results for fine-grained soils. The system consists of a sliding vertical panel operated by a precision screw mechanism, allowing an Anderson pipette to be raised or lowered accurately. A sedimentation tube is held securely below the pipette using a laboratory clamp. The depth of immersion is measured using a millimeter-graduated scale mounted alongside the sliding panel. The apparatus is supplied complete with a 10 ml Anderson pipette, a 500 ml glass sedimentation tube, and test form pads, conforming to standard laboratory practices.
    Read more
    Quick view

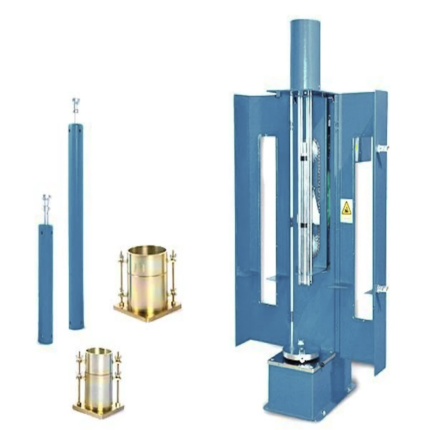

    HEAVY COMPACTION TEST AZA0866

    The AZA0866 Heavy Compaction Test Set from Azalab is designed for determining the Maximum Dry Density (MDD) and Optimum Moisture Content (OMC) of soils using the Heavy Compaction (Modified Proctor) Method, in accordance with IS 2720 (Part VIII). This test is fundamental in geotechnical engineering, road and highway construction, foundation design, embankment works, and earthworks where soils are subjected to high compactive effort. The heavy compaction test realistically simulates field compaction achieved by modern construction equipment, enabling reliable prediction of soil behavior under service loads. This configuration is supplied with a 150 mm diameter mould (2250 cc volume), making it particularly suitable for coarse-grained and granular soils.
    Scope of Use The AZA0866 Heavy Compaction Test Set is used to establish the relationship between moisture content and dry density of soil under heavy compaction energy. The resulting compaction curve is used to determine MDD and OMC, which are essential parameters for compaction control and quality assurance in field construction.
    Read more
    Quick view

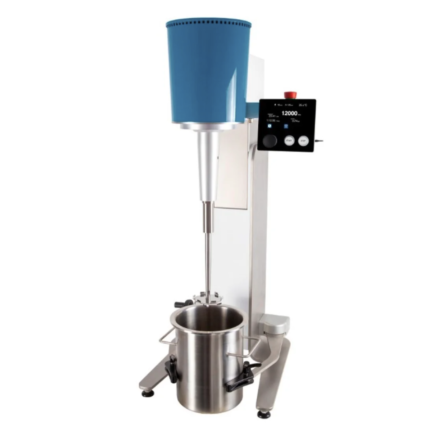

    HIGH SPEED STIRRER AZA0855

    The AZA0855 High Speed Stirrer from AZA Lab is a robust and versatile laboratory instrument designed for efficient mixing, homogenizing, and dispersion of liquids and semi-liquids. Engineered for mechanical analysis as well as general laboratory applications, it is ideal for research, analytical, academic, and industrial laboratories requiring precise and reliable stirring performance. Driven by a high-torque motor, the AZA0855 is capable of achieving high stirring speeds of approximately 4000 RPM under load, ensuring uniform blending, effective particle dispersion, and consistent results. The unit supports a dispersion cup mounted on a dedicated rest provided on the stirrer stand, complete with a removable baffle to enhance mixing efficiency and reduce vortex formation. Operating on 230V AC, the AZA0855 is suitable for continuous laboratory use and is supplied with a dispersion cup / baffle cup in accordance with AZA Lab design principles.
    Read more
    Quick view

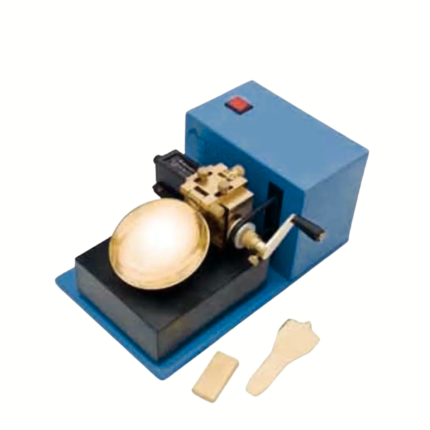

    LIQUID LIMIT DEVICE (MOTORISED) AZA0854

    The Motorised Liquid Limit Device – AZA0854 from AZA Lab is a precision-engineered instrument designed for accurate and repeatable determination of the liquid limit of soils. Equipped with a geared-down motor delivering a consistent 120 RPM, the device automates the drop mechanism, eliminating manual effort and ensuring uniform compaction blows for reliable test results. The AZA0854 is fully compliant with IS 2720 (Part 5) and ASTM D4318, making it suitable for soil classification, road and pavement design, foundation investigations, and routine geotechnical laboratory testing. The unit operates on 230V AC, 50 Hz, single-phase, ensuring compatibility with standard laboratory power supplies. The system is supplied complete with Casagrande and ASTM grooving tools and a 1 cm height calibration block, enabling immediate setup, verification, and testing.
    Read more
    Quick view

    PARTICLE SIZE SEDIMENTATION (HYDROMETER METHOD) AZA0857

    AZA0857 – Particle Size Sedimentation Apparatus (Hydrometer Method) The AZA0857 Particle Size Sedimentation Apparatus (Hydrometer Method) from AZA Lab is designed for determining the particle size distribution of fine-grained soils, particularly silts and clays smaller than 75 microns. This method is widely adopted in soil mechanics, geotechnical engineering, civil construction quality control, and academic laboratories where accurate characterization of cohesive soils is essential. The hydrometer method is based on the sedimentation principle governed by Stokes’ Law, measuring changes in the density of a soil–water suspension over time. By recording hydrometer readings at defined intervals, the percentage of soil particles remaining in suspension is calculated, enabling precise determination of grain size distribution for fine soils beyond the practical limits of sieve analysis.
    Read more
    Quick view

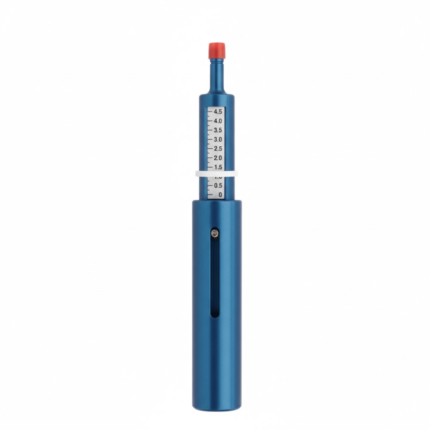

    POCKET PENTROMETER AZA0869

    The AZA0869 Compact Pocket Penetrometer from Azalab is a field-ready instrument designed for rapid estimation of unconfined compressive strength (UCS) and shear strength of cohesive soils. Fully compliant with ASTM D1558 and ASTM D2573, it enables engineers, geologists, and site inspectors to quickly assess soil consistency and short-term stability without the need for laboratory equipment. Widely used in foundation evaluation, trench wall inspection, and field soil classification, the AZA0869 delivers immediate, reliable results for clays and silts during preliminary geotechnical assessments.
    Applications
    • Estimation of UCS and shear strength of soft to stiff cohesive soils
    • Field classification of soil consistency
    • Pre-construction soil stability checks
    • Trench safety and shallow foundation planning
    • Geotechnical education and field research
    Read more
    Quick view
    Soil Hydrometer

    SOIL HYDROMETER AZA0858

    AZA0858 – Reliable Soil Hydrometer for Fine Particle Analysis The AZA0858 Soil Hydrometer from AZA Lab is a precision glass instrument designed for grain size analysis of fine-grained soils using the sedimentation (hydrometer) method. It is specifically intended for soils in which more than 10% of the material passes through the 75-micron sieve, ensuring accurate assessment of clay and silt fractions in accordance with internationally recognized standards. Manufactured from high-clarity transparent borosilicate glass, the AZA0858 features a permanently engraved density scale for direct, reliable readings of suspension density over time. The instrument is factory calibrated and optimized for use at 27°C, delivering high precision in both laboratory and controlled field testing environments.
    Read more
    Quick view

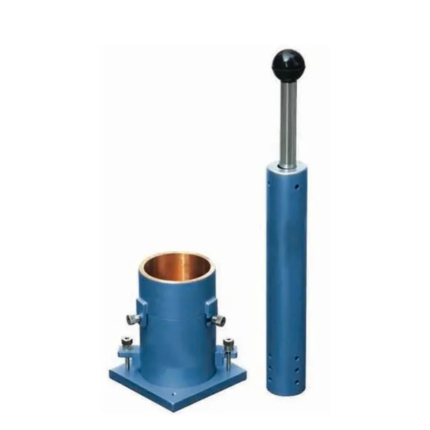

    STANDARD COMPACTION TEST AZA0864
