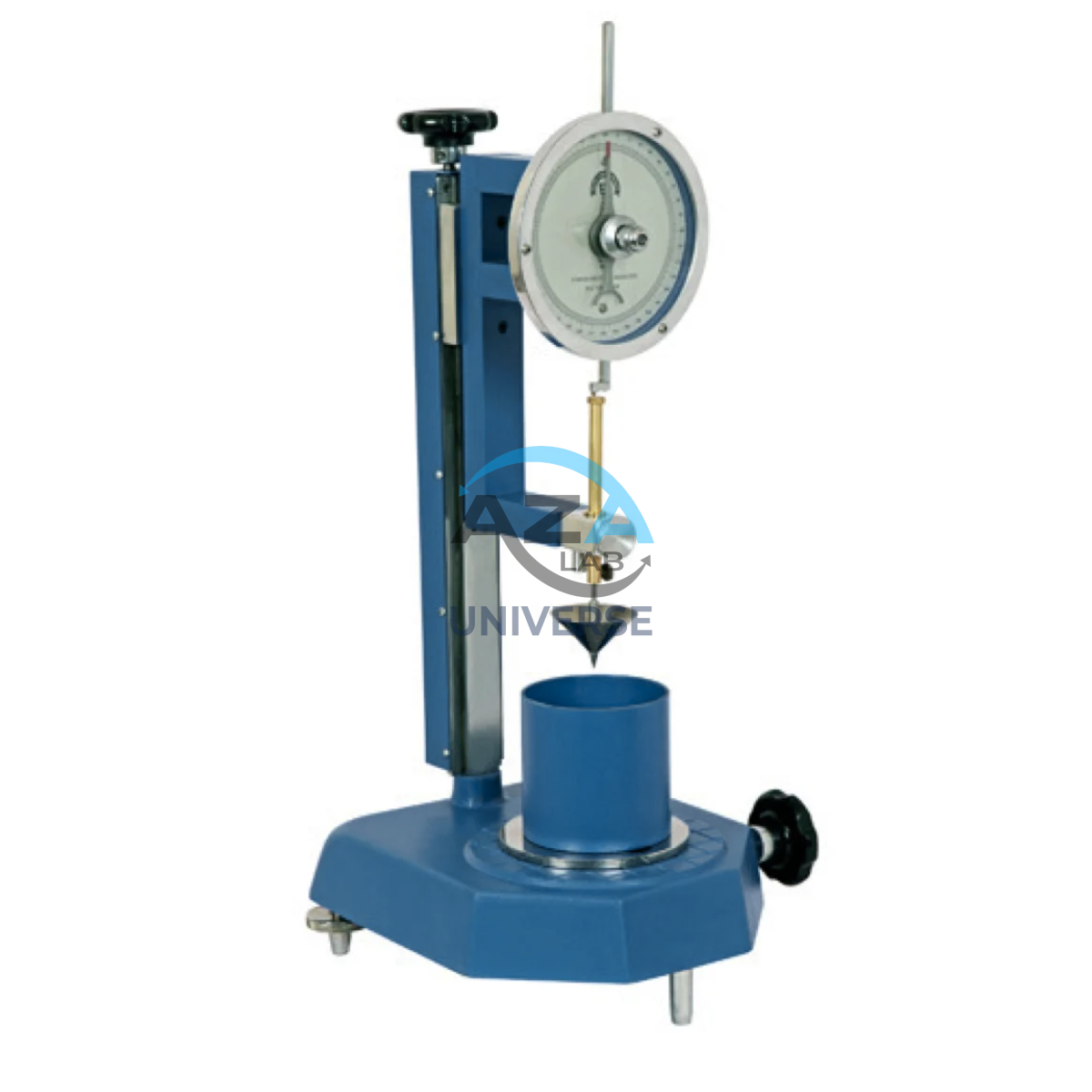

SOIL CONE PENETROMETER AZA0851

The AZA0851 Precision Cone Penetrometer from AZALAB is a high-accuracy laboratory instrument designed for determining the liquid limit of fine-grained soils using the cone penetration method. The apparatus fully complies with IS 2720 (Part 5) and ASTM D4318, making it suitable for standardized soil classification and geotechnical investigations.

Unlike the Casagrande method, the cone penetrometer provides a more objective and repeatable measurement of liquid limit by correlating soil consistency to the depth of penetration of a standardized cone under its own weight. This method is widely preferred in modern soil mechanics laboratories due to reduced operator dependency and higher precision.

Principle of Operation

A soil paste prepared at a known moisture content is placed in the sample cup. The stainless steel cone, of specified mass and angle, is allowed to penetrate the soil freely for 5 seconds. The depth of penetration (up to 20 mm) is measured using a precision depth gauge. The moisture content corresponding to 20 mm penetration is defined as the liquid limit of the soil.

Standards Compliance

  • IS 2720 (Part 5) – Determination of liquid and plastic limits
  • ASTM D4318 – Liquid Limit, Plastic Limit, and Plasticity Index of Soils
View Specification PDF
Enquiry on WhatsApp
Category:
Description

Description

Applications

  • Liquid limit determination of fine-grained soils

  • Soil classification and plasticity index calculation

  • Geotechnical site investigations

  • Foundation and pavement design

  • Academic and research laboratories

  • Quality control in civil engineering projects

Key Features and Benefits

  • Standards Compliant: Meets IS and ASTM specifications

  • High Accuracy: Precise depth gauge for reliable penetration readings

  • Objective Method: Minimizes operator error compared to Casagrande method

  • Durable Construction: Stainless steel cone and rigid frame

  • Smooth Operation: Low-friction release mechanism ensures free penetration

  • Laboratory Ready: Compact, stable, and easy to use

Technical Specifications

Feature Specification
Model AZA0851
Test Type Liquid Limit of Soil (Cone Method)
Standards IS 2720 (Part 5), ASTM D4318
Cone Material Stainless Steel
Cone Penetration Up to 20 mm
Depth Gauge Resolution 0.1 mm
Release Mechanism Manual / Lever operated
Base Rigid metal base for stability
Application Fine-grained cohesive soils
Brand AZALAB

What’s Included

  • Precision cone penetrometer frame

  • Stainless steel cone (standard mass & angle)

  • Penetration depth gauge

  • Sample cup

  • Instruction manual (on request)

Frequently Asked Questions (FAQ)

Q1: What is AZA0851 used for?
A: It is used to determine the liquid limit of fine-grained soils using the cone penetration method.

Q2: How is this different from the Casagrande device?
A: The cone penetrometer provides more consistent and operator-independent results by measuring penetration depth instead of groove closure.

Q3: What penetration depth defines the liquid limit?
A: A penetration of 20 mm after 5 seconds corresponds to the liquid limit.

Q4: Is it suitable for all soil types?
A: It is best suited for fine-grained cohesive soils such as clays and silts.

Q5: Does it comply with Indian and international standards?
A: Yes, it complies with IS 2720 (Part 5) and ASTM D4318.

Related products

GRAIN SIZE ANALYSIS (PIPETTE METHOD) AZA0856

The AZA0856 Grain Size Analysis (Pipette Method) Apparatus from AZA Lab is a precision testing setup used for determining the distribution of fine soil particles such as silt and clay. It is widely used in geotechnical engineering, civil construction quality control, soil mechanics research, and academic laboratories, particularly where conventional sieve analysis is ineffective for particles finer than 75 microns. This apparatus is designed for the mechanical analysis of sub-sieve soil particles, expressing quantitatively the proportion by weight of various particle sizes present in a soil sample. The pipette method, based on sedimentation principles and Stokes’ Law, provides accurate and repeatable results for fine-grained soils. The system consists of a sliding vertical panel operated by a precision screw mechanism, allowing an Anderson pipette to be raised or lowered accurately. A sedimentation tube is held securely below the pipette using a laboratory clamp. The depth of immersion is measured using a millimeter-graduated scale mounted alongside the sliding panel. The apparatus is supplied complete with a 10 ml Anderson pipette, a 500 ml glass sedimentation tube, and test form pads, conforming to standard laboratory practices.
Read more
Quick view

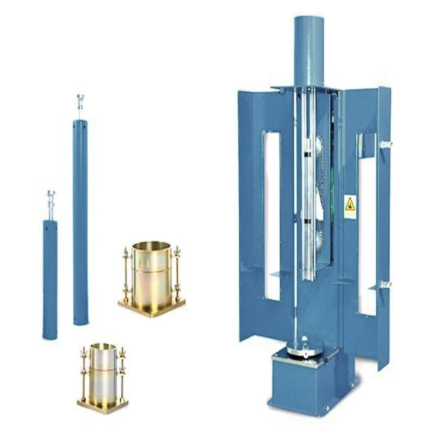

HEAVY COMPACTION TEST AZA0865
