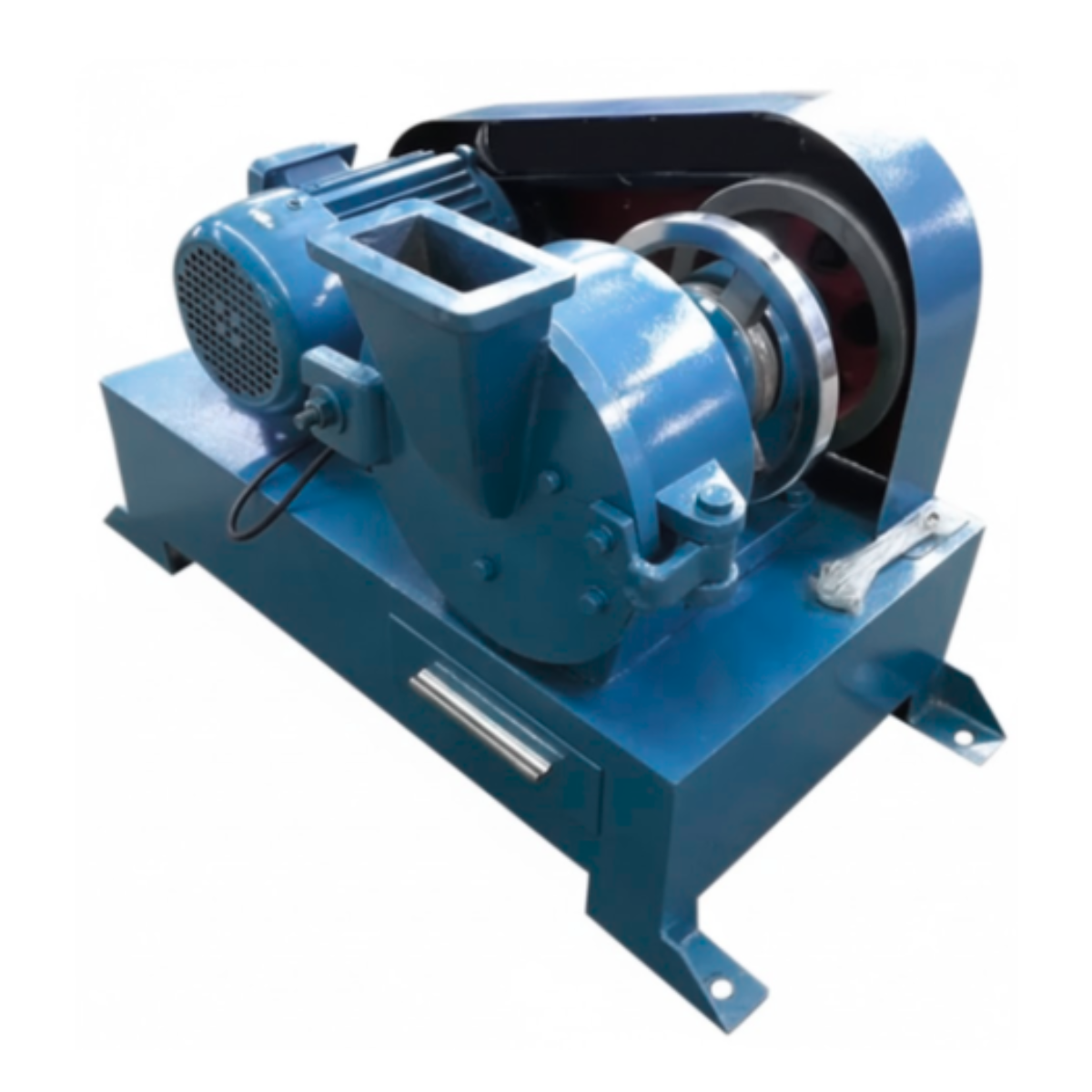

LABORATORY PULVERIZER AZA0991
The AZA0991 Laboratory Pulveriser by Azalab is a high-performance grinding machine designed for fine and uniform pulverizing of cement, soil, clinker, aggregates, ores, and mineral samples. It is widely used in civil engineering, mining, geotechnical, construction material, and research laboratories for fast and accurate sample preparation.
Built to comply with IS and ASTM standards, this compact yet powerful machine delivers consistent particle size reduction for reliable downstream testing such as XRF analysis, sieve testing, and chemical composition assessments.
Key Applications
- Cement laboratories – clinker & cement grinding
- Soil and geotechnical labs – fine soil preparation
- Mining & metallurgy – ore and mineral pulverizing
- Construction material testing – mortar & concrete sample prep
- Agricultural and environmental labs
Description
Working Principle
Material is fed into the hopper and enters the hardened grinding chamber.
The high-speed rotor/disc mechanism pulverizes the material through impact and friction.
Powdered material passes through a mesh and is collected in the tray, ready for testing.
Main Features
-
Heavy-duty cast steel body
-
Hardened steel / tungsten carbide grinding chamber (optional)
-
Adjustable fineness output
-
High-speed motor with thermal overload protection
-
Quick-release chamber for easy cleaning
-
Low vibration, compact tabletop design
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA0991 |
| Motor Power | 1–2 HP, 220/440V AC |
| Grinding Capacity | 100 – 250 g/min |
| Output Fineness | Up to 150 microns (100 mesh) |
| Feed Size | Up to 6 mm |
| Hopper Capacity | 500 g |
| Grinding Chamber | Hardened Steel / Tungsten Carbide (Optional) |
| Drive Type | Belt Driven |
| Safety System | Overload Protection + Thermal Cut-Off |
| Standards | IS & ASTM |
Key Advantages
-
Produces uniform fine powder quickly
-
Rugged design for continuous lab use
-
Easy maintenance and cleaning
-
High precision sample preparation
Frequently Asked Questions (FAQ)
Q1: What materials can AZA0991 grind?
Cement, clinker, soil, aggregates, minerals, ores, and dry chemicals.
Q2: What fineness can it achieve?
Up to 100 mesh (150 microns).
Q3: Is it suitable for continuous use?
Yes, it is designed with cooling and overload protection.
Q4: Does it meet international standards?
Yes, it complies with IS and ASTM standards.
Q5: Is field installation difficult?
No, it’s compact and easy to install and operate.
Related products

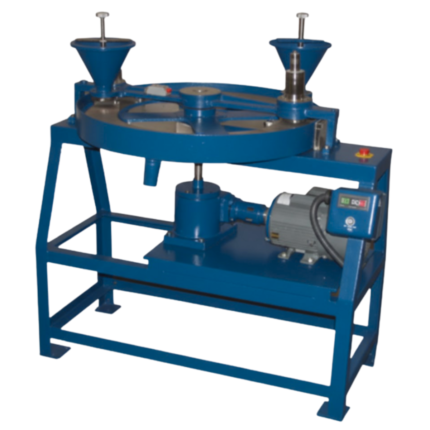

ACCELERATED POLISHING MACHINE AZA0984
