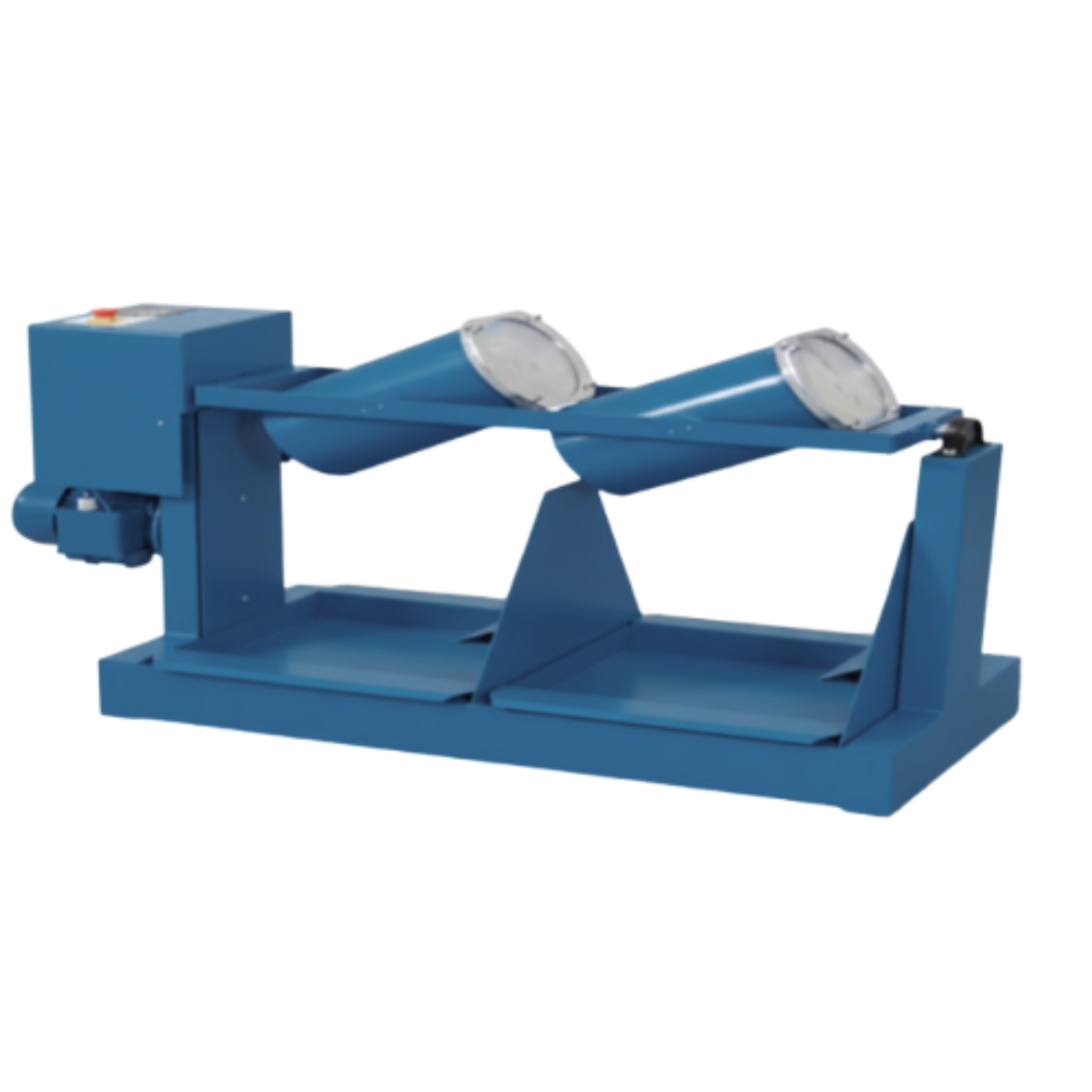

DEVEL ATTRITION TESTER AZA0989
The AZA0989 Devel Attrition Tester by Azalab is a heavy-duty laboratory machine designed to evaluate the resistance of coarse aggregates to abrasion and wear. It is widely used in road construction, railway ballast testing, and concrete material laboratories to ensure aggregates meet strength and durability requirements.
This equipment complies with IS 2386 (Part IV) and ASTM C131 / ASTM C535 standards, providing reliable and repeatable test results.
Key Applications
- Road and highway material testing
- Railway ballast quality assessment
- Concrete mix design durability testing
- Civil engineering research & academic laboratories
Description
Working Principle
The aggregate sample and hardened steel balls (abrasive charge) are placed inside a rotating steel drum. The drum rotates at a controlled speed of 30–33 RPM, producing rolling and impact actions.
After the test cycle, the material is sieved and the percentage of fines is calculated as the attrition value.
Lower attrition value = Stronger, more durable aggregate.
Main Features
-
Heavy-duty steel drum construction
-
Motorized operation with stable, vibration-free frame
-
Digital timer with auto cut-off
-
User-friendly operation with high test repeatability
-
Suitable for both laboratory and educational use
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA0989 |
| Drum Diameter | 300 – 500 mm |
| Drum Length | 400 – 700 mm |
| Rotation Speed | 30 – 33 RPM |
| Motor | 1 HP (Single / Three Phase) |
| Abrasive Charge | 6 – 12 Hardened Steel Balls |
| Sample Capacity | 5 – 10 kg |
| Timer | Digital with Auto Cut-off |
| Build Material | Powder-coated Steel |
| Standards | IS 2386 (Part IV), ASTM C131, ASTM C535 |
Frequently Asked Questions
Q1: What is AZA0989 used for?
It measures the attrition (wear) resistance of coarse aggregates under mechanical action.
Q2: Which standards does it follow?
IS 2386 (Part IV), ASTM C131 and ASTM C535.
Q3: Is it suitable for educational institutions?
Yes, it is ideal for civil engineering and highway labs.
Q4: Can it test different aggregate sizes?
Yes, it accommodates standard coarse aggregate sizes used in construction.
Q5: Does it require complex maintenance?
No. Only routine cleaning and periodic lubrication are needed.
Related products
AGGREGATE IMPACT TESTER WITH BLOW COUNTER AZA0983
The AZA0983 Aggregate Impact Tester with Digital Blow Counter is a precision-engineered laboratory apparatus used to determine the Aggregate Impact Value (AIV) of coarse aggregates. It is designed to evaluate the toughness and resistance of aggregates used in road pavements, highways, and structural concrete.
This equipment is manufactured for durability, accuracy, and long service life, and is fully compliant with IS:2386 (Part IV) and BS 812 standards.
Key Features
-
Determines Aggregate Impact Value (AIV) for pavement materials
-
Integrated digital blow counter for accurate strike counting
-
Conforms to IS:2386 (Part IV) and BS 812
-
Heavy-duty, vibration-resistant frame
-
Cylindrical steel cup and standard impact hammer
FLAKINESS SIEVE SET AZA0973
The AZA0973 Flakiness Sieve Set is a laboratory-grade testing instrument designed to determine the flakiness index of coarse aggregates. It is an essential tool for evaluating aggregate particle shape, helping ensure strength, durability, and performance of concrete and road construction materials. This system is manufactured for full compliance with IS 2386 (Part I) and is widely used in civil engineering laboratories and construction quality control sites.
Key Features
-
Used for determining flakiness index of coarse aggregates
-
Fully compliant with IS 2386 (Part I) standards
-
Precision-machined slotted gauges for multiple aggregate sizes
-
Heavy-duty stainless steel / powder-coated steel construction
-
Corrosion-resistant, long service life
-
Portable and easy to use in lab and field environments
INDEX APPARATUS (FLOW COEFFICIENT OF FINE AGGREGATES) AZA0975
The AZA0975 Flow Coefficient Index Apparatus is a precision laboratory instrument designed to measure the flow coefficient of fine aggregates, such as natural sand and crushed sand. This test helps evaluate workability, particle shape, and grading, which are critical factors in concrete and mortar mix performance. The apparatus is manufactured in compliance with IS 2386 (Part I) and is widely used in civil engineering laboratories and construction quality control departments.
Key Features
-
Measures flow coefficient of fine aggregates
-
Fully compliant with IS 2386 (Part I)
-
Evaluates workability and particle shape characteristics
-
Supplied as a complete set: funnel, stand, cylinder, and base plate
-
Precision-machined components for consistent results
-
Corrosion-resistant, durable construction
-
Easy manual operation for laboratory and field use
LENGTH GAUGE AZA0971
The AZA0971 Length Gauge is a precision construction materials testing instrument designed to determine the elongation index of coarse aggregates. It is an essential tool for evaluating particle shape characteristics, which directly influence the strength, durability, and workability of concrete and asphalt mixes. The gauge is manufactured to strict quality standards, ensuring reliable and repeatable results in laboratory and field environments.
Key Features
-
Designed for determining elongated particles in coarse aggregates
-
Essential for concrete, bituminous, and road material analysis
-
Precision metal frame with standard machined slot dimensions
-
Heavy-duty, corrosion-resistant construction
-
Accurate performance as per international and national standards
LOS ANGELES ABRASION TESTING MACHINE AZA0986
Key Functions
- Tests abrasion resistance of coarse aggregates
- Evaluates impact strength under repeated load cycles
- Ensures material suitability for roads, highways, and structural concrete
- Provides accurate, repeatable test results for quality control
REID VAPOR PRESSURE TESTER AZA1321
- Floor-Standing Design with stainless-steel working table for strength and easy operation
- Digital Temperature Controller for precise and uniform water bath heating
- Dual High-Accuracy Pressure Gauges for reliable internal pressure readings
- Dual Vapor Bombs for simultaneous testing and increased productivity
- Rugged Construction for long-term laboratory and industrial use

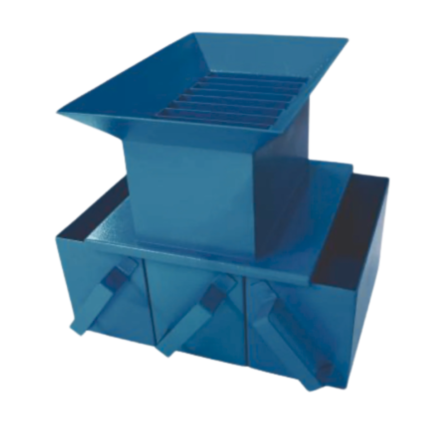

RIFFLE SAMPLE DIVIDER AZA0980
Key Features
- Accurate material splitting for laboratory testing
- Heavy-duty corrosion-resistant metal construction
- Uniform slot widths for consistent sample division
- Smooth-flow chute design for minimal sample loss
- Supplied with two receiving pans for clean, efficient operation
- Compact bench-top design
THICKNESS GAUGE AZA0970
The AZA0970 Thickness Gauge is a precision measuring instrument designed for accurate thickness measurement of coatings, films, metals, plastics, rubbers, and painted surfaces. Engineered for laboratory and industrial applications, this compact and reliable device ensures consistent quality control, compliance with standards, and improved material performance across multiple industries.
Key Features
-
High-precision thickness measurement for laboratory and field use
-
Suitable for metals, films, plastics, rubber, and paint coatings
-
Available in analog dial and digital LCD display models
-
Lightweight, compact, and portable design
-
Fast response time with stable, repeatable readings
-
Easy zeroing and calibration mechanism
