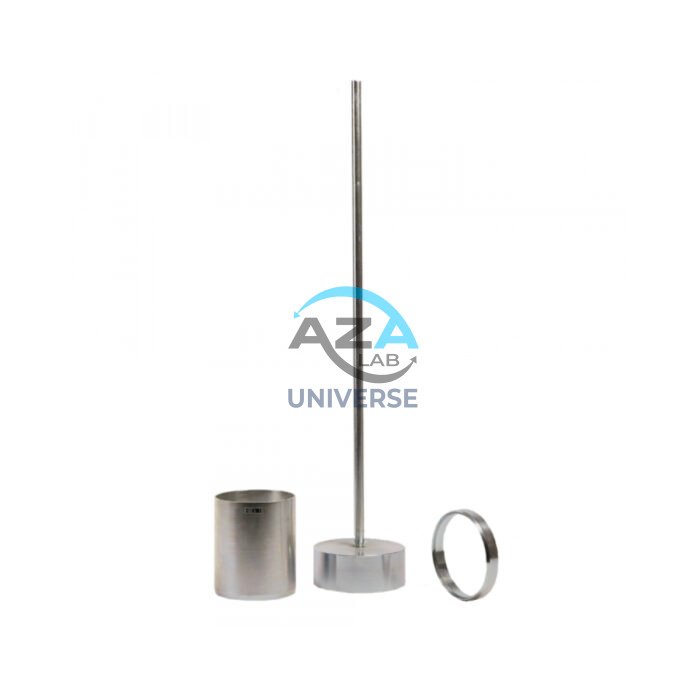

CORE CUTTER AZA0882

The AZA0882 Core Cutter Apparatus from Azalab is a robust, field-ready solution for determining the in-situ dry density of fine-grained, cohesive soils that are substantially free from aggregates. Designed in accordance with IS 2720 (Part XXIX):1966 and BS 1377-9, this apparatus is widely adopted in geotechnical investigations, construction compaction control, and civil engineering quality assurance programs.

The core cutter method is valued for its simplicity, repeatability, and direct field applicability, making AZA0882 an essential tool for routine density checks on embankments, subgrades, and backfills where soil conditions are suitable.

Enquiry on WhatsApp
SKU: AZA 0882 Category:
Description

Description

Purpose & Test Principle

The AZA0882 operates on the core cutter method, where a cylindrical steel cutter is driven vertically into compacted soil to extract an undisturbed soil core of known volume. The recovered sample is trimmed flush, weighed, and tested for moisture content. Using these measurements, bulk density and dry density are calculated accurately.

This method is particularly effective for cohesive and fine-grained soils and is not recommended for gravelly or highly sandy materials.

Standard Set – What’s Included

  • Cylindrical Core Cutter

    • Internal Diameter: 100 mm

    • Length: 127.3 mm (as per IS standard)

  • Steel Dolly

    • Height: 25 mm

    • With collar lip for accurate cutter alignment and load transfer

  • Rammer with Detachable Steel Rod

    • Heavy-duty construction for smooth driving

    • Minimizes vibration and impact losses during penetration

All components are manufactured with precise dimensions to ensure consistent volume and reliable test results.

Optional Spares & Accessories

  • Spare Core Cutter

    • 100 mm I.D. × 175 mm long (for larger samples)

  • Additional Dolly

    • Compatible with standard AZA0882 cutter

  • Field Test Form Pad

    • Pack of 50 sheets for recording field density and moisture data

Applications

  • Road and railway embankment compaction control

  • Backfill and subgrade density verification

  • Geotechnical site investigations

  • Civil engineering QA/QC field testing

  • Academic laboratories and field training programs

Test Procedure Overview

  1. Place the dolly over the core cutter

  2. Drive the cutter vertically into soil using the rammer

  3. Carefully extract the cutter containing the soil sample

  4. Trim excess soil flush with cutter edges

  5. Weigh cutter with soil

  6. Determine moisture content by oven drying

  7. Calculate bulk density and dry density

This straightforward process delivers consistent and repeatable results when used on appropriate soil types.

Technical Specifications

Component Specification
Model Number AZA0882
Standard Compliance IS 2720 (Part XXIX):1966, BS 1377-9
Core Cutter Size 100 mm I.D. × 127.3 mm long
Dolly Size 25 mm high with collar lip
Rammer With detachable steel rod
Material Mild steel, powder-coated or galvanized
Optional Spare Cutter 100 mm I.D. × 175 mm long
Packaging Protective field carry case

Key Features

  • Accurate determination of in-situ dry density

  • Fully compliant with IS and BS standards

  • Precision-machined components

  • Rugged mild-steel construction for field durability

  • Simple operation and rapid testing

  • Ideal for cohesive, fine-grained soils

  • Optional accessories for extended field use

  • Trusted Azalab build quality

Frequently Asked Questions (FAQ)

Q1: Which soil types are suitable for AZA0882?
Cohesive and fine-grained soils free from aggregates.

Q2: What is the difference between 127.3 mm and 175 mm cutters?
127.3 mm is the standard IS-specified length; 175 mm is an optional size for larger sample volumes.

Q3: Can it be used for sandy or gravelly soils?
No. For coarse-grained soils, the sand replacement or sand cone method is recommended.

Q4: Is the rammer detachable?
Yes, the rammer includes a detachable steel rod for ease of transport and field handling.

Q5: Are field test forms supplied as standard?
No. Test form pads are available as optional accessories.

AZA0882 – Core Cutter Apparatus
A dependable, standards-compliant solution for precise in-situ density determination of cohesive soils in geotechnical and construction field testing.
