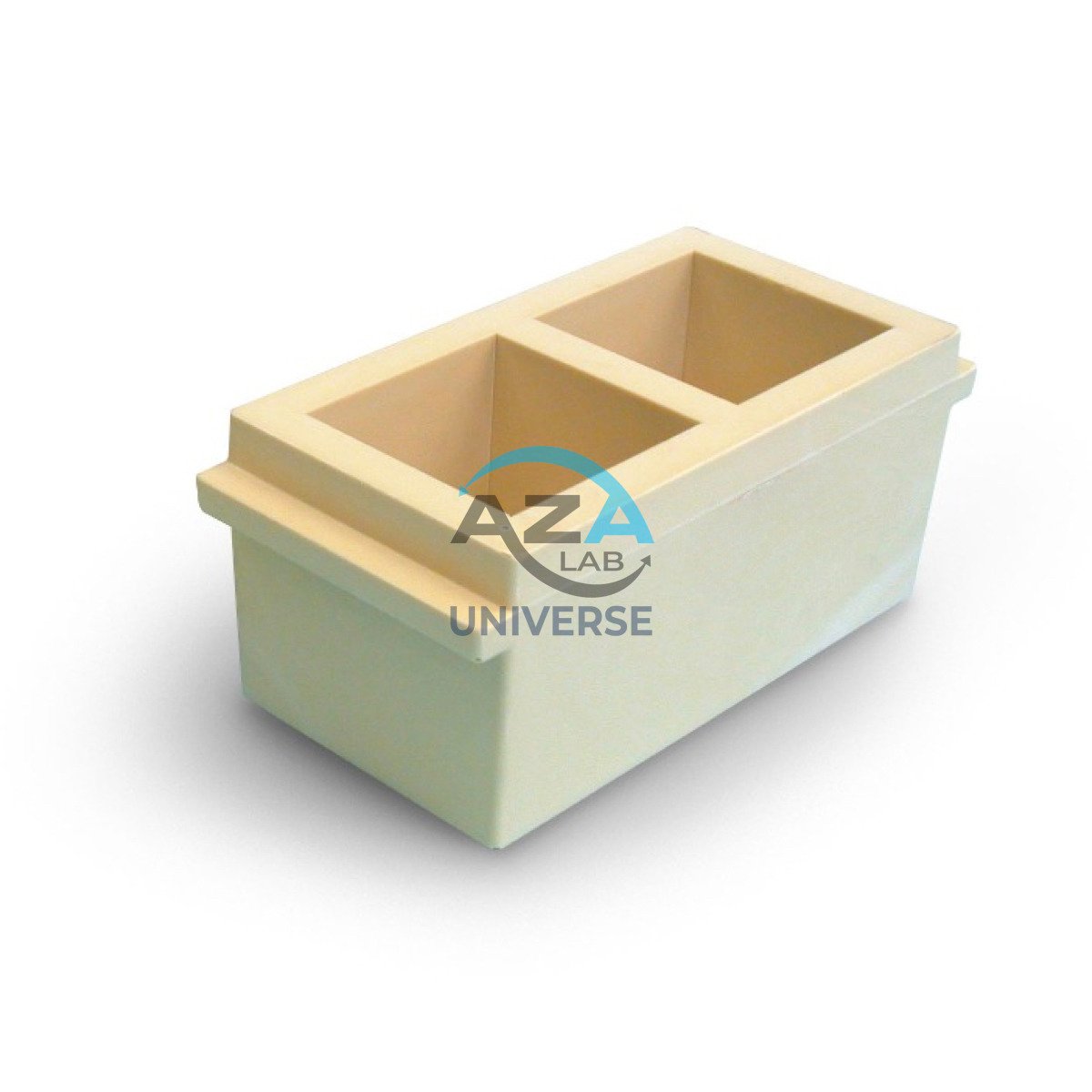

PLASTIC CUBE MOULD AZA1126
The AZA1126 Plastic Cube Mould is a precision-engineered solution designed for casting 150 mm × 150 mm × 150 mm concrete cubes used in compressive strength testing. Manufactured from high-impact, corrosion-resistant plastic, this mould offers an excellent balance of durability, ease of use, and portability—making it ideal for laboratories, construction sites, and training institutes.
Its modular construction, consisting of detachable side walls and a sturdy base, allows for fast assembly and easy demoulding. The smooth internal surface ensures the concrete cube is removed cleanly without surface defects, supporting consistent, repeatable test results. Unlike metal moulds, the AZA1126 is lightweight, rust-free, and requires minimal maintenance, even in humid or coastal environments.
The mould complies with IS 10086 and BS 1881-108, ensuring suitability for standardized concrete compressive strength testing procedures.
Description
Key Benefits of AZA1126
- Standard Size (150 mm): Fully compliant with industry norms for concrete compressive strength testing
- Durable Plastic Construction: Resistant to corrosion, impact, and deformation
- Lightweight & Portable: Easy to transport and ideal for field testing
- Modular Design: Quick assembly, disassembly, and cleaning
- Precision Engineering: Delivers accurate and repeatable test results
- Education-Friendly: Ideal for training labs, colleges, and technical institutes
- Low Maintenance: No rusting, minimal oiling, and simple cleaning
- Environment Resistant: Suitable for high-moisture, coastal, or chemical-prone testing environments
Specifications
| Feature | Details |
|---|---|
| Product Name | Cube Mould AZA 1126 (Plastic) |
| Material | Heavy-duty, high-impact plastic |
| Cube Size | 150 mm × 150 mm × 150 mm |
| Standards | IS 10086, BS 1881-108 |
| Construction | Modular; removable walls and base |
| Surface Finish | Smooth internal surface |
| Usage | Compressive strength testing, QC labs, student training, site testing |
| Portability | Lightweight, easy to transport |
| Reusability | Yes – multiple test cycles |
Frequently Asked Questions (FAQ)
Q1: What material is AZA1126 made from?
High-strength, durable plastic engineered for repeated testing use.
Q2: What cube size does this mould produce?
It casts 150 mm × 150 mm × 150 mm standard concrete cubes.
Q3: Is it reusable?
Yes. With proper cleaning, it can be reused for numerous test cycles.
Q4: Is it as durable as metal moulds?
While lighter than metal, it is highly durable and corrosion-resistant—ideal for lab, educational, and medium-duty site applications.
Q5: Who is this mould ideal for?
Construction QC labs, academic institutions, training centres, and technicians requiring a lightweight, user-friendly cube mould.
