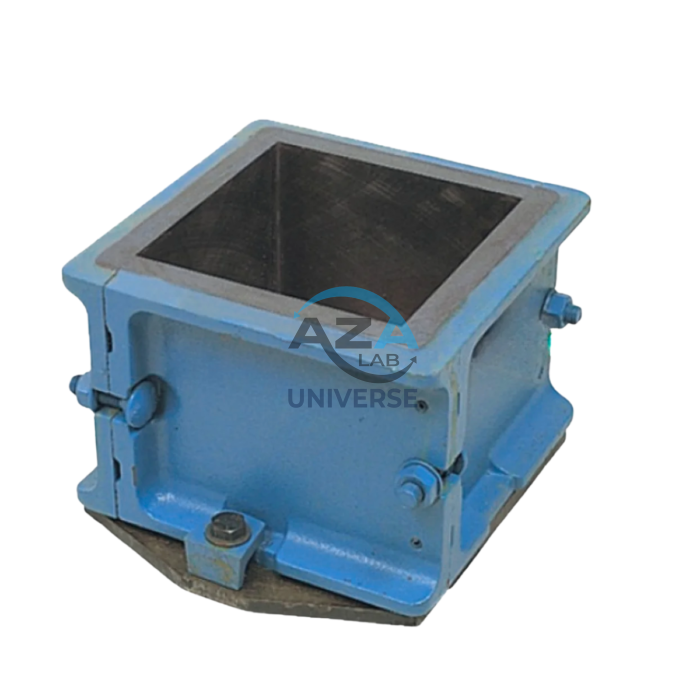

CUBE MOULD (METAL) AZA1122
The AZA1122 Cube Mould is a precision-engineered, heavy-duty metal mould designed for casting 150 mm × 150 mm × 150 mm concrete specimens for compressive strength testing. Built for durability and dimensional stability, this mould is ideal for material testing laboratories, construction quality control units, R&D facilities, and civil engineering institutions.
Manufactured in compliance with IS 10086 and BS 1881-108, the AZA1122 ensures uniform cube geometry, accurate volume, and repeatable test outcomes—critical for determining the compressive strength and performance characteristics of cement and concrete mixes.
Purpose & Function
This mould supports the preparation of standardized cube specimens that are used in:
- Compressive strength testing
- Batch-wise quality control in construction
- Concrete mix design validation
- Research on material performance and durability
Accurate mould geometry ensures uniform load distribution during testing, leading to reliable and compliant strength results.
Description
Construction & Durability
-
Manufactured from high-grade, heavy-duty metal engineered to withstand repetitive casting cycles.
-
Interior surfaces are machined smooth for easy demoulding and reduced surface imperfections.
-
Modular design with removable side plates and clamping bolts/latches for quick assembly and cleaning.
-
High-precision machining guarantees perfect right angles, flat surfaces, and dimensional stability.
-
Rust-resistant coating enhances service life even in harsh site and laboratory environments.
Standards Compliance
-
IS 10086 – Specification for Moulds for Use in Tests of Cement and Concrete
-
BS 1881-108 – Testing Concrete: Making Test Cubes in the Field
Internal dimensions strictly maintained at 150 × 150 × 150 mm, ensuring conformity to international testing protocols.
Applications
-
Construction QC Laboratories
-
Concrete Production Plants
-
Third-Party Material Testing Laboratories
-
Civil Engineering R&D Centres
-
Government Infrastructure Testing Agencies
-
Engineering Colleges and Technical Institutes
Key Features
-
Standard cube size: 150 mm × 150 mm × 150 mm
-
Durable metal construction for long service life
-
Smooth internal finish for clean demoulding
-
Tight clamping for leak-free casting
-
Designed for repeated, industrial-grade use
-
Conforms to IS 10086 & BS 1881-108
-
Ensures consistent, dimensionally accurate specimens
Specifications
| Feature | Specification |
|---|---|
| Model Number | AZA1122 |
| Cube Size | 150 mm × 150 mm × 150 mm |
| Material | High-grade metal |
| Standard Compliance | IS 10086, BS 1881-108 |
| Application | Concrete compressive strength testing |
| Usage Areas | Laboratories, construction sites, educational institutions |
FAQs
Q1: What is the primary use of the AZA1122 Cube Mould?
It is used to cast standard 150 mm concrete cubes for compressive strength testing of concrete mixes.
Q2: Which standards does it comply with?
It complies with IS 10086 and BS 1881-108.
Q3: Is it suitable for repeated long-term use?
Yes. Its heavy-duty metal construction ensures durability and stability over hundreds of test cycles.
Q4: Where can it be used effectively?
In laboratories, construction sites, educational and research institutions, and government testing facilities.
Q5: Does the mould ensure accurate dimensions?
Yes. Precision machining guarantees consistent cube geometry and accurate internal dimensions.
