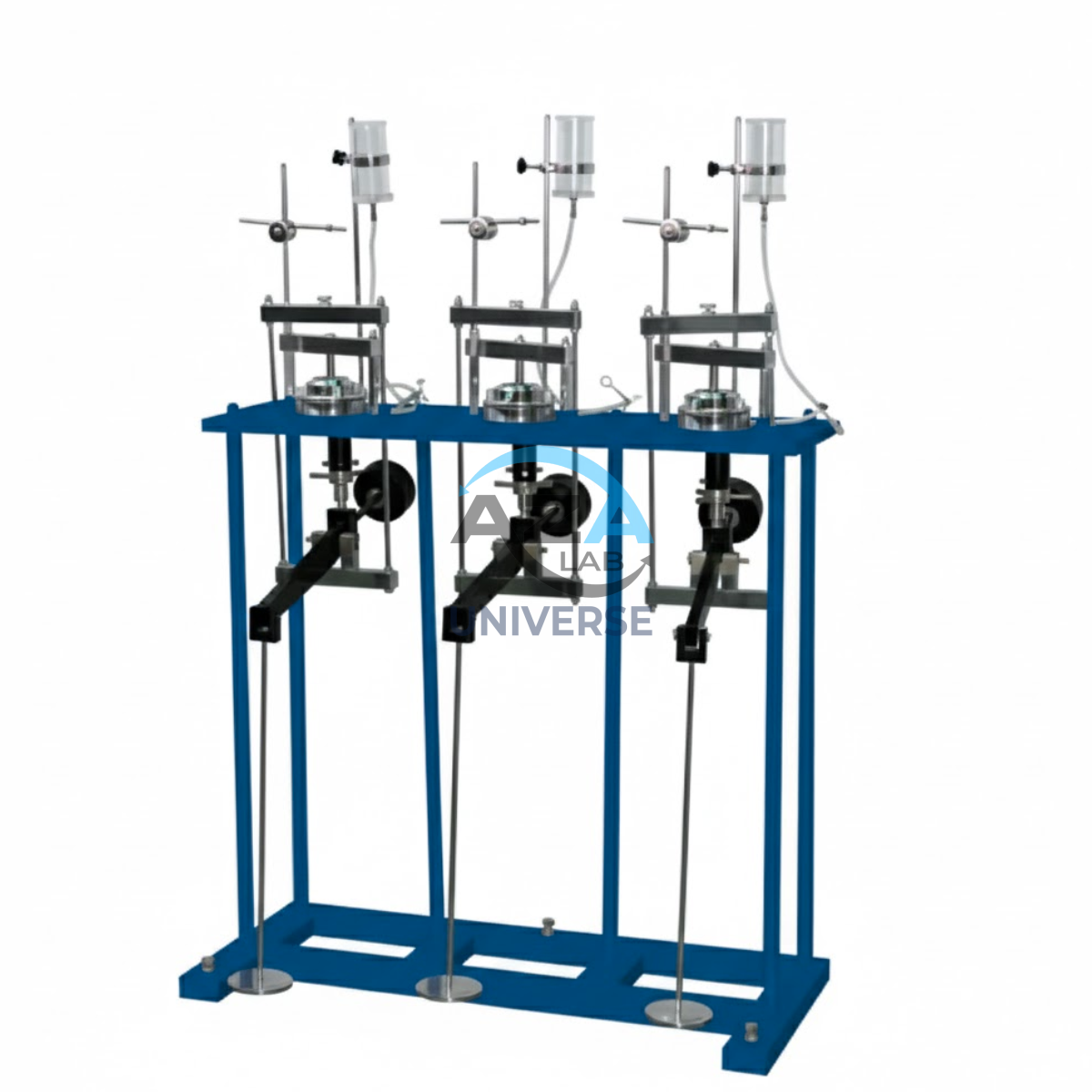

CONSOLIDATION APPARATUS (THREE GANG MODEL) AZA0898

The AZA0898 Three Gang Consolidation Apparatus is a high-capacity geotechnical testing system designed to simultaneously evaluate the consolidation characteristics of three independent soil specimens. Engineered for efficiency and accuracy, this apparatus is ideal for laboratories handling large testing volumes or time-critical geotechnical investigations.

Used for one-dimensional consolidation (oedometer) testing, the AZA0898 enables precise determination of soil compressibility and settlement behavior under incremental static loading. By allowing three tests to run concurrently—each with independent loading control—the system significantly reduces testing time while maintaining high measurement accuracy.

Enquiry on WhatsApp
Category:
Description

Description

Purpose and Function

Soil consolidation testing is fundamental for predicting long-term settlement of foundations, embankments, pavements, and earth structures. The AZA0898 allows engineers to determine critical parameters such as:

  • Coefficient of consolidation (cᵥ)

  • Compression index (C𝑐)

  • Swelling index (C𝑠)

  • Preconsolidation pressure (p′𝑐)

The three-gang configuration provides maximum operational flexibility, enabling different loads, soil types, or test schedules to be run simultaneously.

Key Applications

  • Soil compressibility and settlement analysis

  • Foundation and embankment design studies

  • Pavement and infrastructure geotechnical evaluation

  • Academic research and commercial soil testing

  • Long-term consolidation and swelling behavior assessment

Construction & Features

Each AZA0898 Three Gang Consolidation Apparatus includes:

  • Rigid steel loading frame with minimal deflection

  • Three independent loading stations (gangs)

  • Dead-weight loading system with lever arms

  • Three standard consolidation cells (oedometer cells)

  • Mechanical dial gauges for deformation measurement

  • Precision-machined components for accurate load transfer

Optional configurations include electronic LVDTs, digital displays, and data acquisition systems for automated, high-resolution settlement monitoring.

Standards and Compliance

Designed to comply with major international soil testing standards:

  • ASTM D2435 / ASTM D3877 – One-Dimensional Consolidation

  • BS 1377 Part 5 – Compression and Swelling Tests

  • IS 2720 (Part 15) – Determination of Consolidation Properties

Technical Specifications

Feature Specification
Model AZA0898
Test Type Soil Consolidation (Oedometer Test)
Configuration Three Gang (Simultaneous Testing of 3 Samples)
Loading System Independent Dead Weights with Lever Arms
Load Ratio 10:1 or 1:1 (typical)
Consolidation Cells 3 Nos., standard sizes 50 mm / 63.5 mm / 75 mm
Deformation Measurement Mechanical Dial Gauges (Standard)
Optional Measurement LVDTs with Digital Display & Data Logger
Load Capacity Up to ~1000 kPa per sample (typical)
Frame Material Heavy-Duty Steel
Cell Material Brass / Stainless Steel
Compliance ASTM D2435, BS 1377, IS 2720
Operation Bench-Mounted, Manual Loading

Key Benefits

  • Simultaneous testing of three soil specimens

  • Independent load application on each gang

  • High laboratory throughput and time efficiency

  • Accurate settlement and compressibility data

  • Robust, low-deflection frame for reliable results

  • Upgradeable to automated digital data acquisition

Frequently Asked Questions (FAQ)

Q1: What is the advantage of a three gang consolidation apparatus?
It allows three consolidation tests to be conducted simultaneously, greatly increasing laboratory efficiency and reducing total testing time.

Q2: Can different loads be applied to each specimen?
Yes. Each gang operates independently, allowing different loads and testing schedules.

Q3: What parameters can be determined using AZA0898?
Coefficient of consolidation (cᵥ), compression index (C𝑐), swelling index (C𝑠), and preconsolidation pressure (p′𝑐).

Q4: Can the system be automated?
Yes. The apparatus can be supplied with or upgraded to electronic LVDTs and data logging systems.

Q5: What specimen sizes are supported?
Standard consolidation cells of 50 mm, 63.5 mm, or 75 mm diameter are typically supported.

AZA0898 – Three Gang Consolidation Apparatus

A robust, efficient, and accurate Azalab solution for high-volume soil consolidation testing in professional geotechnical laboratories.

Additional information

Additional information

Model Number

AZA 0898
Test Type

Soil Consolidation (Oedometer Test)
Configuration

Three Gang Model, allowing simultaneous testing of 3 samples.
Loading System

Independent dead weight and lever arm systems for each gang.
Load Ratio

Typically 10:1 or 1:1, allowing precise application of normal stresses.
