SIEVE SHAKER ‘GYRATORY’ AZA0926

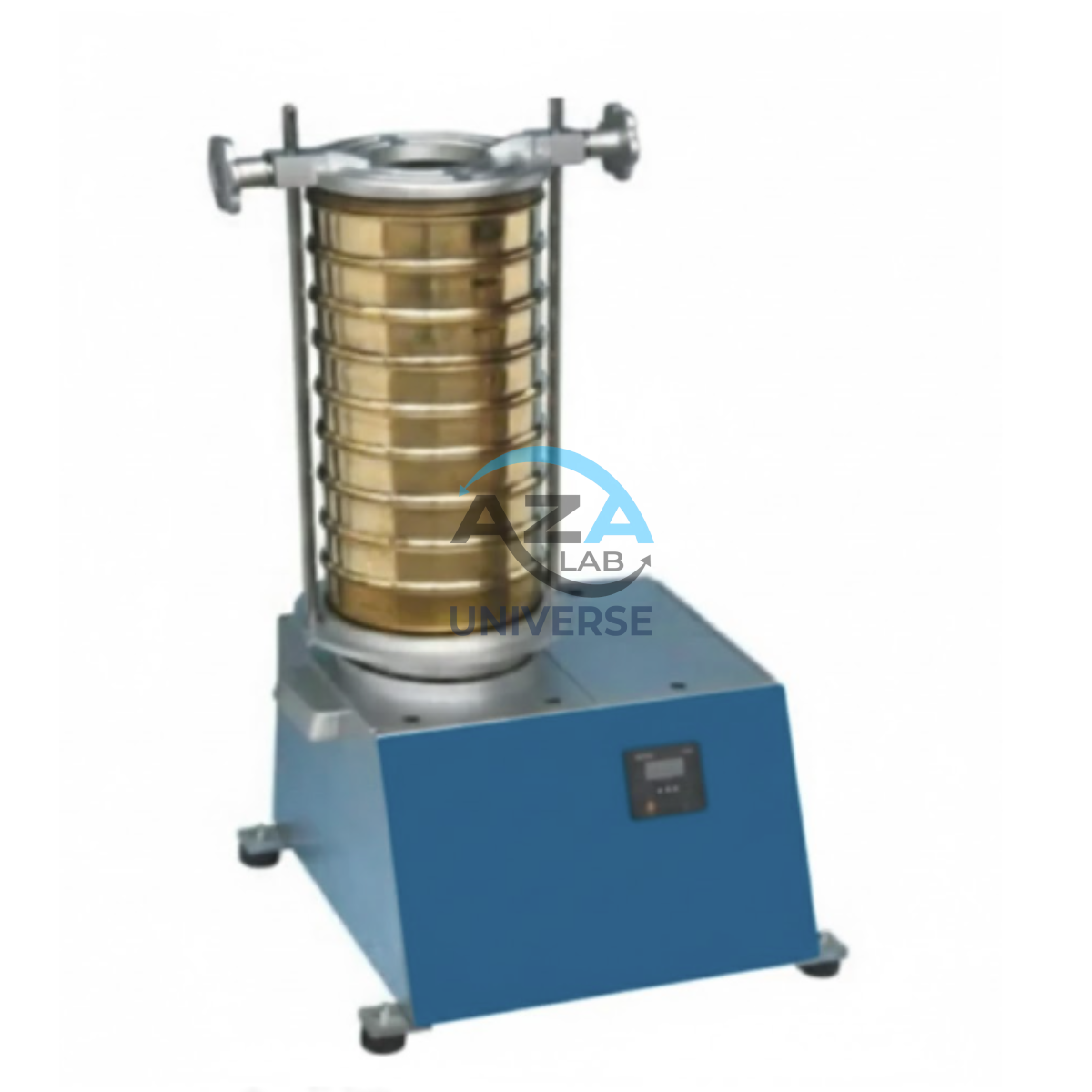

The Azalab AZA0926 Gyratory Sieve Shaker is a high-performance laboratory instrument designed for accurate, repeatable dry particle size analysis of granular and powdered materials. Utilizing a combined gyratory (orbital) motion with vertical tapping, the AZA0926 delivers superior separation efficiency compared to conventional vibratory-only sieve shakers.

This motion profile is particularly effective for materials that are fine, cohesive, electrostatically charged, irregular in shape, or prone to sieve blinding, making the AZA0926 an essential tool for quality control, research, and material characterization in civil engineering, cement, mining, pharmaceuticals, food processing, and chemical industries.

View Specification PDF
Enquiry on WhatsApp
Category:
Description

Description

Principle of Operation

The AZA0926 operates on a dual-motion mechanism:

  • Gyratory (Orbital) Motion
    The sieve stack moves in a horizontal circular path, allowing particles to roll freely over the sieve surface. This ensures continuous reorientation of particles and maximizes the probability of correct-size passage through the mesh.

  • Vertical Tapping Action
    Intermittent tapping dislodges particles trapped in sieve apertures due to shape, moisture films, or static forces, preventing blinding and ensuring complete separation.

This combination results in faster sieving, higher accuracy, and excellent repeatability, especially for difficult-to-sieve materials.

Key Features and Advantages

  • Combined gyratory (orbital) and tapping motion for superior separation

  • High separation efficiency for fine, sticky, or mixed particle sizes

  • Prevents sieve blinding and agglomeration

  • Heavy-duty steel construction for continuous operation

  • Quiet, low-vibration performance

  • Digital timer for consistent and repeatable test cycles

  • Secure clamping system for stable sieve stacking

  • Low maintenance and long service life

Applications

  • Soil grain size analysis and classification

  • Aggregate gradation for concrete and road construction

  • Cement, fly ash, and mineral powder analysis

  • Pharmaceutical powders and excipients

  • Food grains, flour, spices, and additives

  • Chemical powders and industrial materials

Standards Compliance

Designed to support testing as per:

  • IS 460 (Part 1) – Test Sieves

  • IS 2720 (Part 4) – Grain Size Analysis of Soils

  • ASTM E11 – Test Sieves

  • ASTM D6913 – Particle Size Distribution of Soils

  • ISO 3310-1 – Test Sieves (Metal Wire Cloth)

Technical Specifications

Parameter Description
Model AZA0926
Product Type Gyratory Sieve Shaker (Dry Sieving)
Motion Type Gyratory (Orbital) + Vertical Tapping
Sieve Diameter Compatibility 200 mm (8″) or 300 mm (12″)
Sieve Capacity 6–8 full-height sieves + pan & lid
Motor High-performance electric motor
Power Supply 230 V AC, 50 Hz, Single Phase
Timer Digital timer with auto stop
Amplitude Control Optional
Clamping System Quick-release / screw-type
Construction Heavy-duty steel frame
Noise Level Low, laboratory-safe operation
Standards IS, ASTM, ISO compliant
Country of Origin Made in India
Intended Use Dry sieving only

Frequently Asked Questions (FAQ)

Q1. What is the main advantage of a gyratory sieve shaker?
The combined gyratory and tapping motion ensures superior separation efficiency, minimizes sieve blinding, and provides highly reproducible results—especially for fine or cohesive materials.

Q2. What materials can be tested using AZA0926?
Soils, aggregates, cement, minerals, powders, pharmaceuticals, food products, and chemicals (dry materials only).

Q3. What sieve sizes are supported?
Standard 200 mm (8″) and 300 mm (12″) diameter test sieves.

Q4. Is the operation automatic?
Yes. The digital timer allows preset test durations with automatic shut-off.

Q5. Does it comply with Indian and international standards?
Yes. The AZA0926 supports testing as per IS, ASTM, and ISO standards.

Additional information

Additional information

Model

AZA 0926
Product Type

Sieve Shaker 'Gyratory' (Dry Sieve Shaker)
Shaking Motion

Combined Gyratory (Orbital) and Tapping Motion.
Motor

High-performance electric motor for consistent operation.
Power Supply

230V AC, 50 Hz, Single Phase.
Country of Origin

Made in India.
