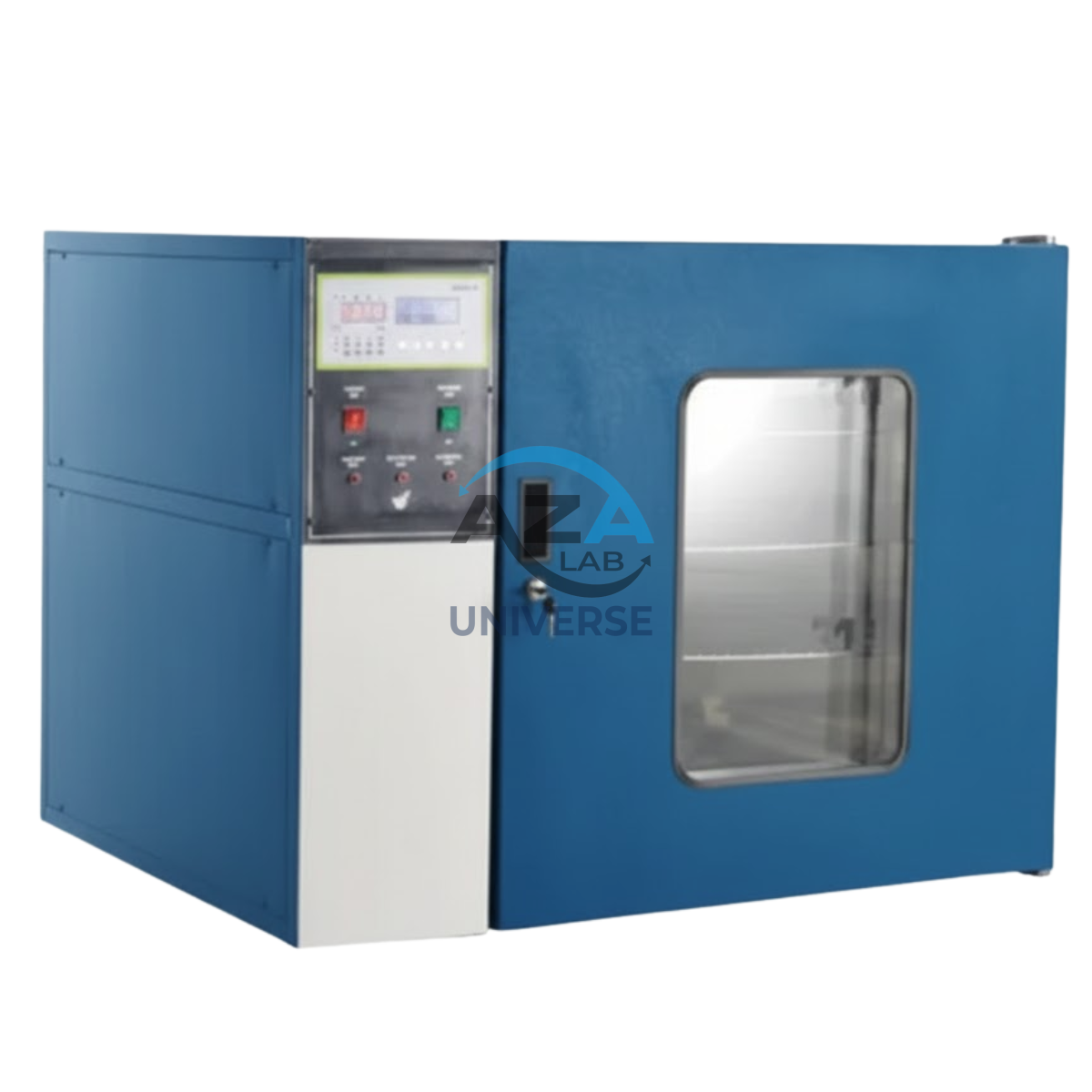

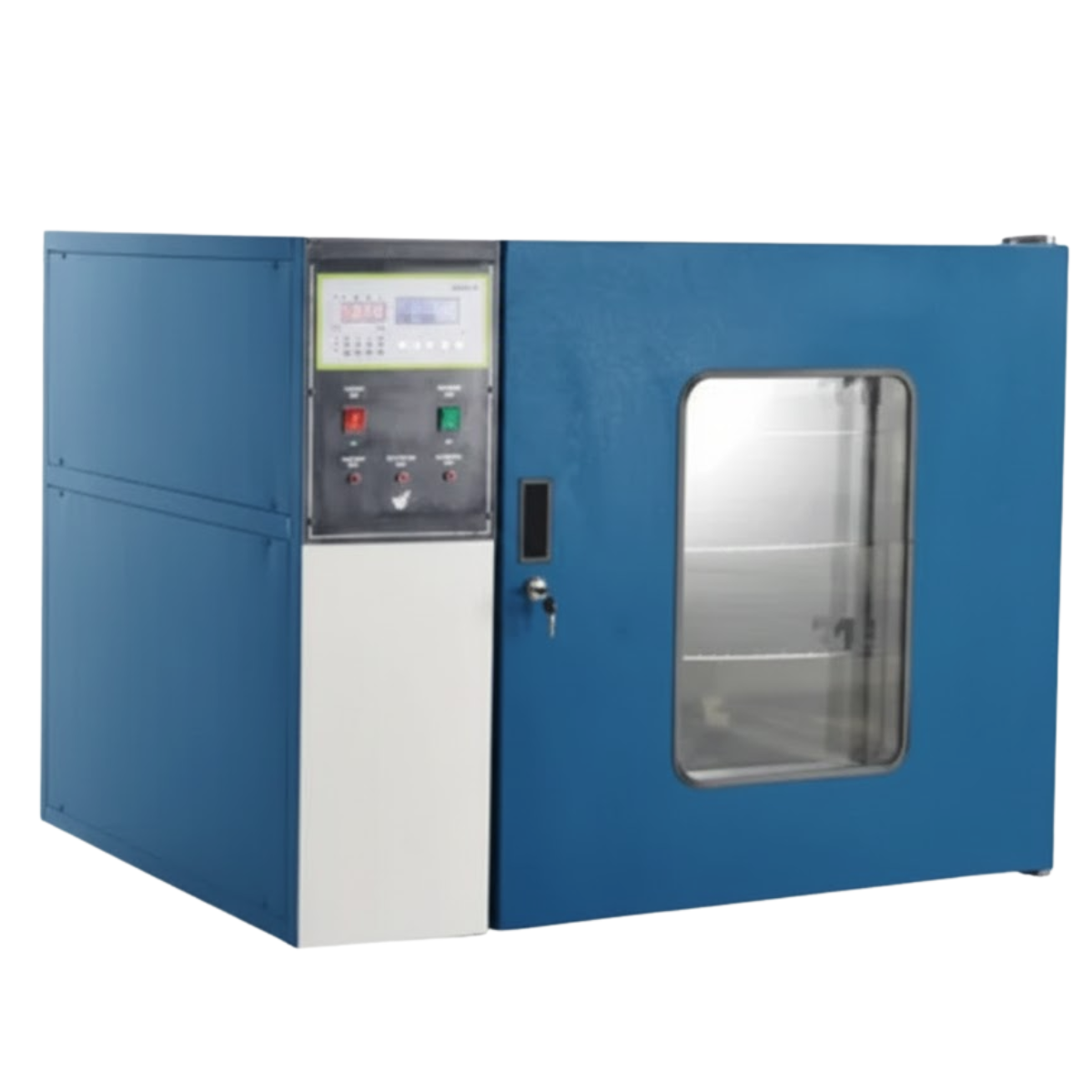

HUMIDITY CHAMBER AZA1063
The AZA1063 Humidity Chamber from AZALAB is a high-precision environmental testing chamber engineered for accurate control of temperature and relative humidity under controlled laboratory conditions. Designed to meet the stringent requirements of pharmaceutical, electronics, automotive, textile, food, and materials research industries, the AZA1063 enables reliable simulation of real-world climatic environments to evaluate product performance, stability, durability, and shelf life.
Environmental factors such as temperature and humidity play a critical role in determining product quality and longevity. The AZA1063 allows manufacturers and research laboratories to conduct stability studies, accelerated aging tests, and environmental stress screening, ensuring compliance with national and international quality standards.
Description
At the heart of the AZA1063 is an advanced microprocessor-based PID control system paired with high-accuracy temperature and humidity sensors. This system continuously monitors and regulates environmental conditions, maintaining set parameters with excellent stability and uniformity throughout the chamber.
The chamber supports programmable ramp and soak profiles, enabling complex test cycles required for regulatory testing and product validation. Whether simulating hot–humid tropical climates or controlled dry conditions, the AZA1063 delivers consistent, repeatable, and reliable results, essential for R&D and quality assurance.
Robust Construction & Energy Efficiency
The AZA1063 is built for continuous, long-term operation in demanding laboratory and industrial environments.
- The inner chamber is fabricated from high-grade stainless steel (SS 304 / SS 316), offering excellent corrosion resistance against high humidity conditions and ease of cleaning.
- The outer body is constructed from powder-coated mild steel or stainless steel, providing mechanical strength and long service life.
- High-density PUF (Polyurethane Foam) insulation between the walls minimizes heat and moisture loss, enhances energy efficiency, and ensures stable chamber conditions.
The overall construction reflects compliance with established environmental testing principles as referenced in BIS, ICH, and ASTM (ASTM E104) guidelines.
User-Friendly Operation & Safety
The AZA1063 Humidity Chamber features a clear digital display and intuitive control panel, allowing operators to easily set, monitor, and record temperature and humidity parameters. Optional PLC-based controllers and software connectivity enable automated testing and data logging.
Comprehensive safety systems are integrated to protect both samples and operators, including:
- Over-temperature protection
- Low water level alarm for humidification system
- Compressor overload protection
- Independent high-limit temperature cut-off
- MCB protection
These features allow the chamber to operate safely during long-duration and unattended tests.
Applications
- Pharmaceutical Stability Testing: As per ICH guidelines for drug substances and products
- Electronic Component Testing: Moisture and thermal stress evaluation
- Material Science Research: Polymers, coatings, textiles, composites
- Food & Beverage Shelf-Life Studies: Storage and degradation analysis
- Automotive Components: Environmental durability and aging tests
- Academic & Industrial R&D Laboratories
Specifications
| Specification | Details |
|---|---|
| Model | AZA1063 |
| Temperature Range | Ambient +5°C to +60°C / +70°C (configurable) |
| Humidity Range | 20% RH to 98% RH (typically 30%–95% RH) |
| Temperature Accuracy | ±0.5°C to ±1°C |
| Humidity Accuracy | ±3% RH to ±5% RH |
| Temperature Uniformity | ±1°C to ±2°C |
| Humidity Uniformity | ±3% RH to ±5% RH |
| Inner Chamber | Stainless Steel (SS 304 / SS 316) |
| Outer Body | Powder-coated Mild Steel / Stainless Steel |
| Insulation | High-density PUF |
| Controller | Microprocessor-based PID (Programmable optional) |
| Humidification System | Steam injection / Ultrasonic (non-condensing) |
| Refrigeration System | Hermetically sealed compressor with eco-friendly refrigerant |
| Display | Digital LED / LCD (Temp & RH) |
| Shelves | Adjustable SS wire mesh shelves |
| Safety Features | Over-temp cut-off, low water alarm, compressor protection, MCB |
| Power Supply | 230V AC, 50 Hz, Single Phase |
| Optional Features | Data logging, USB/RS-232, viewing window, illumination, port holes, printer |
| Available Capacities | 90L, 150L, 200L, 300L, up to 1000L+ |
Key Advantages
- Precise and stable temperature–humidity control
- Suitable for regulatory and compliance testing
- Durable stainless steel construction for long service life
- Energy-efficient insulated design
- User-friendly programmable controls
- Comprehensive safety and alarm systems
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the AZA1063 Humidity Chamber?
It is used for pharmaceutical stability testing, material aging, electronic stress testing, and environmental simulation studies.
Q2: Can the chamber achieve very low humidity levels?
Standard models operate from 20–30% RH upward. Lower humidity ranges may be achieved with optional dehumidification systems.
Q3: Is the AZA1063 compliant with international standards?
Yes, it is designed to meet ICH stability guidelines and relevant ASTM environmental testing standards.
Q4: How accurate is the control system?
Temperature accuracy is typically ±0.5°C to ±1°C, and humidity accuracy is ±3% RH to ±5% RH.
Q5: What maintenance is required?
Routine cleaning, use of distilled water, gasket inspection, filter checks, and periodic calibration are recommended.
Q6: Is data logging available?
Yes, data logging and PC connectivity are available as optional features.
Product Highlights
- Accurate environmental simulation chamber
- Ideal for stability, aging, and stress testing
- PID-controlled temperature and humidity regulation
- Stainless steel interior with robust insulation
- Safe, reliable, and suitable for continuous operation
Model: AZA1063
Additional information
| Model Number |
AZA 1063 |
|---|---|
| Temperature Range |
Typically Ambient +5°C to +60°C or +70°C |
| Temperature Uniformity |
$\\pm1^\\circ\\text{C}$ to $\\pm2^\\circ\\text{C}$ |
| Inner Chamber Material |
Stainless Steel |
| Outer Body Material |
Powder Coated Mild Steel or Stainless Steel |
| Display |
Digital LED/LCD display for temperature and humidity |
| Shelves |
Adjustable SS wire mesh shelves |
| Power Supply |
230V AC, 50 Hz, Single Phase |
