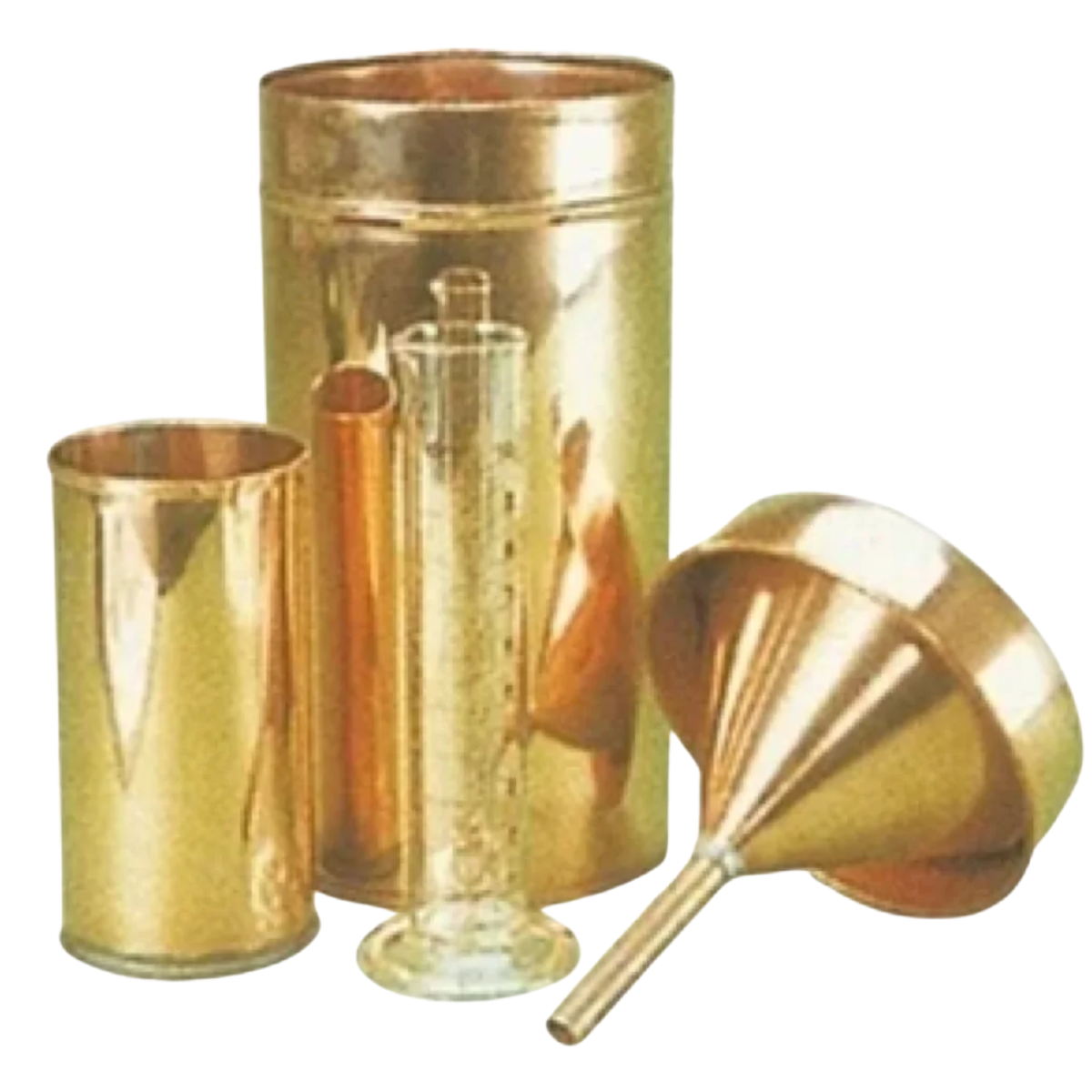

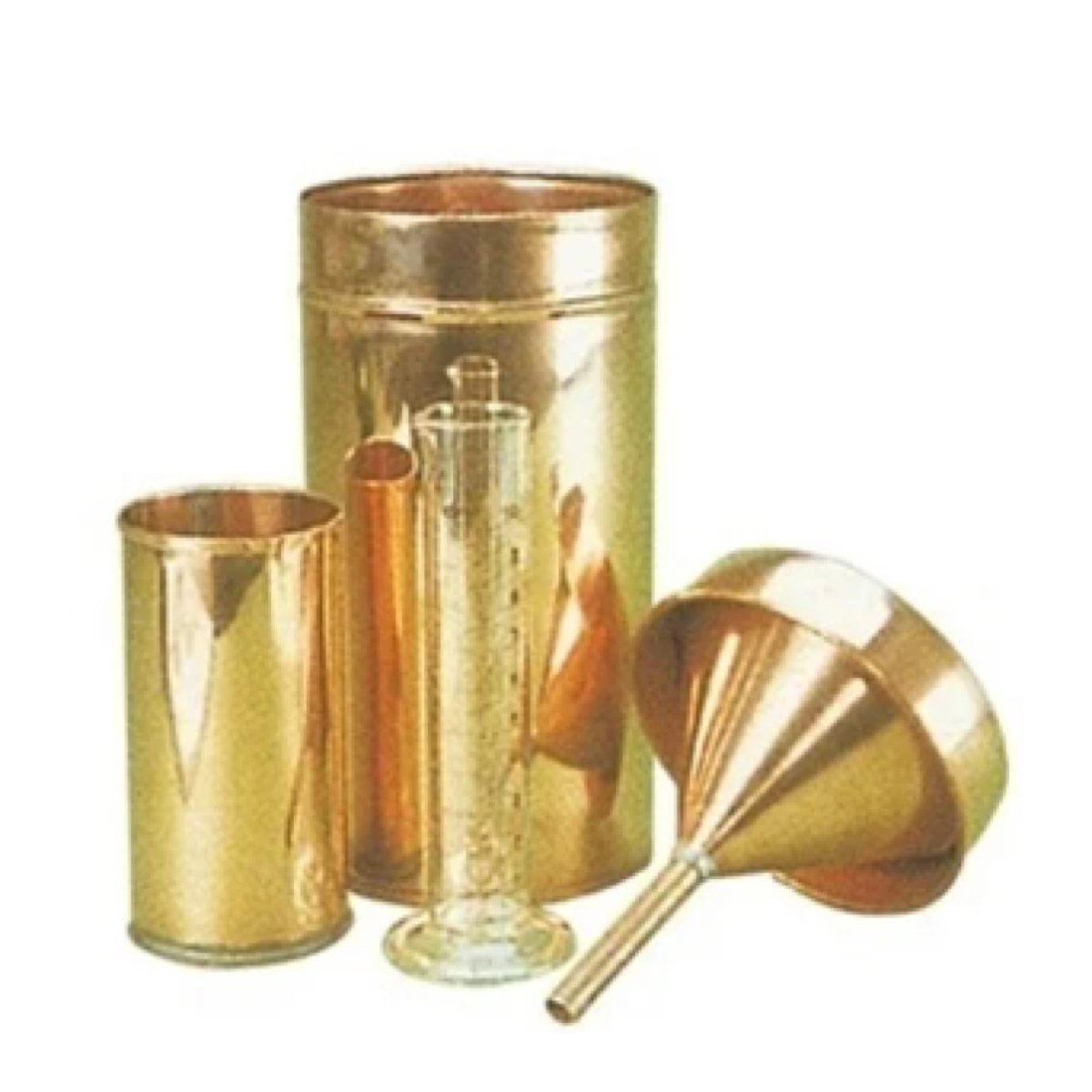

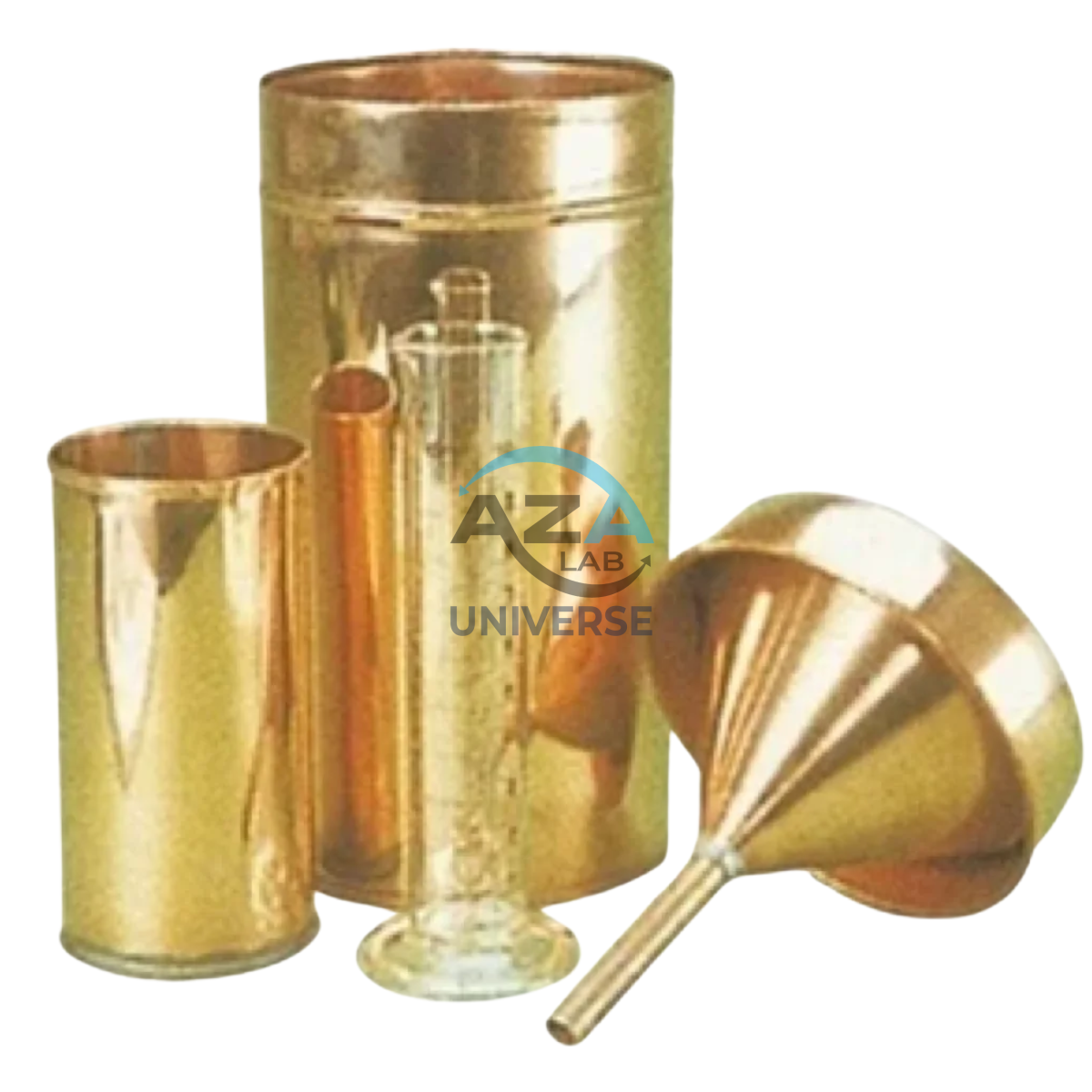

DAILY RAIN GAUGE AZA1080
The Daily Rain Gauge is a fundamental precipitation measuring instrument used in meteorology, environmental laboratories, agriculture, hydrology, and educational weather stations. Designed for simplicity, accuracy, and durability, AZA1080 by AZALAB enables precise manual measurement of daily rainfall over fixed observation periods, typically 24 hours.
Manufactured from transparent, UV-resistant polycarbonate, this rain gauge provides excellent visibility of collected rainfall while withstanding prolonged outdoor exposure. Clearly graduated markings in millimeters (mm) ensure accurate and repeatable readings, making it suitable for both scientific monitoring and instructional use.
Description
AZA1080 features a funnel-topped cylindrical design that efficiently collects rainfall while minimizing evaporation and splash loss. The calibrated inner measuring tube allows precise readings even during light rainfall, while the outer container safely holds excess precipitation during heavy rain events.
The gauge is designed for manual observation and logging, making it ideal for locations where automated systems are unnecessary or impractical. It is widely used in research farms, rural and urban monitoring sites, laboratories, schools, and climate observation projects.
Installation is straightforward, requiring vertical mounting on a stable surface in an open area free from obstructions. When installed and read according to World Meteorological Organization (WMO) recommendations, AZA1080 delivers reliable and standardized precipitation data.
Key Features
Accurate Daily Rainfall Measurement
- Designed for 24-hour precipitation recording
- Fine graduation enables precise measurement of light rainfall
- Ideal for daily observation and long-term data tracking
Transparent, UV-Resistant Construction
- Made from UV-stable polycarbonate or weather-resistant plastic
- High transparency for easy visual reading
- Resistant to yellowing, cracking, and weather degradation
Funnel-Based Collection System
- Wide funnel improves rain capture efficiency
- Minimizes evaporation and spillage
- Reduces measurement error during heavy rainfall
Clear Graduated Scale
- Graduated in 1 mm increments
- High-contrast markings for easy readability
- Optional inch scale available upon request
Simple Installation and Use
- Vertical mounting ensures accurate measurement
- Suitable for ground spike or pole mounting
- No power source or electronics required
Standards-Compliant Design
- Designed in accordance with WMO Guidelines
- Complies with IS 8389 for rain gauge installation and measurement
Applications
AZA1080 Daily Rain Gauge is commonly used in:
- Meteorological & Environmental Laboratories – Rainfall data collection and analysis
- Agricultural Monitoring – Crop planning, irrigation validation, and rainfall assessment
- Hydrology & Climate Research – Long-term precipitation trend studies
- Educational Institutions – Teaching meteorology and environmental science
- Weather Stations (Manual) – Local rainfall observation and record keeping
- Research Farms & Field Projects – Environmental and soil-water studies
Installation Guidelines (Summary)
For accurate results, follow standard meteorological practices:
- Mount the gauge vertically on a level surface
- Place it in an open area, away from buildings, trees, or fences
- Maintain a consistent height of approximately 30 cm above ground level
- Record rainfall at the same time each day
- Empty and reset the gauge after each reading
Technical Specifications
| Parameter | Details |
|---|---|
| Model | AZA1080 |
| Measuring Range | 0 – 100 mm (customizable) |
| Graduation | 1 mm increments |
| Material | UV-resistant polycarbonate / plastic |
| Funnel Diameter | 127 mm (standard) |
| Overall Height | Approx. 300 mm (including funnel) |
| Mounting Options | Ground spike / Pole mount |
| Readout Type | Manual (visual scale) |
| Accuracy | ±1 mm |
| Standards | WMO Guidelines, IS 8389 |
| Applications | Meteorology, agriculture, education |
Optional Accessories
- Ground spike stand
- Calibration measuring cylinder
- Snow adapter or snow gauge insert
- Institutional branding or labeling
- Automated tipping-bucket upgrade (model dependent)
Frequently Asked Questions (FAQ)
Q1: How does a daily rain gauge differ from an automatic rain gauge?
A daily rain gauge requires manual reading and resetting every 24 hours, whereas automatic gauges use sensors or tipping buckets for electronic data logging.
Q2: Is the gauge suitable for long-term outdoor use?
Yes. The UV-resistant polycarbonate construction ensures durability in prolonged outdoor exposure.
Q3: How should the rain gauge be cleaned?
Clean periodically using distilled water and mild detergent. Avoid abrasive materials that may scratch the measuring surface.
Q4: Can this gauge be used in snowy conditions?
Yes, with a snow adapter or by melting collected snow before measurement, following standard meteorological procedures.
Q5: What is the recommended installation height?
Approximately 30 cm above ground level, with clear surroundings, as per WMO and IS 8389 recommendations.
Product Highlights
- Accurate manual measurement of daily rainfall
- Transparent, UV-resistant body for outdoor durability
- Funnel design minimizes evaporation and splash loss
- Clear millimeter graduations for easy reading
- Suitable for meteorology, agriculture, labs, and education
- No power or electronics required
- Compliant with standard meteorological practices
Model: AZA1080
Additional information
| Measuring Range |
0 – 100 mm (customizable) |
|---|---|
| Graduation |
1 mm increments |
| Material |
Polycarbonate or UV-stable plastic |
| Funnel Diameter |
127 mm (standard) |
