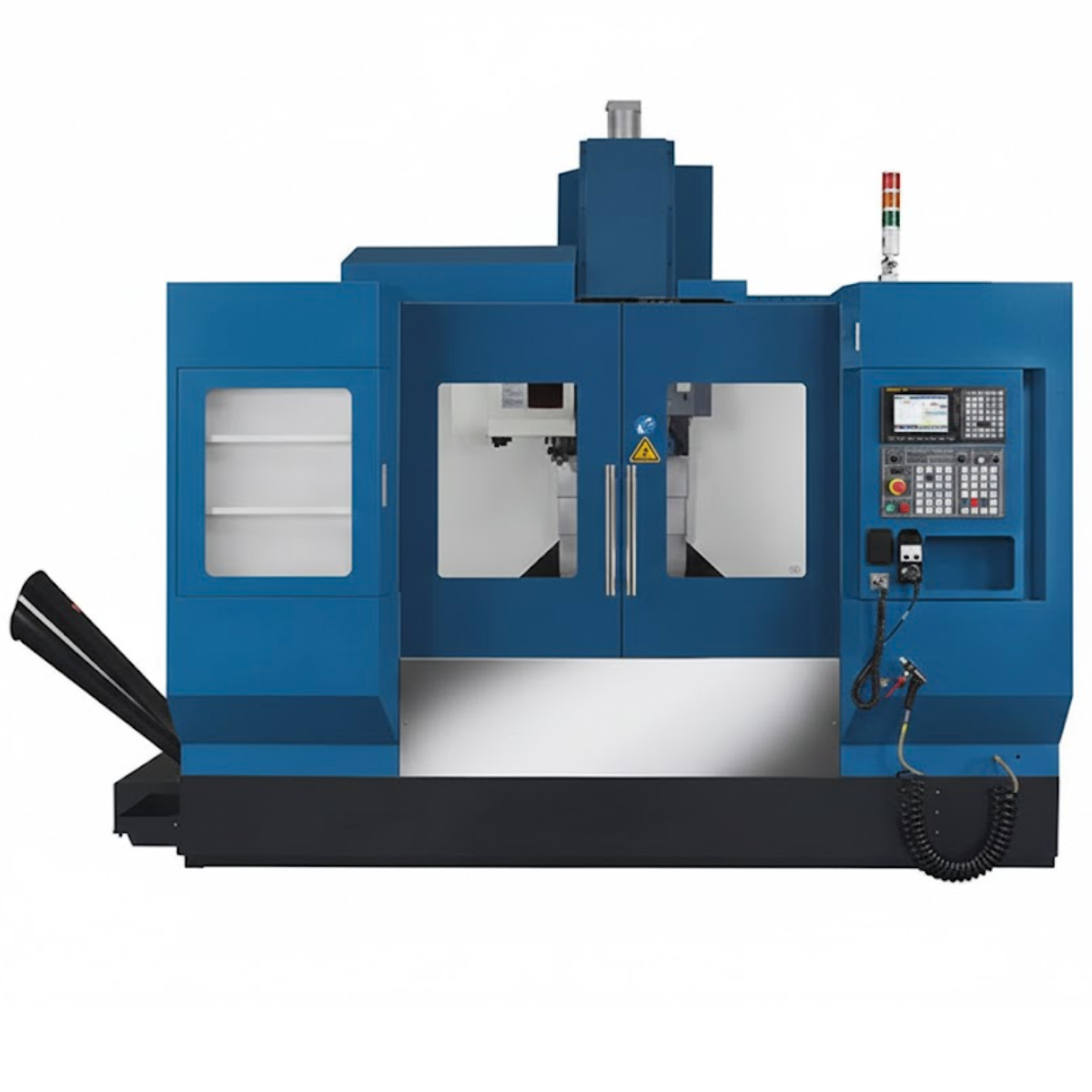

CNC Milling Machine AZA1174
The AZA1174 CNC Milling Machine by AZALAB is a high-performance, industrial-grade machining solution engineered to deliver exceptional precision, speed, and operational reliability. Designed for modern manufacturing environments, this 3-axis CNC milling machine integrates advanced control technology, rigid mechanical construction, and high-speed motion capability to handle complex milling operations with consistent accuracy.
At the core of the AZA1174 is the FANUC Series 31 CNC control system, known globally for its stability, processing speed, and intelligent machining functions. With simultaneous 3-axis control, the machine ensures smooth interpolation, accurate contouring, and efficient cycle times, making it ideal for precision component manufacturing, tool rooms, R&D centers, and production workshops.
The machine is powered by a 200–240 VAC, 50–60 Hz, 3-phase electrical system, delivering reliable performance under continuous industrial duty. Its rigid frame construction and optimized mechanical design minimize vibration and thermal distortion, ensuring dimensional accuracy even during high-speed machining.
Description
Working Area & Motion Performance
The AZA1174 offers a generous and well-balanced working envelope, allowing machining of a wide range of components. The X-axis travel of 500 mm, Y-axis travel of 400 mm, and Z-axis travel of 300 mm provide flexibility for diverse milling tasks. The 650 mm × 400 mm working table supports workpieces up to 300 kg (uniform load), making it suitable for both small precision parts and medium-sized components.
High-speed linear motion is achieved through a rapid traverse rate of 48 m/min on all axes (X, Y, Z), significantly reducing non-cutting time and improving productivity. A maximum feed rate of 30,000 mm/min ensures efficient material removal while maintaining surface finish and accuracy.
The table surface is equipped with 3 T-slots (14 mm size, 125 mm pitch), enabling secure and flexible workpiece clamping for a variety of fixtures and setups.
Advanced CNC Control & Machining Functions
The FANUC Series 31 control unit provides powerful CNC functionality with a 10.4-inch color LCD operation panel, offering clear visualization, intuitive navigation, and simplified programming. The control system supports 512 kbyte part program storage, allowing users to store and manage complex machining programs directly on the machine.
Key advanced functions include:
-
High Response Velocity (HRV) for improved servo responsiveness and contour accuracy
-
Rigid Tapping (M29) for precise tapping operations without floating holders
-
Handwheel Feed for manual positioning and setup accuracy
-
AI Programming Function with on-screen guidance for simplified operation and reduced programming errors
These features make the AZA1174 suitable for both experienced CNC operators and training-oriented environments where ease of use is critical.
Accessories & Standard Equipment
The AZA1174 CNC Milling Machine is supplied with a comprehensive set of accessories designed to enhance operational efficiency and reduce setup time:
-
Automatic Oil Lubrication System for continuous and reliable lubrication of moving components
-
Coolant Unit for effective chip evacuation and thermal control
-
Air Blow System for chip removal and clean machining areas
-
BT30 Arbor for compatibility with standard tooling systems
-
Tool Setting Stand for accurate tool length measurement
These integrated systems ensure stable long-term operation, reduced maintenance, and consistent machining quality.
Applications
The AZA1174 is widely used in:
-
Precision engineering and component manufacturing
-
Tool rooms and die-mold workshops
-
Automotive and aerospace part machining
-
Electronics and general engineering industries
-
R&D centers and prototype development
-
Technical institutes and advanced CNC training centers
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1174 |
| Brand | AZALAB |
| Power Source | 200–240 VAC, 50–60 Hz, 3-Phase |
| Control Unit | FANUC Series 31 |
| Controlled Axis | 3-Axis |
| Simultaneously Controllable Axis | 3-Axis |
| X-Axis Travel | 500 mm |
| Y-Axis Travel | 400 mm |
| Z-Axis Travel | 300 mm |
| Table Size | 650 × 400 mm |
| Workpiece Capacity | 300 kg (uniform load) |
| T-Slots | 3 × 14 mm, 125 mm pitch |
| Rapid Traverse Rate | 48 m/min (X, Y, Z) |
| Feed Rate | Up to 30,000 mm/min |
| Part Program Storage | 512 kbyte |
| Operation Panel | 10.4″ Color LCD |
| Machine Height | 2236 mm |
| Floor Space Required | 1615 × 2040 mm |
| Machine Mass | Approx. 2000 kg |
Key Advantages
-
High-precision CNC machining with FANUC Series 31 control
-
Rigid construction for vibration-free, stable performance
-
High-speed rapid traverse and feed rates for productivity
-
Advanced CNC functions including HRV and rigid tapping
-
Large working table with high load capacity
-
User-friendly interface with intelligent programming support
-
Complete accessory package for ready-to-run operation
Make: AZALAB
Model: AZA1174
