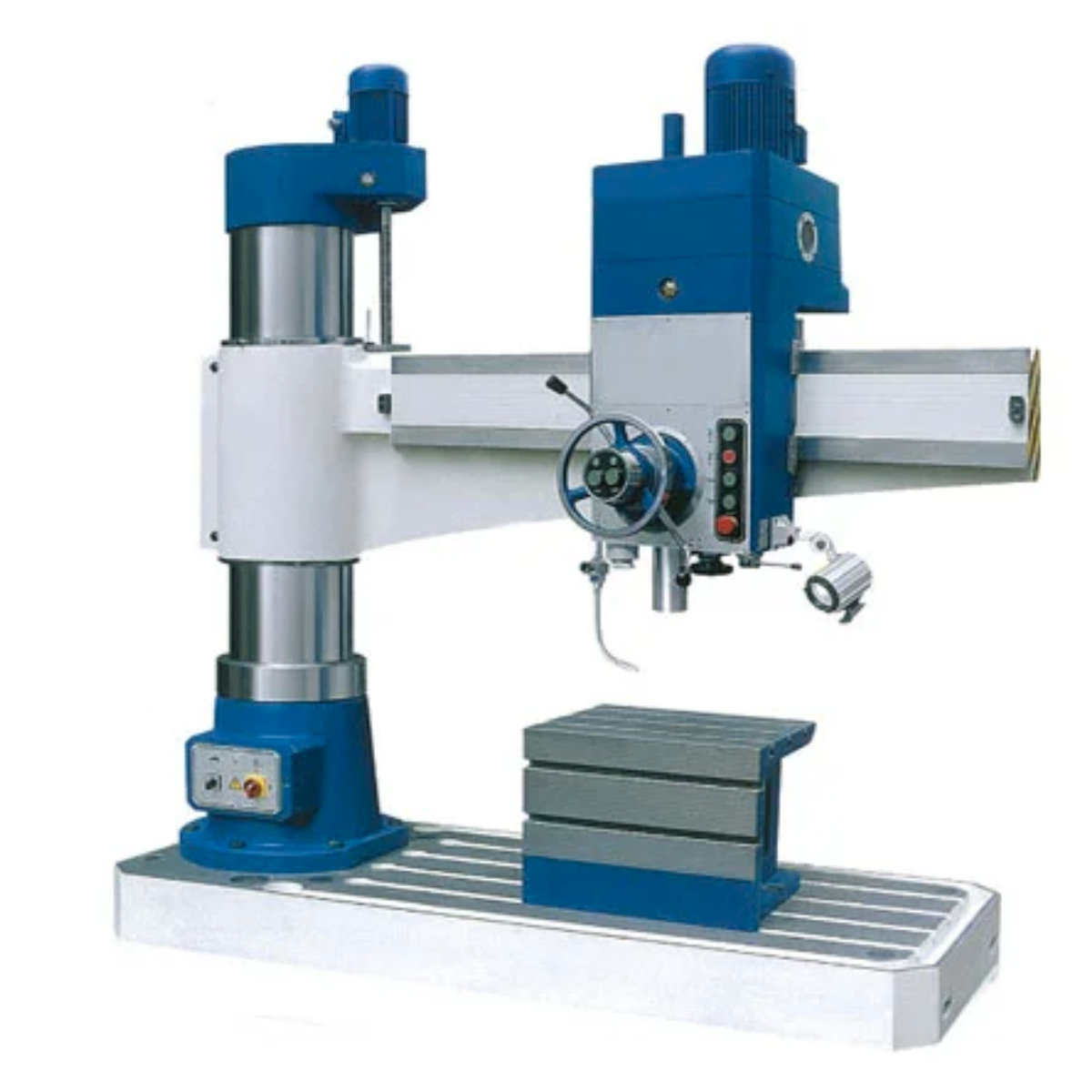

Radial Drill Machine AZA1178
The AZA LAB Radial Drill Machine – Model AZA1178 is a high-performance, industrial-grade drilling machine engineered for precision, durability, and reliability in heavy-duty applications. Manufactured by LabTek, this machine is designed to handle demanding drilling, tapping, and boring operations across a wide range of materials including cast iron and steel.
Built with closed-grain construction for all critical components and precision-ground moving parts, AZA1178 ensures smooth operation, close tolerances, and long service life, making it ideal for workshops, fabrication units, and heavy engineering industries.
Description
Key Advantages
-
Heavy-duty construction for continuous industrial use
-
High drilling and tapping capacity
-
Precision-engineered spindle and gearing system
-
Smooth, vibration-free performance
-
Suitable for large and heavy workpieces
Features
Heavy-Duty Closed Grain Construction
-
Column, radial arm, work head, and gears manufactured from closed-grain materials
-
Provides superior strength, rigidity, and resistance to wear
-
Ensures stability during high-load drilling operations
Precision Engineering & Smooth Operation
-
All major components are properly balanced
-
Finished on imported grinding machines
-
Maintains close dimensional tolerances for accuracy and long life
High-Quality Spindle Assembly
-
Spindle ram manufactured from alloy steel
-
Main spindle and pinion made from EN forged steel
-
Designed for heavy thrust loads and consistent performance
Wide Range of Machining Operations
-
Suitable for drilling, tapping, and boring
-
Capable of machining cast iron, steel, and other metals
-
Ideal for large fabrication and maintenance work
Adjustable & Versatile Design
-
Multiple spindle speeds for different materials
-
Wide range of power feeds for precision control
-
Long radial arm and head travel for large workpieces
Applications
-
Heavy-duty drilling operations
-
Tapping and boring of large components
-
Fabrication shops
-
Structural steel and heavy engineering industries
Technical Specifications
| Specification | Details |
|---|---|
| Model | AZA1178 |
| Make | AZALAB |
| Machine Model | WS-014 |
| Drilling Capacity | 65 mm |
| Drilling Capacity in Cast Iron (C.I.) | 70 mm |
| Tapping Capacity in Steel | 50 mm |
| Spindle Travel | 300 mm |
| Spindle Taper | MT-5 |
| Number of Spindle Speeds / Range | 9 / 50–805 RPM |
| Range of Power Feed | 0–115 |
| Optional Feed (6) | 0.13–1.10 |
| Column Diameter | 330 mm |
| Max / Min Distance (Spindle Center to Column Center) | 1700 / 700 mm |
| Horizontal Movement of Drilling Head | 1000 mm |
| Max / Min Distance (Spindle Nose to Base Plate) | 1120 / 460 mm |
| Horizontal Movement of Radial Arm | 660 mm |
| Working Surface of Table | 560 × 460 mm |
| Height of Box Table | 400 mm |
| Working Surface of Base Plate | 1400 × 850 mm |
| Height of Base Plate | 210 mm |
| Drilling Head Motor | 5 HP / 1440 RPM |
| Elevator Motor | 3 HP / 1440 RPM |
| Base Plate Dimension (L × W) | 2050 × 990 mm |
| Overall Height of Machine (Approx.) | 2440 mm |
Why Choose AZA1178?
-
Engineered for heavy-duty industrial performance
-
Precision machining for accurate and repeatable results
-
Long-term reliability with low maintenance
-
Trusted AZA LAB quality with AZA manufacturing expertise
