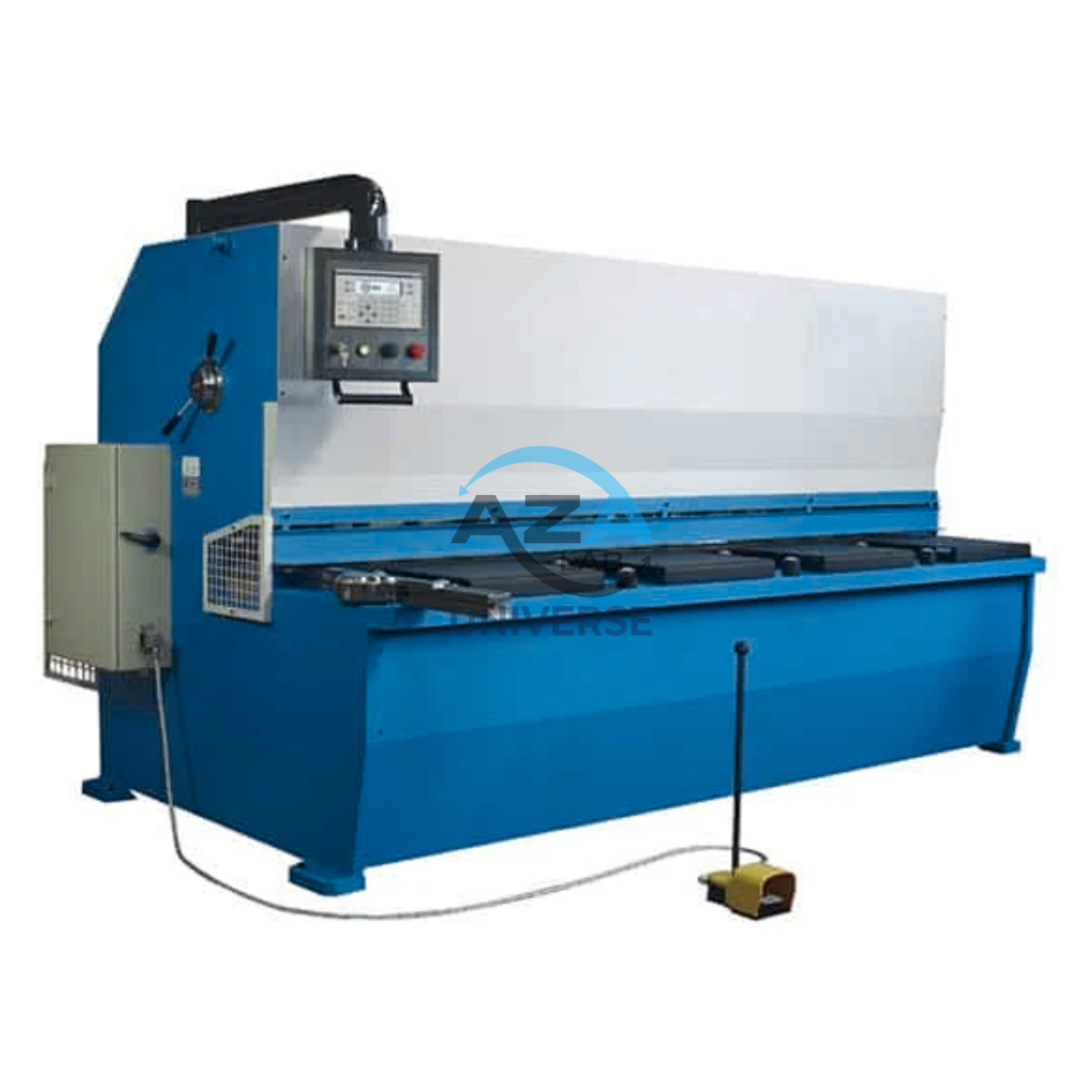

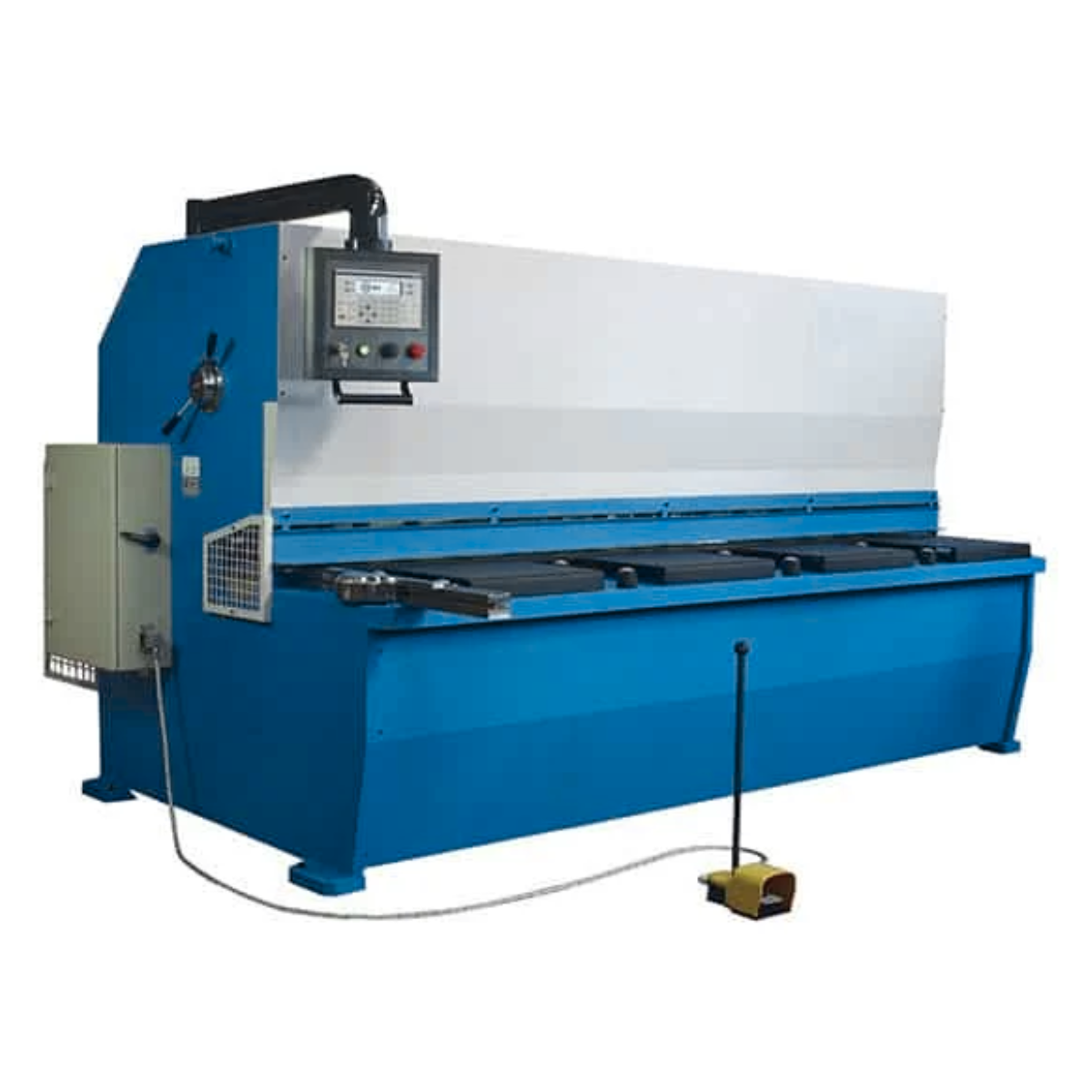

HYDRAULIC GUILLOTINE SHEARING MACHINE AZA1179
The Hydraulic Guillotine Shearing Machine AZA1179 by AZA LAB is a premium, high-precision machine engineered for efficient and accurate cutting of metal sheets. Designed with a hydraulically variable rake angle, this machine delivers superior cutting performance, particularly for thin sheets, while ensuring twist-free and burr-minimized cuts.
Part of AZA LAB’s proven guillotine shear range (Models AZA1179 to AZA1185), the AZA1179 is ideal for fabrication shops, sheet metal industries, maintenance workshops, and light to medium industrial cutting applications where accuracy, safety, and reliability are critical.
Description
Key Benefits
-
Precise and consistent cutting for mild steel and stainless steel sheets
-
Reduced material distortion due to optimized rake angle design
-
Lower power consumption compared to conventional shearing machines
-
Enhanced operator and machine safety through integrated interlocks
-
Robust construction for long service life and continuous operation
Features
-
Hydraulically Variable Rake Angle
Ensures excellent cutting accuracy for thin sheets at lower rake angles and higher cutting capacity at increased rake angles. -
Heavy-Duty Welded Structure (IS 2062 Grade)
Ultrasonically tested welded construction provides exceptional rigidity, durability, and vibration resistance. -
Rigid Box-Type Design
Inclined members for the ram and table enhance structural stability while reducing power requirements. -
Hydraulic & Electrical Safety Interlocks
Protects both operator and machine by preventing overload and unsafe operation conditions. -
Low Noise, Smooth Operation
Designed for improved operator comfort and higher productivity. -
Fast Production Capability
Ideal for repetitive cutting and small batch jobs with consistent accuracy. -
NC Upgrade Ready (Optional)
Can be upgraded to Numerical Control (NC) for enhanced automation and precision.
Applications
-
Sheet metal fabrication
-
Electrical panel manufacturing
-
HVAC ducting workshops
-
General engineering and maintenance units
-
Light to medium industrial cutting operations
Technical Specifications – AZA 1179
| Specification | Details |
|---|---|
| Model | AZA1179 |
| Make | AZA LAB |
| Cutting Length | 1500 mm |
| Shearing Capacity (M.S. / S.S.) | 2 mm / 2 mm |
| Nominal Rake Angle | 0.6° |
| Rake Angle Range | 1° |
| Strokes per Minute | 30 |
| Number of Hold Downs | 3 |
| Holding Force | 2000 kg |
| Main Motor Power | 3 HP |
| Packing Dimensions (L × W × H) | 2000 × 1000 × 1250 mm |
Build Quality & Safety
The AZA1179 is manufactured using ultrasonically tested IS 2062 grade steel, ensuring structural integrity and long-term reliability. The integrated hydraulic and electrical interlocks minimize the risk of overload, enhancing operational safety and protecting key machine components.
Why Choose AZA LAB?
AZA LAB is known for delivering reliable, efficient, and industry-proven machinery. The Hydraulic Guillotine Shearing Machine AZA1179 combines precision engineering, robust construction, and operator-focused safety features to deliver exceptional value and performance.
- Hydraulically variable rake angle design for superior cutting accuracy.
- Stable and robust IS 2062 grade ultrasonically tested welded structure.
- Rigid box-type structure with inclined members for enhanced performance.
- Low power consumption.
- Hydraulic and electrical safety interlocks to prevent overloading.
- Improved safety for both the operator and the machine.
- Fast production capability for smaller jobs.
- Optional NC (Numerical Control) upgrade.
- Low noise and smooth operation for higher operator efficiency.
- High cutting capacity at higher rake angles.
Related products
CNC MILLING MACHINE AZA1174
The AZA1174 CNC Milling Machine by AZALAB is a high-performance, industrial-grade machining solution engineered to deliver exceptional precision, speed, and operational reliability. Designed for modern manufacturing environments, this 3-axis CNC milling machine integrates advanced control technology, rigid mechanical construction, and high-speed motion capability to handle complex milling operations with consistent accuracy.
At the core of the AZA1174 is the FANUC Series 31 CNC control system, known globally for its stability, processing speed, and intelligent machining functions. With simultaneous 3-axis control, the machine ensures smooth interpolation, accurate contouring, and efficient cycle times, making it ideal for precision component manufacturing, tool rooms, R&D centers, and production workshops.
The machine is powered by a 200–240 VAC, 50–60 Hz, 3-phase electrical system, delivering reliable performance under continuous industrial duty. Its rigid frame construction and optimized mechanical design minimize vibration and thermal distortion, ensuring dimensional accuracy even during high-speed machining.
ENGINE CYLINDER BORING MACHINE AZA1177
The AZA1177 Boring Machine is a reliable and high-precision solution designed specifically for reboring engine cylinders in motorcycles, automobiles, and small to medium-sized tractors. Engineered for accuracy, productivity, and ease of operation, this machine is widely used in automotive workshops, engine reconditioning units, vocational training centers, and service garages.
Built with a rigid and durable structure, the AZA1177 ensures stable cutting performance and consistent dimensional accuracy during cylinder reboring operations. Its precision spindle system delivers smooth rotation and controlled feed, allowing operators to achieve superior surface finish and exact bore geometry. The machine is suitable for repeated, high-accuracy operations without loss of performance, making it ideal for both repair and reconditioning work.
HYDRAULIC PRESS MACHINE AZA1196
The AZA LAB Hydraulic Press Machine – Model AZA1196 is a robust and reliable solution engineered for demanding industrial pressing operations. Designed with a highly rigid structure and powered by an advanced hydraulic power pack, this machine delivers consistent force, precision control, and long-term durability.
Built to handle a wide range of industrial requirements, the AZA1196 is available in capacities ranging from 5 tonnes to 200 tonnes, making it suitable for light-duty assembly tasks as well as heavy-duty forming, pressing, and straightening applications across multiple industries.
LATHE MACHINE AZA1175
The AZA LAB Lathe Machine – Model AZA1175 is a robust and reliable machine designed for precision metal cutting and shaping applications in small-scale industries, tool rooms, and workshops. Engineered for accuracy, durability, and ease of operation, this lathe simplifies complex machining tasks while delivering consistent and dependable performance.
Manufactured using solid castings and equipped with precision components, the AZA1175 ensures smooth operation, accurate positioning, and long service life. Its compact yet rigid design makes it an ideal choice for workshops that require efficiency without compromising on machining quality.

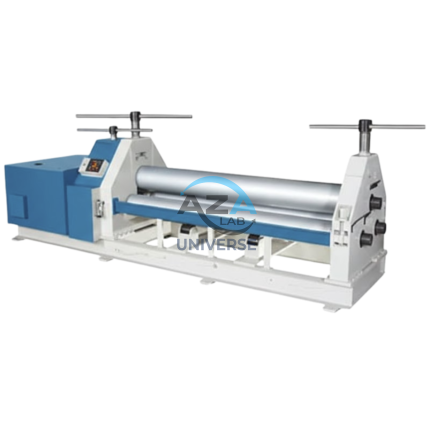

PLATE ROLLING MACHINE AZA1195
