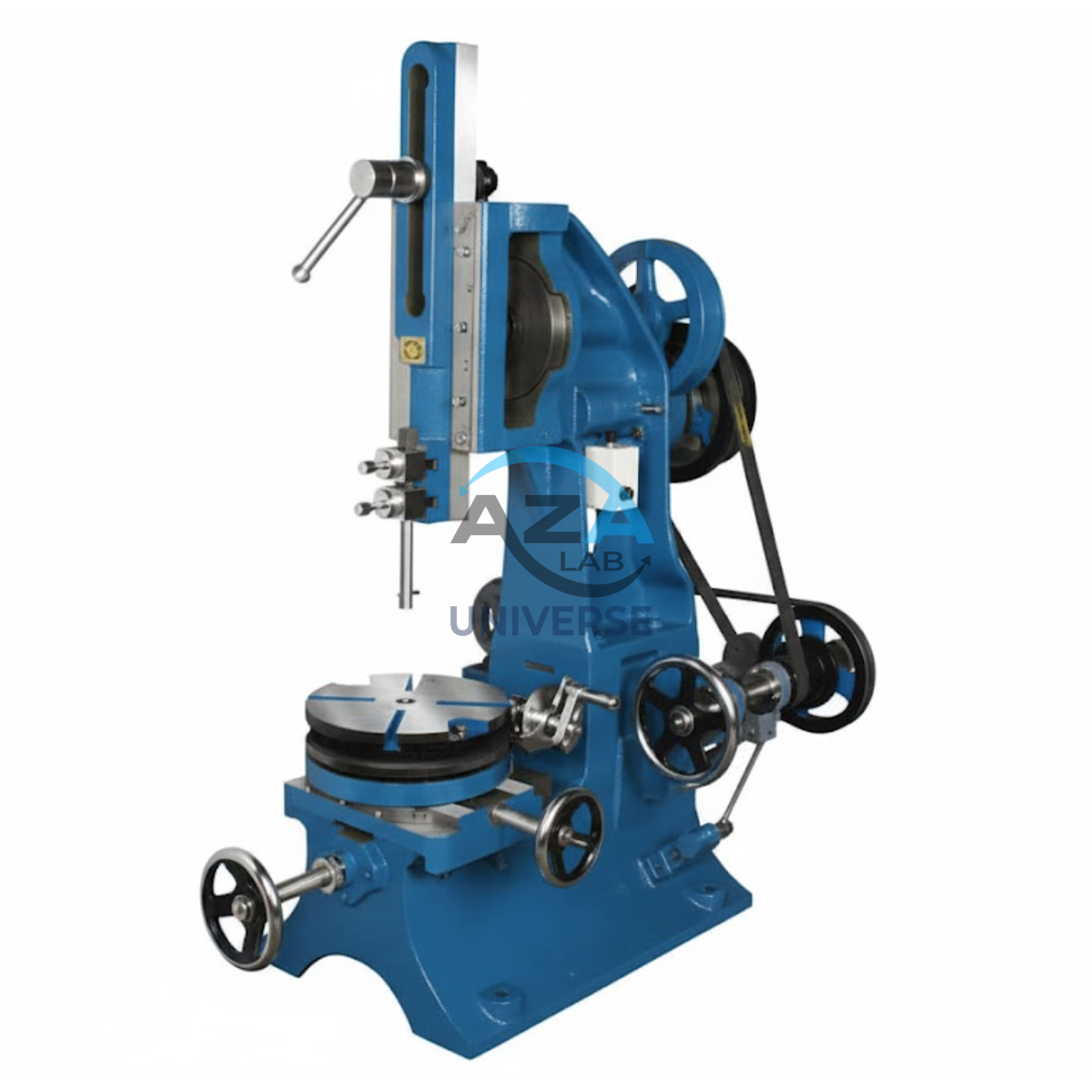

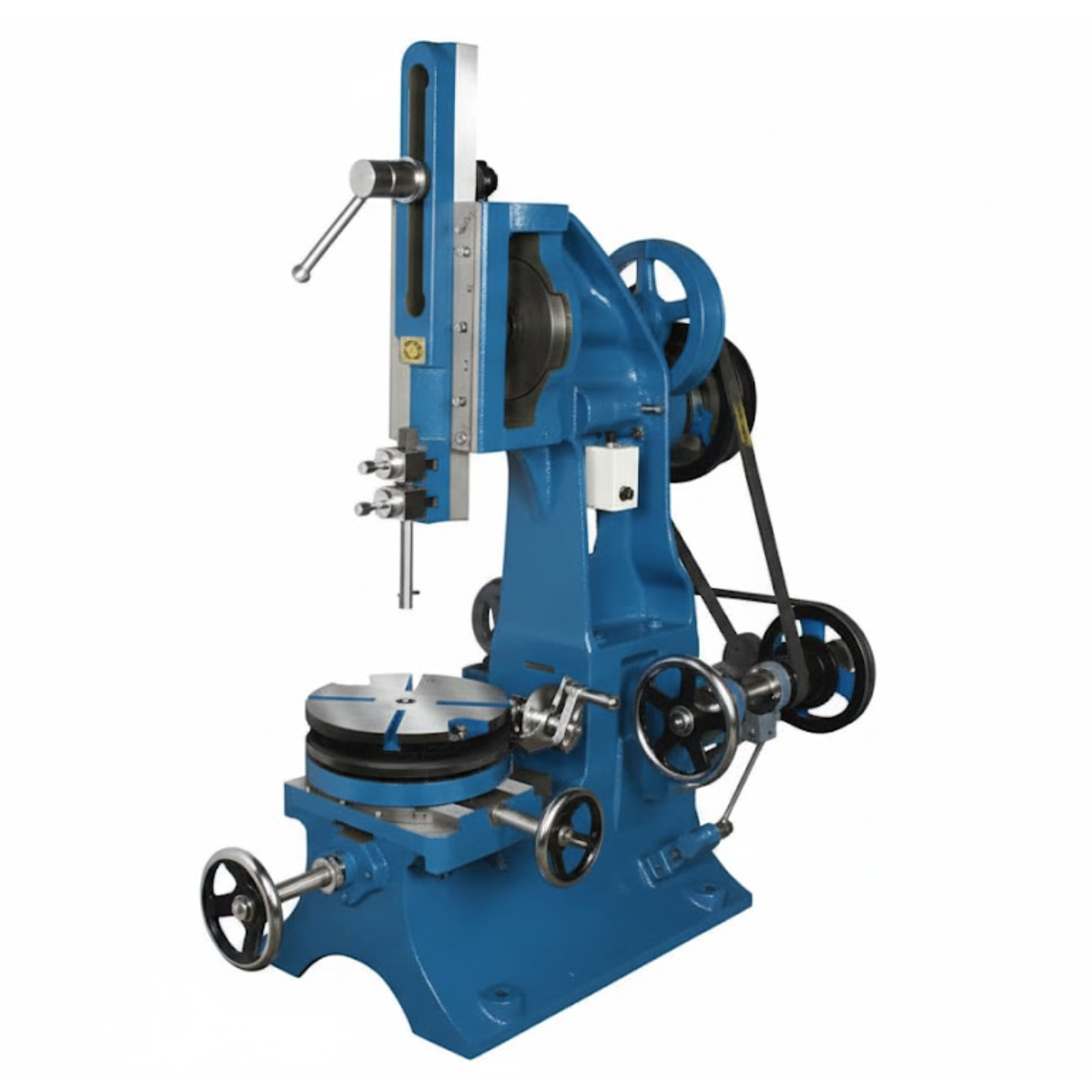

SLOTTING MACHINE AZA1192
The AZA LAB Slotting Machine – Model AZA1192 is a robust, high-performance machine designed for precision slotting, shaping, and cutting operations in metal and wood materials. Engineered for durability and accuracy, this machine is widely used for producing slots on bolt heads, screws, keyways, and other precision components.
Manufactured using high-quality raw materials and advanced engineering techniques, AZA1192 delivers reliable performance in both light and heavy-duty industrial applications. Its hardened and lapped steel gears ensure smooth operation, long service life, and minimal maintenance.
Description
Key Advantages
-
High precision slotting and shaping
-
Heavy-duty construction for industrial use
-
Smooth, reliable, and low-maintenance operation
-
Suitable for metal and wood applications
-
Available in multiple configurations
Features
High-Quality Construction
-
Manufactured from premium-grade raw materials
-
Built in accordance with industry quality standards
-
Ensures rigidity, accuracy, and long operational life
Durable & Efficient Performance
-
Steel gears are properly hardened and lapped
-
Thoroughly inspected for vibration-free, hassle-free operation
Versatile Applications
-
Ideal for slotting, shaping, and cutting operations
-
Widely used in automotive, furniture, electrical, construction, and heavy industries
Precision Engineering
-
Incorporates advanced technology for accurate machining
-
Ensures clean slots and precise shaping
Multiple Models & Configurations
-
Available in different stroke lengths and motor capacities
-
Adaptable to various workshop and industrial requirements
Applications
-
Slotting of bolt heads and screws
-
Keyway cutting
-
Internal and external shaping
-
Metal and wood machining operations
Technical Specifications
| Specification | SM-150 | SM-250 |
|---|---|---|
| Model | AZA1192 (SM-150) | AZA1192 (SM-250) |
| Adjustable Stroke | 10 – 150 mm | 10 – 250 mm |
| Longitudinal Movement | 200 mm | 230 mm |
| Cross Movement | 110 mm | 230 mm |
| Speed Adjustment | 3 | 3 |
| Ram Adjustment | 150 mm | 250 mm |
| Motor Power | 1 HP | 1.5 HP |
| Column to Ram Distance | 210 mm | 330 mm |
| Table to Ram Distance | 310 mm | 410 mm |
| Table Size | 280 × 335 mm | 280 × 335 mm |
| Machine Dimensions (L×W×H) | 1050 × 550 × 1175 mm | 1150 × 600 × 1375 mm |
| Machine Weight | 375 kg | 450 kg |
Why Choose AZA1192 Slotting Machine?
-
Proven AZA LAB manufacturing quality
-
High precision with durable construction
-
Suitable for a wide range of industrial applications
-
Excellent performance with minimal maintenance
