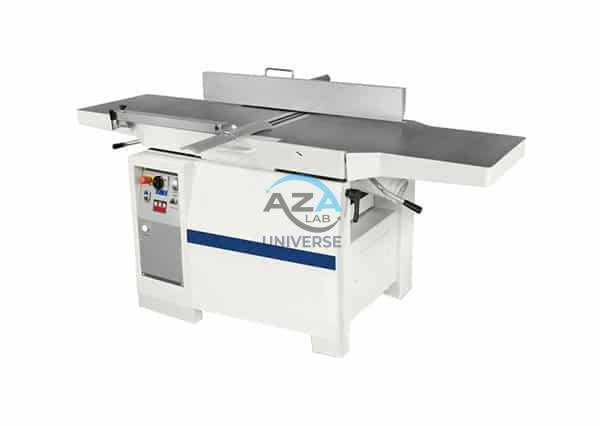

Wood Working Surface Planers (AZA 1214)
High-quality Wood Working Surface Planers from A Z A Lab, ideal for precision planing, beveling, and chamfering. Robust design and various models to meet diverse woodworking needs.
Description
A Z A Lab offers a range of high-quality Surface Planers, expertly manufactured in our state-of-the-art facilities. These planers are essential for planing the face and side of wood to ensure they are straight and square. They enhance the efficiency of woodworking operations by ensuring flatness and squareness. Additionally, these planers can perform beveling and chamfering operations. The robust construction of our surface planers ensures they can handle high loads during operation, making them a valuable tool in any woodworking workshop.
- Precision planing for flatness and squareness
- Versatile for beveling and chamfering
- Sturdy construction handles high loads
- Reliable cutter block speed of 4000 RPM
- Various models to fit different capacity needs
| Feature | AZA 1211 | AZA 1212 | AZA 1213 | AZA 1214 | AZA 1215 |
|---|---|---|---|---|---|
| Surfacing Capacity | 254 mm / 10″ | 330 mm / 13″ | 330 mm / 13″ | 228 mm / 9″ | 305 mm / 12″ |
| Length of Surface Table | 1220 mm / 48″ | 1295 mm / 51″ | 1550 mm / 61″ | 1220 mm / 48″ | 1220 mm / 48″ |
| Rebating Capacity | 12.5 mm / 1/2″ | 12.5 mm / 1/2″ | 12.5 mm / 1/2″ | 12.5 mm / 1/2″ | 12.5 mm / 1/2″ |
| Cutter Block Diameter | 95 mm / 3.75″ | 95 mm / 3.75″ | 95 mm / 3.75″ | 95 mm / 3.75″ | 95 mm / 3.75″ |
| Cutter Block Speed (rpm) | 4000 | 4000 | 4000 | 4000 | 4000 |
| Standard Cutter Block-Code No | 2B | 2B | 2B | 2B | 2B |
| Circular Saw Table Size | 610×355 mm / 24″×14″ | 610×355 mm / 24″×14″ | 610×355 mm / 24″×14″ | 560×280 mm / 22″×11″ | 560×280 mm / 22″×11″ |
| Up/Down Movement of Circular Saw Table | 75 mm / 3″ | 75 mm / 3″ | 75 mm / 3″ | 75 mm / 3″ | 75 mm / 3″ |
| Max. Circular Saw Diameter | 300 mm / 12″ | 300 mm / 12″ | 300 mm / 12″ | 300 mm / 12″ | 300 mm / 12″ |
| Power Required - hp/rpm | 2 hp / 1440 rpm | 2 hp / 1440 rpm | 3 hp / 1440 rpm | 2 hp / 1440 rpm | 2 hp / 1440 rpm |
Related products
CNC MILLING MACHINE AZA1174
The AZA1174 CNC Milling Machine by AZALAB is a high-performance, industrial-grade machining solution engineered to deliver exceptional precision, speed, and operational reliability. Designed for modern manufacturing environments, this 3-axis CNC milling machine integrates advanced control technology, rigid mechanical construction, and high-speed motion capability to handle complex milling operations with consistent accuracy.
At the core of the AZA1174 is the FANUC Series 31 CNC control system, known globally for its stability, processing speed, and intelligent machining functions. With simultaneous 3-axis control, the machine ensures smooth interpolation, accurate contouring, and efficient cycle times, making it ideal for precision component manufacturing, tool rooms, R&D centers, and production workshops.
The machine is powered by a 200–240 VAC, 50–60 Hz, 3-phase electrical system, delivering reliable performance under continuous industrial duty. Its rigid frame construction and optimized mechanical design minimize vibration and thermal distortion, ensuring dimensional accuracy even during high-speed machining.
HYDRAULIC PRESS MACHINE AZA1196
The AZA LAB Hydraulic Press Machine – Model AZA1196 is a robust and reliable solution engineered for demanding industrial pressing operations. Designed with a highly rigid structure and powered by an advanced hydraulic power pack, this machine delivers consistent force, precision control, and long-term durability.
Built to handle a wide range of industrial requirements, the AZA1196 is available in capacities ranging from 5 tonnes to 200 tonnes, making it suitable for light-duty assembly tasks as well as heavy-duty forming, pressing, and straightening applications across multiple industries.
POWER PRESS MACHINE AZA1186
The AZA LAB Power Press Machine – Model AZA1186 is a high-performance mechanical press engineered for precision metalworking, forming, and mass production applications. Designed and manufactured by LabTek, this power press series delivers exceptional accuracy, durability, and operational efficiency across capacities ranging from 5 tons to 50 tons.
Built with a robust all-steel frame, precision-machined components, and high-grade alloy materials, AZA1186 ensures smooth operation, long tool life, minimal maintenance, and consistent output even under continuous industrial use.
SLOTTING MACHINE AZA1192
The AZA LAB Slotting Machine – Model AZA1192 is a robust, high-performance machine designed for precision slotting, shaping, and cutting operations in metal and wood materials. Engineered for durability and accuracy, this machine is widely used for producing slots on bolt heads, screws, keyways, and other precision components.
Manufactured using high-quality raw materials and advanced engineering techniques, AZA1192 delivers reliable performance in both light and heavy-duty industrial applications. Its hardened and lapped steel gears ensure smooth operation, long service life, and minimal maintenance.

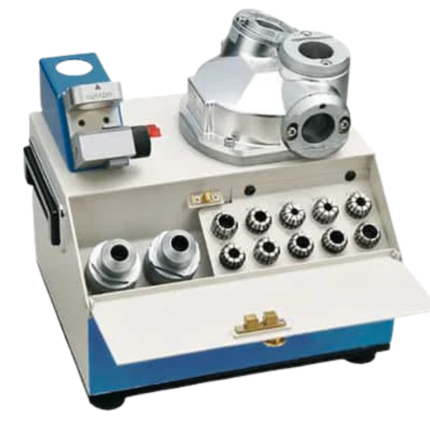

TOOL & CUTTER GRINDING MACHINE AZA1202
