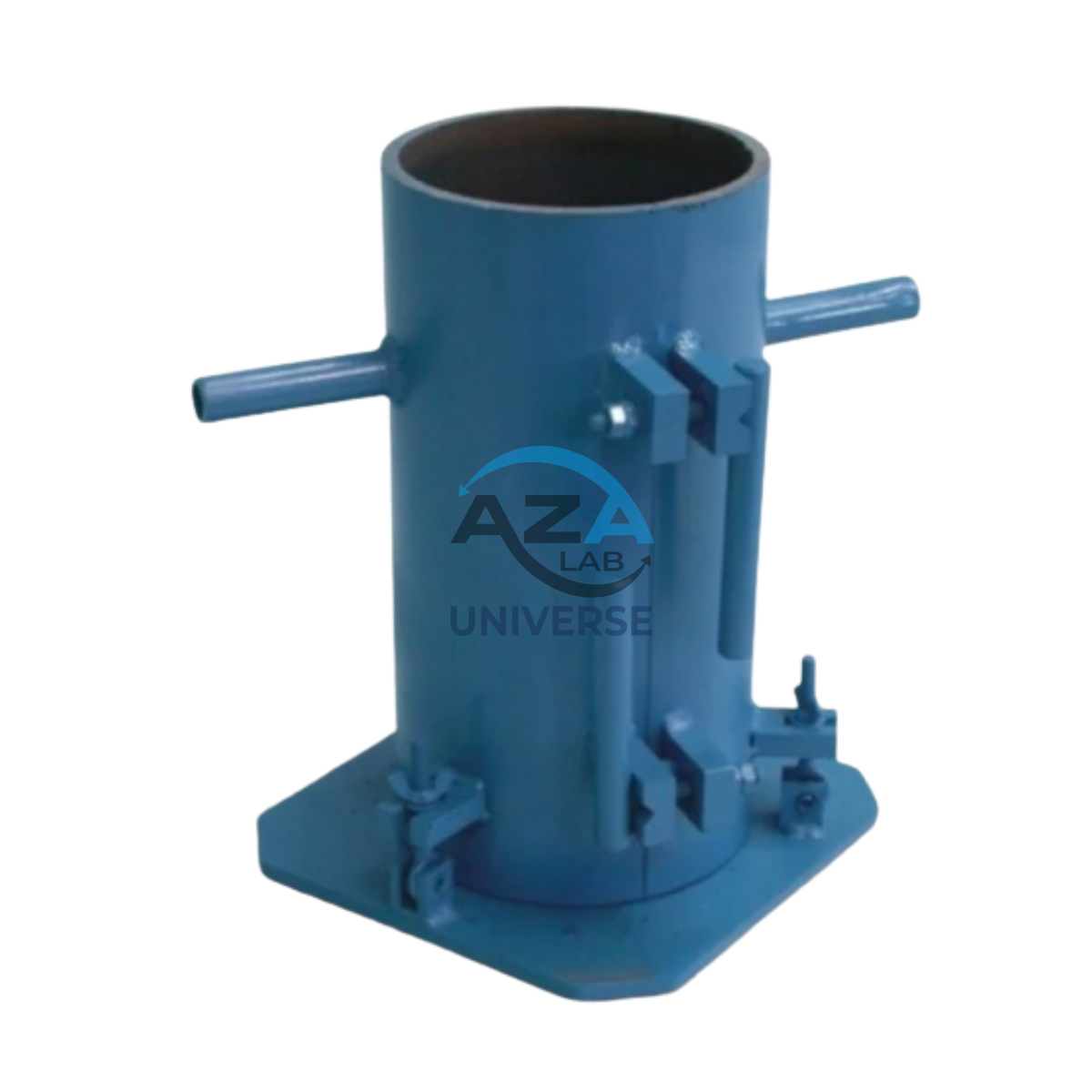

CYLINDRICAL MOULD AZA1123

The AZA1123 Cylindrical Mould is a precision-engineered, heavy-duty mould designed for casting standardized cylindrical concrete specimens used for compressive strength, split tensile strength, and durability testing. It is an essential tool for construction material testing labs, civil engineering institutions, and quality control facilities that routinely evaluate concrete performance.

Built for repeatable use and dimensional stability, the AZA1123 ensures uniform specimen geometry in accordance with IS, ASTM, and ACI guidelines, making it a dependable choice for compliance testing and research applications.

Purpose & Function

The cylindrical mould is used to prepare concrete specimens of standard dimensions, typically:

  • 150 mm diameter × 300 mm height
  • 100 mm diameter × 200 mm height

These specimens are used to perform:

  • Compressive strength tests
  • Split tensile strength tests
  • Elastic modulus evaluations
  • Durability and material behavior studies

Accurate geometry ensures that the applied load is uniformly transferred, resulting in consistent and valid test outcomes.

View Specification PDF
Enquiry on WhatsApp
Category:
Description

Description

Construction & Design

Manufactured from high-grade cast iron or mild steel, the AZA1123 is engineered for long-term durability and resistance to deformation. The precision-machined surfaces ensure a smooth finish on the concrete sample, enabling easy demoulding and reducing surface imperfections.

Key Design Elements

  • Detachable Base & Side Sections
    Facilitates quick demoulding and easy cleaning.

  • Leak-Proof Fitment
    Tight clamping bolts prevent slurry leakage during casting.

  • Corrosion-Resistant Coating
    Protects the mould from wear and environmental exposure.

  • Precision-Machined Internal Diameter
    Maintains strict tolerance as per IS and ASTM standards.

  • Rugged, Reusable Construction
    Ideal for repeated testing cycles in labs and field conditions.

Standards Compliance

The mould complies with major international testing standards, including:

  • IS 10086 – Specification for Moulds for Concrete Test Specimens

  • IS 516 – Methods of Tests for Strength of Concrete

  • ASTM C31 – Making and Curing Concrete Test Specimens

  • ASTM C39 – Compressive Strength of Cylindrical Concrete Specimens

  • ACI Concrete Practice Guidelines

These standards outline specimen preparation, curing, and testing procedures, for which the AZA1123 is fully suitable.

Applications

  • Government and private material testing laboratories

  • Construction quality control departments

  • RMC and cement plant testing units

  • Research and development centers

  • Civil engineering colleges and institutes

Key Features

  • Cylindrical mould for standard concrete test specimens

  • Detachable components for easy demoulding

  • Leak-proof, rigid assembly

  • Machined, smooth internal finish

  • Heavy-duty cast iron / mild steel construction

  • Rust-protected surface for long life

  • Complies with IS & ASTM testing standards

  • Ideal for compressive and split tensile strength testing

Specifications

Parameter Details
Model AZA1123
Type Cylindrical Concrete Mould
Material Cast Iron / Mild Steel
Internal Dimensions 150 mm × 300 mm or 100 mm × 200 mm
Finish Machined & anti-rust coated
Standard Compliance IS 10086, ASTM C31, ASTM C39
Usage Casting cylindrical concrete specimens
Features Detachable parts, reusable, leak-proof, rugged design

Frequently Asked Questions (FAQ)

Q1. What is the purpose of the AZA1123 cylindrical mould?
It is used to cast cylindrical concrete specimens for compressive and split tensile strength testing.

Q2. What are the standard specimen dimensions?
150 × 300 mm and 100 × 200 mm, depending on the test requirement.

Q3. Is the mould reusable?
Yes. With proper cleaning and maintenance, it supports long-term, repeated use.

Q4. How should the mould be cleaned after casting?
After demoulding, rinse with water and clean using a soft brush. Avoid sharp tools that may damage the machined surface.

Q5. Is bulk ordering available?
Yes. Institutional and project-based bulk supply is available upon request.

Cylindrical Mould – AZA1123
High-strength cast iron/mild steel cylindrical mould for concrete compressive and tensile strength testing. Precision-machined, leak-proof, corrosion-resistant, and compliant with IS 10086 and ASTM C39/C31. Available in 150×300 mm and 100×200 mm sizes. Ideal for labs, QC units, and field testing.

Additional information

Additional information

Model

AZA 1123
Type

Cylindrical Mould
Material

Cast Iron / Mild Steel
Usage

Casting concrete specimens
Features

Detachable parts, reusable, rugged design

Related products

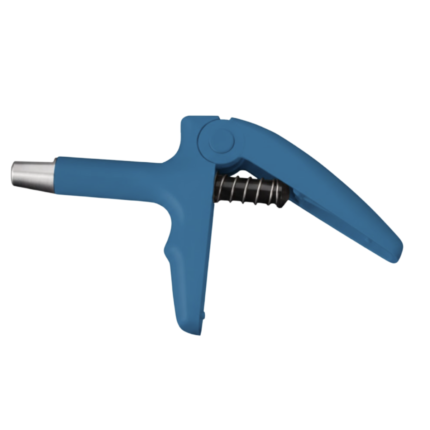

GUN FOR MOULD AZA1129
