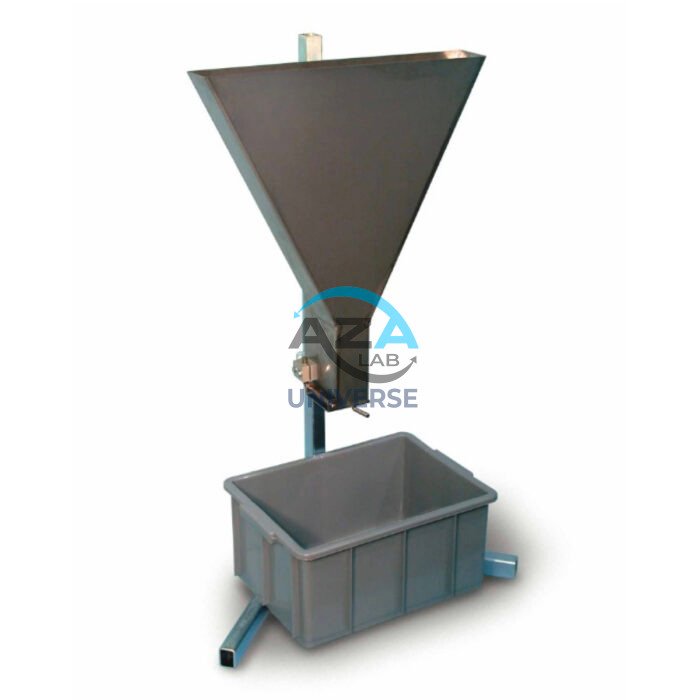

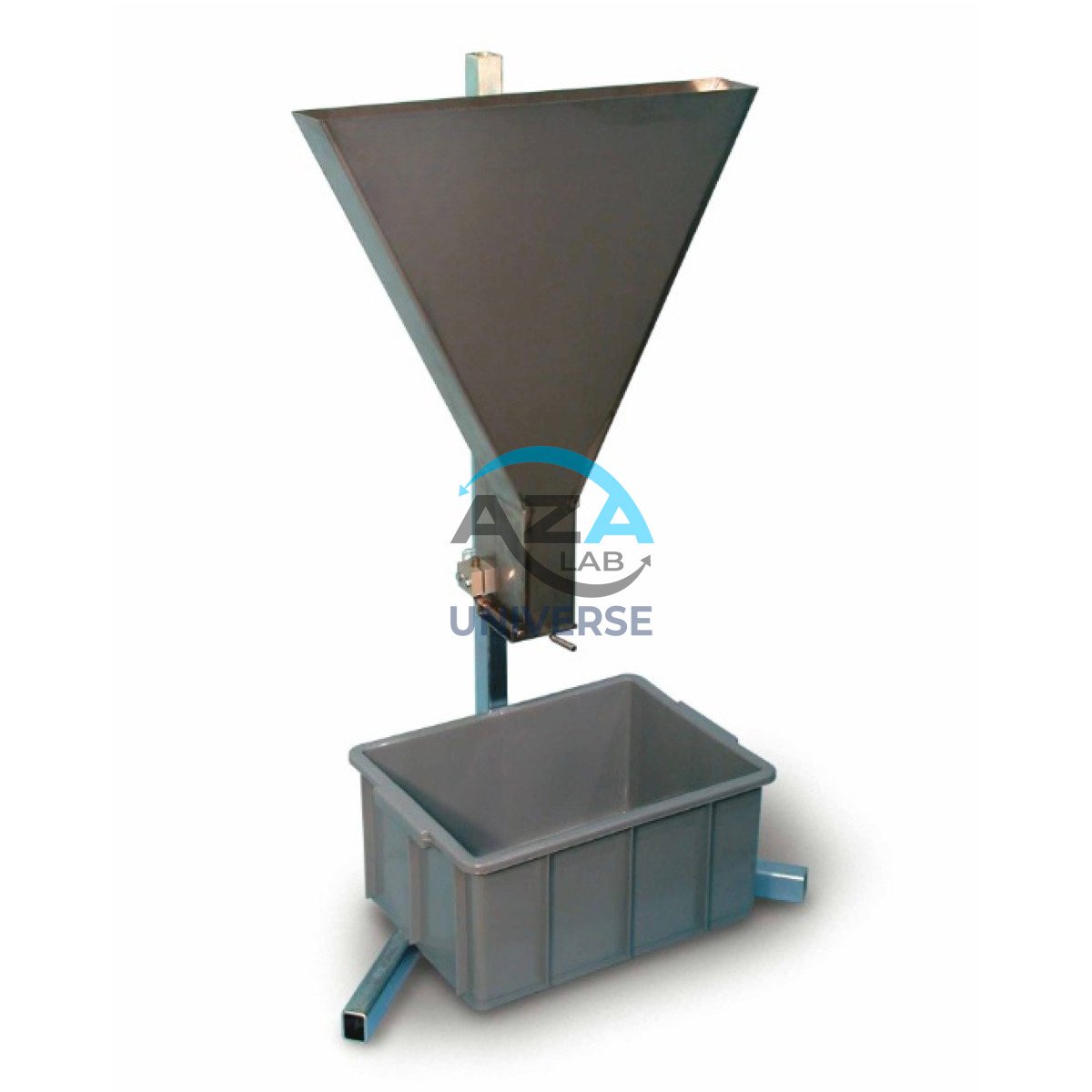

V FUNNEL AZA1111

AZA1111 V Funnel is a precision laboratory apparatus designed to measure the flow time and viscosity of Self-Compacting Concrete (SCC). It evaluates how quickly fresh SCC passes through a narrow, V-shaped section under the action of gravity, providing critical insight into the concrete’s workability, stability, and resistance to segregation.

The V Funnel test is essential when designing SCC mixes that must flow through heavily reinforced or congested formwork. By recording the time taken for concrete to completely discharge from the funnel, the apparatus allows engineers and technicians to quickly judge whether a mix is too stiff, too viscous, or optimally balanced.

Manufactured with a durable, corrosion-resistant metal body and a precise quick-release gate mechanism, AZA1111 ensures smooth, repeatable testing. Its rigid structure and stable stand make it suitable for both laboratory and site-based quality control environments.

The equipment is designed in compliance with EN 12350-9 and EFNARC guidelines, ensuring globally accepted and repeatable test results

Enquiry on WhatsApp
Category:
Description

Description

Key Features

  • Measures SCC flow time and viscosity under gravity

  • V-shaped funnel for controlled, uniform discharge

  • Quick-release bottom gate for accurate timing

  • Stable stand for safe and easy operation

  • Durable, corrosion-resistant construction

  • Provides results in seconds for rapid QC decisions

  • Complies with EN 12350-9 and EFNARC standards

Applications

  • Self-compacting concrete (SCC) quality control

  • Precast concrete factories

  • Construction project laboratories

  • Research & development centers

  • University and training institutes

Specifications

Specification Details
Model AZA1111
Product Type V Funnel for SCC
Material Stainless steel / Powder-coated mild steel
Funnel Capacity Approx. 12 Liters
Dimensions Height: 600 mm, Top Width: 410 mm, Base Opening: 65 mm
Gate Mechanism Quick-release bottom gate
Stand Included with adjustable level base
Standards EN 12350-9, EFNARC Guidelines
Finish Corrosion-resistant coating
Included Accessories Funnel, stand, gate, user guide

AZA1111 V Funnel is a standards-compliant SCC testing apparatus used to measure flow time and viscosity, delivering fast, reliable results for concrete quality control labs.

Additional information

Additional information

Model

AZA 1111
Product Type

V Funnel
Material

Stainless steel or powder-coated mild steel
Applications

SCC flow time test, viscosity assessment
e
Finish

Corrosion-resistant coating
Accessories Included

Funnel, stand, gate mechanism, user guid
