Slump Cone Plastic AZA 1103 – Concrete Test Tool
Click to enlarge
SLUMP TEST APPARATUS AZA1102
SLUMP TEST APPARATUS AZA1102
Back to products
K-Slump Tester, Concrete Consistency Tester, ASTM C1362
K-SLUMP TESTER AZA1104

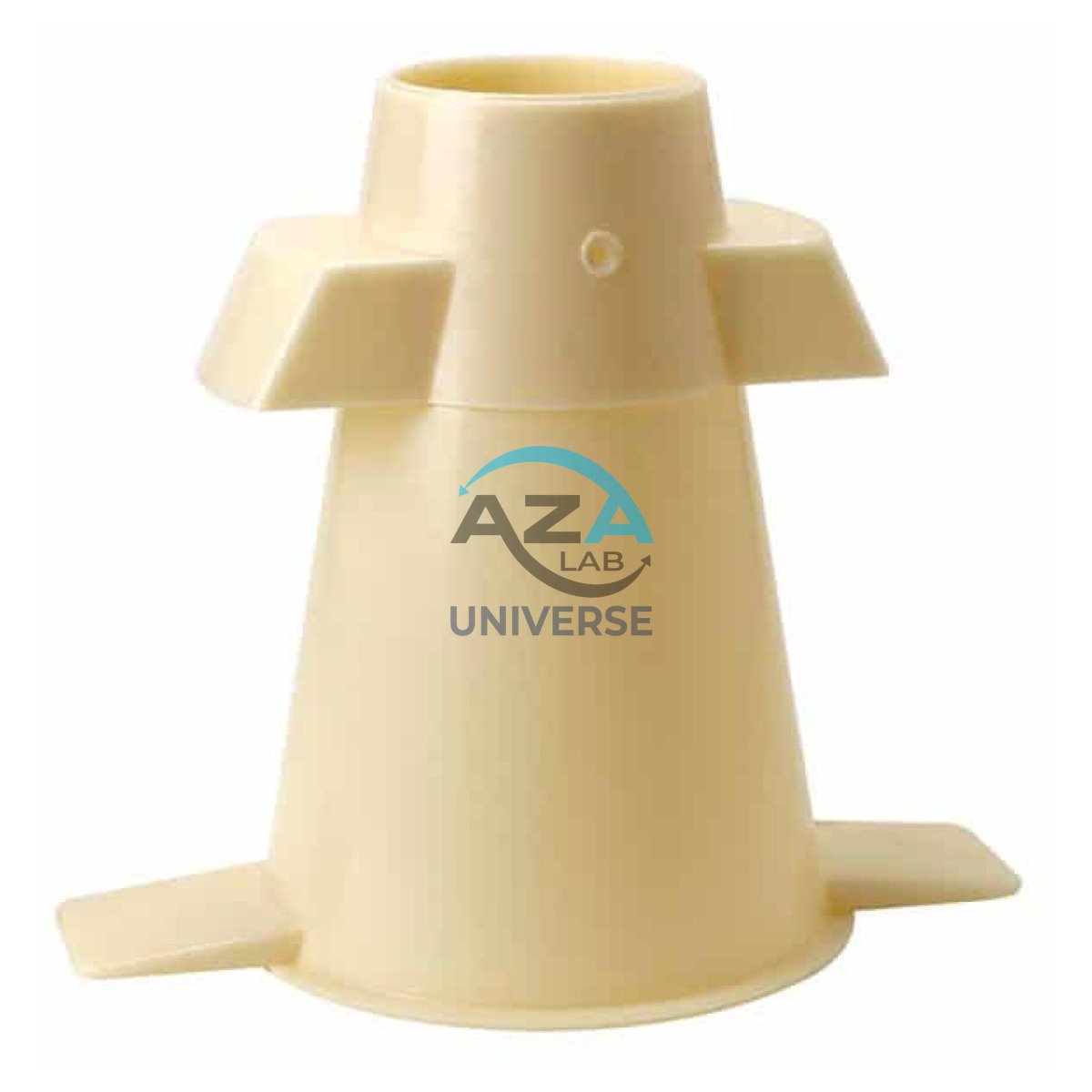

SLUMP CONE, PLASTIC AZA1103

AZA1103 Slump Cone (Plastic) is a durable and lightweight testing tool designed for accurate measurement of concrete workability and consistency. It is widely used in construction sites, civil engineering laboratories, and quality control departments for fast and reliable slump testing of fresh concrete mixes.

Unlike traditional metal cones, this model is manufactured from high-quality rigid plastic, making it corrosion-resistant, dent-proof, and highly suitable for repeated field and laboratory use. Its lightweight construction makes it easy to transport and ideal for site engineers and mobile testing teams.

The apparatus is manufactured to standard dimensions and fully complies with IS 1199 and ASTM C143, ensuring accurate and repeatable test results. The smooth internal surface minimizes friction, allowing easy release of concrete and improving measurement accuracy.

This slump cone helps engineers quickly determine if a concrete mix has the correct consistency for placement, compaction, and finishing. It is especially useful for quality checks before concrete pouring to avoid honeycombing, segregation, or improper flow.

AZA1103 is reusable, easy to clean, and requires minimal maintenance, making it a long-lasting and cost-effective solution for routine concrete testing.

View Specification PDF
Enquiry on WhatsApp
Category:
Description

Description

How It Works

  • Place the cone on a rigid, non-absorbent base

  • Fill the cone in three equal layers of concrete

  • Tamp each layer 25 times with a standard tamping rod

  • Lift the cone vertically and steadily

  • Measure the slump in millimeters from cone height to concrete surface

This simple test provides a fast and reliable measurement of concrete consistency.

Applications

  • On-site concrete testing at construction projects

  • Laboratory quality control of fresh concrete

  • Educational and training use in civil engineering institutes

  • Ready-mix concrete plants

Technical Specifications

Feature Specification
Model AZA1103
Material High-quality rigid plastic
Cone Height 300 mm
Top Diameter 100 mm
Base Diameter 200 mm
Standards IS 1199, ASTM C143
Reusability Yes
Cleaning Easy to clean
Weight Lightweight
Usage Lab and field testing

FAQs

Q1: What is this slump cone used for?
It is used to measure the consistency and workability of fresh concrete.

Q2: Why choose a plastic cone instead of metal?
Plastic cones are lightweight, corrosion-resistant, and easier to maintain.

Q3: Does this meet standard testing requirements?
Yes, it complies with IS 1199 and ASTM C143.

Q4: Can it be reused?
Yes, it is reusable and designed for long-term use.

Q5: Is it suitable for site work?
Yes, it is ideal for both laboratory and on-site applications.

Additional information

Additional information

Model

AZA 1103
Material

High-quality rigid plastic
Cone Height

300 mm
Top Diameter

100 mm
Weight

Lightweight
Ideal For

On-site & laboratory testing
