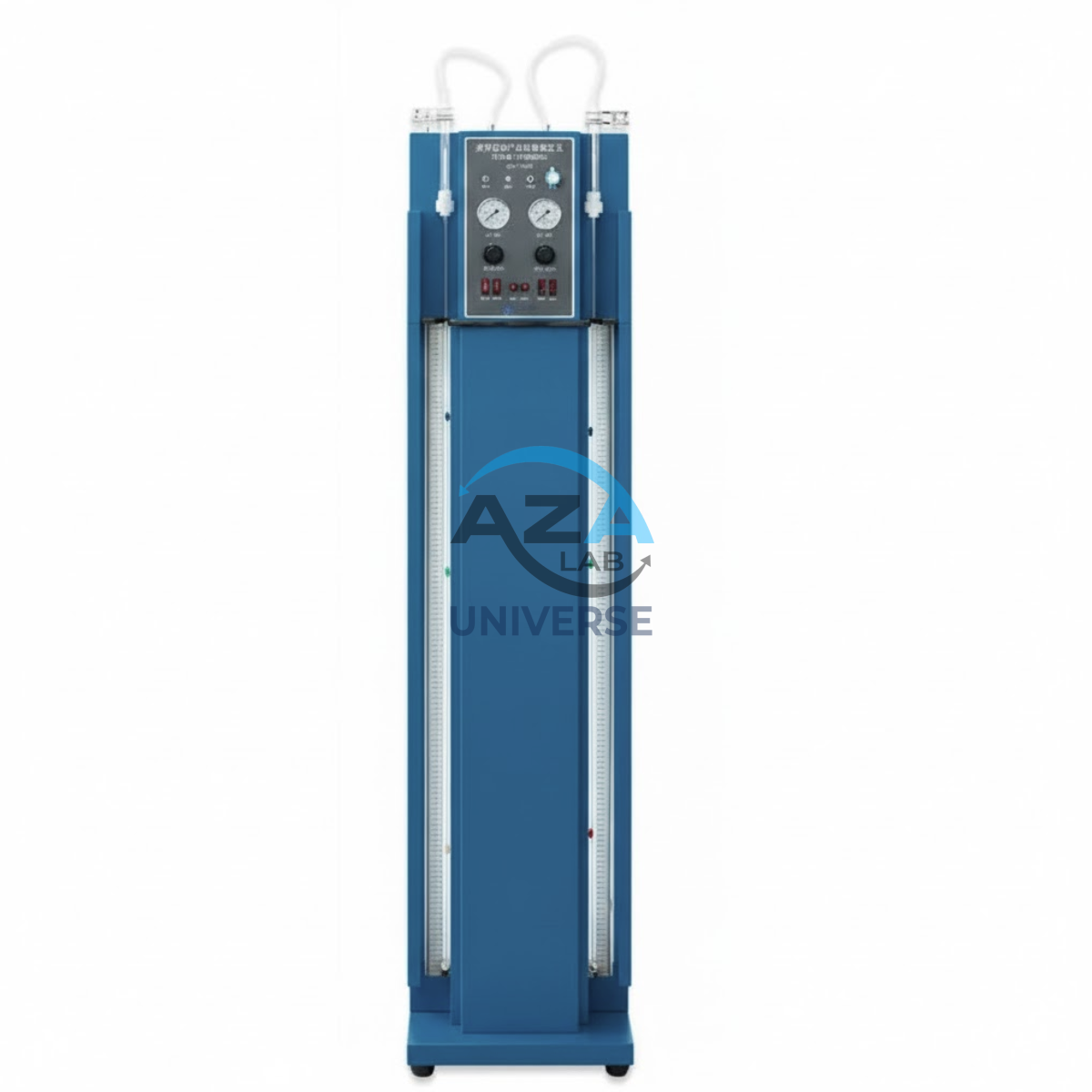

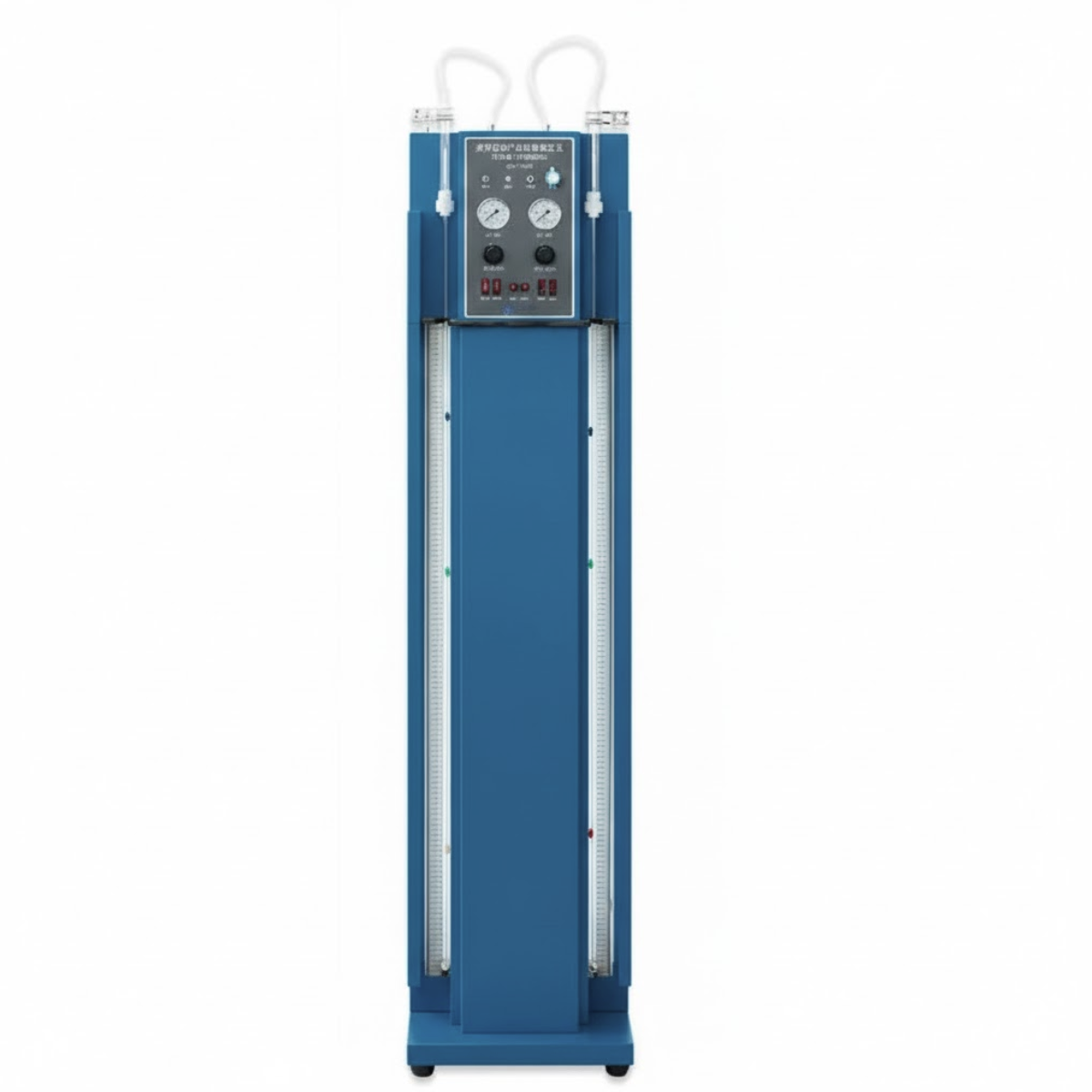

LIQUID PETROLEUM PRODUCTS HYDROCARBON TESTER AZA1316
The AZA1316 Liquid Petroleum Products Hydrocarbon Analyzer from AZA Lab is a specialized laboratory instrument designed for the quantitative determination of aromatic hydrocarbons, olefins, and saturated hydrocarbons in liquid petroleum fractions. This analyzer delivers accurate, reliable, and repeatable results, making it an essential tool for petroleum refining, fuel quality control, regulatory compliance, and research laboratories.
With its ready-to-use vertical design, advanced detection system, and automated cleaning features, the AZA1316 ensures efficient operation with minimal operator intervention while maintaining high analytical precision.
Description
High-Precision Hydrocarbon Composition Analysis
The AZA1316 integrates adsorption separation technology, UV-light detection, vibration-assisted separation, and precise weighing to accurately evaluate hydrocarbon composition. Its two imported glass adsorption columns provide excellent separation efficiency, ensuring consistent and reproducible results for routine and advanced laboratory testing.
The analyzer’s integrated air circuit, UV illumination system, vibration unit, and scale indicator work together seamlessly to deliver fast and dependable hydrocarbon analysis.
Key Features
-
Ready-to-Use Vertical Design
One-piece vertical structure requires no installation, allowing immediate operation upon setup. -
Comprehensive Integrated System
Includes air circuit, vibration system, precision scale indicator, illumination system, and UV-light detection for complete analysis. -
High-Precision Adsorption Columns
Two imported glass adsorption columns ensure accurate separation and easy operation. -
UV Detection System
High-stability UV light source enhances identification and measurement accuracy. -
Automated Column Cleaning
Built-in adsorption column cleaning unit eliminates manual cleaning, reducing maintenance time. -
Independent Column Control
Electric agitators independently controlled for each column improve test flexibility and accuracy. -
Durable & Laboratory-Grade Construction
Designed for continuous use in petroleum and research laboratories.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1316 |
| Power Supply | AC 220V ±10%, 50 Hz |
| Maximum Power Consumption | 600 W |
| Pressure Regulating Range | 0 – 400 kPa |
| Electric Agitator | Independently controlled for each column |
| UV Light Source Pipe | 1220 mm length, wavelength 365 ±5 nm |
| Illuminating Lamp | 1220 mm length, 40 W |
| Air Supply | Nitrogen cylinder or air compressor / compressed air bottle |
| Relative Humidity | ≤85% |
| Overall Dimensions (L×W×H) | 350 × 400 × 1770 mm |
| Net Weight | 24 kg |
Applications
-
Petroleum Refineries
Analysis of aromatic, olefinic, and saturated hydrocarbons in refinery streams. -
Fuel Quality Control Laboratories
Ensures compliance with fuel composition specifications and regulatory standards. -
Research & Development
Supports detailed hydrocarbon characterization for formulation and performance studies. -
Inspection & Certification Bodies
Reliable hydrocarbon analysis for regulatory verification and product certification.
Why Choose AZA1316
-
Accurate and reproducible hydrocarbon composition analysis
-
Ready-to-use design with no installation required
-
Automated adsorption column cleaning for low maintenance
-
High-precision UV detection and imported glass columns
-
Ideal for petroleum, QC, and research laboratories
Model: AZA1316 – Liquid Petroleum Products Hydrocarbon Analyzer
Related products

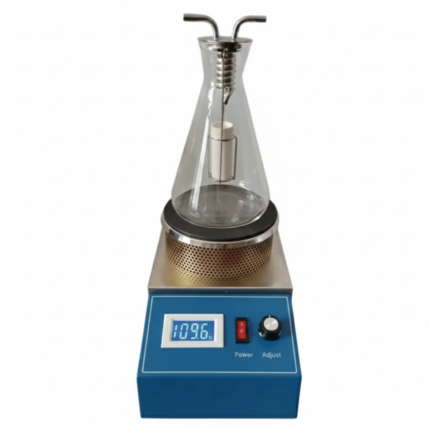

APPARATUS FOR HYDROGEN SULFIDE TESTER AZA1314
The Apparatus for Hydrogen Sulfide Tester AZA1314Â from AZA Lab conforms to the ASTM D7621 Standard Test Method for the determination of hydrogen sulfide in fuel oils by rapid liquid phase extraction.
In this method, a weighed test sample is placed into a heated vessel containing a diluent base oil, where air is bubbled through to extract hydrogen sulfide gas. The extracted gas is then directed, via a vapor phase processor (Procedure A), to an Hâ‚‚S-specific electrochemical detector, which measures its concentration in air and calculates the amount in the liquid phase in mg/kg. For Procedure B, the use of a filter cartridge is not required.
AUTOMATED CLEVELAND OPEN CUP FLASH & FIRE POINT ANALYZER AZA1276
The AutoFlash1276 (Model: AZA1276) from AZA Lab is a fully automated, microcontroller-based Cleveland Open Cup (COC) Flash and Fire Point Analyzer designed for high-temperature petroleum testing applications. Engineered for accuracy, safety, and regulatory compliance, the AZA1276 delivers reliable flash and fire point determination for materials with flash points above 79 °C up to 400 °C.
Complying with ASTM D92, ISO 2592, IS 1448 (Part 69), and IP 36, this advanced analyzer is ideal for laboratories and industrial environments where repeatability, operator safety, and international acceptance are critical.
OIL & GAS SAMPLING CYLINDERS – DOUBLE & TRIPLE ENDED AZA1274A
AZA LAB’s Oil & Gas Sampling Cylinders and Gas Sampling Bombs (AZA1274A) are precision-engineered, high-pressure vessels designed for the safe, accurate collection and transport of liquid or gas samples in the oil, gas, and petrochemical sectors.Azalab
Crafted from premium stainless steel (SS 304/316) or corrosion-resistant Monel, these cylinders are available in single-, double-, and triple-ended configurations to support a wide range of sampling operations—from wellhead and refinery extraction to lab-based chromatographic analysis.aza
Each unit is subjected to rigorous hydrostatic and burst testing and complies with international certifications including TPED, CE, DOT, and ISO. Standard fittings include ¼″ or ½″ NPT ports, with options for dip tubes, safety relief valves, and custom end fittings.aza
Whether used offshore, in-process lines, or in research labs, the AZA1274A offers maximum safety, chemical compatibility, and sample integrity.
OIL & GAS SAMPLING CYLINDERS – SINGLE END WITH DIP LINE AZA1274
AZA LAB Sampling Cylinders & Gas Sampling Bombs are robust, high‑pressure vessels engineered for safe, reliable collection, storage, and transport of liquids and gases in demanding industrial environments. Available in single‑ended, double‑ended, and flat‑ended variants, they are constructed from premium materials like stainless steel (304/316 L) and Monel, offering corrosion resistance and durable performance . TPED, CE, and ISO certifications ensure compliance with international safety and transport regulations. Each cylinder features precision-engineered NPT connections (¼″ or ½″), customizable volumes from 150 cc to 10 L, and pressure ratings up to 5000 psig, making them ideal for applications in refineries, petrochemical labs, chromatographic analysis, and gas sampling in high‑pressure systems . Hydrostatic testing guarantees reliable integrity under rigorous conditions, while additional options—such as specialized valves, burst discs, dip tubes, and protective carrying cases—allow for tailored configurations to meet specific sampling needs.

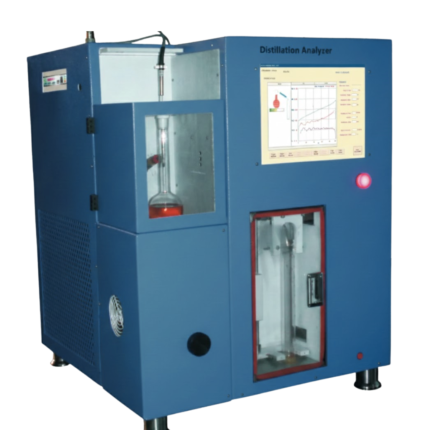

PRECISION AUTOMATED DISTILLATION ANALYZER AZA1281
Standards Compliance
- ASTM D86
- ISO 3405
- IP 123

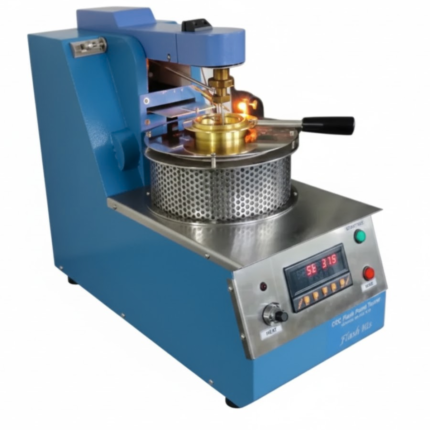

SEMI-AUTOMATED ABEL FLASH POINT ANALYZER AZA1275
The AZA1275 AutoFlash Abel Flash Point Tester from AZA Lab is a semi-automated, microcontroller-based Abel closed cup analyzer designed for precise determination of flash points of low-flash combustible liquids. Engineered to comply with IP 170, ISO 13736, and IS 1448 (Part 20), AZA1275 ensures reliable, repeatable, and regulation-compliant testing for petroleum, chemical, and industrial laboratories.
Equipped with an integrated Windows-based PC interface, AZA1275 delivers intuitive operation, automated flash detection, controlled heating, and comprehensive fault diagnostics. The system is ideal for laboratories that require accuracy, safety, and efficiency without the cost complexity of fully automated systems.

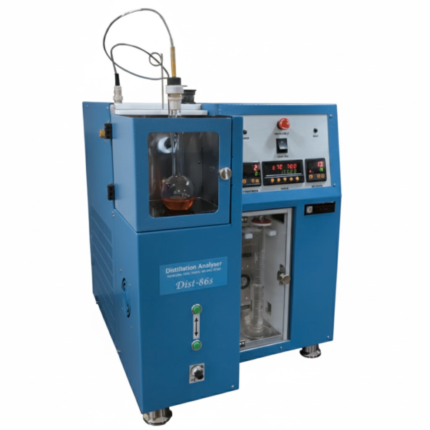

SEMI-AUTOMATED ATMOSPHERIC DISTILLATION ANALYZER AZA1285
The AZA1285 Semi-Automated Atmospheric Distillation Analyzer is a precision-engineered laboratory instrument designed for determining the distillation characteristics of petroleum products, fuels, solvents, and volatile organic liquids under atmospheric conditions. Developed for accurate boiling-range profiling and dependable laboratory performance, the AZA1285 combines manual operational flexibility with intelligent thermal regulation for highly repeatable and standards-compliant testing.
The system features a low-voltage manually adjustable heater integrated with PID-controlled condenser and receiver sections, ensuring stable distillation rates and accurate thermal management throughout the test cycle. A closed-loop, CFC-free refrigeration system provides efficient condensation without requiring external cooling water, while an integrated inert gas purge system enhances operator safety and minimizes oxidation risks during testing.

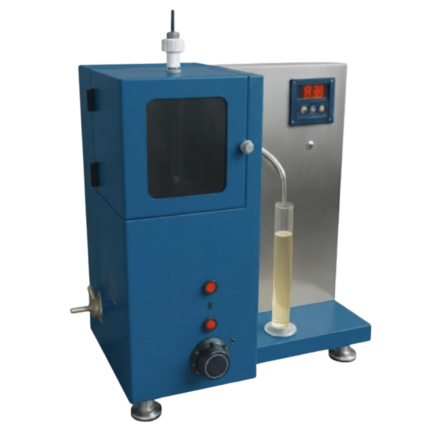

SEMI-MANUAL DISTILLATION ANALYZER AZA1286
