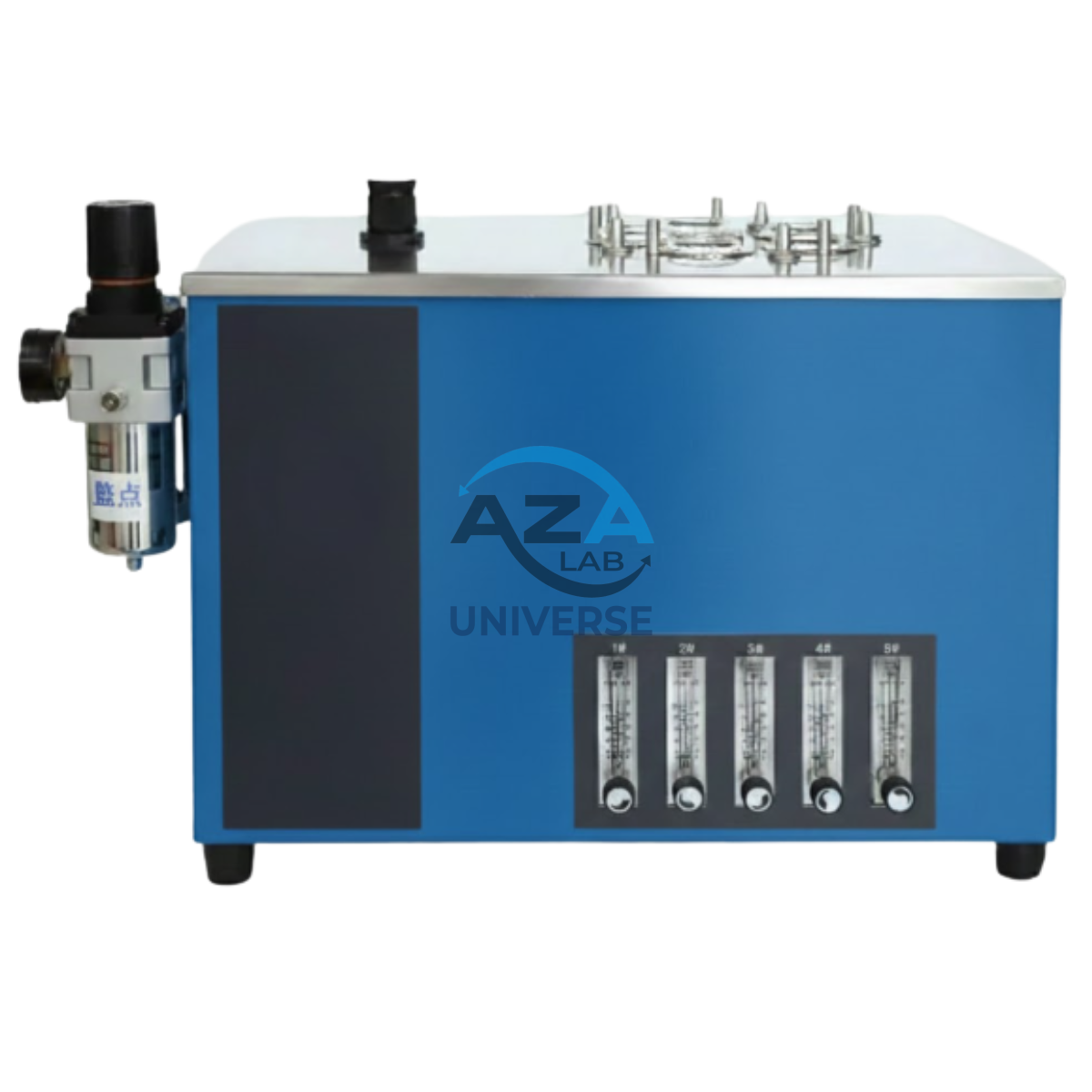

GUM CONTENT TESTER AZA1317
The AZA1317 Gum Content Tester from AZA Lab is a precision laboratory instrument designed to determine the existent gum content in aviation gasoline and motor gasoline. Existent gum testing is critical for evaluating fuel cleanliness, storage stability, and combustion performance, helping prevent injector fouling, valve deposits, and engine performance degradation.
Note: This instrument is not suitable for aviation turbine fuel testing.
With accurate temperature control, efficient evaporation, and multi-sample capability, the AZA1317 is ideal for fuel testing laboratories, refineries, inspection agencies, and quality control departments.
Description
Operating Principle
The AZA1317 determines existent gum by evaporating a measured volume of gasoline under controlled temperature and airflow conditions. After evaporation, the residue (gum) remaining in the test vessel is measured, providing a direct indication of fuel cleanliness and oxidation stability.
Key Features
Efficient Evaporation Heating System
-
Specially designed evaporation bath with optimized gas circuit
-
Ensures rapid, uniform, and complete evaporation
-
Maintains stable operating temperature between 160–165°C
Independent Flow Control
-
Stainless-steel workbench with five sample positions
-
Each position equipped with an independent flowmeter
-
Allows precise and repeatable airflow adjustment for each test
Multi-Sample Testing Capability
-
Supports 1 to 4 samples simultaneously
-
Improves laboratory efficiency and throughput
Built-In Air Compressor
-
Compact desktop design with integrated air compressor
-
Fully compliant with standard test requirements
-
Eliminates need for external air supply
Oil–Water Separation System
-
Integrated oil-water separator prevents moisture and oil vapours from entering the system
-
Enhances measurement accuracy and long-term stability
User-Friendly & Durable Construction
-
Digital temperature display with automatic control
-
Robust stainless-steel structure for long service life
-
Simple operation suitable for routine laboratory testing
Applications
-
Aviation gasoline quality testing
-
Motor gasoline cleanliness assessment
-
Fuel oxidation and storage stability evaluation
-
Refinery and fuel terminal quality control
-
Regulatory inspection and certification laboratories
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1317 |
| Test Type | Existent Gum Content |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Power Consumption | 3500 W |
| Evaporation Bath Size | Ø260 mm × 130 mm |
| Sample Positions | 5 |
| Sample Position Size | Ø51 mm × 70 mm |
| Working Temperature | 160 – 165 °C |
| Temperature Control | Automatic |
| Temperature Display | Digital |
| Flow Rate Display | Float ball type |
| Reducing Valve Pressure | 0.07 MPa |
| Air Flow Rate (Jet Outlet) | 600 mL/s per hole |
| Overall Dimensions (L×W×H) | 590 × 480 × 340 mm |
| Application Limitation | Not suitable for aviation turbine fuel |
Why Choose AZA1317
-
Accurate and repeatable existent gum determination
-
Simultaneous multi-sample testing improves productivity
-
Built-in air compressor and oil-water separator
-
Compact, durable, and laboratory-friendly design
-
Ideal for routine gasoline quality control
Model: AZA1317 – Gum Content Tester
