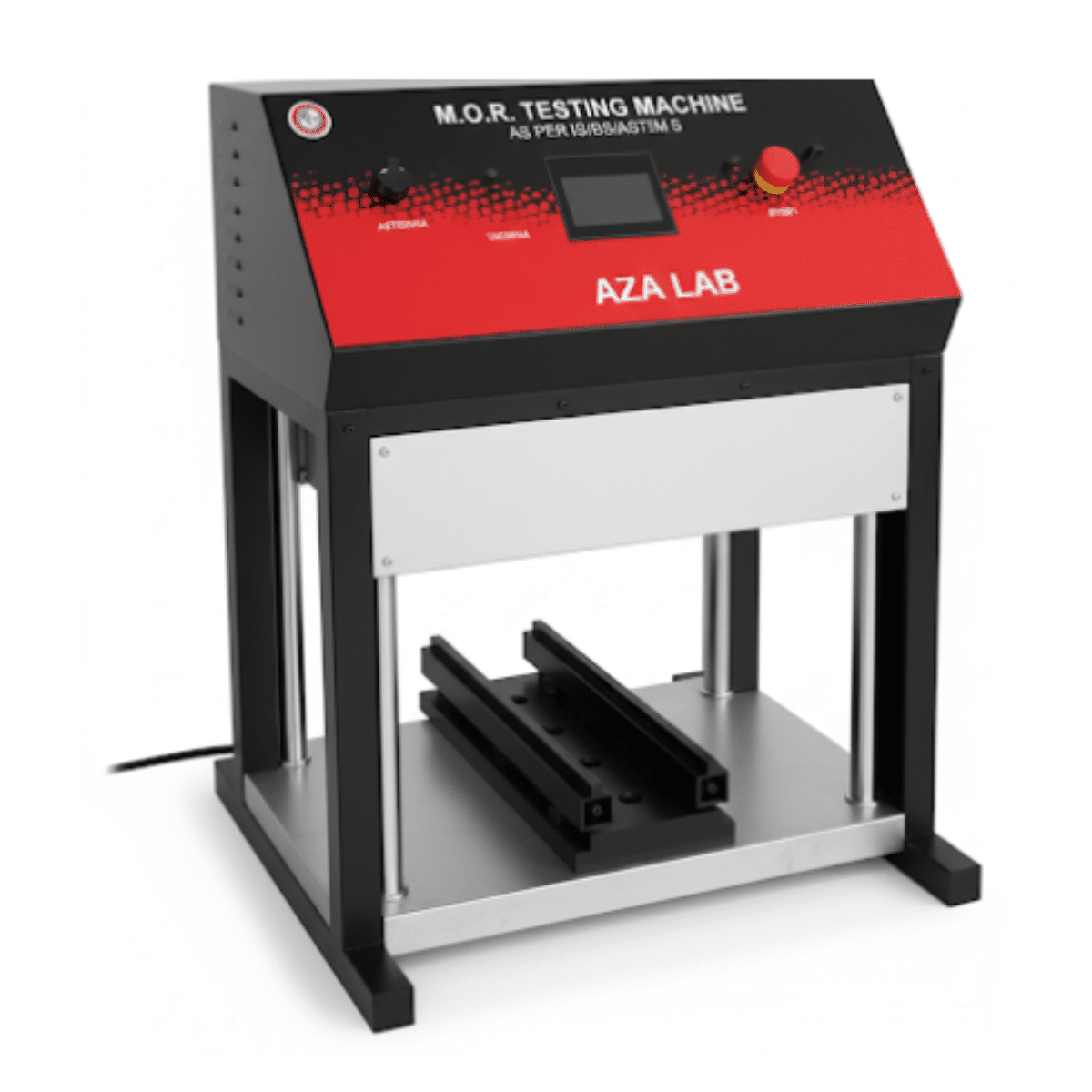

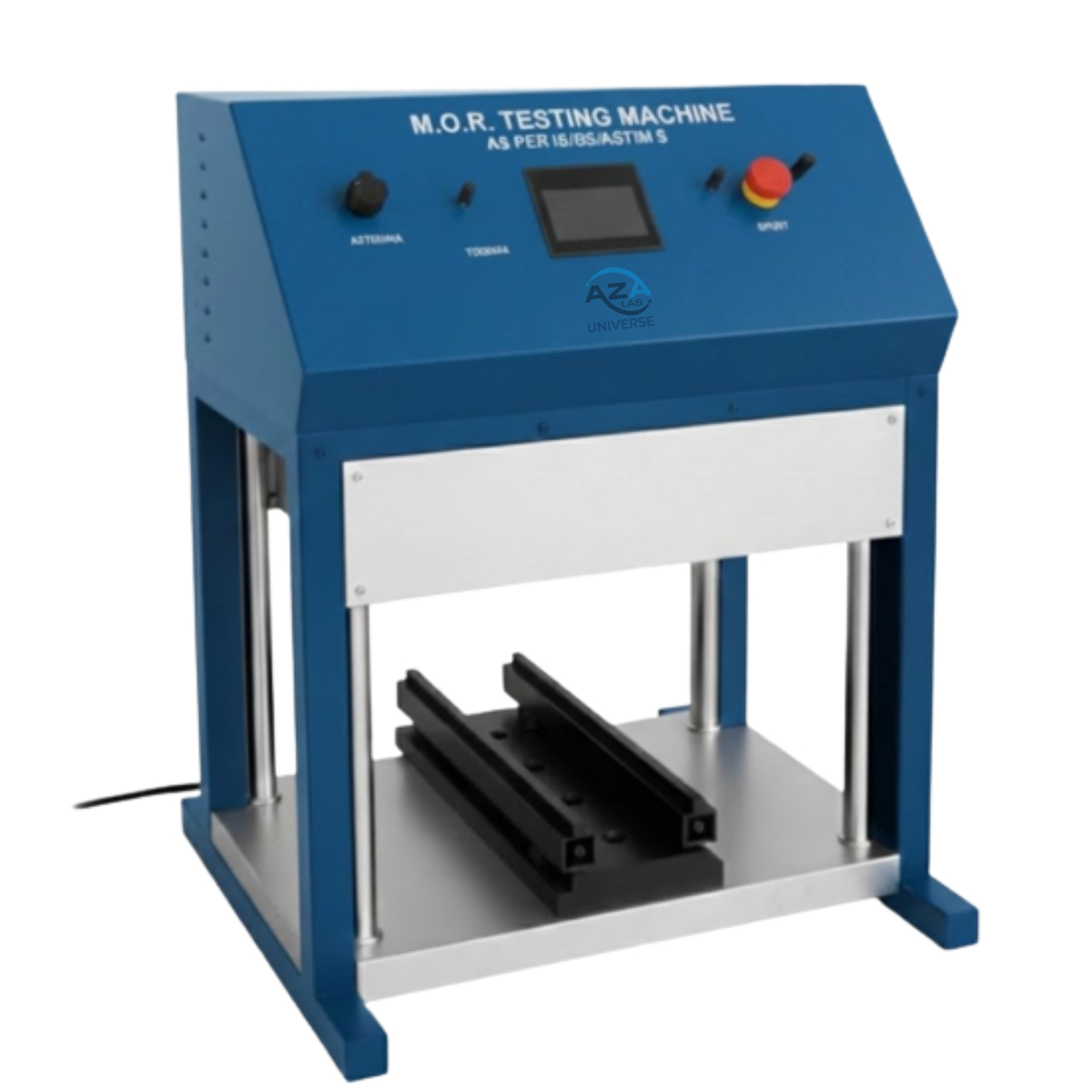

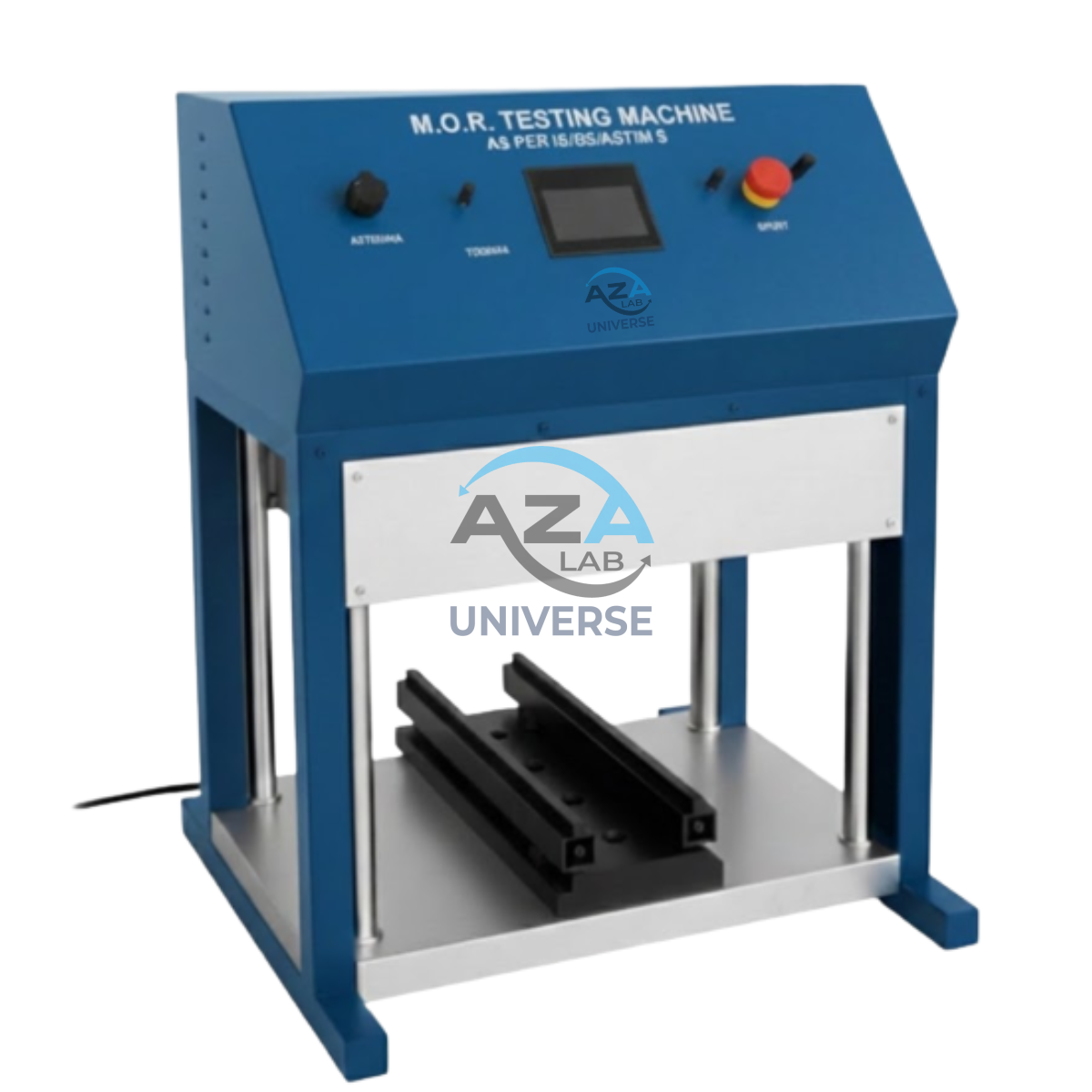

MOR TESTING MACHINE AZA1265
High-Precision Flexural Strength Testing System for Ceramic Tiles
The AZA1265 MOR Testing Machine is a heavy-duty, high-accuracy testing system engineered to determine the Modulus of Rupture (MOR) of ceramic tiles in strict accordance with ISO 10545-6. MOR testing is a critical quality parameter used to evaluate the bending strength and mechanical reliability of ceramic tiles when subjected to flexural loads.
Designed for continuous industrial use, the AZA1265 delivers precise, repeatable, and traceable test results, making it an indispensable tool for ceramic tile manufacturers, construction material laboratories, inspection agencies, and research institutions.
Description
Purpose of MOR Testing
The Modulus of Rupture test measures the maximum stress a ceramic tile can withstand before failure when loaded in bending. This test provides direct insight into:
-
Structural integrity of ceramic tiles
-
Load-bearing performance under service conditions
-
Manufacturing consistency and quality control
-
Compliance with national and international standards
-
Suitability of tiles for flooring and wall applications
The AZA1265 is purpose-built to perform this test accurately and reliably, even for large-format tiles.
Robust Mechanical Design
The AZA1265 features a rigid, heavy-duty steel frame designed to eliminate vibration and deflection during testing. The precision-aligned support rollers and loading nose ensure uniform force application across the tile surface.
Key mechanical features include:
-
High-strength welded frame construction
-
Precisely machined support and loading rollers
-
Adjustable span length to accommodate different tile sizes
-
Stable base for floor-mounted or bench-top installation
This construction ensures long-term dimensional stability and consistent test performance even under repeated high-load conditions.
High Load Capacity & Force Control
The testing system is available in two force capacity configurations:
-
500 KGF
-
1000 KGF
These options allow users to select the appropriate capacity based on tile thickness, size, and strength class. The controlled force application mechanism ensures smooth, gradual load increase, preventing shock loading and ensuring accurate determination of breaking strength and MOR values.
Wide Tile Size Compatibility
The AZA1265 is designed to test both standard and large-format ceramic tiles commonly used in modern construction projects. The adjustable support system allows quick configuration for different tile dimensions without complex tooling.
Supported Tile Sizes
-
300 × 300 mm
-
600 × 600 mm
-
800 × 1200 mm
-
1000 × 1000 mm
-
1200 × 1200 mm
This versatility makes the AZA1265 suitable for both traditional ceramic tiles and large slab formats.
User-Friendly Operation
Despite its industrial-grade construction, the AZA1265 is designed for simple and intuitive operation. Operators can quickly position the tile, adjust the supports, and initiate the test with minimal setup time.
Operational advantages include:
-
Easy specimen placement and alignment
-
Clear load indication for accurate reading
-
Minimal operator training required
-
Consistent results across different operators
This makes the system ideal for production-line quality checks as well as laboratory testing.
Applications
The AZA1265 MOR Testing Machine is widely used across multiple sectors, including:
-
Ceramic Tile Manufacturing Plants – Routine quality assurance and batch testing
-
Construction Material Testing Laboratories – Certification and compliance verification
-
Civil Engineering Departments – Structural performance evaluation
-
Construction Sites – Random quality checks for installed materials
-
Educational & Research Institutions – Teaching material mechanics and tile performance
Standards Compliance
The AZA1265 is designed and manufactured to meet the requirements of:
-
ISO 10545-6 – Ceramic tiles: Determination of bending strength and modulus of rupture
Compliance with this standard ensures that test results are accepted by regulatory authorities, consultants, and third-party inspection agencies.
Key Benefits
-
High-accuracy MOR determination
-
Rigid structure for vibration-free testing
-
Suitable for large-format ceramic tiles
-
Multiple load capacity options
-
Durable design for long service life
-
Low maintenance requirements
-
Consistent and repeatable test results
-
Ideal for laboratory and factory environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1265 |
| Test Method | Modulus of Rupture (Flexural Strength) |
| Maximum Load Capacity | 500 KGF / 1000 KGF |
| Tile Size Range | Up to 1200 × 1200 mm |
| Support System | Adjustable precision rollers |
| Frame Construction | Heavy-duty steel frame |
| Operation Mode | Manual / mechanical |
| Measurement Output | Load at break |
| Standard Compliance | ISO 10545-6 |
| Application Environment | Laboratory / Production Floor |
The AZA1265 MOR Testing Machine is a reliable, high-performance solution for evaluating the flexural strength of ceramic tiles. Its robust construction, wide tile compatibility, and compliance with ISO standards make it a trusted choice for manufacturers and testing laboratories that demand accuracy, durability, and repeatability in material testing.
Related products
ABRASION TESTING MACHINE FOR GLAZED TILES AZA1262
The AZA LAB Abrasion Testing Machine for Glazed Tiles (AZA1262) is a robust, high-performance laboratory instrument engineered for precise and high-speed abrasion resistance testing of glazed ceramic tiles. Fully compliant with BIS 13630-11 and EN ISO 10545-7, this machine is designed to ensure reliable evaluation of tile durability under simulated real-world wear conditions.
With the capability to test up to four specimens simultaneously, the AZA1262 significantly improves testing efficiency while maintaining exceptional accuracy and repeatability—making it ideal for tile manufacturers, certification laboratories, and quality control departments
ABRASION TESTING MACHINE FOR GLAZED TILES AZA1261
The AZA LAB Abrasion Testing Machine for Glazed Tiles (AZA1261) is a precision-engineered laboratory instrument designed for the accurate determination of abrasion resistance in glazed ceramic tiles. Fully compliant with BIS 13630-11 and EN ISO 10545-7, this machine is essential for evaluating tile durability and surface wear performance in accordance with international quality standards.
The AZA1261 simulates real-world foot traffic and surface wear conditions, enabling manufacturers, testing laboratories, and quality control departments to verify that glazed tiles maintain their appearance, texture, and integrity even under high-traffic usage.
DEEP ABRASION MACHINE FOR UNGLAZED TILES AZA1260
The AZA LAB Deep Abrasion Testing Machine – Model AZA1260 is a high-performance laboratory instrument specifically designed to measure the deep abrasion resistance of unglazed ceramic tiles in strict accordance with ISO 10545-6 and IS 13630 (Part 12) standards. This machine is an essential quality assurance tool for tile manufacturers, certification bodies, and research laboratories focused on durability and wear performance.
Deep abrasion resistance is a critical parameter for unglazed tiles used in high-traffic commercial, industrial, and public spaces, where surface wear directly impacts service life and safety. The AZA1260 delivers accurate, repeatable, and standardized results that reflect real-world abrasion conditions.

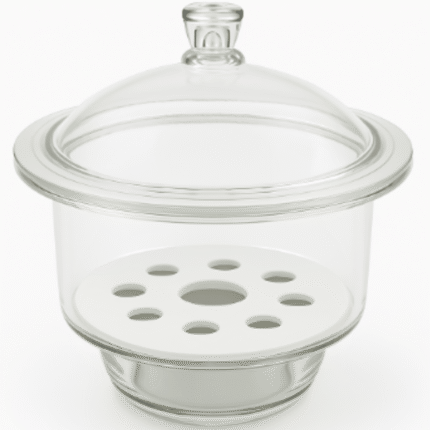

DESICCATORS AZA1266
