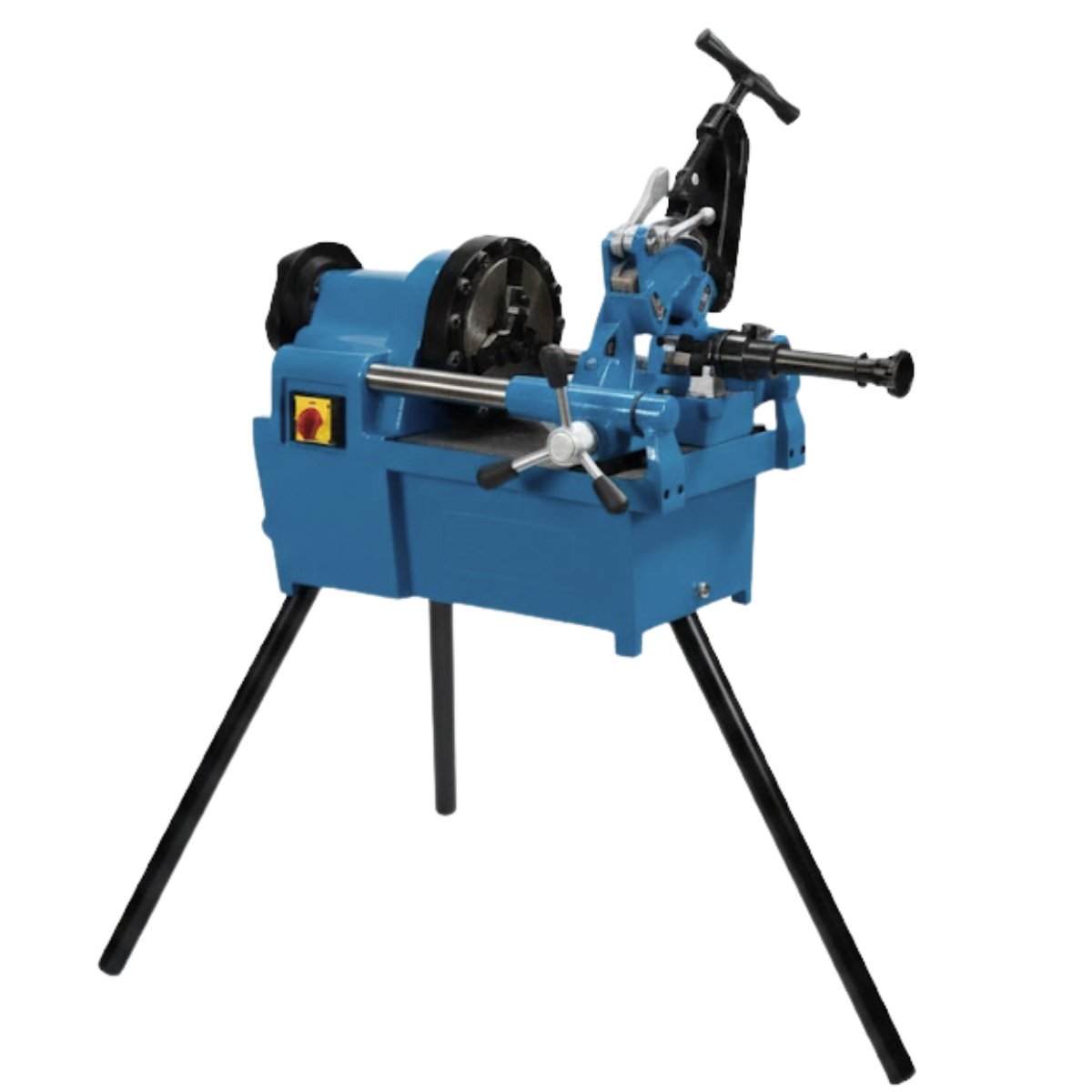

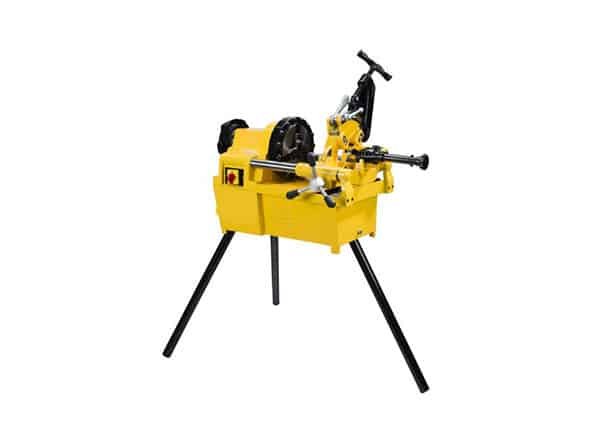

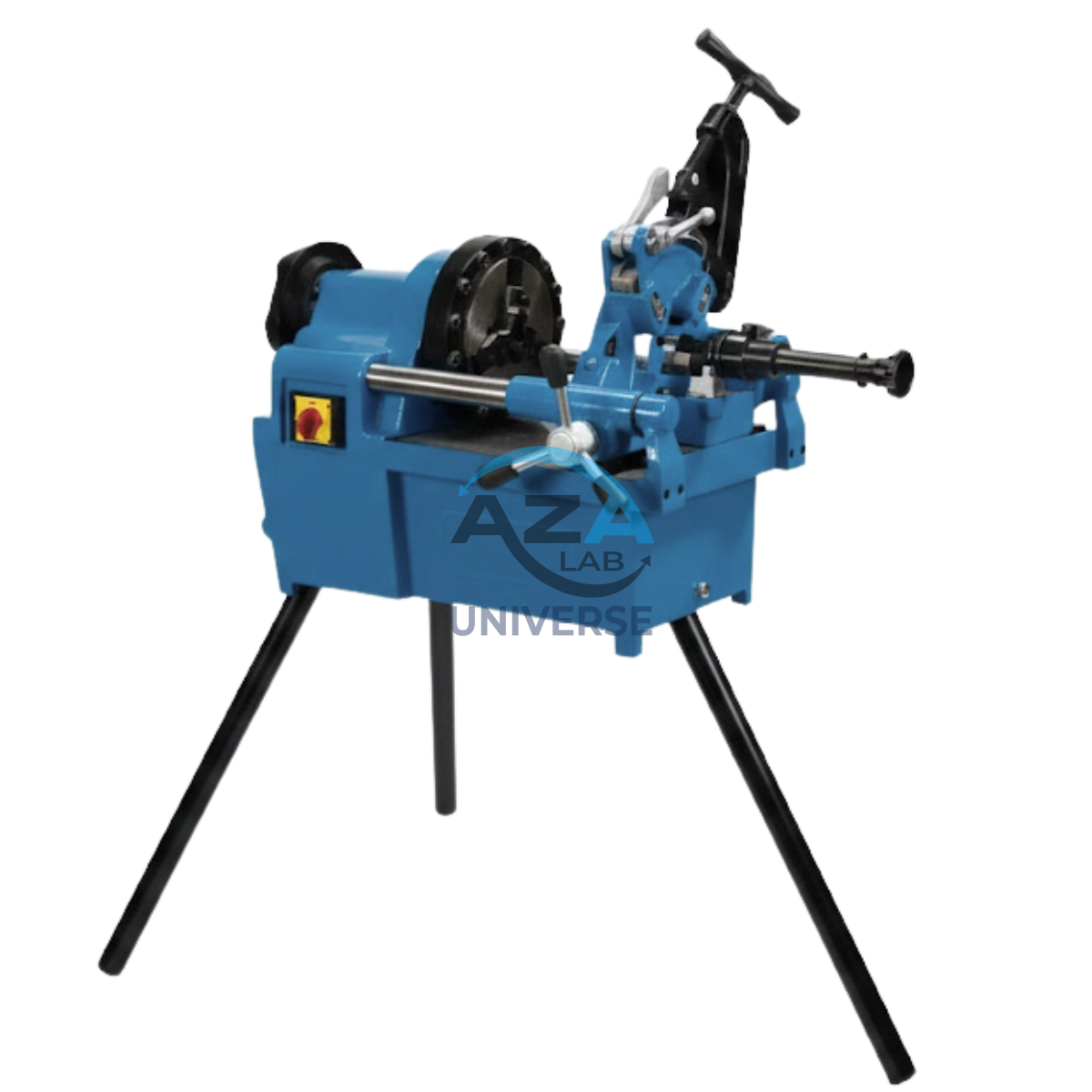

Pipe Threading machine AZA1199
The AZA LAB Pipe Threading Machines – Models AZA1199, AZA1199A, and AZA1199B are heavy-duty industrial machines designed for accurate and efficient pipe and rod threading using an advanced chip-less cold forming (thread rolling) process. This method forms thread roots and crests by material displacement rather than cutting, ensuring zero material waste, superior thread strength, and excellent surface finish.
Engineered with a robust fabricated steel frame, versatile operation modes, and advanced cooling and lubrication systems, these machines are ideal for high-performance threading applications across multiple industries.
Description
Key Advantages
-
Chip-less threading with no material loss
-
High-strength, uniform thread formation
-
Suitable for light, medium, and heavy-duty industrial use
-
Low maintenance and long service life
-
Manual and automatic operation flexibility
Features
Efficient Thread Rolling Technology
-
Utilizes cold forming thread rolling with cylindrical hardened steel dies
-
Produces precise threads without chips or cutting waste
-
Improves thread strength and surface quality
Robust & Compact Construction
-
Heavy fabricated steel frame ensures rigidity and vibration-free operation
-
Compact design with high operational stability
Smooth & Versatile Operation
-
Extended universal joint allows smooth threading at various angles
-
Supports manual and automatic threading cycles
-
Adjustable cycle times to suit different production needs
Advanced Cooling & Low Maintenance
-
Oversized coolant tank ensures effective cooling during continuous operation
-
Low-pressure hydraulic power pack minimizes heat generation and maintenance
Centralized Lubrication System
-
Automatic lubrication to all critical moving parts
-
Reduces wear, improves machine life, and ensures smooth operation
Applications
-
Pipe and rod threading
-
Automotive and engineering components
-
Construction and fabrication industries
-
Heavy engineering and industrial manufacturing units
Technical Specifications
| Specification | AZA1199 | AZA1199A | AZA1199B |
|---|---|---|---|
| Workpiece (In Feed) | 3–24 mm | 3–50 mm | 10–80 mm |
| Max. Thread Pitch (Standard V Thread) | 3 mm | 5 mm | 10 mm |
| Max. Serrations Pitch | 1.0 mm | 1.6 mm | 3 mm |
| Max. Die Width | 80 mm | 150 mm | 200 mm |
| Max. Through Feed Thread Length | 6 meters | 6 meters | 6 meters |
| Max. Rolling Force (Adjustable) | 6 tons | 16 / 20 tons | 30 tons |
| Spindle Axis Swivel (Through Feed) | 50° | 50° | 120° |
| Roll Spindle Diameter | 40 mm | 40 mm | 69.85 mm |
| Max. Rolling Die Diameter | 120 mm | 180 mm | 220 mm |
| Roll Spindle Speed (RPM) | 60 / 90 | 20 / 40 / 60 | 16 / 22 / 34 / 73 / 110 / 150 |
| Main Motor Power | 3 HP | 5 / 7.5 HP | 15 HP |
| Hydraulic Power Pack Motor | 1 HP | 2 / 3 HP | 3 HP |
| Coolant Pump | 1/8 HP | 1/8 HP | 1/2 HP |
| Electrical Supply | 415 V, 50 Hz, 3 Phase | 415 V, 50 Hz, 3 Phase | 415 V, 50 Hz, 3 Phase |
| Approximate Weight | 1000 kg | 2200 kg | 3500 kg |
Performance & Reliability
The AZA1199 series machines deliver consistent, high-accuracy threading with minimal downtime. Their cold forming technology ensures stronger threads, reduced tool wear, and superior productivity, making them ideal for continuous industrial operation.
Why Choose AZA LAB Pipe Threading Machines?
-
Proven industrial-grade design
-
Precision engineering with advanced hydraulics
-
Cost-effective operation with zero material waste
-
Suitable for a wide range of threading capacities
