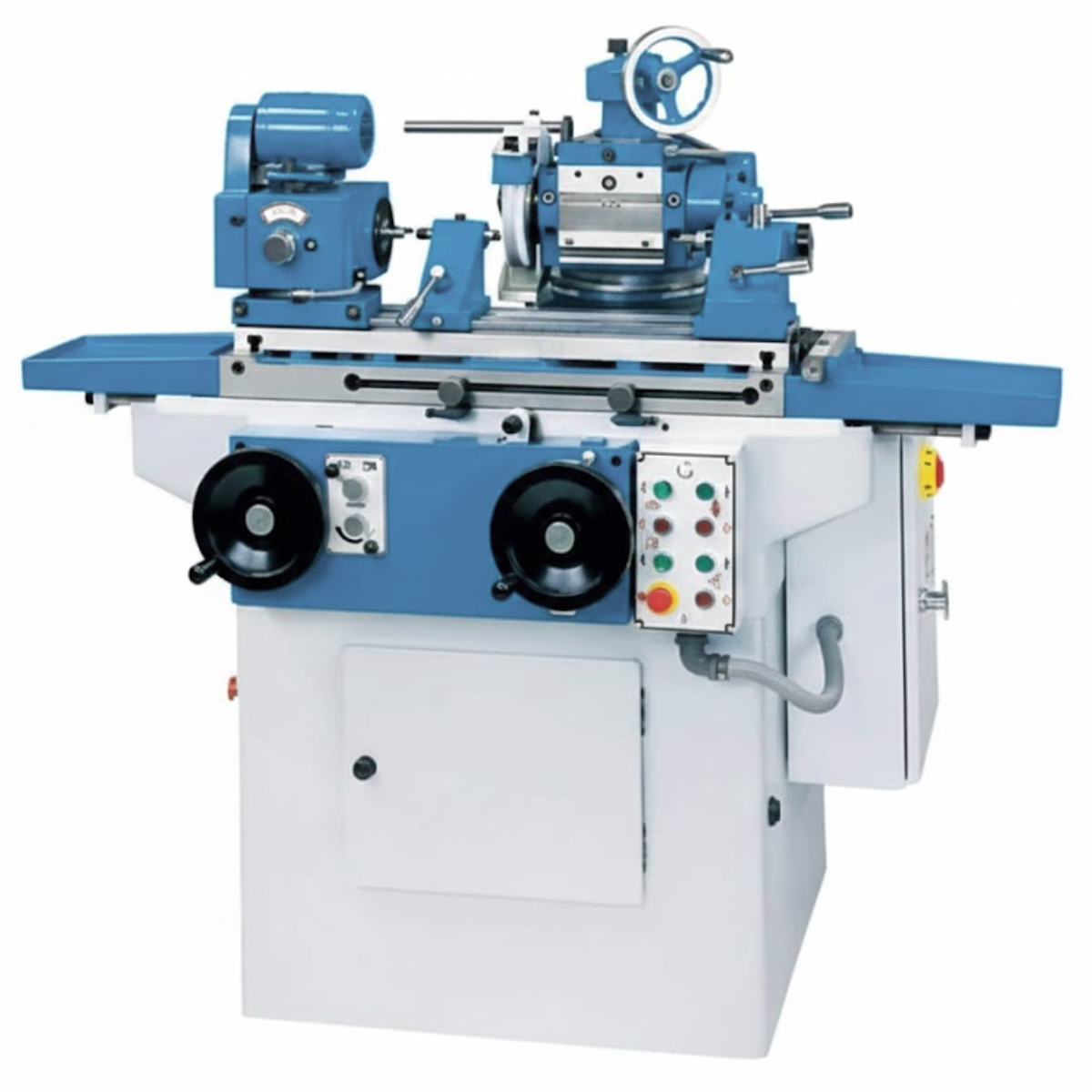

TOOL & CUTTER GRINDING MACHINE AZA1202
The AZA LAB Tool & Cutter Grinding Machine – Model AZA1202 is a robust, high-precision grinding solution engineered for sharpening and reconditioning a wide range of cutting tools. Designed for continuous operation, rapid output, and mass production, this machine delivers stable, vibration-free performance, making it ideal for tool rooms, manufacturing units, and industrial workshops.
Manufactured under the LabTek range of SPM (Special Purpose Machines), the AZA1202 combines durability, operational flexibility, and compact design to ensure hassle-free and efficient grinding operations across multiple industries.
Description
Key Features
Versatile Tilling Head
Allows quick and accurate adjustment of cutting face angles, improving grinding precision and productivity.
Fully Adjustable Work Head
Work head holding fixture with swivel base enables flexible positioning for diverse grinding applications.
Adjustable Longitudinal Stopper
Limits table reciprocation movement, ensuring consistent and repeatable grinding operations.
Stable & Vibration-Free Operation
Rigid construction ensures smooth performance even during continuous and heavy-duty use.
Efficient Drive System
Grinding spindle operates at 4600 RPM, driven via a reliable V-belt transmission from the motor.
Wide Grinding Capability
Capable of re-sharpening:
-
Cylindrical side & face cutters
-
Involute gear cutters
-
Concave & convex cutters
-
Bevel lead angle reamers
-
Tap flute cutting faces
Expanded Functionality (With Accessories)
Supports drill point grinding, tap lead grinding, and radius grinding with optional attachments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AZA1202 |
| Max. Cutter Diameter | 250 mm |
| Max. Distance Between Centres | 300 mm |
| Max. Length of Cutting Edge Grind | 260 mm |
| Grinding Spindle Speed | 4600 RPM |
| Swing Diameter (Std. Centres & Work Head) | 275 mm |
| Working Surface of Table | 450 × 125 mm |
| Longitudinal Traverse | 200 mm |
| Cross Traverse | 150 mm |
| Base Size | 599 × 430 mm |
| Floor Area Occupied | 765 × 1145 mm |
| Overall Height | 1375 mm |
| Machine Weight (with Std. Accessories) | 325 kg |
| Main Motor Power | 0.5 HP @ 2800 RPM |
| Packing Box Dimensions | 1525 × 915 × 915 mm |
| Gross Packing Weight (Approx.) | 350 kg |
Applications
-
Tool rooms and precision machining units
-
Industrial manufacturing and fabrication
-
Mass production grinding operations
-
Re-sharpening of cutters, reamers, taps, and gears
-
Engineering and heavy industry workshops
Why Choose AZA1202?
-
Designed for continuous and high-volume grinding
-
High accuracy with stable, vibration-free construction
-
Compact footprint with heavy-duty performance
-
Customizable with accessories to suit specific requirements
-
Trusted AZA LAB quality and LabTek engineering
