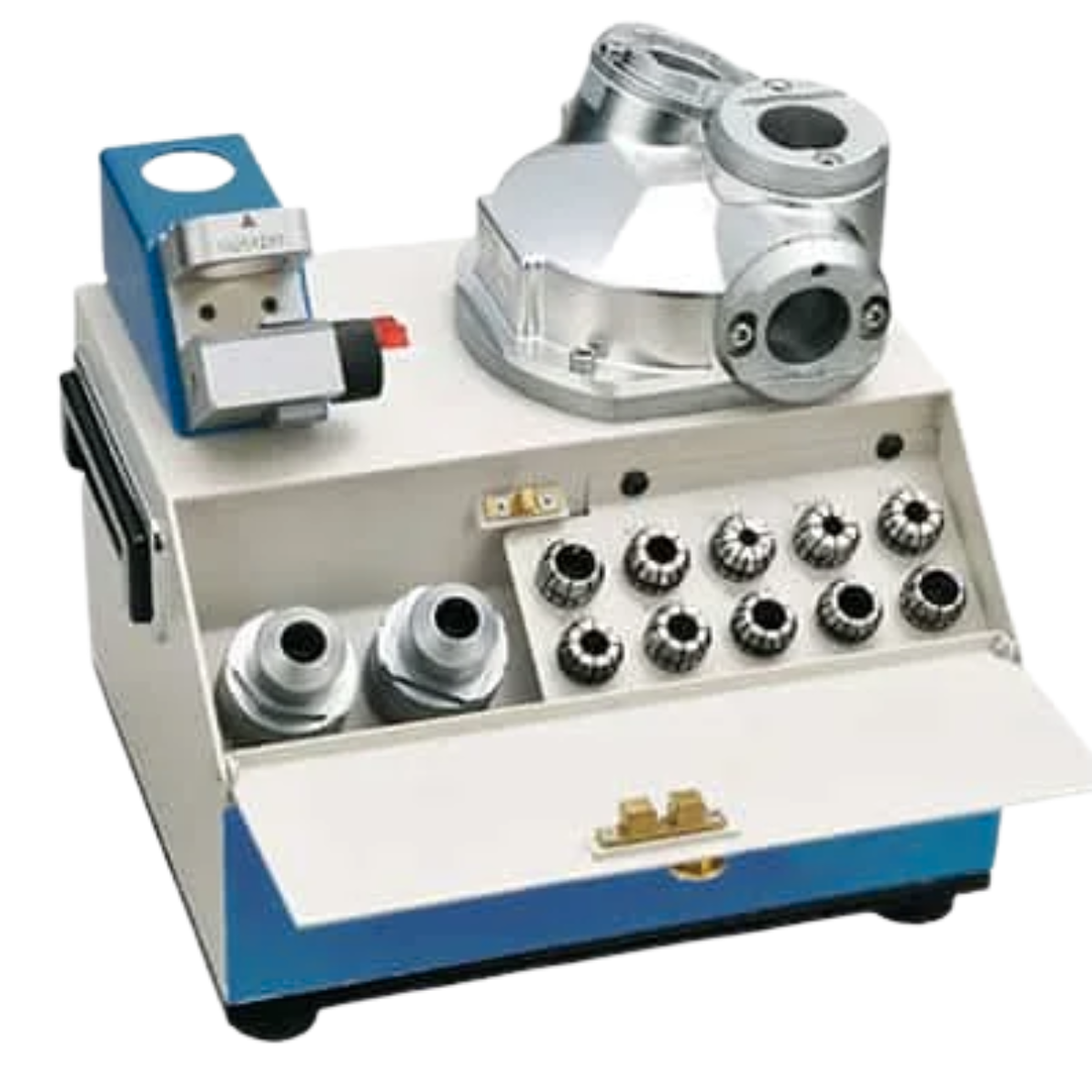

Re-Sharpening Machine AZA1197
The AZA LAB Re-Sharpening Machine Model AZA1197 is a compact, high-precision solution designed for accurate re-sharpening of HSS and carbide drill bits. Engineered to extend tool life and restore cutting efficiency, AZA1197 delivers consistent grinding results with simple operation, making it ideal for workshops, tool rooms, and maintenance departments.
With support for multiple drill diameters and adjustable point angles, this machine improves productivity while reducing tooling costs and downtime
Description
Key Benefits
-
Accurate re-sharpening for improved drilling performance
-
Compatible with both HSS and carbide drills
-
Simple setup and easy operation
-
Compact design suitable for workshop environments
-
Enhances tool life and reduces replacement costs
Features
Versatile Grinding Capability
-
Supports HSS drills using CBN grinding wheels
-
Supports carbide drills using SD grinding wheels
-
Enables flexible use across different tooling requirements
Precision Grinding Control
-
Adjustable scale allows precise alignment and grinding angle
-
Ensures consistent point geometry and sharp cutting edges
Easy & User-Friendly Operation
-
Quick setup with collet-based drill holding system
-
Minimal operator skill required for accurate sharpening
Compact & Efficient Design
-
Small footprint for easy placement on workbenches
-
Lightweight construction for convenient handling
Typical Applications
-
Re-sharpening worn drill bits
-
Tool rooms and maintenance workshops
-
Production units requiring frequent drill reconditioning
Technical Specifications
| Specification | AZA1197 | AZA1197A |
|---|---|---|
| Grinding Range | Ø2.1 – Ø13 (Ø15 max) | Ø13 – Ø26 (Ø32 max) |
| Point Angle | 100° (95°) – 135° | 95° – 135° |
| Power Supply | AC 220 V | AC 220 V |
| Motor Power | 180 W | 250 W |
| Speed | 4800 RPM | 4800 RPM |
| Grinding Wheel | CBN (HSS) / SD (Carbide) | CBN (HSS) / SD (Carbide) |
| Dimensions (L×W×H) | 32 × 18 × 19 cm | 46 × 24 × 22 cm |
| Weight | 10 kg | 27 kg |
Why Choose AZA1197?
-
High precision drill sharpening
-
Reliable AZA LAB build quality
-
Simple operation with professional results
-
Ideal for small to medium workshop use
