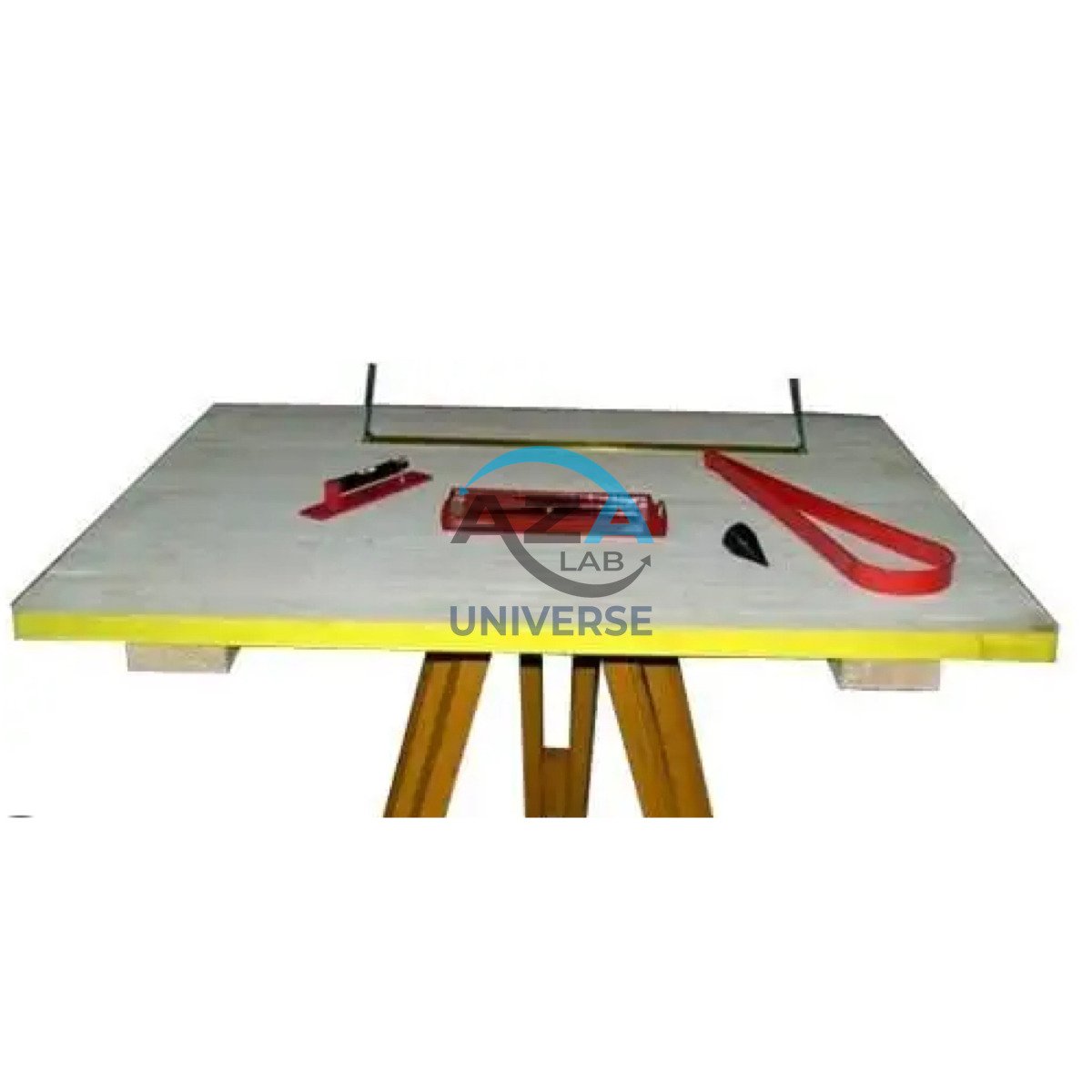

PLANE TABLE SET AZA1044
The Plane Table Set AZA1044 from Azalab is a classic and highly effective field surveying and mapping instrument used for topographic surveys, site layout, and civil engineering planning. Known for its simplicity, accuracy, and real-time plotting capability, this set is widely adopted by surveyors, civil engineers, geologists, architects, and engineering students for both professional and academic fieldwork.
Plane table surveying allows measurements and observations to be plotted directly onto paper at the survey site, eliminating transcription errors and significantly reducing post-field processing time. Unlike electronic instruments, this manual method provides a visual and intuitive understanding of terrain, making it especially valuable for education, reconnaissance surveys, and remote-area mapping.
Description
Complete Field Survey Solution
The Azalab Plane Table Set AZA1044 is supplied as a complete portable mapping kit, including all essential accessories required for accurate field operation:
-
Smooth-finished wooden drawing board with sheet-holding clamps
-
Collapsible adjustable tripod stand for stability on uneven ground
-
Telescopic alidade with sighting vanes or telescope for precise ray plotting
-
Spirit level for accurate board leveling
-
Plumbing fork (U-fork) for centering over ground points
-
Fasteners, clamps, and protective storage accessories
The drawing board is manufactured from seasoned, warp-resistant polished wood, providing a flat, friction-free surface suitable for detailed drafting. Strong clamps ensure mapping sheets remain secure even under windy outdoor conditions.
Accuracy Through Direct Plotting
The alidade is the core working component of the plane table system. By sighting distant points and drawing rays directly on the map sheet, users can perform radiation, intersection, resection, and traversing methods efficiently. This approach allows natural features, boundaries, and structures to be recorded accurately in real time.
The adjustable tripod, combined with the spirit level and plumbing fork, ensures proper leveling and precise orientation of the board over survey stations. This stability is critical for maintaining angular accuracy during field operations.
Rugged, Portable & Power-Free
Designed for outdoor durability and ease of transport, the AZA1044 Plane Table Set is suitable for use in remote terrain, construction sites, and educational field camps. As a fully manual system, it requires no electricity or batteries, making it dependable in off-grid environments where electronic instruments may be impractical.
Despite advances in digital surveying technology, plane table surveying remains relevant due to its cost-effectiveness, reliability, and educational value. It plays a vital role in teaching survey fundamentals such as triangulation, coordinate plotting, and contour mapping.
Applications
-
Topographic and contour mapping
-
Civil engineering site layout and planning
-
Geological field mapping
-
Educational and training field surveys
-
Hydrographic and reconnaissance surveys
-
Rural and remote-area mapping
Specifications
| Feature | Specification |
|---|---|
| Model | AZA1044 |
| Board Material | Polished, warp-resistant wood |
| Board Size | Approx. 60 cm × 75 cm |
| Tripod | Collapsible, adjustable-height metal stand |
| Alidade | Telescopic with sighting vanes / telescope |
| Spirit Level | Included |
| Plumbing Fork | Included |
| Weight | Approx. 6–10 kg (complete set) |
| Accessories | Drawing clips, screws, protective case |
| Usage | Field survey, mapping, civil layout |
| Application | Education, civil engineering, geology |
Frequently Asked Questions (FAQ)
Q1: What is the Plane Table Set AZA1044 used for?
It is used for field surveying and mapping by plotting features directly onto paper using sighting and angular measurements.
Q2: Is this suitable for professional surveying work?
Yes. It is widely used for site layout, topographic surveys, and contour mapping, as well as academic and training purposes.
Q3: Can students use this set for field practicals?
Absolutely. It is a standard instrument in civil engineering and geology field training programs.
Q4: Does the set include all necessary accessories?
Yes. The set includes the drawing board, tripod, alidade, spirit level, plumbing fork, and required clamps.
Q5: Why choose a plane table over digital instruments?
Plane table surveying is cost-effective, reliable, battery-free, and ideal for learning fundamental surveying principles and real-time mapping.
Key Highlights
-
Complete plane table set for surveying and mapping
-
Ideal for topographic work, site planning, and field layout
-
Includes drawing board, alidade, tripod, and accessories
-
Weather-resistant wooden board with smooth drafting surface
-
Collapsible and stable tripod with adjustable height
-
No power required — reliable in remote locations
-
Used by civil engineers, geologists, and students
-
Compatible with standard drawing sheets and maps
Model: AZA1044 – Plane Table Set by Azalab
Additional information
| Board Material |
Polished, warp-resistant wood |
|---|---|
| Board Size |
Approx. 60 cm x 75 cm |
| Tripod |
Collapsible, adjustable-height metal stand |
| Alidade |
Telescopic with sighting vanes or telescope |
You may also like…
AIR BAG TRAINER AZA1246
The AZA1246 AZALAB Air Bag Trainer is a comprehensive educational training platform designed to demonstrate the structure, operation, diagnostics, and fault analysis of modern automotive airbag systems, also known as Supplemental Restraint Systems (SRS). Built using OEM automotive components, this trainer delivers a realistic learning experience while maintaining complete operational safety.
This system is ideally suited for automotive engineering colleges, ITIs, polytechnic institutes, vocational training centers, and service technician programs, enabling both theoretical instruction and hands-on diagnostics practice.
FULLY AUTOMATIC MORTAR MIXER AZA0805
Built to comply with IS:516, IS:1199, ASTM C192, and other relevant standards, the AZA0805 ensures accurate and reliable mixing performance. Ideal for QA/QC laboratories, construction material testing centers, academic institutions, and R&D facilities, this mixer offers stable operation, high durability, and ease of maintenance.
Laboratory concrete mixer, concrete mixer, AZA0805 mixer, cement testing mixer, concrete testing equipment.
The AZA0805 provides dependable, standardized mixing performance for concrete specimens used in strength testing, durability studies, and trial mix development. Its heavy-duty design, stainless steel drum, and controlled mixing action ensure uniform distribution of aggregates, cement, and water.
This equipment is essential for concrete testing laboratories, cement manufacturers, academic engineering labs, and government material testing centers. It adheres to IS & ASTM standards, ensuring accurate and reproducible mixing suitable for compressive and flexural strength testing.
METALLURGICAL INVERTED MICROSCOPE AZA1016
Key Advantages
- Inverted optical system for easy sample placement
- Ideal for large, heavy, or irregular samples
- Stable viewing plane for uniform focusing
- Reflected (Epi) illumination for opaque materials
- Safe operation with reduced risk of objective damage

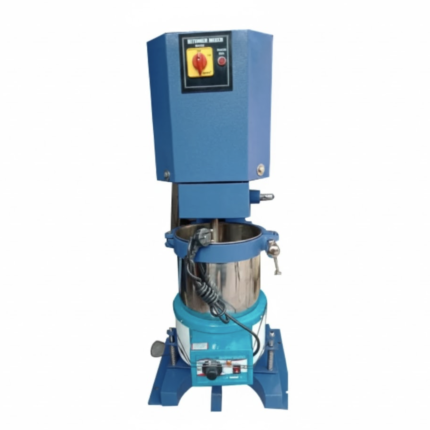

MIXER WITH HEATING JACKET AZA0955
The AZA0955 Mixer with Heating Jacket from AZALAB is a specialized laboratory apparatus engineered for the precise, uniform, and temperature-controlled mixing of materials that require elevated temperatures during blending. It is an essential instrument in civil engineering and highway material laboratories, particularly for the preparation of bituminous and asphalt mixes such as Hot Mix Asphalt (HMA).
By maintaining materials at a controlled and uniform temperature throughout the mixing process, the AZA0955 ensures optimal binder viscosity, thorough aggregate coating, and homogeneous sample preparation. This level of control is critical for producing accurate, repeatable, and representative laboratory specimens, which directly influence the reliability of asphalt mix design, quality control, and performance testing.
MORTOR MIXER AZA0804
Built to meet the rigorous requirements of IS:4031, IS:1727, and ASTM C305, the AZA0804 ensures your mortar mixes are prepared exactly as required for credible, repeatable laboratory results. It is widely used in construction material laboratories, cement manufacturing QC divisions, R&D centers, government-approved testing labs, and academic institutions.
This mixer, known commonly as a mortar mixer, cement mortar mixer, lab mortar mixer, AZA0804 mixer, is an essential machine for preparing standardized mortar samples used in cement testing across the industry.

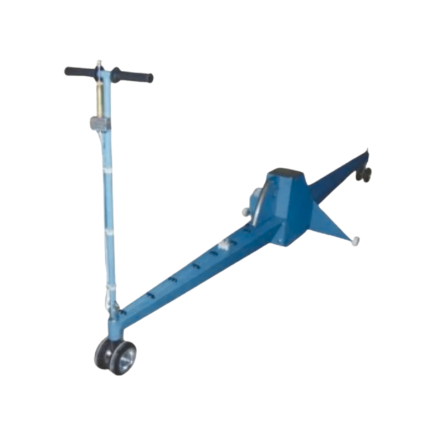

TRAVELLING BEAM DEVICE AZA0960
