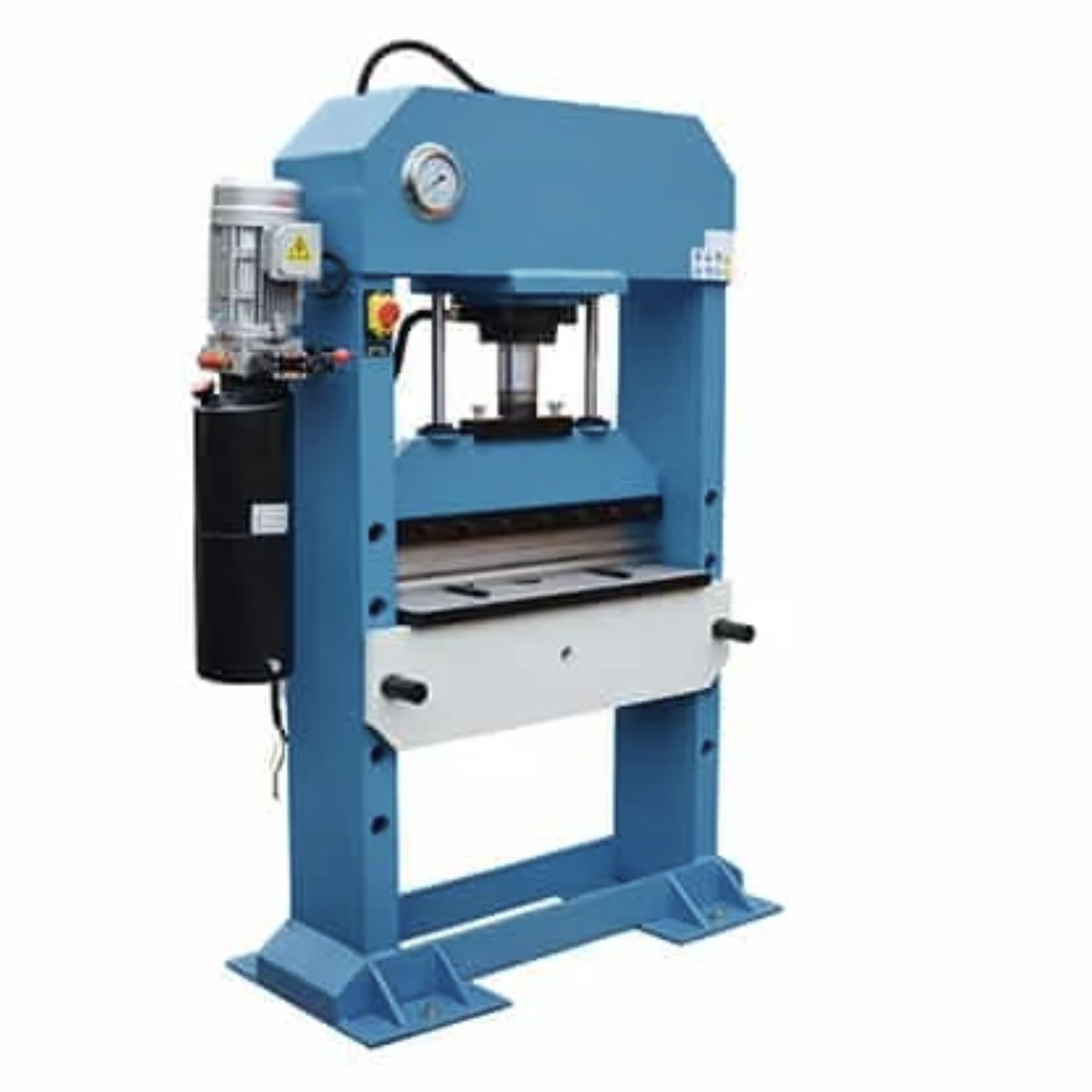

HYDRAULIC PRESS MACHINE AZA1196
The AZA LAB Hydraulic Press Machine – Model AZA1196 is a robust and reliable solution engineered for demanding industrial pressing operations. Designed with a highly rigid structure and powered by an advanced hydraulic power pack, this machine delivers consistent force, precision control, and long-term durability.
Built to handle a wide range of industrial requirements, the AZA1196 is available in capacities ranging from 5 tonnes to 200 tonnes, making it suitable for light-duty assembly tasks as well as heavy-duty forming, pressing, and straightening applications across multiple industries.
Description
Key Benefits
-
High structural rigidity for precise and repeatable pressing operations
-
Wide capacity range to suit diverse industrial applications
-
Reliable hydraulic system ensuring smooth and controlled performance
-
Long service life with minimal maintenance requirements
-
Customizable configurations based on application needs
Features
-
Rigid and Stable Structure
Engineered with a heavy-duty frame that minimizes deflection and ensures accuracy during high-load operations. -
Advanced Hydraulic Power Pack Unit
Equipped with premium components including Oil Breather, Oil Level Indicator, Suction Strainer, Gear Pump, Flexible Coupling, Electric Motor, Direction Control Valve, Pressure Gauge, Return Line Filter, and an adequately sized Oil Tank for efficient and continuous operation. -
High-Quality Double-Acting Hydraulic Cylinders
Manufactured from superior quality steel and honed to a mirror finish to enhance seal life and ensure smooth movement. -
Leak-Proof Sealing System
Chevron seals and bronze guide strips provide excellent sealing performance and long-term reliability. -
EN-8 Material Ram
The ram is made from EN-8 material, surface-ground and hardened for improved wear resistance, corrosion protection, and extended seal life. -
Wide Capacity Range
Available in multiple capacities from 5 to 200 tonnes, with different bed sizes, strokes, and motor power options to meet varied industrial requirements.
Applications
-
Metal forming and pressing
-
Bearing fitting and removal
-
Component assembly operations
-
Straightening and bending jobs
-
Tool room and maintenance workshops
-
General engineering industries
Technical Specifications – AZA1196
| Specification | 5 T | 15 T | 25 T | 40 T | 60 T | 75 T | 100 T | 150 T | 200 T |
|---|---|---|---|---|---|---|---|---|---|
| Bed Size (mm) | 235×235 | 300×300 | 375×375 | 450×450 | 525×525 | 600×600 | 675×675 | 750×750 | 750×800 |
| Throat (mm) | 115 | 150 | 200 | 250 | 300 | 325 | 350 | 375 | 400 |
| Daylight (mm) | 210 | 225 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stroke (mm) | 100 | 150 | 175 | 175 | 200 | 200 | 200 | 225 | 225 |
| Motor Power (HP) | 2 | 3 | 3 | 3 | 5 | 5 | 5 | 7.5 | 10 |
Build Quality & Reliability
The AZA1196 Hydraulic Press Machine is manufactured using high-grade materials and precision-engineered components to ensure safe, smooth, and consistent operation. Its rigid construction and advanced hydraulic system make it suitable for continuous industrial use.
Why Choose AZA LAB?
AZA LAB delivers industrial machinery that combines strength, precision, and reliability. The Hydraulic Press Machine AZA1196 reflects our commitment to quality engineering, flexible configurations, and long-term operational value.
