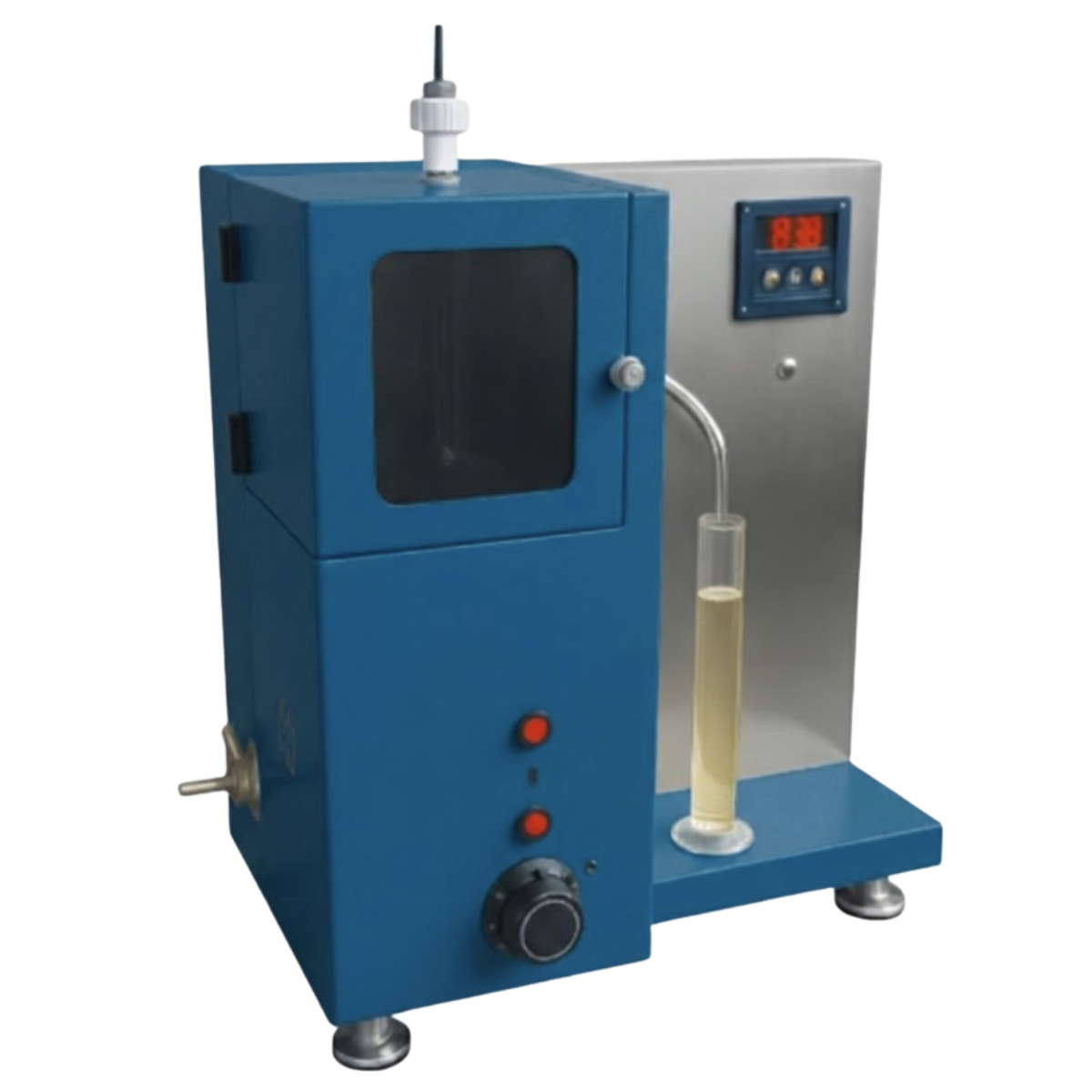

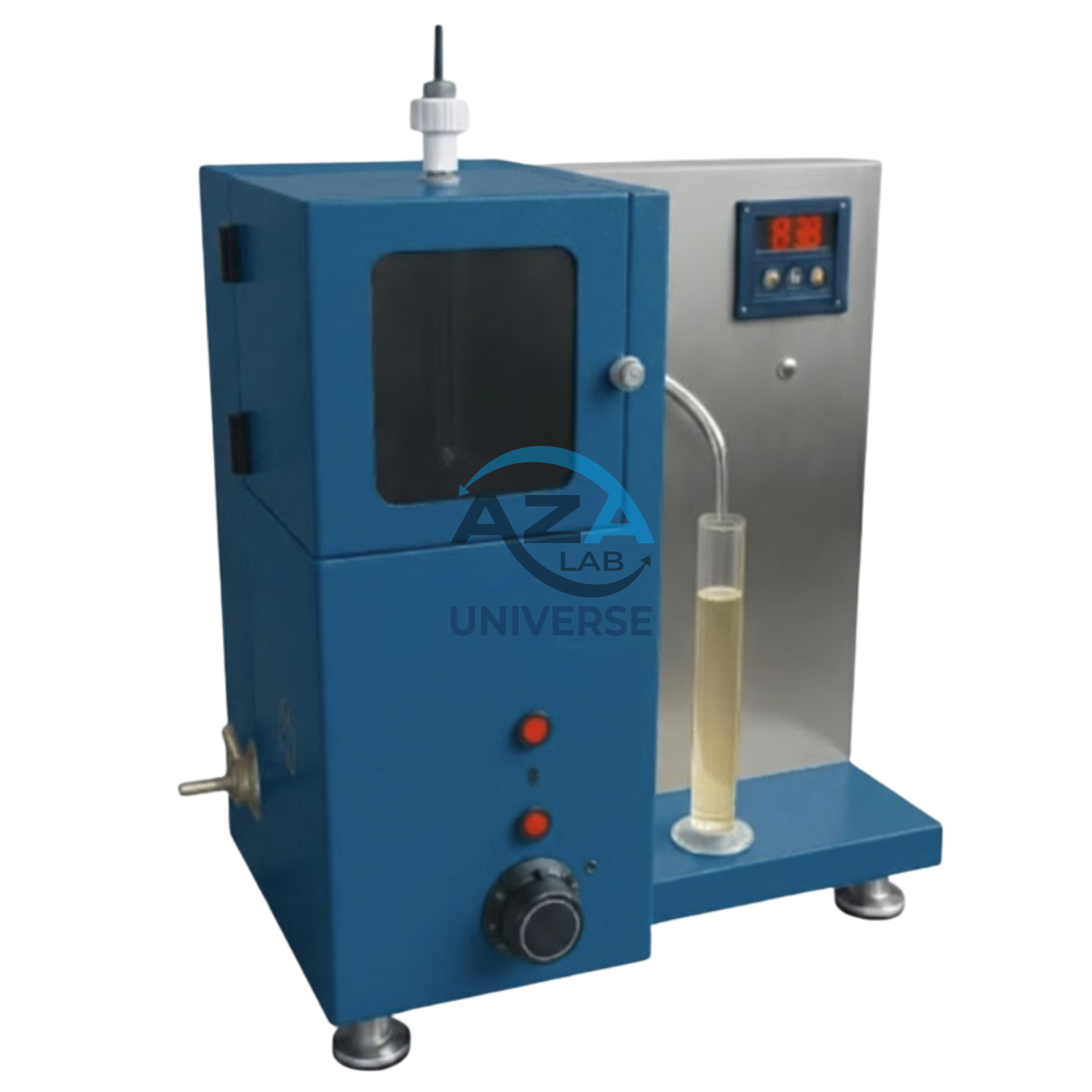

Semi‑Manual Distillation Analyzer AZA1286
The Semi-Manual Distillation Analyzer (AZA1286) from AZA Lab is engineered to deliver accurate, repeatable, and ASTM D86-compliant atmospheric distillation testing for petroleum products. Designed to combine the robustness of manual operation with the precision of digital instrumentation, the AZA1286 is an ideal solution for educational institutions, QA/QC laboratories, and small- to mid-scale production facilities requiring reliable routine fuel analysis without the complexity of full automation.
This analyzer provides operators with direct control over heating, condensation, and receiver handling, while benefiting from digital temperature measurement, timing functions, and safety monitoring. The result is a cost-effective, dependable system that maintains compliance with international testing requirements.
Description
Robust Construction & Safe Operation
The analyzer features a stainless-steel heating system or precision electric heater with fine adjustment for smooth temperature ramping. An integrated glass condenser assembly ensures effective cooling without the need for external chilling equipment under standard laboratory conditions.
The corrosion-resistant frame, heat-resistant glassware, and insulated hot zones ensure long service life, easy cleaning, and operator safety. Built-in safety features such as overheat alarms and automatic shutdown protection help maintain compliance with laboratory safety standards.
Key Features
-
ASTM D86 Compliant (Groups 0–4)
-
Semi-Manual Operation with digital temperature feedback
-
High-Accuracy Digital Thermometer for vapor and flask temperature
-
Graduated 100 mL Receiver for volume recovery measurement
-
Integrated Glass Condenser – no external chiller required
-
Fine Heating Control for stable distillation rates
-
Overheat Protection & Safety Alarms
-
Compact Benchtop Design for space-efficient laboratories
Applications
-
Petroleum product quality control laboratories
-
Fuel blending and distribution facilities
-
Educational and training laboratories
-
Research and development centers
-
Regulatory and compliance testing labs
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1286 |
| Compliance Standard | ASTM D86 (Groups 0–4) |
| Operation Mode | Semi-Manual |
| Temperature Range | Ambient to 400 °C |
| Temperature Accuracy | ±0.2 °C |
| Receiver Capacity | 100 mL graduated glass |
| Heating Control | Manual with digital feedback |
| Cooling System | Integrated glass condenser |
| User Interface | Digital temperature display & timer |
| Safety Features | Overheat alarm, insulated hot zones |
| Power Supply | 230 V AC, 50 Hz |
| Applicable Samples | Gasoline, diesel, kerosene, jet fuel |
| Dimensions (L×W×H) | 55 × 40 × 60 cm |
Frequently Asked Questions (FAQ)
Q1: Is AZA1286 suitable for regulatory testing?
Yes. It complies fully with ASTM D86 and is suitable for certified petroleum distillation analysis.
Q2: How does it differ from a fully automated distillation analyzer?
AZA1286 provides manual control of key operations with digital monitoring, offering lower cost, simplicity, and greater operator involvement.
Q3: What fuels can be tested?
Gasoline, diesel, kerosene, aviation turbine fuel, naphtha, and other light to medium petroleum distillates.
Q4: Does it require an external chiller?
No. The integrated condenser is sufficient for most laboratory environments.
Q5: Is specialized training required?
Basic laboratory knowledge and familiarity with ASTM D86 procedures are sufficient for effective operation.
Why Choose AZA1286
-
Cost-effective ASTM D86-compliant solution
-
Ideal balance of manual control and digital accuracy
-
Reliable for education, QA/QC, and routine testing
-
Compact, durable, and easy to maintain
-
Consistent IBP, FBP, recovery, residue, and loss results
Model: AZA1286 – Semi-Manual Distillation Analyzer
Additional information
| Model |
Semi-Manual Distillation Analyzer |
|---|---|
| Compliance Standard |
ASTM D86 (Groups 0–4) |
| Temperature Range |
Ambient to 400°C |
| Temperature Accuracy |
±0.2°C |
Included as Standard:
- 2× 125 mL distillation flasks
- 7 °C (−2 to 300 °C) and 8 °C (−2 to 400 °C) thermometers
- 2× receiving cylinders, 2× condenser swabs
- 1× Teflon centering device
- 38 mm & 50 mm heater plates
- 2× drop plates, 1× receiver bath
Optional Upgrades:
- 200 mL flask, 32 mm & 25 mm heater plates
- Class-A certified PT100 sensor (up to 450 °C) with digital display and barometric correction
- Reporting software package
| Feature | Benefit |
|---|---|
| Semi-Manual Control | Precise heater regulation via potentiometer allows flexible testing |
| PID-Controlled Cooling | Consistent distillation performance with stable condenser temperatures |
| Compact & Efficient | Ideal for labs with space constraints or low-volume testing needs |
| Safety-Centric Design | Emergency shutdown and inert-gas purge ensure operator protection |
| Standards Compliant | Validated for major global distillation methods |
