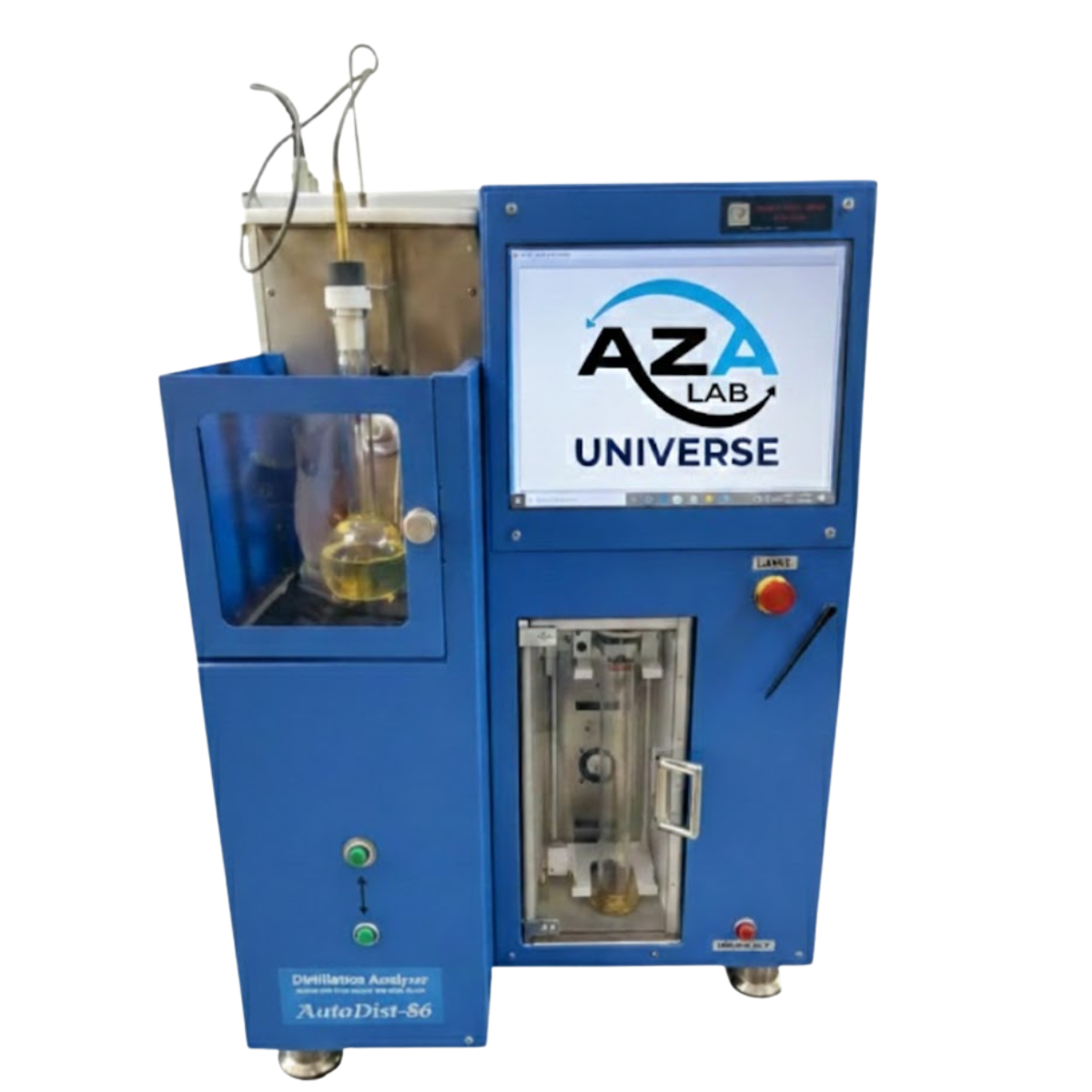

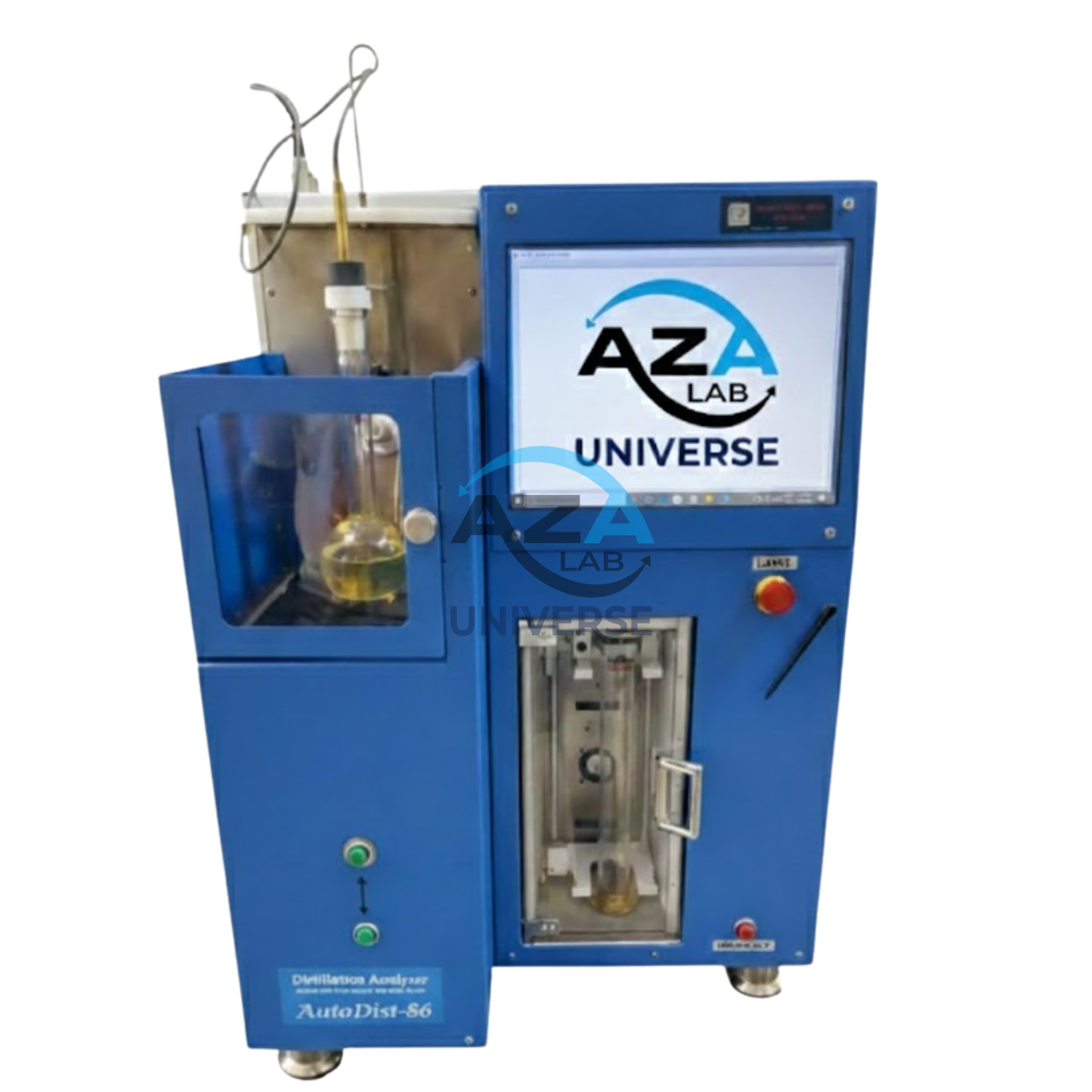

Fully Automated Atmospheric Distillation Analyzer AZA1287
The AZA1287 Atmospheric Distillation Analyzer from AZA Lab is a fully automated, high-precision distillation testing system designed for petroleum laboratories that require ASTM D86-compliant determination of boiling range characteristics. Engineered for accuracy, repeatability, and high-throughput operation, the AZA1287 is ideal for testing gasoline, diesel, kerosene, jet fuel, light hydrocarbons, and other petroleum fractions.
Atmospheric distillation testing plays a critical role in evaluating fuel volatility, composition, and performance, directly influencing fuel quality, emissions compliance, and operational safety. The AZA1287 automates the complete distillation process—eliminating manual intervention, reducing operator error, and ensuring consistent, regulation-compliant results.
Description
Fully Automated ASTM D86 Distillation Process
The AZA1287 manages the entire ASTM D86 distillation workflow automatically, from controlled sample heating to condensation, receiver monitoring, and final residue calculation. Once the test is initiated via the touchscreen interface, the analyzer executes each step with precise control and real-time monitoring.
A high-resolution digital temperature sensor continuously measures vapor and flask temperatures up to 400°C, while an optical/laser-based receiver detection system tracks recovered volume in real time. The system automatically calculates and displays:
-
Initial Boiling Point (IBP)
-
Final Boiling Point (FBP)
-
Percent recovered
-
Percent residue
-
Percent loss
-
Full temperature–volume distillation curve
All data is logged automatically, ensuring traceability and compliance with laboratory and regulatory requirements.
Intelligent Control & User Interface
The analyzer features an 8-inch capacitive touchscreen with intuitive menus that guide the operator through test setup, method selection, and result review. Pre-programmed ASTM D86 methods (Groups 0–4) allow rapid configuration for different fuel types, while custom method profiles can be created and stored for specialized applications.
The user interface displays live distillation curves, test status, alarms, and historical data, enabling operators to monitor performance in real time without manual recording.
Integrated Safety & Reliability Systems
The AZA1287 is designed with multiple safety layers to protect both the operator and the instrument:
-
Automatic shutdown during temperature overshoot
-
Sensor fault detection and alarm alerts
-
Splash shield and sealed test chamber
-
Intelligent error diagnostics
An integrated cooling system eliminates the need for external chillers, simplifying laboratory infrastructure while ensuring stable condenser performance throughout continuous testing cycles.
Data Management & Connectivity
For modern laboratories, the AZA1287 offers seamless digital integration:
-
USB, LAN, and RS232 connectivity
-
Direct compatibility with LIMS systems
-
Exportable test reports and data logs for audits and compliance
-
Secure storage of historical results and method parameters
This ensures full traceability, reproducibility, and regulatory documentation across all testing operations.
Applications
-
Petroleum refineries and fuel blending facilities
-
Diesel, gasoline, and jet fuel quality control laboratories
-
Fuel storage terminals and distribution centers
-
Research and development laboratories
-
Regulatory and inspection agencies
-
Academic and training institutions
Technical Specifications
| Feature | Specification |
|---|---|
| Model | AZA1287 |
| Test Method | Atmospheric Distillation |
| Standards Supported | ASTM D86 (Groups 0–4) |
| Temperature Range | Ambient to 400°C |
| Temperature Accuracy | ±0.1°C |
| Volume Resolution | ±0.1 mL |
| Receiver Detection | Optical / Laser Sensor |
| Cooling System | Integrated (No external chiller required) |
| User Interface | 8-inch capacitive touchscreen |
| Data Output | USB, LAN, RS232 |
| Safety Features | Overheat shutdown, sensor fault detection, splash protection |
| Power Supply | 220–240 V, 50/60 Hz |
| Dimensions | 48 × 42 × 65 cm |
Why Choose AZA1287
-
Fully automated ASTM D86 atmospheric distillation
-
High accuracy and excellent repeatability
-
Integrated cooling and advanced safety systems
-
Touchscreen-controlled operation with method presets
-
LIMS-ready with full digital data export
-
Compact benchtop design with industrial-grade performance
Additional information
| Model |
Fully Automated Distillation Analyzer |
|---|---|
| Standards Supported |
ASTM D86 |
| Temperature Range |
Ambient to 400°C |
| Temperature Accuracy |
±0.1°C |
-
Power: 230 VAC, 50 Hz, 1.4 kW; Operating Temp: 10–35 °C
-
Size: 480 × 590 × 690 mm; Weight: ~80 kg
-
Real-time display: vapor, heater, condenser, receiver temps; heat %, rate, pressure, volume
-
Continuous data logging (every second, 0.1 mL resolution) with graphical plots
-
Final results: IBP, FBP, dry point, recovery, residue, loss, cetane index
-
Searchable database by sample/method/operator/date; exports for LIMS integration
You may also like…
Advanced Triaxial Test System (UU–CU–CD Capable) (AZA 1296)
- UU–CU–CD test modes for complete soil strength profiling
- Automated control of pressure, load, and drainage
- Compatible with clay, silt, sand, and mixed soils
- Integrated data acquisition and real-time graphing
- Meets ASTM D2850, D4767, BS1377, AASHTO standards
- Ideal for geotechnical, research, and academic use
Air Bag Trainer AZA1246
The AZA1246 AZALAB Air Bag Trainer is a comprehensive educational training platform designed to demonstrate the structure, operation, diagnostics, and fault analysis of modern automotive airbag systems, also known as Supplemental Restraint Systems (SRS). Built using OEM automotive components, this trainer delivers a realistic learning experience while maintaining complete operational safety.
This system is ideally suited for automotive engineering colleges, ITIs, polytechnic institutes, vocational training centers, and service technician programs, enabling both theoretical instruction and hands-on diagnostics practice.
Alternator Trainer AZA1247
The AZA1247 AZALAB Alternator Trainer is a hands-on automotive electrical training system designed to demonstrate the working principles, construction, and diagnostics of an automotive alternator with external voltage regulation. Built using OEM automotive components, this trainer provides a realistic and safe learning platform for students, technicians, and trainees to understand vehicle charging systems in depth.
This system is ideal for automotive engineering institutes, ITIs, polytechnics, vocational training centers, and service technician programs, supporting both theoretical instruction and practical experimentation.
Arc Welding Machine AZA1234
The AZA1234 Arc Welding Machine by A Z A Lab is a high-performance industrial welding solution engineered for demanding fabrication, maintenance, and structural welding applications. Designed using advanced inverter technology, this machine delivers superior arc stability, high efficiency, and reliable welding performance across a wide range of electrode types and materials.
With an inverter frequency of up to 20 kHz, the AZA1234 ensures fast dynamic response, reduced spatter, and excellent weld bead appearance. Its robust electrical design supports a high duty cycle, allowing continuous operation under heavy loads while maintaining consistent welding output—even with output cable lengths of up to 100 meters.
AutoDist‑86 Glass Distillation AZA1282
AutoDist-86 Glass Distillation Unit – AZA1282
The AutoDist-86 Glass Distillation Unit (Model: AZA1282) from AZA Lab is a high-performance laboratory water distiller engineered for the consistent production of ultra-pure distilled water. Manufactured entirely from high-grade borosilicate 3.3 glass, this unit delivers exceptional chemical resistance, thermal stability, and long-term durability, making it ideal for scientific, medical, pharmaceutical, and academic laboratories.
Designed for reliability and purity, the AZA1282 ensures contamination-free distillation without the risk of metallic ion leaching common in metal-bodied stills.
AutoFlash – Automated Abel Flash Point Analyzer AZA1277
The AutoFlash-1277 (Model: AZA1277) from AZA Lab is a fully automated, microcontroller-based Abel Flash Point Analyzer designed for accurate, safe, and repeatable determination of flash points of combustible liquids. Engineered to meet stringent international testing requirements, this advanced instrument conforms to IP 170, ISO 13736, and IS 1448 (Part 20) standards.
Covering a standard temperature range of –30°C to 70°C, extendable up to 110°C, the AZA1277 is ideally suited for laboratories involved in petroleum testing, petrochemical quality control, fuels research, and regulatory compliance.
Related products
Apparatus for Sulfur Content in LPG AZA1300A
Apparatus for Sulfur Content in LPG – AZA1300A
The AZA1300A Apparatus for Sulfur Content in LPG from Azalab is a high-performance analytical system designed for the accurate determination of total volatile sulfur in gaseous hydrocarbons and liquefied petroleum gases (LPG). Developed in strict accordance with ASTM D6667, this advanced instrument utilizes the Ultraviolet Fluorescence (UVF) detection method, delivering exceptional sensitivity, stability, and repeatability across a wide concentration range.
The AZA1300A is purpose-built for refineries, petrochemical plants, natural gas processing units, inspection laboratories, and quality assurance facilities, where precise sulfur measurement is critical for product quality, regulatory compliance, and environmental safety

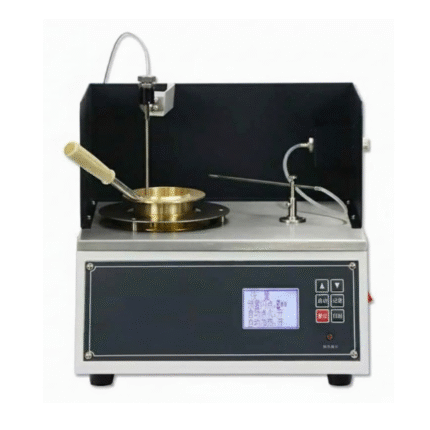

AUTOMATED CLEVELAND OPEN CUP FLASH POINT ANALYZER AZA1279
The Automated Cleveland Open Cup Flash Point Analyzer (Model: AZA1279) from AZA Lab is a fully automated, microprocessor-controlled flash point testing system designed for accurate determination of the flash point of petroleum products using the Cleveland Open Cup (COC) method. Engineered in strict compliance with ASTM D92, the AZA1279 delivers reliable, repeatable, and traceable results for laboratories where safety, regulatory compliance, and precision are essential.
Flash point determination plays a vital role in assessing the flammability, handling safety, storage conditions, and transportation classification of combustible liquids. The AZA1279 automates the entire test cycle—heating, ignition, detection, and result recording—minimizing human error while maximizing consistency and operator safety
Aza Lab Dist‑86S AZA1288
The Distillation Tester AZA1288 from AZA Lab is a high-precision, semi-automated distillation apparatus engineered for accurate determination of the distillation characteristics of petroleum products in full compliance with ASTM D86. Designed for reliability, safety, and operational consistency, the AZA1288 is an essential instrument for quality control laboratories, refineries, fuel testing centers, inspection agencies, and research institutions.
Distillation testing is a critical analytical procedure used to evaluate the boiling range, volatility, and composition of fuels and solvents. These properties directly influence fuel performance, combustion behavior, storage safety, and regulatory classification. The AZA1288 delivers dependable and repeatable results by combining controlled automation with operator oversight, ensuring optimal balance between precision and flexibility.
Closed Cup Flash Point Tester AZA1280
The AZA1280 Closed Cup Flash Point Tester from AZA Lab is a high-performance, fully automated instrument designed for accurate determination of flash points of volatile and combustible liquids using the Tag Closed Cup (TCC) method, in full compliance with ASTM D56 standards.
This analyzer is specifically intended for liquids with flash points below 93°C (200°F) and low viscosity samples, making it an essential tool for petroleum laboratories, fuel testing facilities, quality control departments, and R&D centers requiring high precision at low and sub-zero temperatures.
Semi‑automated atmospheric distillation analyzer AZA1285
The AZA1285 is equipped with a low-voltage, manually adjustable heater combined with PID-controlled condenser and receiver sections, ensuring stable distillation rates and accurate thermal management throughout the test cycle. The system incorporates a closed-loop, CFC-free refrigeration unit, providing efficient condensation without reliance on external cooling water or environmentally harmful refrigerants.
A built-in inert gas purge system enhances operational safety by allowing controlled nitrogen or inert gas injection, reducing oxidation risks and ensuring compliance with laboratory safety protocols.
Semi‑Manual Distillation Analyzer AZA1286
The Semi-Manual Distillation Analyzer (AZA1286) from AZA Lab is engineered to deliver accurate, repeatable, and ASTM D86-compliant atmospheric distillation testing for petroleum products. Designed to combine the robustness of manual operation with the precision of digital instrumentation, the AZA1286 is an ideal solution for educational institutions, QA/QC laboratories, and small- to mid-scale production facilities requiring reliable routine fuel analysis without the complexity of full automation.
This analyzer provides operators with direct control over heating, condensation, and receiver handling, while benefiting from digital temperature measurement, timing functions, and safety monitoring. The result is a cost-effective, dependable system that maintains compliance with international testing requirements.

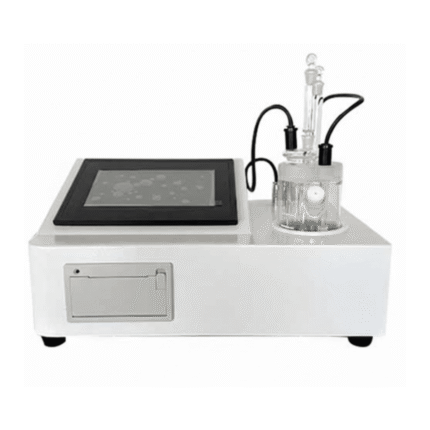

TAN & TBN (Karl Fischer Moisture Titrator) Tester AZA1315
