J-RING, NARROW GAP AZA1109

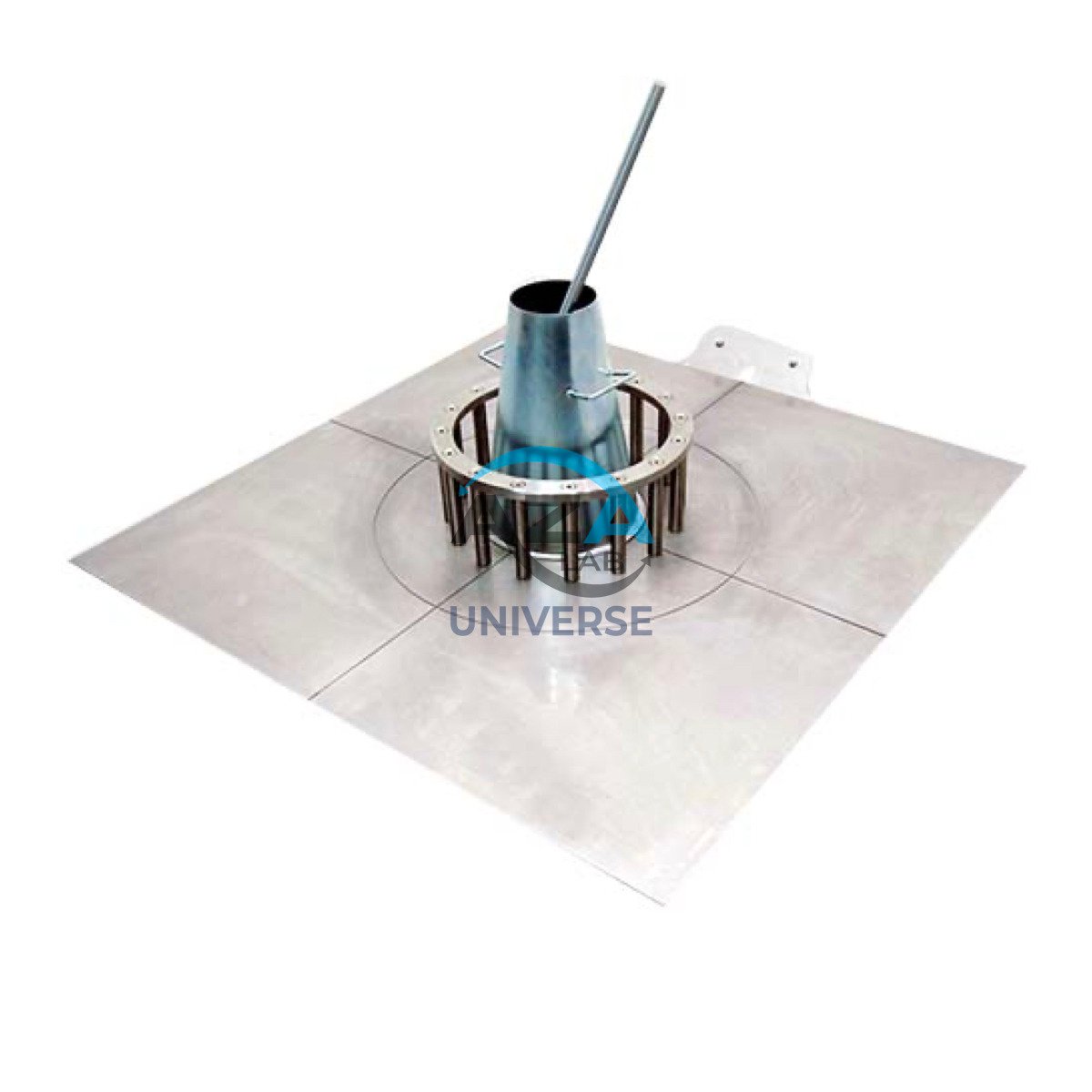

AZA1109 J-Ring – Narrow Gap is a precision testing apparatus designed to evaluate the passing ability of Self-Compacting Concrete (SCC) under highly restrictive conditions. This device simulates densely congested reinforcement zones by creating artificial obstructions that the fresh SCC must flow through without blocking or segregating. It is an essential tool for determining whether SCC mixes are suitable for heavily reinforced structural elements such as beams, columns, and shear walls.

The narrow gap design offers a more stringent test compared to standard J-Rings, allowing engineers and quality control professionals to accurately observe flow diameter, T50 flow time, and blocking behavior. When used in combination with a standard slump flow cone, AZA1109 provides reliable, repeatable results that help optimize mix designs and ensure consistent on-site performance.

Manufactured from durable, corrosion-resistant steel, the AZA1109 is built for repeated use in laboratory and field testing environments. The apparatus is fully compliant with ASTM C1621 and EFNARC guidelines, ensuring internationally accepted testing procedures.

Enquiry on WhatsApp
Category:
Description

Description

Key Features

  • Narrow gap design for stringent SCC testing

  • Simulates closely spaced reinforcement conditions

  • Measures flow diameter, T50 flow time, and blockage

  • Compatible with standard slump flow cone

  • Heavy-duty, durable steel construction

  • Compliant with ASTM C1621 and EFNARC standards

Applications

  • Quality control testing of SCC in construction projects

  • Research and development of SCC mix designs

  • Evaluation of SCC for heavily reinforced structural elements

  • Laboratory and on-site SCC performance testing

Specifications

Specification Details
Model AZA1109
Type J-Ring – Narrow Gap
Material Powder-coated steel / Stainless steel
Number of Rods 16 vertical bars
Bar Diameter 18 mm
Gap Between Bars Approx. 41 mm (narrow gap)
Standards ASTM C1621, EFNARC Guidelines
Compatible With Standard slump flow cone
Usage SCC passing ability testing
Weight Approx. 5–7 kg

AZA1109 J-Ring (Narrow Gap) is a robust SCC testing apparatus used to assess the passing ability of self-compacting concrete through congested reinforcement conditions, in compliance with ASTM C1621 and EFNARC guidelines.
