SLUMP TEST APPARATUS AZA1102
AZA1102 Slump Test Apparatus is designed for the accurate evaluation of concrete workability and consistency in both laboratory and field conditions. It is an essential quality control tool used in construction projects, civil engineering laboratories, and educational institutions.
This apparatus complies with IS 7320 and BS 1881-102 standards, ensuring reliable and standardized test results. It is primarily used to determine the slump value of fresh concrete, indicating its ease of placement, compaction, and finishing.

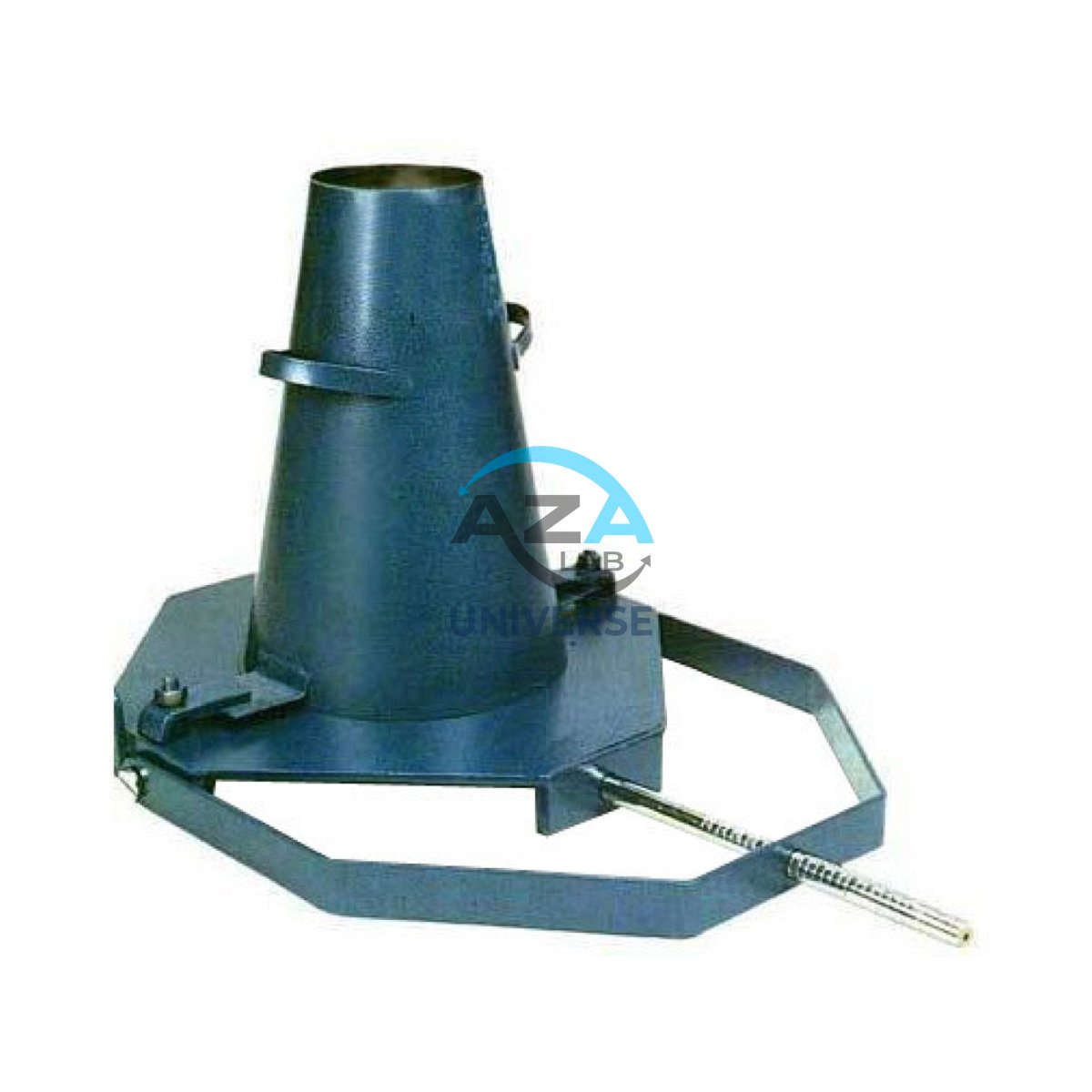

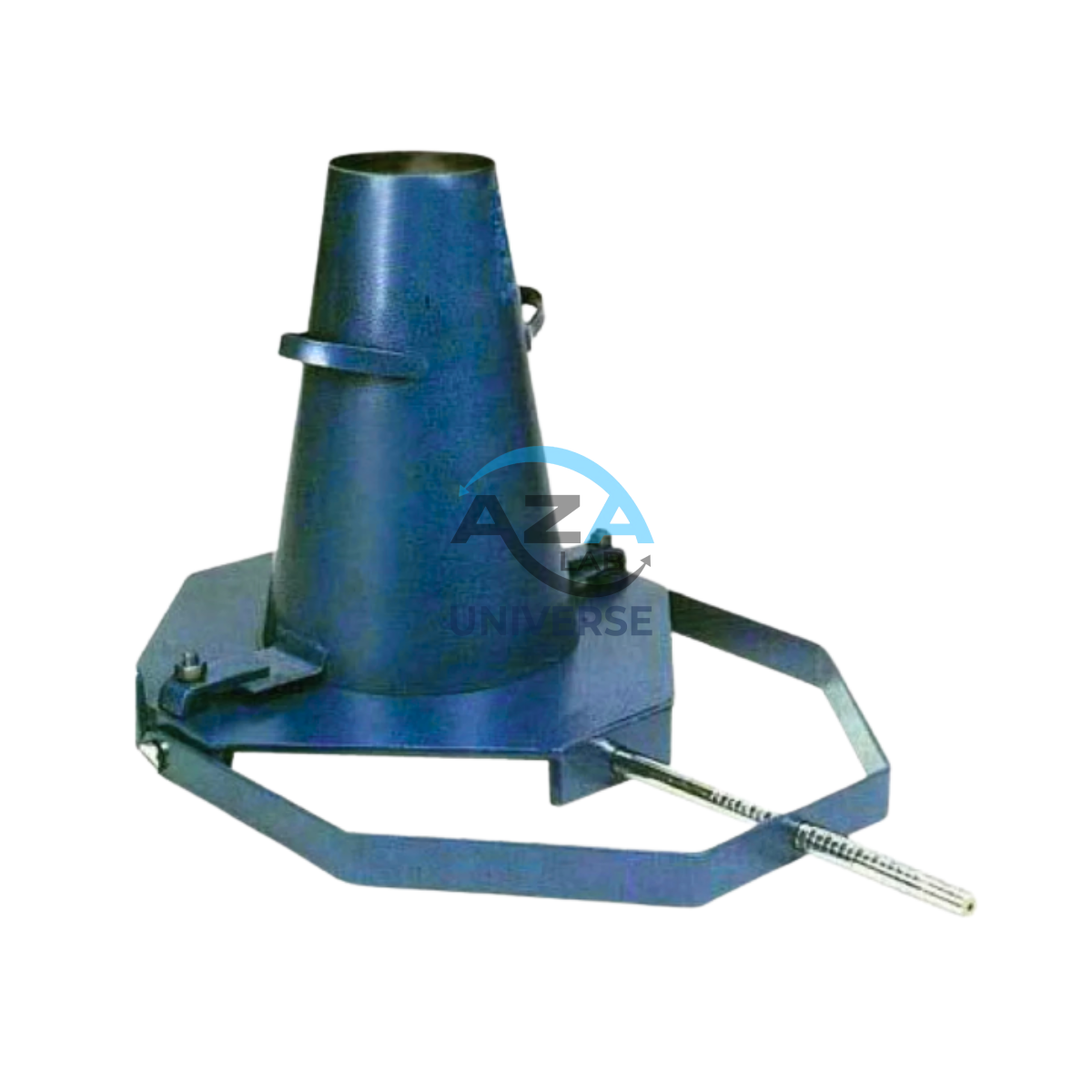

The set includes a durable metal slump cone manufactured to standard dimensions — 200 mm bottom diameter, 100 mm top diameter, and 300 mm height — providing dimensional accuracy and long service life. A 16 mm diameter tamping rod, 600 mm long with rounded ends, is provided to properly compact the concrete sample in layers.
The apparatus is suitable for testing concrete with aggregate sizes up to 38 mm, making it ideal for common residential, commercial, and infrastructure applications.
To improve handling and stability, the unit includes a rigid base plate with clamping arrangements and lifting handles, making it easy to use both on construction sites and in laboratories.
The AZA1102 Slump Test Apparatus is known for its simple operation, rugged construction, high accuracy, and low maintenance, making it a dependable choice for routine concrete testing.
Description
Applications
-
Concrete workability testing at construction sites
-
Quality control in civil engineering laboratories
-
Educational demonstrations in colleges and training institutes
-
On-site testing for ready-mix and pavement concrete
Technical Specifications
| Feature | Specification |
|---|---|
| Model | AZA1102 |
| Standards | IS 7320, BS 1881-102 |
| Slump Cone Base Diameter | 200 mm |
| Slump Cone Top Diameter | 100 mm |
| Slump Cone Height | 300 mm |
| Tamping Rod Diameter | 16 mm |
| Tamping Rod Length | 600 mm |
| Maximum Aggregate Size | 38 mm |
| Base Plate | Heavy-duty metal with clamps |
| Handles | Integrated lifting handles |
| Material | Powder-coated steel / metal |
FAQs
Q1: What is the purpose of a slump test?
A1: It measures the workability and consistency of fresh concrete before compaction.
Q2: Which standards does AZA1102 comply with?
A2: It conforms to IS 7320 and BS 1881-102.
Q3: Can this be used on construction sites?
A3: Yes, it is designed for both site and laboratory use.
Q4: What is the maximum aggregate size supported?
A4: It supports aggregates up to 38 mm.
Q5: Is the equipment easy to transport?
A5: Yes, it includes lifting handles and a sturdy base plate for easy handling.
Additional information
| Model |
AZA 1102 |
|---|---|
| Standard Compliance |
IS 7320, BS 1881-102 |
| Aggregate Size |
Up to 38 mm |
| Dimensions (L×W×H) |
450 × 150 × 200 mm |
