WET TRANSVERSE STRENGTH TESTING MACHINE (AZA -1268)
The Wet Transverse Strength Testing Machine is a rugged electro-mechanical system designed for quiet, vibration-free operation. It features a precision load control system driven by an integrated induction motor and drive, ensuring consistent and repeatable test results.
Suited for laboratories, R&D departments, and quality control units in cement tile manufacturing.
Description
SALIENT FEATURES
-
Standard Digital Model with precision load cell
-
Suitable for fired sample testing on the same unit
-
Tile Size Compatibility: 200 mm, 250 mm, 300 mm, 400 mm
-
Direct digital reading of Load / Collapsing Force
-
Selectable Test Units: Kgf, kN, N/mm² (no manual calculation required)
-
Auto-stop function upon test completion
-
Emergency stop switch for safety
-
7” embedded Touch Screen HMI Controller with intuitive interface
-
Integrated induction motor with drive for smooth and controlled loading
-
Pace rate control accuracy: ±1% at 2000 N/min (2 kN/min)
-
Auto-calibration with cast iron standard weights (weights not included)
-
Adjustable test span with 3 mild steel rollers (12 mm Ø)
-
Safety Guard to protect user from ceramic splinters
-
Powder-coated finish in attractive, corrosion-resistant shades
| Parameter | Specification |
|---|---|
| Capacity | 1000 kgf |
| Least Count | 0.1 kgf |
| Accuracy | ±0.2% of Full Scale |
| Control | Electro-mechanical with drive motor |
| Power Supply | 230 V AC, 50 Hz, Single Phase |
| Overall Dimensions | 914 × 914 × 1143 mm (L × W × D) |
- Cement Tile Manufacturing
-
Construction Materials Testing Labs
-
Civil Engineering Quality Control
-
R&D and Educational Institutions
Related products
ABRASION TESTING MACHINE FOR GLAZED TILES AZA1261
The AZA LAB Abrasion Testing Machine for Glazed Tiles (AZA1261) is a precision-engineered laboratory instrument designed for the accurate determination of abrasion resistance in glazed ceramic tiles. Fully compliant with BIS 13630-11 and EN ISO 10545-7, this machine is essential for evaluating tile durability and surface wear performance in accordance with international quality standards.
The AZA1261 simulates real-world foot traffic and surface wear conditions, enabling manufacturers, testing laboratories, and quality control departments to verify that glazed tiles maintain their appearance, texture, and integrity even under high-traffic usage.

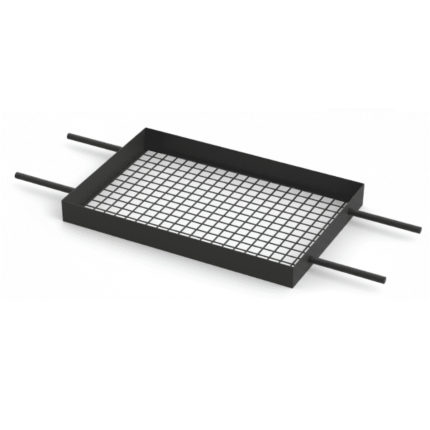

BALLAST SIEVE -100x70x10 cm – 65 mm AZA1299
The AZA1299 Ballast Sieve (65 mm) from AZA LAB is a heavy-duty, industrial-grade aggregate testing sieve designed for the separation, grading, and classification of coarse aggregates, railway ballast, crushed stone, and large construction materials.
Engineered for demanding laboratory and field applications, the AZA1299 features a reinforced large-area frame and precision 65 mm square aperture mesh, ensuring reliable and repeatable particle size analysis for infrastructure, railway, highway, mining, and civil engineering projects.
Its rugged construction, corrosion-resistant materials, and compatibility with both manual and mechanical sieving systems make it an essential tool for aggregate quality control and standards-compliant material testing.
ELECTRONIC WEIGHING BALANCE AZA1267
The AZA LAB Electronic Weighing Balance – Model AZA1267 is a high-precision laboratory instrument engineered for accurate and reliable mass measurement across a wide range of analytical and quality control applications. With a readability of 0.001 g (1 mg) and external calibration, this balance delivers consistent results where precision is critical.
Designed for durability and ease of use, the AZA1267 features a stainless-steel weighing pan, anti-shock protection, and a clear LED digital display, all housed in a compact and robust body. Its dual power supply (AC adapter with in-built rechargeable battery) ensures uninterrupted operation in both laboratory and field environments
HIGH-PERFORMANCE DILATOMETER (THERMAL EXPANSION TESTING SYSTEM) AZA1269
The AZA1269 High-Performance Dilatometer is an advanced thermal analysis instrument engineered for precise measurement of linear thermal expansion and contraction of solid materials at temperatures up to 1400 °C. Designed for demanding laboratory and industrial environments, the system delivers high accuracy, repeatability, and long-term thermal stability, making it ideal for material characterization, research, and quality assurance.
This instrument is widely used in ceramics, refractories, advanced composites, polymers, and sintered materials, where understanding dimensional change under heat is critical to product performance and safety.
MASTER CALIBRATING PLATE / ZEROING PLATE AZA1270
AZA LAB's Master Calibrating Plate—also known as a Zeroing Plate—is a precision-engineered aluminum reference plate designed for accurate calibration of Universal Gauges and Plucometers. Manufactured in compliance with IS 13630 (Part-1) and EN ISO 10545 (Part-2) standards, it ensures reliable and repeatable zero-point reference during dimensional testing of ceramic tiles and similar materials.
The plate is available in a wide range of sizes to suit various laboratory and industrial applications. With a flatness accuracy of ±0.1 mm and a sturdy 12 mm thickness, it provides a stable and durable base for equipment calibration.
Whether in QC labs or production floors, the AZA LAB Zeroing Plate is an essential tool for maintaining measurement consistency and ensuring compliance with international tile testing standards.

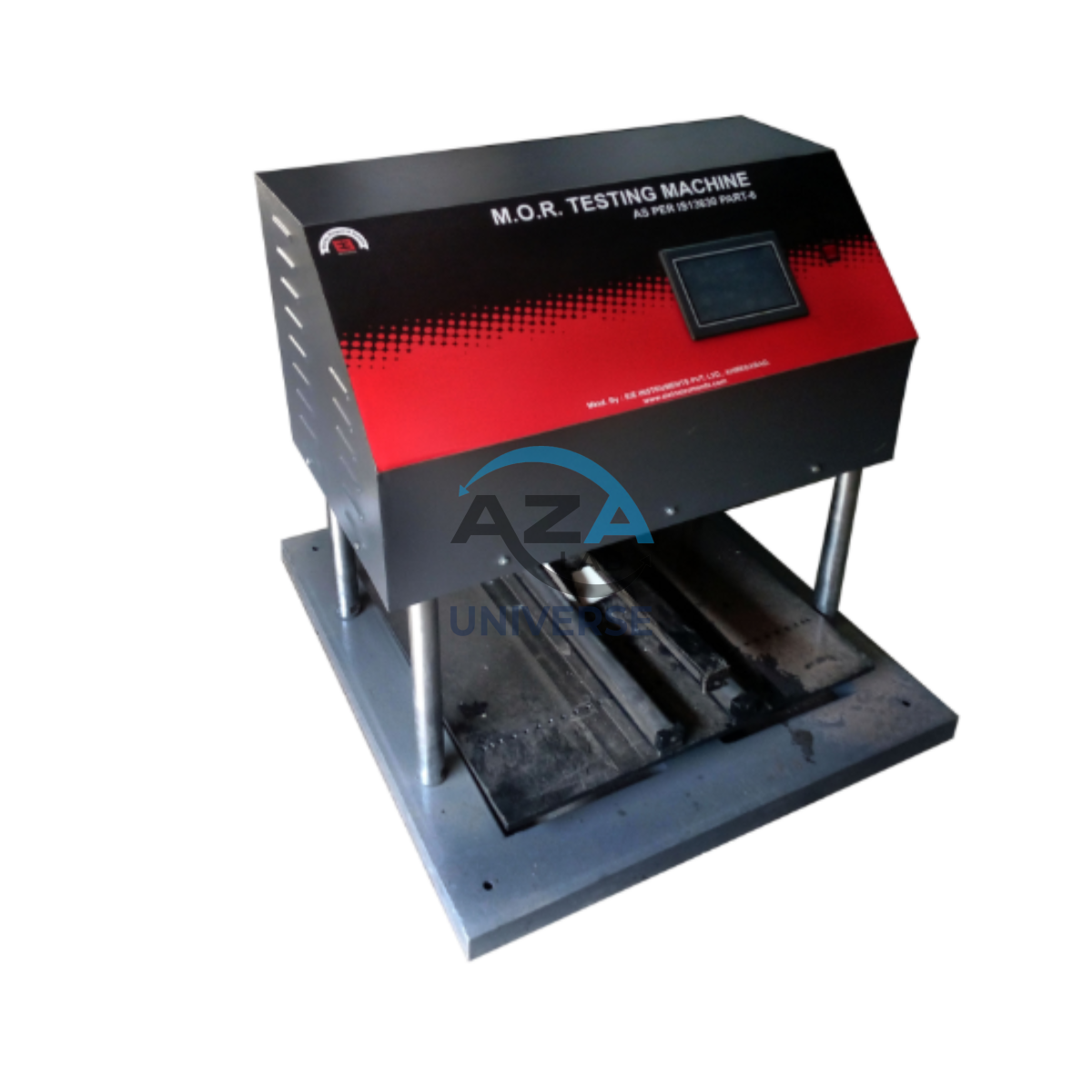

MOR TESTING MACHINE AZA1265
