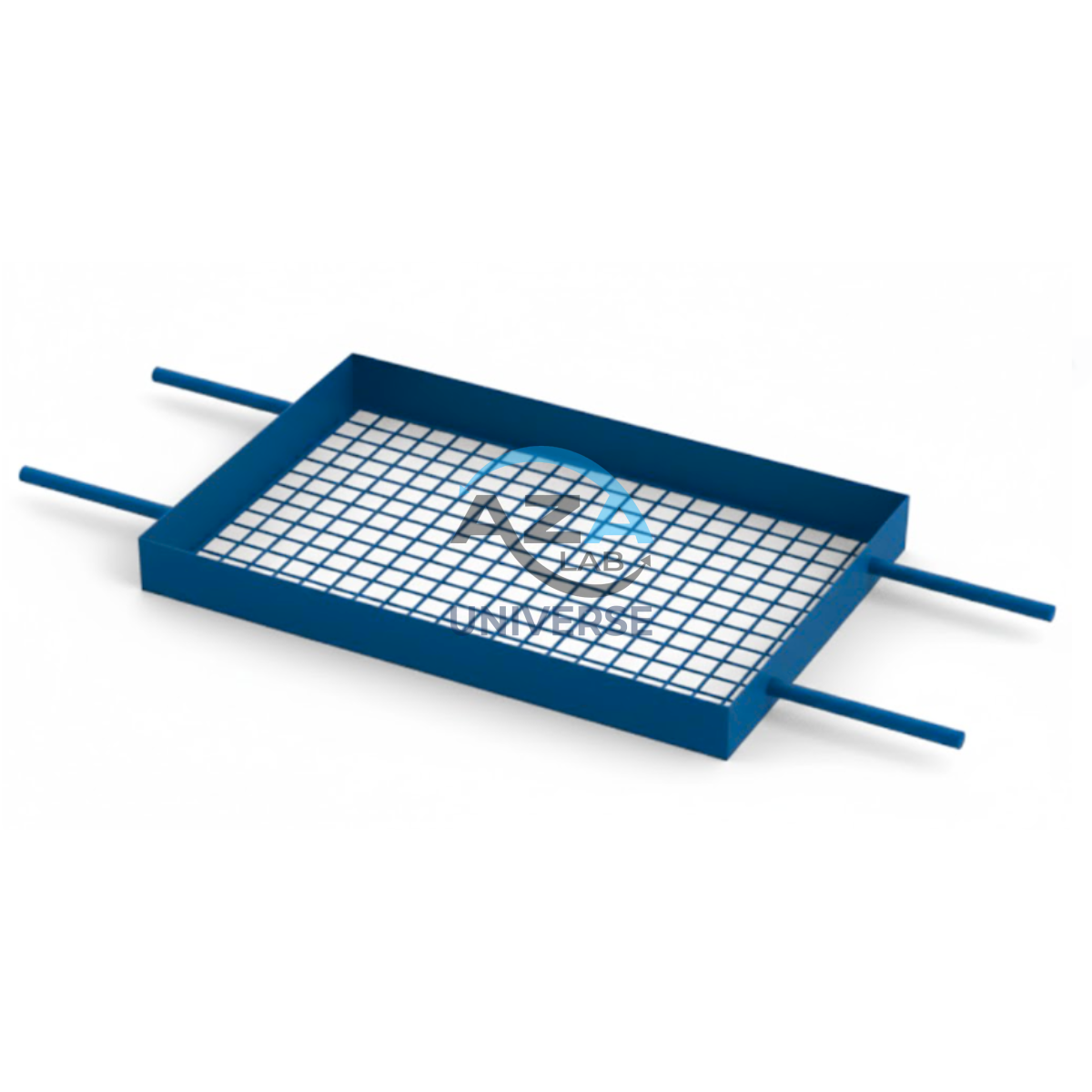

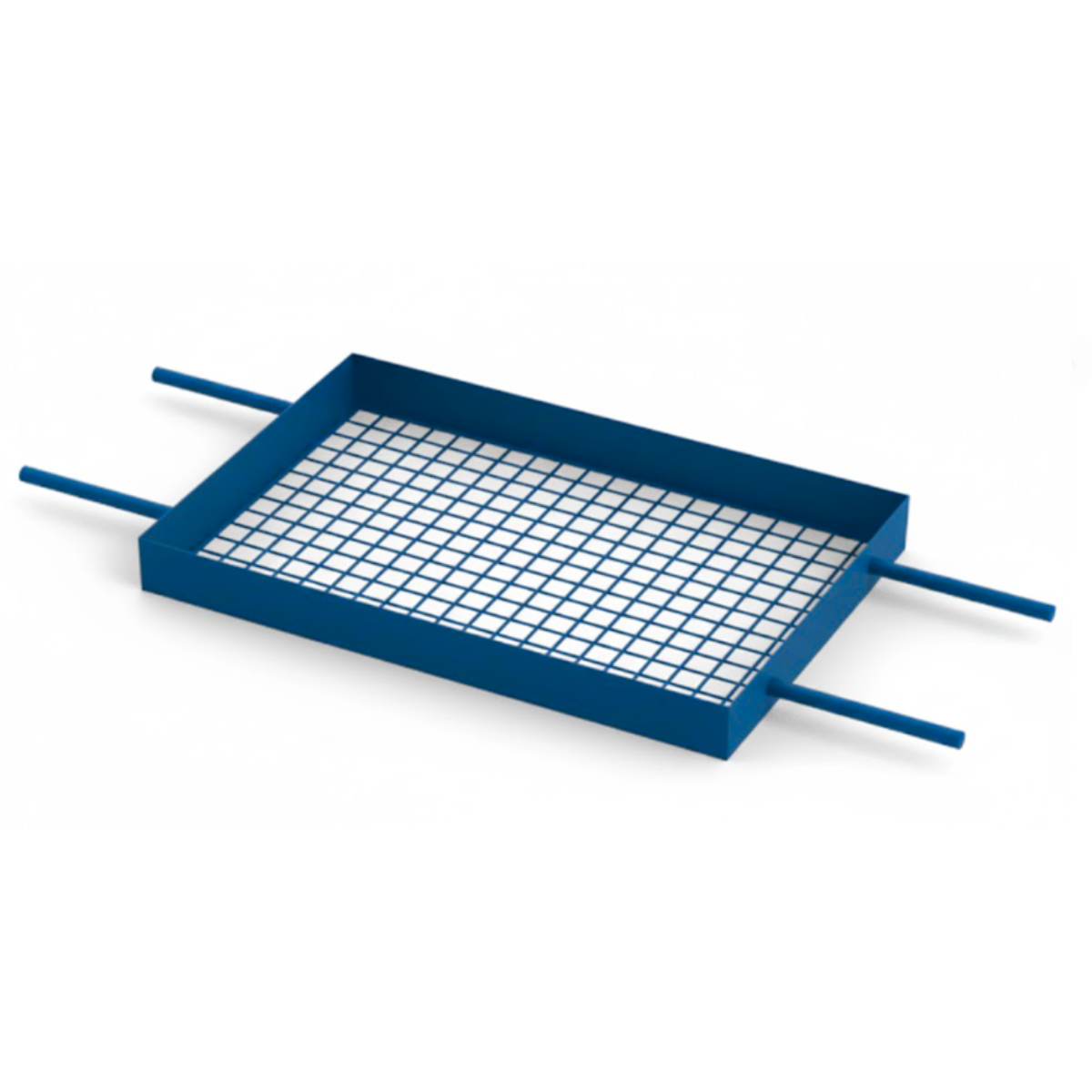

BALLAST SIEVE -100x70x10 cm – 65 mm AZA1299
The AZA1299 Ballast Sieve (65 mm) from AZA LAB is a heavy-duty, industrial-grade aggregate testing sieve designed for the separation, grading, and classification of coarse aggregates, railway ballast, crushed stone, and large construction materials.
Engineered for demanding laboratory and field applications, the AZA1299 features a reinforced large-area frame and precision 65 mm square aperture mesh, ensuring reliable and repeatable particle size analysis for infrastructure, railway, highway, mining, and civil engineering projects.
Its rugged construction, corrosion-resistant materials, and compatibility with both manual and mechanical sieving systems make it an essential tool for aggregate quality control and standards-compliant material testing.
Description
ROBUST INDUSTRIAL CONSTRUCTION
The AZA1299 is designed for continuous operation with heavy, abrasive, and sharp-edged materials.
CONSTRUCTION FEATURES
- Heavy-duty reinforced welded frame
- Large sieving surface area
- High-tensile square wire mesh
- Impact-resistant construction
- Reinforced anti-warp edges
- Corrosion-resistant finish
- Open mesh design for reduced clogging
The structure maintains dimensional stability even under aggressive handling and high-load sieving conditions.
HIGH-STRENGTH MESH SYSTEM
The precision-manufactured 65 mm square aperture mesh ensures:
- Accurate particle separation
- Uniform grading performance
- Reliable oversized aggregate detection
- Long operational lifespan
The mesh is securely fixed to the reinforced frame to prevent loosening or deformation during repeated testing cycles.
MANUAL & MECHANICAL OPERATION
The AZA1299 supports:
MANUAL SIEVING
Suitable for:
- Field operations
- Portable testing
- Small batch screening
- Site inspections
MECHANICAL SIEVING
Compatible with:
- Aggregate sieve shakers
- Vibratory systems
- Laboratory screening equipment
Its rigid frame construction ensures stable operation under vibration and continuous mechanical use.
STACKABLE DESIGN
The AZA1299 can be stacked with compatible aggregate sieves to create complete grading systems for full particle size distribution analysis.
AVAILABLE VARIANTS
| PRODUCT | APERTURE SIZE | MODEL |
|---|---|---|
| Ballast Sieve | 65 mm | AZA1299 |
| Ballast Sieve | 40 mm | AZA1299B |
| Ballast Sieve | 20 mm | AZA1299C |
| Ballast Sieve | 41.50 mm | AZA1299D |
Custom mesh openings and frame sizes are available upon request.
STANDARDS COMPLIANCE
The AZA1299 is designed in accordance with internationally recognized aggregate testing standards:
- ASTM C136 / C136M
- BS 812-103.1
This ensures acceptance of test results by:
- Consultants
- Contractors
- Railway authorities
- Inspection agencies
- Regulatory bodies
TECHNICAL SPECIFICATIONS
| PARAMETER | SPECIFICATION |
|---|---|
| Model | AZA1299 |
| Product Name | Ballast Sieve – 65 mm |
| Dimensions | 100 × 70 × 10 cm |
| Aperture Size | 65 mm Square |
| Mesh Type | High-Tensile Square Wire Mesh |
| Material Options | Galvanized Steel / Stainless Steel |
| Frame Type | Reinforced Welded Heavy-Duty Frame |
| Operation | Manual or Mechanical Sieving |
| Application | Coarse Aggregate & Ballast Separation |
| Corrosion Resistance | Yes |
| Cleaning Method | Water or Mild Solvent |
| Standards Compliance | ASTM C136, BS 812-103.1 |
| Approximate Weight | 10–15 kg |
MATERIAL OPTIONS
GALVANIZED STEEL VERSION
- Economical solution
- Good corrosion resistance
- Suitable for general aggregate testing
STAINLESS STEEL VERSION
- Superior corrosion resistance
- Suitable for humid or chemical environments
- Extended service life
- Easier cleaning and maintenance
OPERATIONAL BENEFITS
- Fast high-volume aggregate screening
- Accurate coarse particle separation
- Reduced material clogging
- Excellent repeatability
- Minimal maintenance requirements
- Long-term structural stability
- Reliable performance in harsh environments
SUPPLIED CONFIGURATION
- AZA1299 Ballast Sieve – 65 mm
- Reinforced mesh assembly
- Heavy-duty welded frame
- Quality inspection certificate
OPTIONAL ACCESSORIES
- Additional sieve sizes
- Mechanical sieve shaker compatibility adapters
- Stainless steel upgrade
- Stack covers
- Sample collection trays
- Custom mesh openings
Additional information
| Product Name |
Ballast Sieve – 65mm |
|---|---|
| Dimensions |
100 x 70 x 10 cm |
| Aperture Size |
65 mm square |
| Material |
Galvanized or Stainless Steel |
