TEST SPECIMEN HOLDER FOR SURFACE ABRASION MACHINE (GLAZED TILES) AZA1264A
The AZA1264A Test Specimen Holder is a precision-engineered laboratory accessory designed for surface abrasion resistance testing of glazed ceramic tiles in strict accordance with BIS 13630 (Part-11) and EN ISO 10545-7. It ensures stable specimen positioning and uniform containment of abrasive loads, which is essential for obtaining accurate, repeatable, and standard-compliant test results.
This holder is widely used in ceramic tile manufacturing laboratories, quality control departments, certification bodies, and research institutions, where conformity to national and international testing standards is mandatory.
Description
Design & Working Description

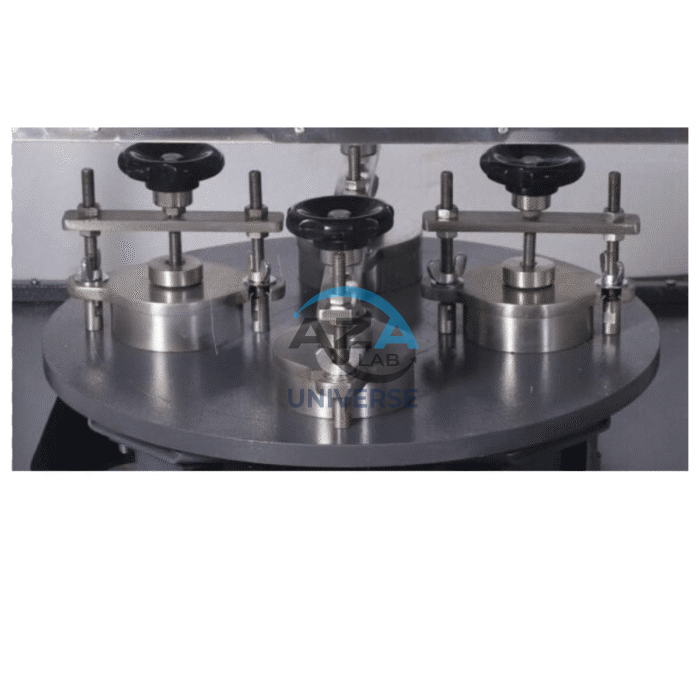

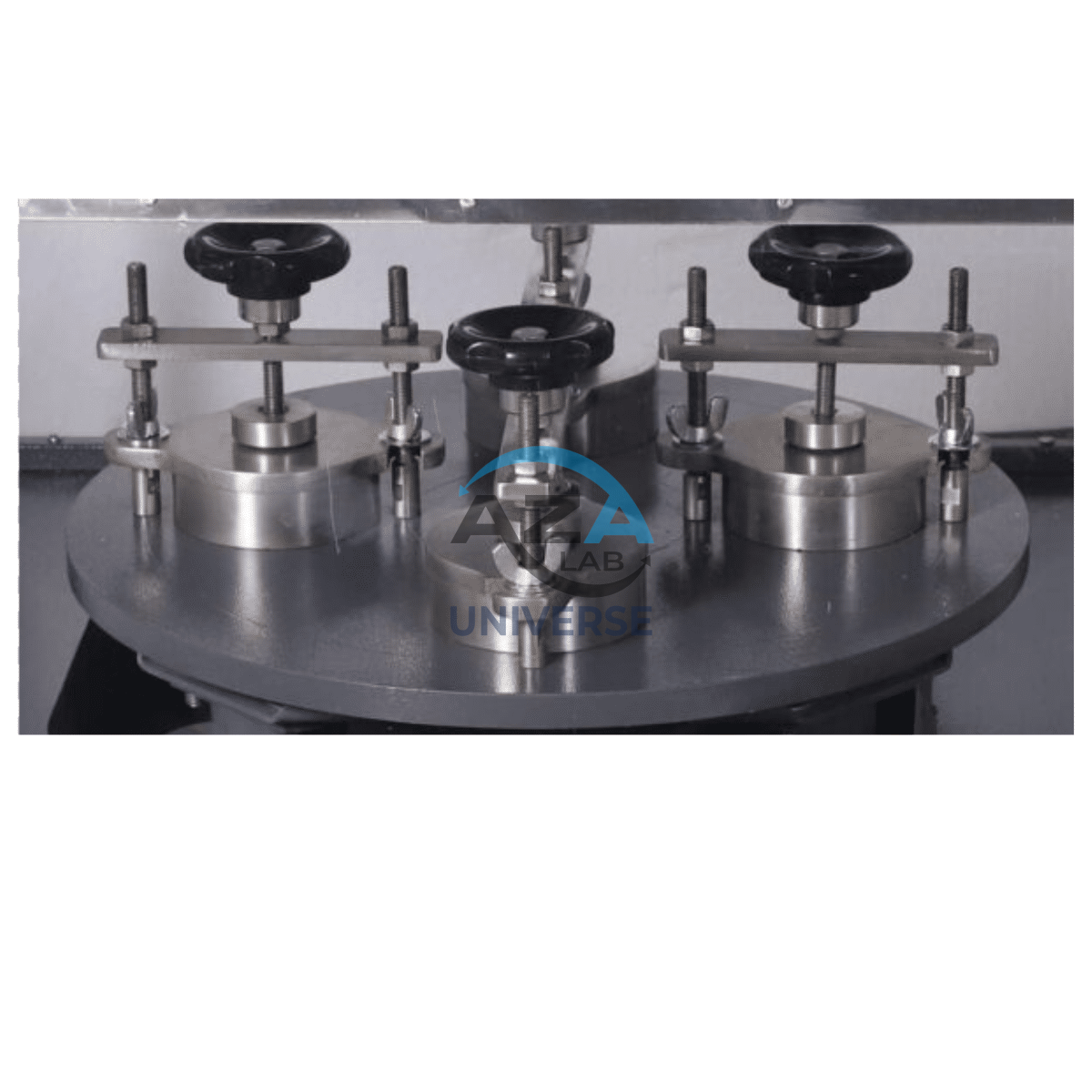

The AZA1264A consists of rubber-lined circular holding rings and robust holding plates with a protective cover. These components serve a dual function—securely holding the glazed tile test specimen and acting as a container for the abrasive load placed over the specimen during testing.
To ensure firm and stable assembly, the holder is equipped with studs on both sides for anchoring the specimen container. A black tightening knob allows quick and secure locking, preventing movement of the specimen during abrasion cycles and ensuring consistent test conditions.
Applications
-
Surface abrasion resistance testing of glazed ceramic tiles
-
Quality control and batch verification in tile manufacturing
-
BIS and ISO compliance testing
-
Third-party and certification laboratory testing
-
Research and development in ceramic materials
Standards Compliance
The AZA1264A Test Specimen Holder conforms to the following standards:
-
BIS 13630 (Part-11) – Determination of surface abrasion resistance of glazed tiles
-
EN ISO 10545-7 – Ceramic tiles: Determination of surface abrasion resistance
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1264A |
| Application | Surface abrasion testing of glazed ceramic tiles |
| Compliance Standards | BIS 13630-11, EN ISO 10545-7 |
| Holding System | Rubber-lined circular rings |
| Plate Function | Specimen holder & abrasive load container |
| Locking Mechanism | Side studs with black tightening knob |
| Construction | Heavy-duty laboratory-grade materials |
| Optional Accessories | Steel balls (1, 2, 3 & 5 mm diameter) – extra cost |
Items Supplied
-
Rubber-lined circular rings
-
Holding plates with cover
-
Side studs for specimen container securing
-
Black tightening knob
Note:
Steel balls of 1 mm, 2 mm, 3 mm, and 5 mm diameter are not included and must be purchased separately at additional cost, as per standard test requirements.
Key Advantages
-
Secure specimen positioning during abrasion cycles
-
Consistent abrasive load containment for accurate results
-
Standard-compliant design accepted in BIS and ISO audits
-
Easy assembly and operation
-
Durable construction for long-term laboratory use
Why Choose AZA1264A from AZA LAB / Azalab?
-
Designed specifically for BIS & ISO ceramic tile testing standards
-
Ensures repeatable, reliable, and audit-ready test results
-
Proven acceptance in ceramic tile QC and certification laboratories
-
Backed by AZA LAB technical expertise and support
