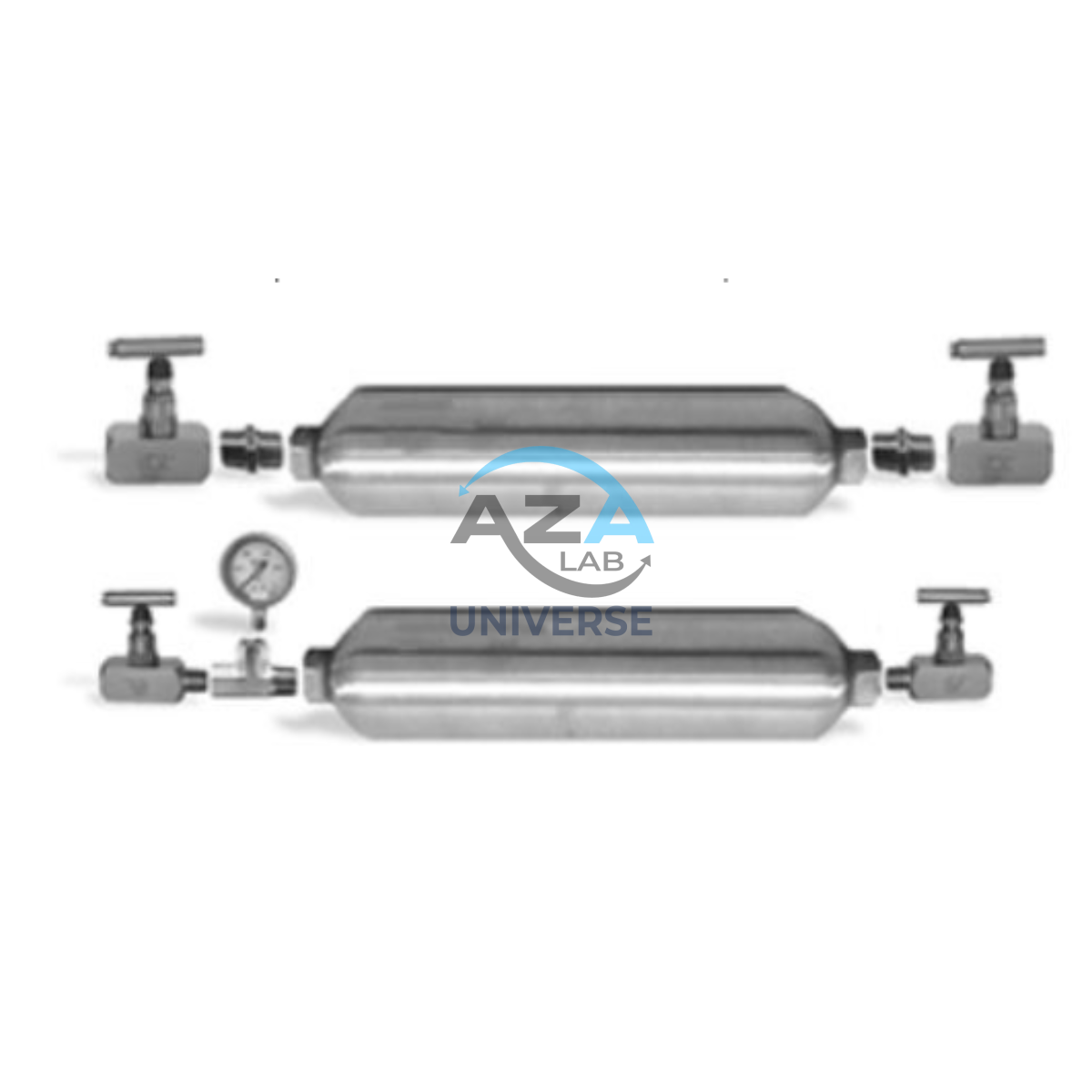

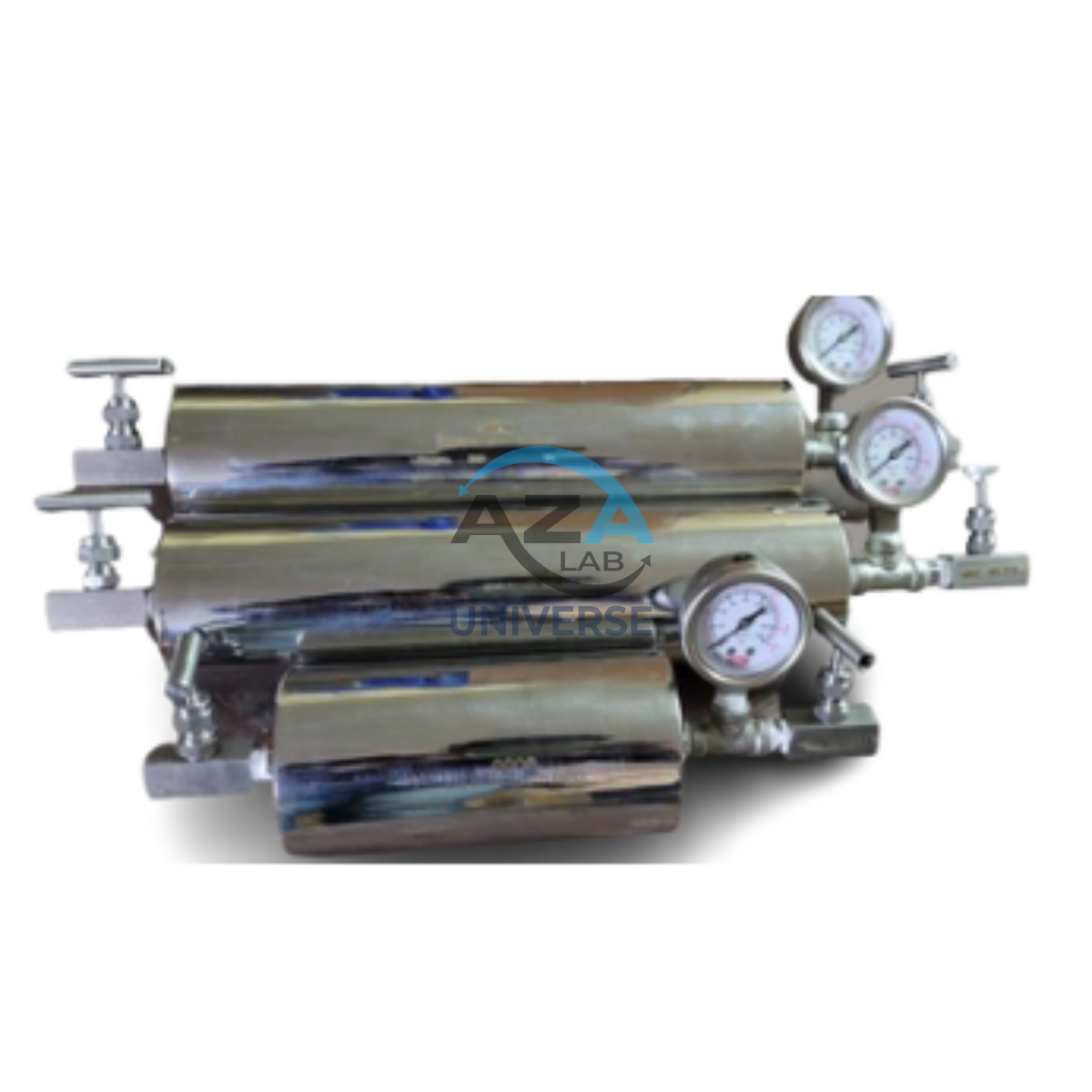

Oil & Gas Sampling Cylinders with Double & Triple Ended (AZA -1274 A)
- Model: AZA-1274 A
- Available in single, double, and triple-ended designs
- Manufactured from SS 304 / SS 316 / Monel for corrosion resistance
- Pressure tested and certified (CE, TPED, ISO, DOT)
- Capacity range: 100 cc to 5000 cc
- Max pressure: Up to 3000 psi (206 bar)
- Standard ¼″ or ½″ NPT connections
- Optional dip tubes and custom thread fittings
Description
Reliable Oil and Gas Sampling Cylinders – AZA-1274 A
AZA LAB’s Oil & Gas Sampling Cylinders and Gas Sampling Bombs (AZA-1274 A) are precision-engineered, high-pressure vessels designed for the safe, accurate collection and transport of liquid or gas samples in the oil, gas, and petrochemical sectors.Azalab
Crafted from premium stainless steel (SS 304/316) or corrosion-resistant Monel, these cylinders are available in single-, double-, and triple-ended configurations to support a wide range of sampling operations—from wellhead and refinery extraction to lab-based chromatographic analysis.aza
Each unit is subjected to rigorous hydrostatic and burst testing and complies with international certifications including TPED, CE, DOT, and ISO. Standard fittings include ¼″ or ½″ NPT ports, with options for dip tubes, safety relief valves, and custom end fittings.aza
Whether used offshore, in-process lines, or in research labs, the AZA-1274 A offers maximum safety, chemical compatibility, and sample integrity.
Applications
-
Sampling pressurized hydrocarbons from pipelines, tanks, or offshore rigs
-
Collection of natural gas, LNG, and refinery gases
-
Chromatography or spectrometry lab sample transfer
-
High-pressure sampling for QA/QC in industrial environments
-
Storage and transport of reactive or flammable gases
Technical Specifications
| Feature | Specification |
|---|---|
| Model | AZA-1274 A |
| Configuration | Single-ended / Double-ended / Triple-ended |
| Pressure Rating | Up to 3000 psi (206 bar) |
| Volume Capacity | 100 cc to 5000 cc (custom sizes available) |
| Material Options | SS 304, SS 316, Monel |
| Temperature Range | -40 °C to +200 °C |
| Threading | Standard ¼″ or ½″ NPT (custom available) |
| Certifications | TPED, DOT, ISO, CE |
| Testing | Hydrostatic & leak tested |
| Optional Accessories | Dip tubes, quick-connect valves, burst discs, carrying case |
What’s Included
-
1× AZA-1274 A Gas Sampling Cylinder
-
2× High-pressure needle valves (SS)
-
1× Calibration & Pressure Test Certificate
-
Optional: Dip tube, carrying case, safety relief valve
-
Hydrocarbon and gas sampling in refineries, petrochemical plants, and well sites
-
Laboratory grab sampling, including chromatographic analysis
-
Use as snubbers, surge accumulators, and within high-vacuum or pressure systems
-
Serving as reaction vessels, transformer oil containers, molecular sieve chambers, and calibration setups
Frequently Asked Questions (FAQ)
Q1: What pressure rating can these cylinders handle?
The AZA-1274 A supports pressure ratings up to 3000 psi (206 bar).
Q2: Are Monel versions corrosion-resistant for sour gas?
Yes, Monel models offer superior corrosion resistance in sour and aggressive environments.
Q3: What certifications are included?
Each cylinder is hydrostatically tested and provided with TPED, CE, DOT, and ISO certifications.
Q4: Can I customize volume or end connection type?
Absolutely. We offer custom capacity, threading, valve type, and port configurations.
Q5: What’s the difference between single, double, and triple-ended cylinders?
-
Single-ended: Basic use with one inlet/outlet
-
Double-ended: Common for sampling in/out operations
-
Triple-ended: Includes extra port for purging or pressure equalization
- Certified to CE, ISO 9001, TPED, and DOT standards
- All models are hydrostatically proof-tested to 1.5–2× their rated pressure, ensuring integrity under extreme conditions
- Internally sandblasted, optionally FEP/PTFE-coated, and fitted with precision-threaded heavy-wall connections for leak-free operation
- Materials: SS 304 / SS 316 / Monel (for aggressive media compatibility)
- End-types: Single-, double-, triple-ended, or flat-ended cylinders
- Versatile customization: valve fittings, dip tubes, quick-connects, PTFE/FEP linings, carrying handles, and custom markings
- Available in standard ¼″ & ½″ NPT, with BSP and larger connections upon request
Related products
Cleveland Open Cup (D92) Flash Point Tester AZA1291
The Cleveland Open Cup Flash Point Tester AZA1291 from AZA Lab is a precision-engineered analytical instrument designed for accurate determination of flash point and fire point of petroleum products in full compliance with ASTM D92 and GB/T 3536-2008 standards. Built for reliability, safety, and intelligent operation, the AZA1291 is ideal for petroleum laboratories, refineries, inspection agencies, and quality control departments requiring repeatable and standards-compliant results.
The analyzer is suitable for samples with flash points ranging from 79°C to 400°C, covering a broad spectrum of petroleum products such as lubricating oils, transformer oils, diesel, heating oils, base oils, waxes, and other high-flash-point materials.
Dist‑86S Semi‑Automated Distillation Analyzer AZA1283
The AZA1283 Dist-86S Semi-Automated Distillation Analyzer from AZA Lab is a robust, reliable, and precision-engineered instrument designed for determining the distillation characteristics of petroleum products and volatile organic liquids in accordance with ASTM D86 and equivalent international standards.
Combining operator control with intelligent automation, the AZA1283 is ideally suited for refineries, petrochemical laboratories, quality control facilities, research institutions, and regulatory testing laboratories that require accurate, repeatable, and standards-compliant distillation analysis without the complexity of fully automated systems.
Fully Automated Atmospheric Distillation Analyzer AZA1287
The AZA1287 Atmospheric Distillation Analyzer from AZA Lab is a fully automated, high-precision distillation testing system designed for petroleum laboratories that require ASTM D86-compliant determination of boiling range characteristics. Engineered for accuracy, repeatability, and high-throughput operation, the AZA1287 is ideal for testing gasoline, diesel, kerosene, jet fuel, light hydrocarbons, and other petroleum fractions.
Atmospheric distillation testing plays a critical role in evaluating fuel volatility, composition, and performance, directly influencing fuel quality, emissions compliance, and operational safety. The AZA1287 automates the complete distillation process—eliminating manual intervention, reducing operator error, and ensuring consistent, regulation-compliant results.
Precision Automated Distillation Analyzer AZA1281
The AZA1281 Precision Automated Distillation Analyzer from AZA Lab is a fully automated, high-accuracy instrument engineered for determining the distillation characteristics of petroleum products in strict compliance with ASTM D86, ISO 3405, IP 123, and equivalent international standards. Designed for modern petroleum laboratories, refineries, and regulatory testing facilities, the AZA1281 delivers exceptional repeatability, accuracy, and operational safety.
By automating the entire distillation process—from controlled heating to end-point detection and reporting—the AZA1281 minimizes operator dependency while maximizing consistency and compliance.
Semi-Automated Abel Flash Point Analyzer AZA1275
The AZA1275 AutoFlash Abel Flash Point Tester from AZA Lab is a semi-automated, microcontroller-based Abel closed cup analyzer designed for precise determination of flash points of low-flash combustible liquids. Engineered to comply with IP 170, ISO 13736, and IS 1448 (Part 20), AZA1275 ensures reliable, repeatable, and regulation-compliant testing for petroleum, chemical, and industrial laboratories.
Equipped with an integrated Windows-based PC interface, AZA1275 delivers intuitive operation, automated flash detection, controlled heating, and comprehensive fault diagnostics. The system is ideal for laboratories that require accuracy, safety, and efficiency without the cost complexity of fully automated systems.
Semi‑Manual Distillation Analyzer AZA1286
The Semi-Manual Distillation Analyzer (AZA1286) from AZA Lab is engineered to deliver accurate, repeatable, and ASTM D86-compliant atmospheric distillation testing for petroleum products. Designed to combine the robustness of manual operation with the precision of digital instrumentation, the AZA1286 is an ideal solution for educational institutions, QA/QC laboratories, and small- to mid-scale production facilities requiring reliable routine fuel analysis without the complexity of full automation.
This analyzer provides operators with direct control over heating, condensation, and receiver handling, while benefiting from digital temperature measurement, timing functions, and safety monitoring. The result is a cost-effective, dependable system that maintains compliance with international testing requirements.
STAINLESS STEEL COC CLEVELAND OPEN CUP FLASH POINT ANALYZER AZA1293
The AZA1293 Flash Point Analyzer from AZA Lab is a precision-engineered instrument designed for accurate determination of the flash point of flammable and combustible liquids using the Cleveland Open Cup (COC) method. Manufactured with high-grade stainless steel construction, this analyzer ensures excellent thermal stability, long service life, and consistent test performance even under demanding laboratory conditions.
Fully compliant with ASTM D92, the AZA1293 is an essential laboratory tool for petrochemical laboratories, refineries, lubricant manufacturers, fuel testing facilities, and industrial R&D centers where reliable flash point determination is critical for safety classification and quality assurance.

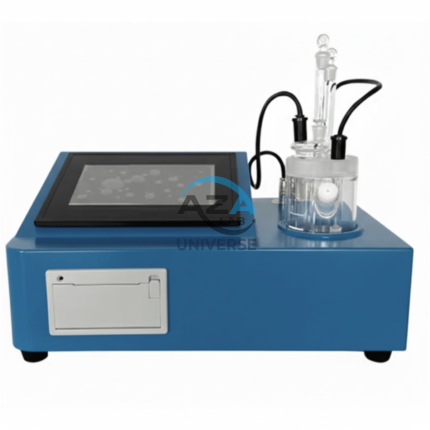

TAN & TBN (Karl Fischer Moisture Titrator) Tester AZA1315
