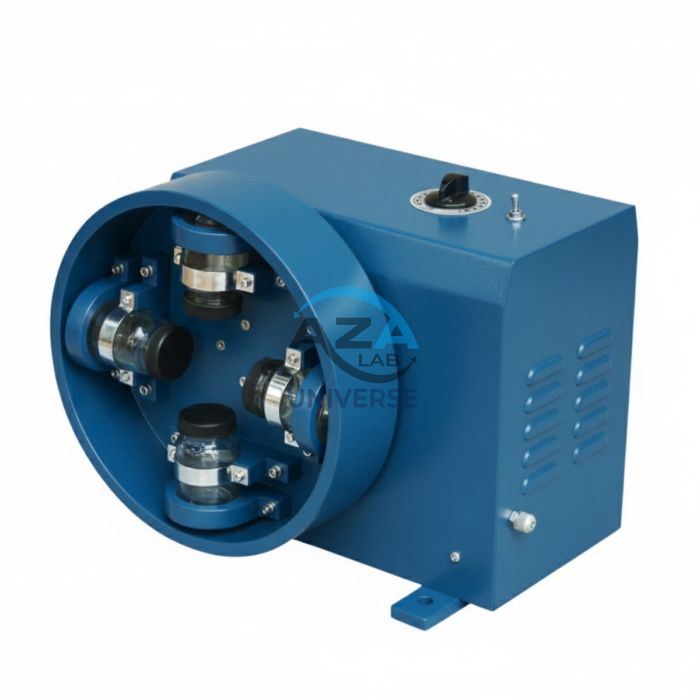

STRIPPING VALUE APPARATUS AZA0943
The AZA0943 Stripping Value Apparatus from Azalab is a precision laboratory instrument designed to evaluate the adhesion characteristics of bitumen-coated aggregates when subjected to water immersion. This test is critical in assessing the resistance of aggregates to stripping, a major cause of premature pavement failure due to moisture ingress.
The apparatus is widely used in road construction quality control laboratories, civil engineering departments, research institutions, and third-party testing facilities. It fully complies with ASTM D1664 and IS 6241, ensuring acceptance across both international and Indian testing frameworks.
Description
Importance of the Stripping Value Test
Moisture damage is one of the leading causes of deterioration in bituminous pavements. The stripping value test determines the ability of bitumen to retain its bond with aggregates under adverse water and temperature conditions.
Using the AZA0943, bitumen-coated aggregate samples are immersed in hot water under controlled conditions. After immersion, the aggregates are visually examined to assess the percentage of bitumen film stripped from the aggregate surface. This qualitative evaluation plays a vital role in:
-
Selecting suitable aggregates
-
Designing durable bituminous mixes
-
Evaluating the need for anti-stripping agents or additives
-
Ensuring long-term pavement performance
Robust Design & Efficient Operation
The AZA0943 Stripping Value Apparatus features a thermostatically controlled, double-walled stainless steel water bath capable of maintaining temperatures up to 100°C, simulating extreme service conditions. The system includes six heat-resistant glass beakers, suspended uniformly on a specially designed stand to ensure consistent heating and immersion.
The apparatus is engineered for laboratory safety, durability, and ease of operation, with corrosion-resistant construction and a compact footprint suitable for routine testing.
Key Features & Advantages
-
Designed for bitumen adhesion and aggregate stripping evaluation
-
Thermostatically controlled water bath up to 100°C
-
Six 500 ml heat-resistant glass beakers included
-
Stainless steel (SS304) construction for corrosion resistance
-
Uniform beaker suspension for consistent test conditions
-
Stable, anti-slip base for laboratory safety
-
Simple operation with reliable, repeatable results
Standards Compliance
The AZA0943 conforms to internationally recognized standards:
-
ASTM D1664 – Resistance of Bituminous Coatings to Water
-
IS 6241 – Method of Test for Determination of Stripping Value of Road Aggregates
Compliance ensures that results are consistent, reproducible, and acceptable for regulatory approvals and project specifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA0943 |
| Test Type | Bitumen adhesion / aggregate stripping test |
| Number of Beakers | 6 |
| Beaker Capacity | 500 ml each |
| Water Bath Type | Double-walled, stainless steel |
| Temperature Control | Thermostatic, up to 100°C |
| Heating Element | Electric immersion heater |
| Construction Material | Stainless Steel (SS304) |
| Included Accessories | Beakers, beaker stand, thermometer |
| Power Supply | 230V AC, 50 Hz |
| Safety Features | Overheat protection, insulated handles |
| Dimensions (L×W×H) | Approx. 600 × 350 × 300 mm |
| Weight | Approx. 20–25 kg |
| Standards | ASTM D1664, IS 6241 |
Applications
-
Highway and road construction quality control
-
Bituminous mix design laboratories
-
Civil engineering testing departments
-
Research and academic institutions
-
Third-party material testing laboratories
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the stripping value test?
A: It evaluates how effectively bitumen adheres to aggregate surfaces and whether moisture causes bond failure, directly impacting pavement durability.
Q2: Which standards does the AZA0943 comply with?
A: ASTM D1664 and IS 6241.
Q3: Can it simulate field temperature conditions?
A: Yes, the thermostatic water bath can operate up to 100°C.
Q4: What types of aggregates can be tested?
A: All standard bitumen-coated aggregates used in road construction, including crushed stone and gravels.
Q5: Is the test qualitative or quantitative?
A: The test is primarily qualitative, based on visual assessment of bitumen film stripping.
AZA0943 Stripping Value Apparatus
-
Determines adhesion of bitumen to aggregate surfaces
-
Ensures moisture resistance of bituminous mixes
-
Complies with ASTM D1664 and IS 6241
-
Essential for pavement quality assurance
-
Durable, easy-to-use laboratory equipment
Additional information
| No. of Beakers |
6 (500 ml capacity each) |
|---|---|
| Bath Type |
Double-walled, stainless steel |
| Temperature Control |
Thermostatic, up to 100°C |
| Heating Element |
Electric immersion heater |
