VISCOMETER BATH AZA0951

The AZA0951 Viscometer Bath from AZA Lab is a precision-engineered laboratory instrument developed to support high-temperature viscosity-related testing and evaporation loss determination of lubricating oils, in line with the intent and operational requirements of ASTM D445 and associated lubricant evaluation practices. The system is specifically designed to provide stable thermal conditions, controlled suction, and repeatable test environments, which are critical for evaluating oil volatility, thermal stability, and performance at elevated temperatures.

In modern lubricant formulation and quality assurance, evaporation loss and viscosity stability are key indicators of an oil’s suitability for high-temperature service conditions, such as internal combustion engines, turbines, compressors, and industrial machinery. The AZA0951 Viscometer Bath addresses these requirements by combining uniform metal bath heating, automatic temperature regulation, and vacuum-assisted operation, ensuring accurate, consistent, and reproducible test results

View Specification PDF

Enquiry on WhatsApp

Category: Bitumen/Asphalt

Description

Description

Design Philosophy and Construction

The AZA0951 is built around a high-efficiency aluminium alloy metal bath, selected for its superior thermal conductivity, mechanical strength, and resistance to deformation under prolonged high-temperature operation. This construction ensures:

Uniform heat distribution across the bath
Minimal temperature gradients
Enhanced insulation and reduced heat loss
Long operational life in continuous laboratory use

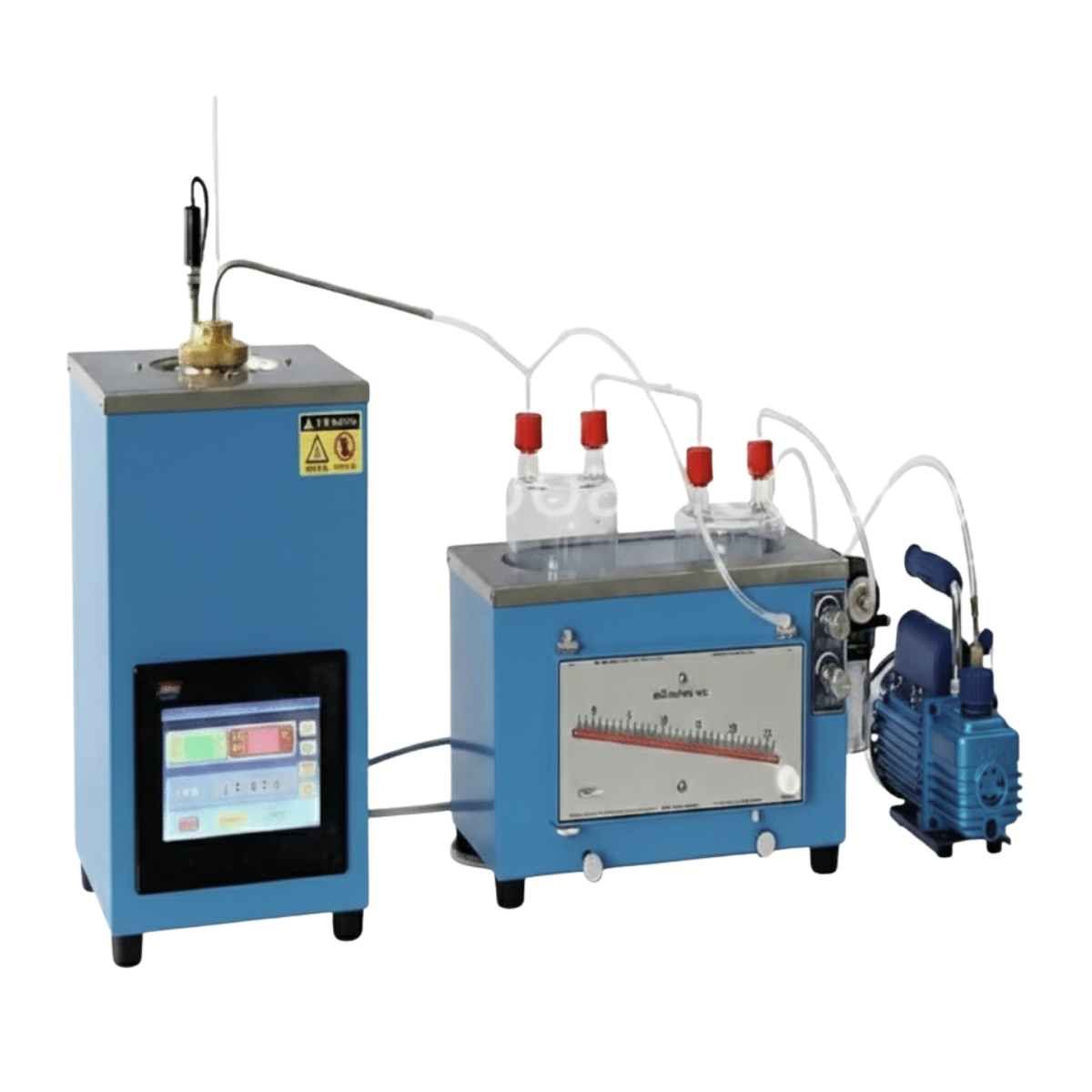

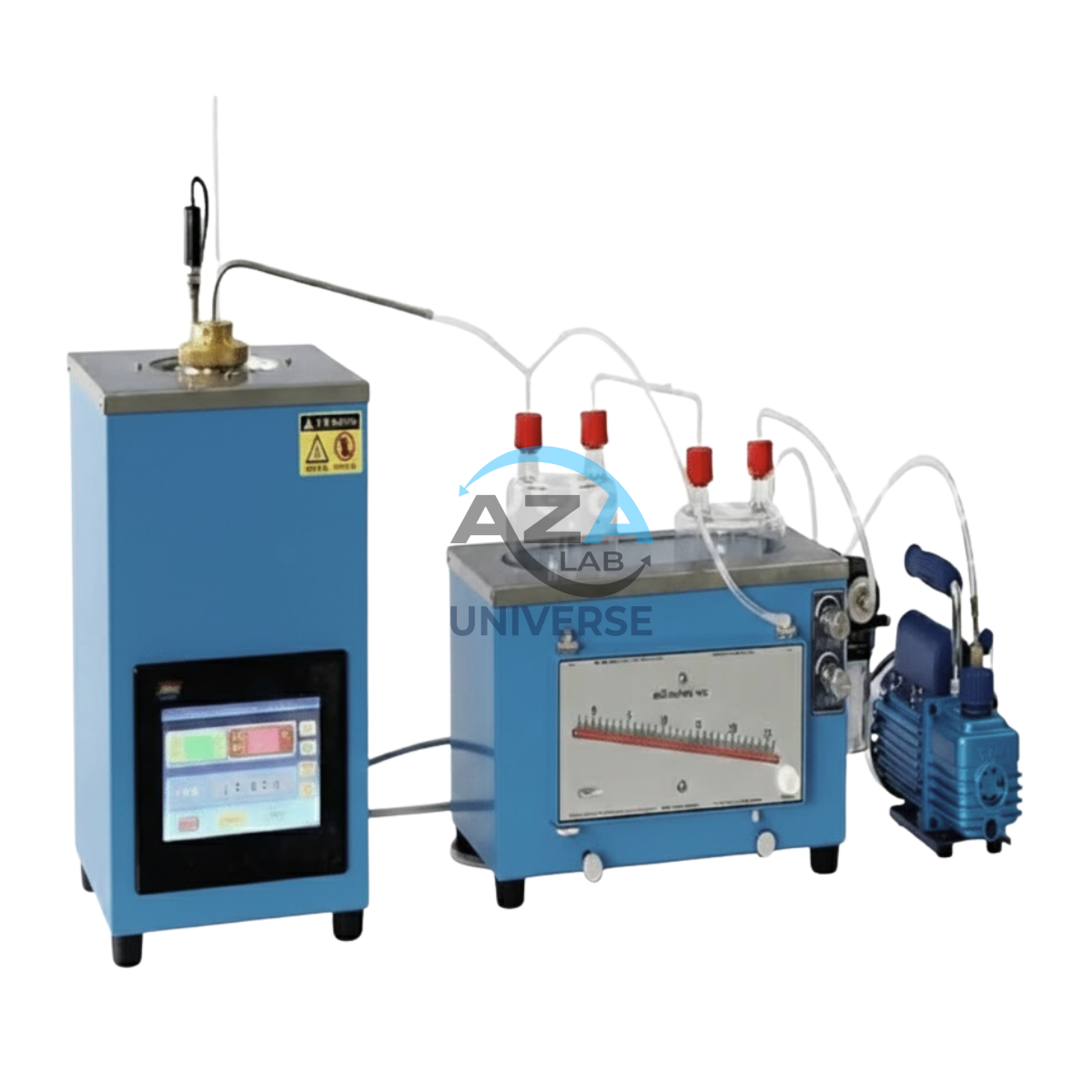

The instrument is divided into two functional sections:

Main Heating and Control Unit
Auxiliary Vacuum and Pressure Stabilization Unit

This modular design improves operational stability, simplifies maintenance, and enhances overall system reliability.

Operating Principle

The AZA0951 Viscometer Bath operates by maintaining a precisely controlled thermal environment for lubricant samples while applying controlled suction via a vacuum pump. During testing, the oil sample is exposed to elevated temperatures under regulated conditions, allowing accurate evaluation of:

Evaporation loss characteristics
High-temperature viscosity behavior
Thermal degradation tendencies

The integrated control system ensures that temperature, timing, and suction parameters remain within predefined limits throughout the test cycle, thereby minimizing operator dependency and improving repeatability.

Key Features of AZA0951

Precision Temperature Control

Fully automatic temperature regulation
High-stability metal bath heating
Real-time temperature monitoring
Consistent thermal performance throughout the test duration

Precise temperature control is essential, as even minor fluctuations can significantly influence evaporation and viscosity-related measurements.

Advanced Touch-Screen Interface

The AZA0951 is equipped with a color touch-screen display, providing:

Intuitive parameter setting
Automatic temperature control
Built-in timing functions
Alarm notifications for deviations or test completion
Real-time temperature visualization

This interface reduces operator error and improves laboratory efficiency, especially in routine quality control environments.

Vacuum-Assisted Suction System

The integrated vacuum pump system ensures controlled suction during testing, enabling:

Stable evaporation conditions
Consistent test repeatability
Improved correlation between test results and real-world operating conditions

The separate auxiliary unit enhances suction stability and reduces vibration or thermal interference with the heating section.

Compact and Efficient Laboratory Design

Despite its robust capabilities, the AZA0951 features a space-optimized footprint, making it suitable for laboratories with limited bench space while maintaining high-performance standards.

Technical Specifications – AZA0951

Parameter	Specification
Model	AZA0951
Power Supply	AC 220 V ±10%, 50 Hz
Total Power Consumption	≤ 1600 W
Heating Power	1200 W
Temperature Control Mode	Fully Automatic
Heating Method	Aluminium alloy metal bath
Suction Method	Integrated vacuum pump
Working Environment Temperature	15 °C to 35 °C
Permissible Relative Humidity	≤ 85%
Main Unit Dimensions	320 × 280 × 500 mm
Auxiliary Unit Dimensions	410 × 320 × 450 mm

Compliance and Testing Relevance

The AZA0951 Viscometer Bath is designed in accordance with ASTM D445 operational principles, supporting viscosity-related and high-temperature lubricant evaluation workflows commonly used in:

Petroleum testing laboratories
Lubricant formulation facilities
Quality assurance departments
Research and development centers

While ASTM D445 primarily defines kinematic viscosity measurement, the AZA0951 provides the controlled thermal and operational environment necessary for associated evaporation and stability testing procedures used alongside viscosity analysis.

Applications of AZA0951

Lubricant Quality Control

Engine oils
Gear oils
Hydraulic oils
Turbine oils
Industrial lubricants

Research and Development

Formulation optimization
Additive performance evaluation
Thermal degradation studies

Petroleum and Industrial Testing Laboratories

Routine batch consistency checks
Compliance testing
Comparative performance studies

Why Choose AZA0951?

High Accuracy and Repeatability

The stable metal bath, automatic temperature control, and vacuum-assisted operation ensure highly repeatable and dependable test results, essential for certification and compliance testing.

Operator-Friendly Design

The touch-screen interface simplifies training requirements and enables efficient day-to-day operation in busy laboratories.

Robust and Long-Lasting Construction

The aluminium alloy bath and modular system design ensure durability even under continuous high-temperature usage.

Optimized Laboratory Footprint

Compact dimensions allow easy integration into existing lab layouts without sacrificing performance.
