AUTOMATIC LEVEL AZA1032

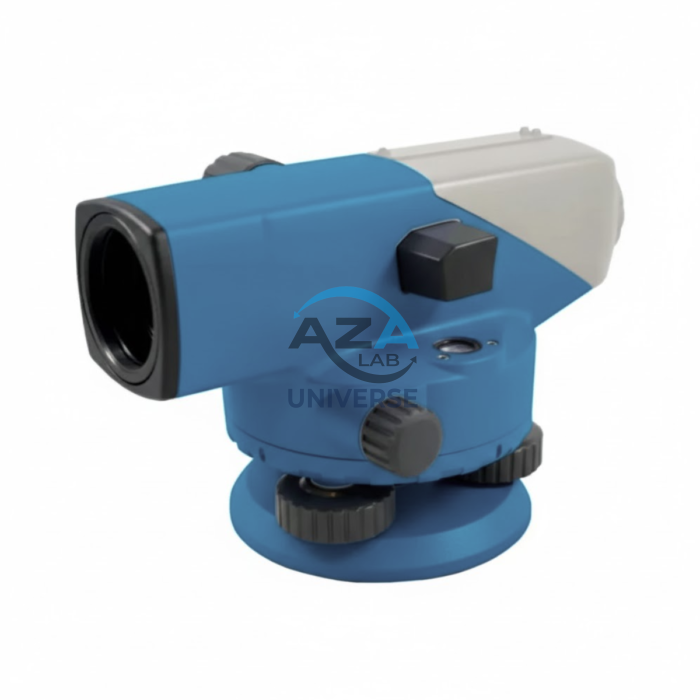

AZA1032 Automatic Level (Self-Leveling Optical Level)
The AZA1032 Automatic Level is a precision self-leveling optical instrument designed for accurate height transfer, alignment, and leveling operations in construction, surveying, and civil engineering projects. Engineered for reliability, ease of use, and field durability, it delivers consistent performance on demanding job sites.
Automatic Self-Leveling Accuracy
At the core of the AZA1032 is a built-in compensator mechanism that automatically aligns the line of sight to a true horizontal plane. After rough leveling using the circular bubble vial, the compensator fine-tunes alignment instantly, eliminating manual errors and significantly reducing setup time.
This self-leveling system ensures stable readings even in environments affected by vibration or minor ground movement.
Description
High-Quality Optics & Measurement Precision
The AZA1032 offers optical magnification options from 24x to 32x, providing clear and sharp visibility of leveling staff markings over long distances. With an accuracy of ±2.0 to ±2.5 mm per kilometer of double-run leveling, it meets the precision requirements of most civil and infrastructure projects.
Its 36 mm objective aperture enhances brightness and clarity, enabling confident readings in varying light conditions and across wide construction sites.
360° Horizontal Angle Measurement
A 360-degree graduated horizontal circle allows basic angular measurements for alignment and layout tasks. Smooth rotation and fine-motion adjustment knobs provide precise aiming and controlled movement, making the instrument suitable for both elevation transfer and horizontal layout work.
The minimum focus distance of 0.5 meters ensures flexibility for both close-range and long-distance applications.
Rugged Construction for Field Use
The AZA1032 is built for tough site environments. Its dust-proof and water-resistant housing (IP54 / IP65, model-dependent) protects internal optics and mechanisms from moisture, dust, and shocks. This makes it reliable for use in rain, dusty conditions, and vibration-prone construction zones.
The instrument mounts securely on any standard 5/8-inch tripod and is compatible with metric and imperial leveling staves.
Easy Setup & Long-Term Reliability
Setup is straightforward:
-
Mount on tripod
-
Roughly level using the bubble vial
-
Allow the compensator to self-level automatically
Each unit is factory-calibrated and supplied with essential accessories. The sealed optical system minimizes the need for frequent recalibration, though periodic checks are recommended after transport or impact.
Typical Applications
The AZA1032 Automatic Level is widely used for:
-
Road and railway construction
-
Building foundation and floor leveling
-
Pipeline and drainage alignment
-
Topographic surveying and landscaping
-
Bridges and large-scale infrastructure projects
It is equally suitable for professional engineers and students in surveying and civil engineering programs.
Technical Specifications – AZA1032
| Feature | Specification |
|---|---|
| Magnification | 24x / 28x / 32x (model-dependent) |
| Accuracy | ±2.0 mm to ±2.5 mm per km (double-run) |
| Compensator Range | ±15 arc minutes |
| Minimum Focus Distance | 0.5 m |
| Objective Aperture | 36 mm |
| Horizontal Circle | 360° graduated |
| Dust / Water Protection | IP54 / IP65 |
| Mounting Thread | Standard 5/8 inch |
| Weight | Approx. 1.5 – 2.5 kg |
| Accessories Supplied | Carry case, adjustment tools, manual, cleaning cloth |
Key Advantages of AZA1032
-
Self-leveling optical instrument with automatic compensator
-
24x–32x magnification for clear long-range visibility
-
High accuracy up to ±2.5 mm/km
-
Rugged, dust- and water-resistant design
-
Smooth 360° horizontal angle measurement
-
Compatible with standard tripods and leveling staves
-
Supplied with protective carry case and tools
Frequently Asked Questions (FAQ)
Q1: Is the AZA1032 suitable for beginners?
Yes. The self-leveling compensator makes it easy to operate with minimal training.
Q2: What distance can it measure accurately?
With high magnification, leveling staff readings can be taken confidently beyond 100 meters.
Q3: Can it be used outdoors in harsh conditions?
Yes. The IP-rated housing protects against dust and water ingress.
Q4: Does it require frequent calibration?
No. It is factory-calibrated; periodic checks are recommended after long transport or impact.
Q5: What accessories are included?
The instrument is supplied with a carry case, adjustment tools, cleaning cloth, and instruction manual.
Additional information
| Magnification |
24x / 28x / 32x (depending on model) |
|---|---|
| Accuracy |
±2.0 mm to ±2.5 mm/km |
| Compensator Range |
±15 arc minutes |
| Minimum Focus Distance |
0.5 meters |
