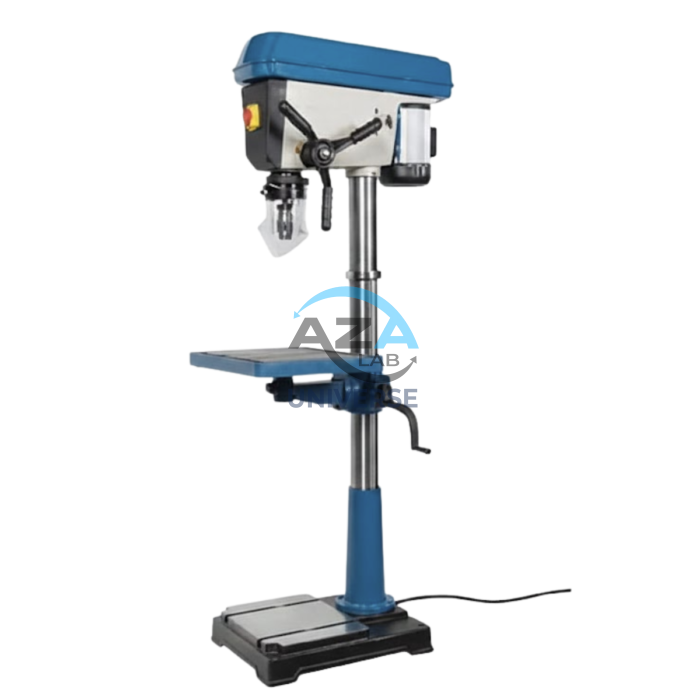

Pillar Drilling Machine AZA1194
The AZA LAB Pillar Drilling Machine – Models AZA1194 and AZA1194A is a robust and precision-engineered machine designed for accurate boring and hole-making operations across a wide range of materials. With a maximum drilling capacity of 25 mm, this machine delivers consistent performance, durability, and cost-effective operation.
Built for reliability and ease of use, the AZA1194 series is ideal for workshops, tool rooms, maintenance units, and small to medium-scale industrial applications where accuracy, low vibration, and minimal maintenance are essential.
Description
Key Benefits
-
Accurate and consistent drilling performance
-
Heavy-duty construction for long service life
-
Economical solution without compromising quality
-
Quiet operation with reduced vibration
-
Low maintenance and high operational reliability
Features
-
Consistent & Accurate Boring
Designed to deliver precise hole alignment and uniform drilling results. -
Durable Construction
Manufactured using high-quality components to withstand continuous industrial use. -
Low Noise & Reduced Vibration
Ensures smoother operation and improved operator comfort. -
Low Maintenance Design
Requires minimal upkeep while maintaining superior machining accuracy. -
Cost-Effective Operation
Offers excellent value for money compared to other boring and drilling solutions. -
25 mm Drilling Capacity
Suitable for a wide range of general engineering and fabrication tasks.
Applications
-
Tool rooms and maintenance workshops
-
Fabrication and engineering units
-
Training institutes and technical labs
-
General drilling and boring operations
Technical Specifications – AZA1194 / AZA1194A
| Specification | AZA1194 | AZA1194A |
|---|---|---|
| Machine Capacity | 25 mm | 25 mm |
| Column Diameter | 92 mm | 92 mm |
| Center of Spindle to Column | 250 mm | 250 mm |
| Distance – Spindle to Table | 645 mm | 660 mm |
| Distance – Spindle to Base | 1000 mm | 1045 mm |
| Distance from Spindle Centre | 250 mm (Max) | 250 mm (Max) |
| Table Travel | 480 mm | 480 mm |
| Spindle Nose | MT-3 | MT-3 |
| Spindle Travel | 250 mm | 180 mm |
| Spindle Speed Range | 70 – 2000 RPM | 130 – 2600 RPM |
| Number of Spindle Speeds | 8 | 8 |
| Table Size | 330 × 330 mm | 330 × 330 mm |
| Base Size (Machined Area) | 255 × 310 mm | 365 × 575 mm |
| Overall Height (with Guard) | 1780 mm | 1730 mm |
| Main Motor Power | 1 HP | 1 HP |
Performance & Reliability
The AZA1194 series pillar drilling machines are designed to provide stable, vibration-free drilling with consistent accuracy. Their rigid construction and optimized spindle speed ranges make them suitable for both light and continuous drilling operations.
Why Choose AZA LAB?
AZA LAB machines are engineered to meet the practical needs of workshops and industrial users. The Pillar Drilling Machine AZA1194 / AZA1194A reflects AZA LAB’s commitment to precision, durability, and dependable performance at an economical cost.
