Wood working Table Saw Machine (AZA 1203)
Woodworking Table Saw Model AZA 1203 offers precision, safety, and efficiency for all your woodworking needs
Description

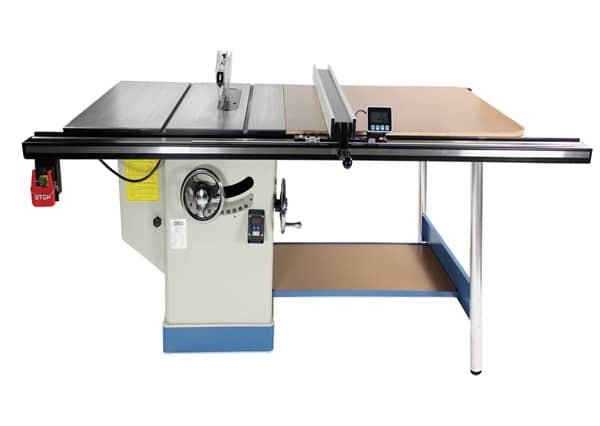

Woodworking Table Saw Machine – A Z A LAB Model AZA 1203
The A Z A LAB Woodworking Table Saw Machine Model AZA 1203 is a high-performance, motor-driven saw designed to provide precision and safety in woodworking projects. Built with a solid cabinet design and advanced features, this machine ensures smooth operation, maximum efficiency, and reliable performance. It is engineered with a quick-release riving knife to reduce binding and kickback risk, enhancing operator safety.
The table saw includes an 11″ left and right cast iron extension wings, delivering the largest table surface in its class, allowing for versatile workpiece handling. The poly-V drive belt system ensures quiet and efficient operation, while the rail-mounted magnetic switch provides easy access and overload protection. An enclosed cabinet with a sealed storage drawer and a hinged motor cover offer quick access to the motor and belts, facilitating maintenance.
The deluxe miter gauge with adjustable positive stops and large soft grip handles ensures accurate miters and large crosscutting capacity. The heavy-duty chrome-plated handwheels contribute to smooth trunnion and arbor movement. This table saw also features a built-in 4″ dust collection port to maintain a clean working environment and precision ground high-luster cast iron table tops with front edge bevel for seamless workpiece positioning.
- Quick Release Riving Knife: Greatly reduces binding and kickback risk.
- Push Button Arbor Lock: Enables rapid blade change.
- Enhanced Dust Collection: Shrouded blade increases dust collection efficiency.
- Cast Iron Extension Wings: Provides the largest table surface in its class for enhanced versatility.
- Quiet Operation: Poly-V drive belt system ensures quiet and efficient operation.
- Safety Features: Includes a rail-mounted magnetic switch for overload protection and an independent leaf safety guard.
- Easy Maintenance: Enclosed cabinet with a built-in sealed storage drawer and hinged motor cover for quick access.
- Precision Work: Deluxe miter gauge, chrome-plated handwheels, and beveled cast iron table tops ensure accurate cuts and smooth operations.
| Specification | AZA 1203 |
|---|---|
| Style (Type) | Cabinet |
| Blade Diameter (In.) | 10 |
| Arbor Diameter (In.) | 5/8 |
| Arbor Speed (RPM) | 4300 |
| Maximum Depth of Cut (In.) | 3 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Rip Left of Blade (In.) | 13 |
| Maximum Rip Right of Blade (In.) | 30 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 10 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Width of Dado (In.) | 13/16 |
| Table Type | Cast Iron |
| Table Size (L x W) (In.) | 29 x 20 |
| Table Size with Extension (L x W) (In.) | 29 x 42 |
| Miter Gauge Type | Deluxe |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 3 |
| Motor Phase (PH) | 1 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Amps | 14.5 |
