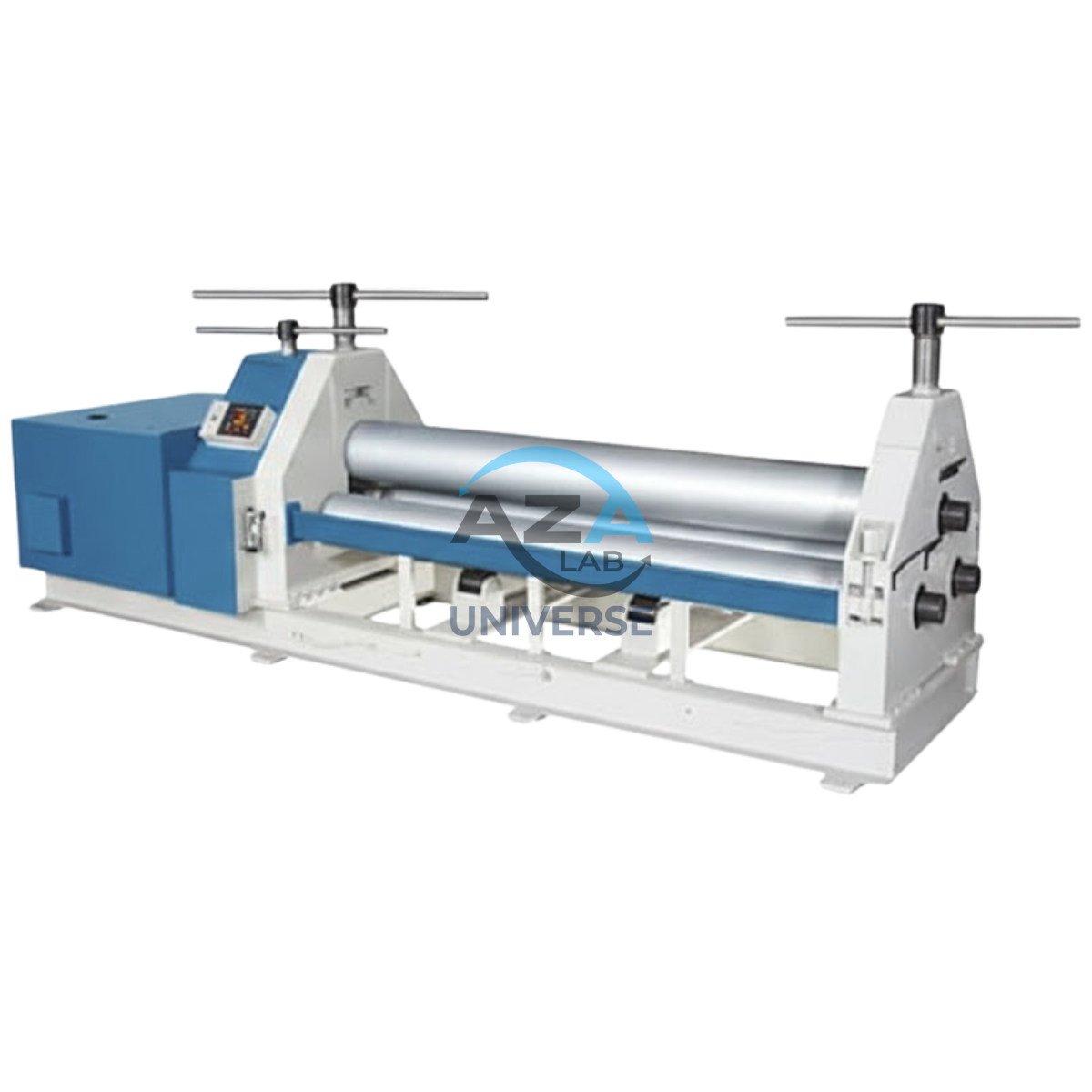

PLATE ROLLING MACHINE AZA1195
The AZA LAB Plate Rolling Machine – Model AZA1195 is a high-performance hydraulic machine engineered for accurate and consistent metal plate rolling. Designed with a 3-roll pyramid configuration and double pre-bending arrangement, this machine delivers superior bending accuracy and repeatable results for industrial fabrication applications.
Built using high-strength alloy steel rolls, robust hydraulics, and internationally approved electrical components, AZA1195 ensures durability, operational safety, and long service life even under demanding working conditions
Description
Key Advantages
-
Precise pre-bending and rolling accuracy
-
Hydraulic operation for smooth and controlled movement
-
Heavy-duty construction for industrial use
-
Reliable performance with overload protection
-
Designed to meet global quality standards
Features
3-Roll Pyramid Type Design
-
Ensures accurate plate pre-bending and rolling
-
Double pre-bending arrangement enhances forming precision
Hydraulic Operation
-
Top roll remains fixed for stability
-
Base roll moves vertically using hydraulic cylinders for controlled bending
Planetary Gearbox Drive
-
Base rolls driven by a planetary gearbox coupled with an electric motor
-
Provides smooth power transmission and consistent torque
Alloy Steel Rolls
-
Rolls manufactured from high-quality alloy steel
-
Offers excellent wear resistance and extended operational life
Safety & Protection
-
Drop-end protection using hydraulic cylinders
-
Overload protection to prevent machine damage under excessive load
Global Quality Compliance
-
Hydraulic and electrical components conform to international quality standards
Applications
-
Sheet metal fabrication
-
Structural steel rolling
-
Cylindrical and conical plate forming
-
Industrial fabrication workshops
Technical Specifications
| Specification | AZA1195 |
|---|---|
| Pre-Bending Capacity | 6 mm |
| Bending Capacity | 8 mm |
| Bending Length | 1500 mm |
| Top Roll Diameter | 185 mm |
| Side Roll Diameter | 165 mm |
| Minimum Diameter (Pre-Bending) | 278 mm |
| Minimum Diameter (Bending) | 555 mm |
| Motor Power | 5.5 kW |
Performance & Reliability
The AZA1195 Plate Rolling Machine combines hydraulic precision, rigid construction, and premium components to deliver consistent bending quality with minimal maintenance. Its robust design makes it suitable for continuous industrial operation while maintaining high accuracy and safety.
Why Choose AZA1195?
-
Proven 3-roll hydraulic pyramid design
-
High bending accuracy with double pre-bending
-
Long-lasting alloy steel rolls
-
Reliable, low-maintenance industrial solution
