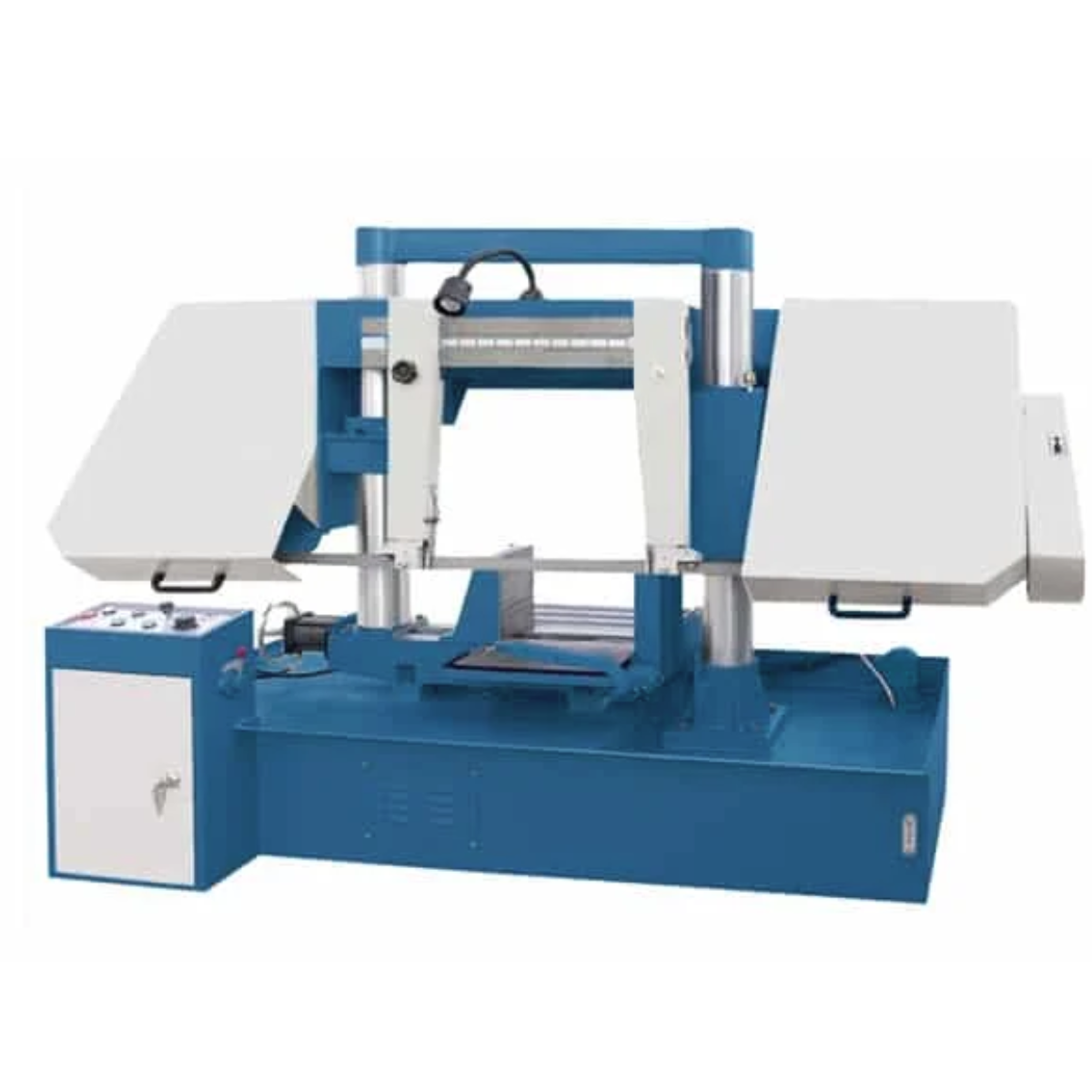

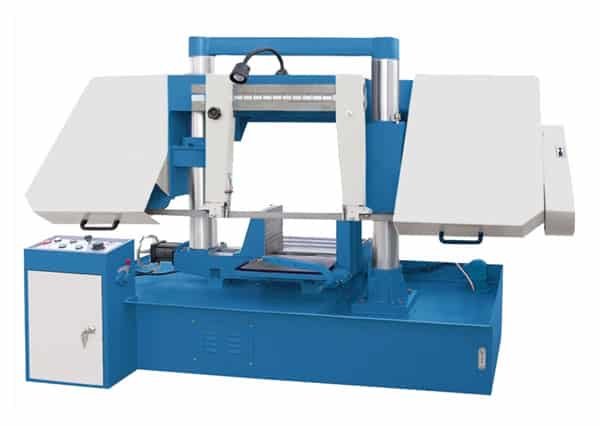

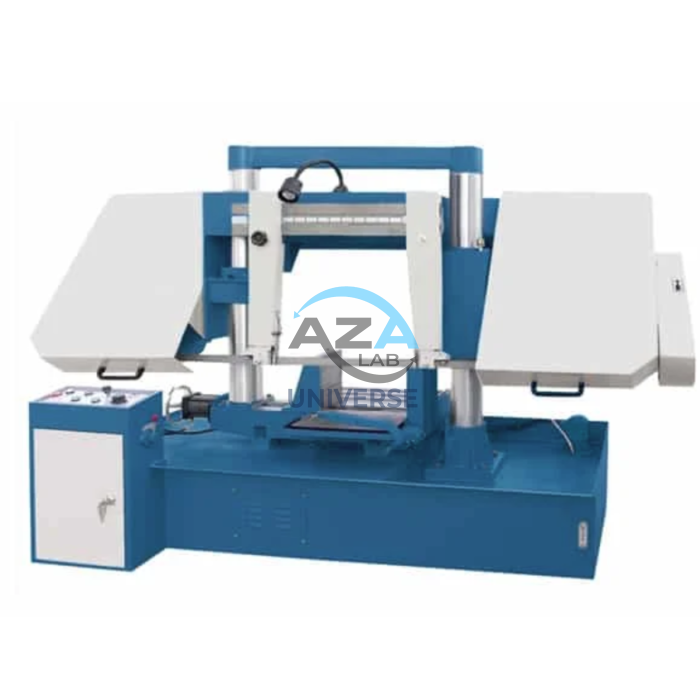

BANDSAW MACHINE AZA1193
The AZA1193 Bandsaw Machine by AZALAB is a robust, high-precision cutting solution designed for efficient and accurate cutting of metal and wood materials in industrial workshops, fabrication units, and training laboratories. Engineered with a stress-relieved fabricated steel structure, the machine delivers excellent rigidity, vibration resistance, and long-term operational stability.
Designed for continuous-duty industrial use, the AZA1193 combines mechanical reliability with operator-friendly controls, making it suitable for both production environments and educational training facilities.
Description
Construction & Design
The machine features a stress-relieved fabricated steel frame, ensuring dimensional stability and reduced distortion during prolonged operation. A hard chrome-plated, precision-ground column enables smooth and accurate vertical movement of the saw frame, enhancing cutting consistency and blade life.
An automatic height adjustment mechanism allows precise positioning of the saw frame based on material size, improving cutting efficiency and repeatability.
Cutting Performance & Control
The AZA1193 is equipped with variable pressure control for cutting feed, enabling the operator to adjust feed force according to material type, size, and hardness. This ensures cleaner cuts, reduced blade wear, and optimized productivity.
The integrated auto cutting stop function automatically halts the machine at the end of the cutting cycle, enhancing operator safety and reducing unnecessary power consumption.
Operation & Flexibility
A push-button type operating panel provides intuitive and safe machine control. The heavy-duty worm gearbox ensures smooth torque transmission and long service life, even under continuous load conditions.
The moveable blade support guide allows adaptability for different cutting lengths and profiles, while manual blade tensioning ensures precise blade setup and easy maintenance. Manual material feeding gives the operator full control over workpiece positioning.
The machine supports combined sawing modes, allowing operation in flexible, manual, and automatic modes, making it suitable for varied cutting applications and skill levels.
Applications
-
Metal fabrication workshops
-
Structural steel cutting
-
Mechanical engineering workshops
-
Tool rooms and maintenance departments
-
Industrial training institutes and technical labs
-
Educational and skill development centers
Key Features
-
Stress-relieved fabricated steel structure for rigidity
-
Hard chrome-plated ground column for smooth movement
-
Automatic saw frame height adjustment
-
Variable pressure control for cutting feed
-
Auto cutting stop for safety and efficiency
-
Push-button type operating control panel
-
Heavy-duty worm gearbox for reliable transmission
-
Moveable blade support guide for flexible cutting
-
Manual blade tensioning system
-
Manual material feeding
-
Combined sawing modes: flexible, manual, and automatic
Technical Specifications – AZA1193
| Parameter | AZA1193 | AZA1193A | AZA1193B |
|---|---|---|---|
| Cutting Capacity (Round) | 280 mm | 350 mm | 400 mm |
| Cutting Capacity (Square) | 280 × 280 mm | 350 × 350 mm | 400 × 400 mm |
| Blade Size | 3505 × 27 × 0.9 mm | 4115 × 34 × 1.1 mm | 5000 × 41 × 1.3 mm |
| Blade Speed | 27 / 45 / 69 m/min | 27 / 45 / 69 m/min | 27 / 45 / 69 m/min |
| Clamping Type | Hydraulic | Hydraulic | Hydraulic |
| Material Feeding | Automatic (0–500 mm) | Automatic (0–500 mm) | Automatic (0–500 mm) |
| Main Motor Power | 3.0 kW | 3.0 kW | 4.0 kW |
| Hydraulic Motor Power | 0.75 kW | 0.75 kW | 0.75 kW |
| Coolant Motor Power | 0.04 kW | 0.04 kW | 0.125 kW |
| Power Supply | 415 V, 50 Hz, 3 Phase | 415 V, 50 Hz, 3 Phase | 415 V, 50 Hz, 3 Phase |
| Overall Dimensions (L × W × H) | 1860 × 2400 × 1400 mm | 2000 × 2500 × 1500 mm | 2500 × 2500 × 1600 mm |
The AZA1193 Bandsaw Machine is a dependable and precise cutting solution offering excellent structural strength, flexible operation modes, and consistent cutting performance. Its industrial-grade construction, safety features, and adaptability make it an ideal choice for professional workshops, production units, and training laboratories.
Make / Model: AZA1193
Related products
CNC MILLING MACHINE AZA1174
The AZA1174 CNC Milling Machine by AZALAB is a high-performance, industrial-grade machining solution engineered to deliver exceptional precision, speed, and operational reliability. Designed for modern manufacturing environments, this 3-axis CNC milling machine integrates advanced control technology, rigid mechanical construction, and high-speed motion capability to handle complex milling operations with consistent accuracy.
At the core of the AZA1174 is the FANUC Series 31 CNC control system, known globally for its stability, processing speed, and intelligent machining functions. With simultaneous 3-axis control, the machine ensures smooth interpolation, accurate contouring, and efficient cycle times, making it ideal for precision component manufacturing, tool rooms, R&D centers, and production workshops.
The machine is powered by a 200–240 VAC, 50–60 Hz, 3-phase electrical system, delivering reliable performance under continuous industrial duty. Its rigid frame construction and optimized mechanical design minimize vibration and thermal distortion, ensuring dimensional accuracy even during high-speed machining.
ENGINE CYLINDER BORING MACHINE AZA1177
The AZA1177 Boring Machine is a reliable and high-precision solution designed specifically for reboring engine cylinders in motorcycles, automobiles, and small to medium-sized tractors. Engineered for accuracy, productivity, and ease of operation, this machine is widely used in automotive workshops, engine reconditioning units, vocational training centers, and service garages.
Built with a rigid and durable structure, the AZA1177 ensures stable cutting performance and consistent dimensional accuracy during cylinder reboring operations. Its precision spindle system delivers smooth rotation and controlled feed, allowing operators to achieve superior surface finish and exact bore geometry. The machine is suitable for repeated, high-accuracy operations without loss of performance, making it ideal for both repair and reconditioning work.
HYDRAULIC GUILLOTINE SHEARING MACHINE AZA1179
The Hydraulic Guillotine Shearing Machine AZA1179 by AZA LAB is a premium, high-precision machine engineered for efficient and accurate cutting of metal sheets. Designed with a hydraulically variable rake angle, this machine delivers superior cutting performance, particularly for thin sheets, while ensuring twist-free and burr-minimized cuts.
Part of AZA LAB’s proven guillotine shear range (Models AZA1179 to AZA1185), the AZA1179 is ideal for fabrication shops, sheet metal industries, maintenance workshops, and light to medium industrial cutting applications where accuracy, safety, and reliability are critical.
PIPE THREADING MACHINE AZA1199
The AZA LAB Pipe Threading Machines – Models AZA1199, AZA1199A, and AZA1199B are heavy-duty industrial machines designed for accurate and efficient pipe and rod threading using an advanced chip-less cold forming (thread rolling) process. This method forms thread roots and crests by material displacement rather than cutting, ensuring zero material waste, superior thread strength, and excellent surface finish.
Engineered with a robust fabricated steel frame, versatile operation modes, and advanced cooling and lubrication systems, these machines are ideal for high-performance threading applications across multiple industries.

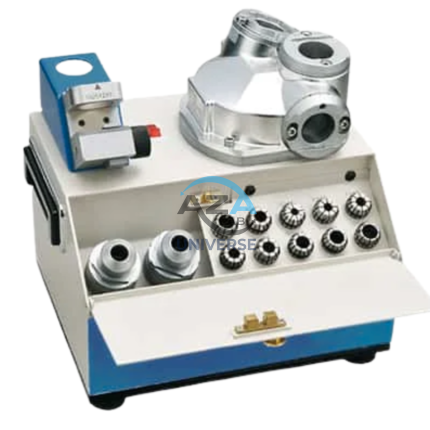

RE-SHARPENING MACHINE AZA1197
